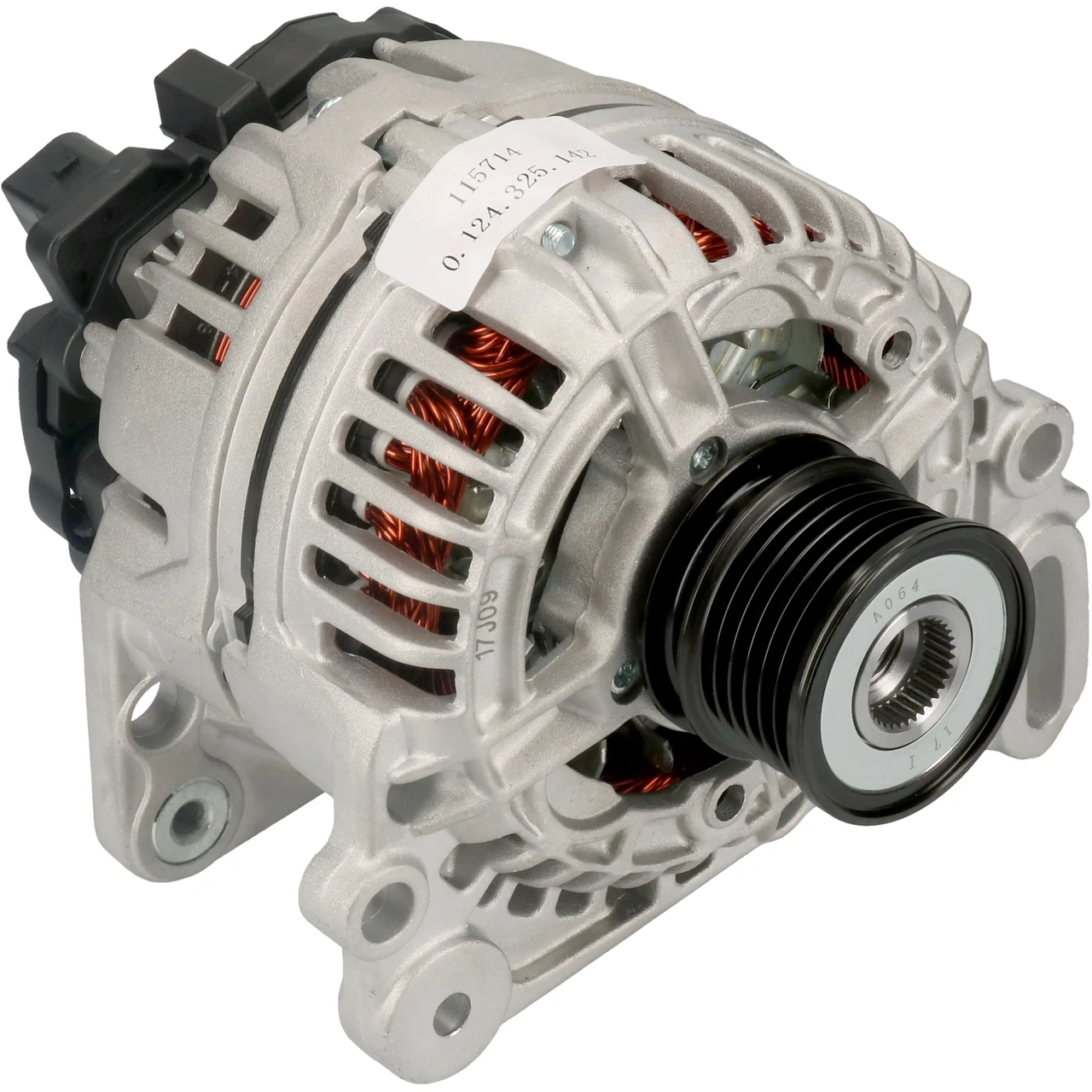

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115714

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 110, Rotation: CW, Mounting bracket distributor: 62.00

Description

Voltage: 14
Amp: 110
Pulley dist.: 40.00
Width/holder arm: 14.00
Mounting bracket dist.: 62.00
Bracket hole: 8.00
Belt adjustment bracket hole position.: 15
Belt adjustment bracket hole 1: 10.00x39.00
Pulley dia.: 50.00
Grooves/pulley: 6
Radius: 90.00
B+: M8
Position/B+ in min.: 59
D+ Size: Plug
Rotation: CW
Plug no.: PL61
W plug type: Plug
Total length mm: 197.00
Pulley: SP/FW
Voltage regulator type: IR
Prod. info: BN

Files

  • OEM
    F032115714, 2065ir, 045903023H, 045903023HX, 0124325142

  • Normalised article numbler
    a0501, cal10561, dra0942, f032115714, lra03403, 2065ir, 286515, 440885, 443258, 554197ri, 12090576, 32443258, 045903023h, 045903023hx, 0124325142, 305553110, 2113801102
  • Description
    Voltage: 14
    Amp: 110
    Pulley dist.: 40.00
    Width/holder arm: 14.00
    Mounting bracket dist.: 62.00
    Bracket hole: 8.00
    Belt adjustment bracket hole position.: 15
    Belt adjustment bracket hole 1: 10.00x39.00
    Pulley dia.: 50.00
    Grooves/pulley: 6
    Radius: 90.00
    B+: M8
    Position/B+ in min.: 59
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL61
    W plug type: Plug
    Total length mm: 197.00
    Pulley: SP/FW
    Voltage regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032115714, 2065ir, 045903023H, 045903023HX, 0124325142

    • Normalised article numbler
      a0501, cal10561, dra0942, f032115714, lra03403, 2065ir, 286515, 440885, 443258, 554197ri, 12090576, 32443258, 045903023h, 045903023hx, 0124325142, 305553110, 2113801102
