HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115718

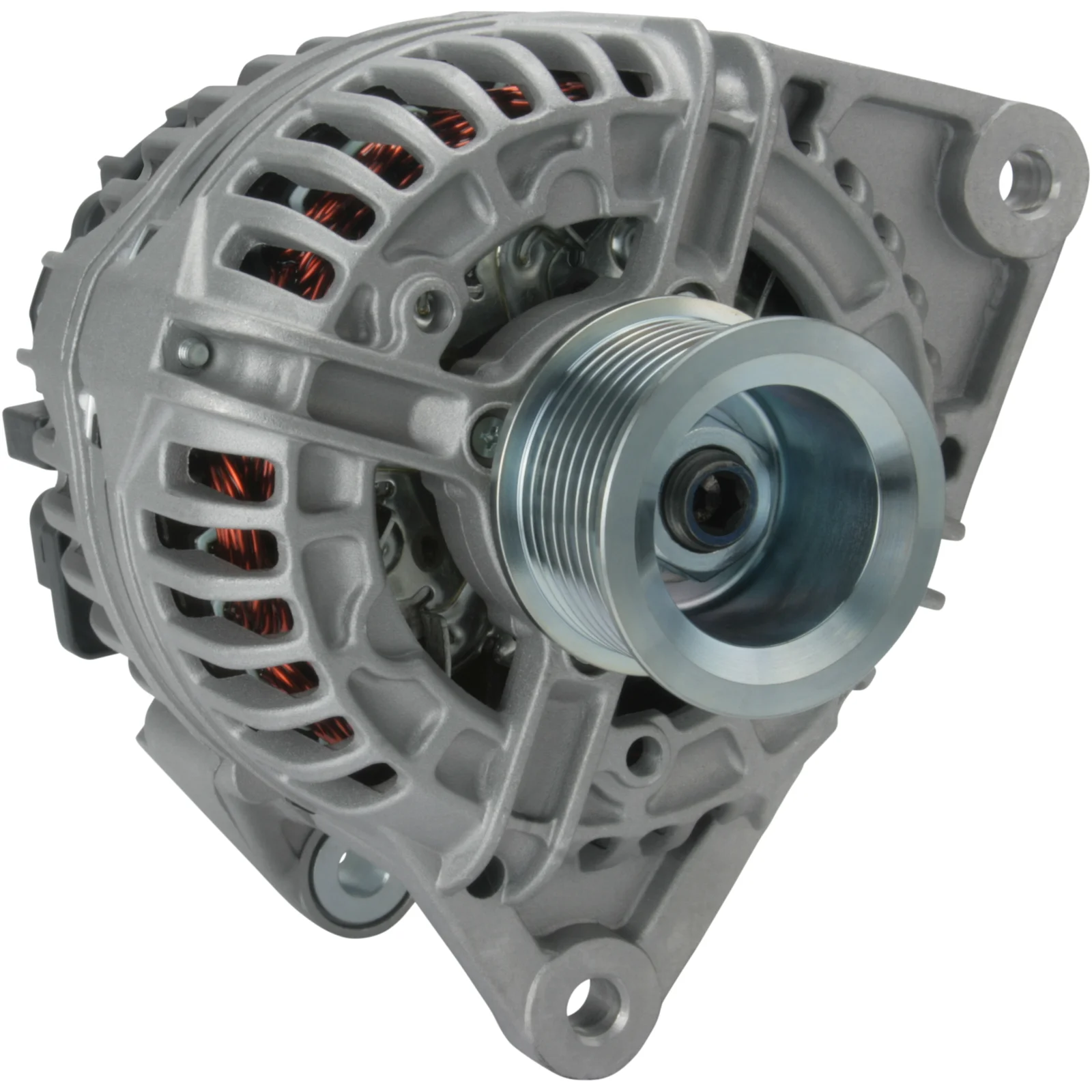

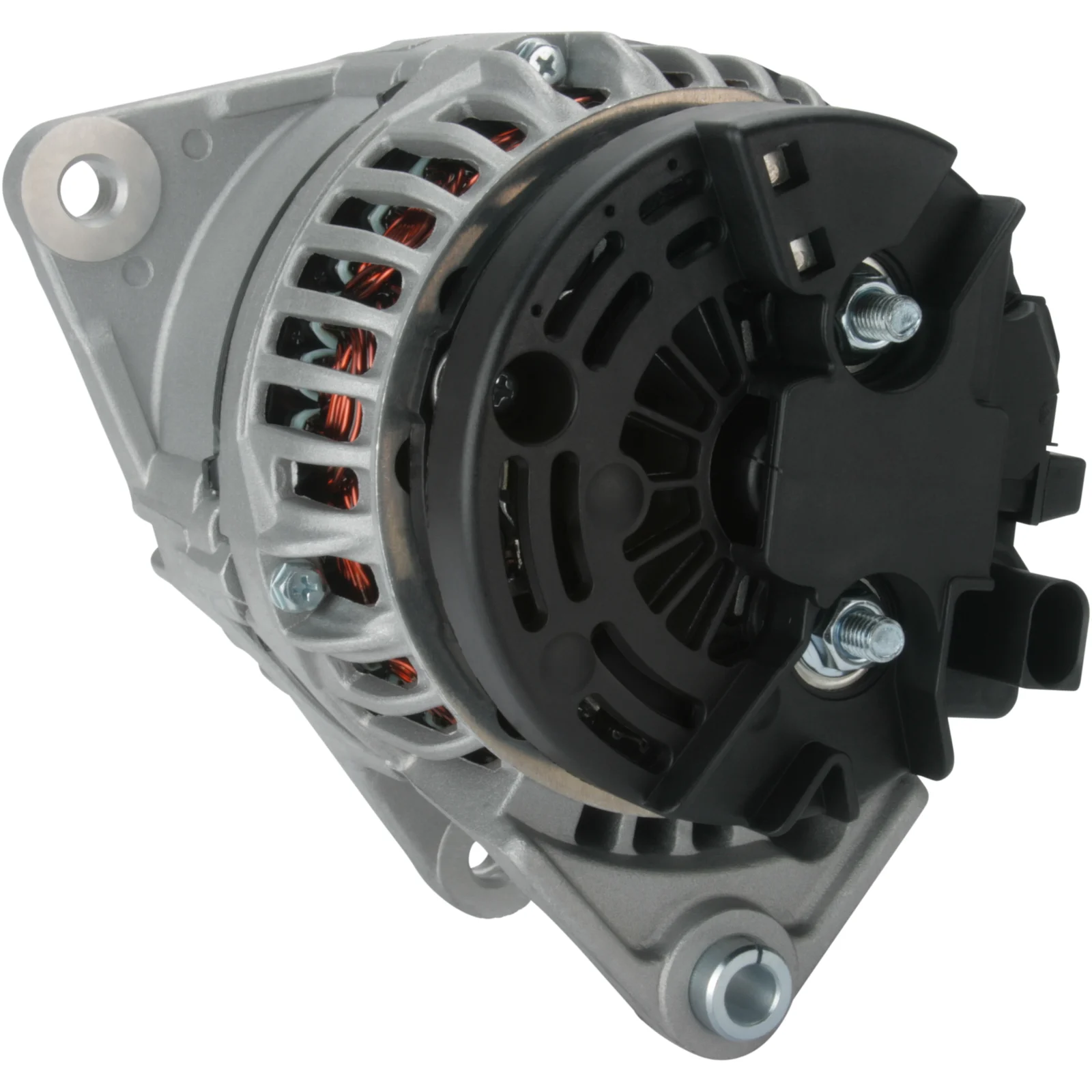

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 140, Rotation: CW, Mounting bracket distance: 80.00

Description

Voltage: 14
Amp: 140
Pulley dist.: 37.50
Width/holder arm: 14.00
Mount. bracket dist.: 80.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 10
Belt. adj. bracket hole 1: 11.00
Pulley dia.: 55.00
Grooves/pulley: 8
Radius: 94.00
Radius 2: 96.00
B+: M8
Position/B+ in min.: 5
D+ Size: Plug
Rotation: CW
Plug no.: PL61
Pulley: SP
Regulator type: IR
Prod. info: BN

Files

  • OEM
    F032115718, 87359905, 0124525119

  • Normalised article numbler
    a0349, f032115718, lra03631, 112988, 286771, 87359905, 0124525119, 505549140, 0986082523, 5001821402
  • Description
    Voltage: 14
    Amp: 140
    Pulley dist.: 37.50
    Width/holder arm: 14.00
    Mount. bracket dist.: 80.00
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 10
    Belt. adj. bracket hole 1: 11.00
    Pulley dia.: 55.00
    Grooves/pulley: 8
    Radius: 94.00
    Radius 2: 96.00
    B+: M8
    Position/B+ in min.: 5
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL61
    Pulley: SP
    Regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032115718, 87359905, 0124525119

    • Normalised article numbler
      a0349, f032115718, lra03631, 112988, 286771, 87359905, 0124525119, 505549140, 0986082523, 5001821402
