HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115749

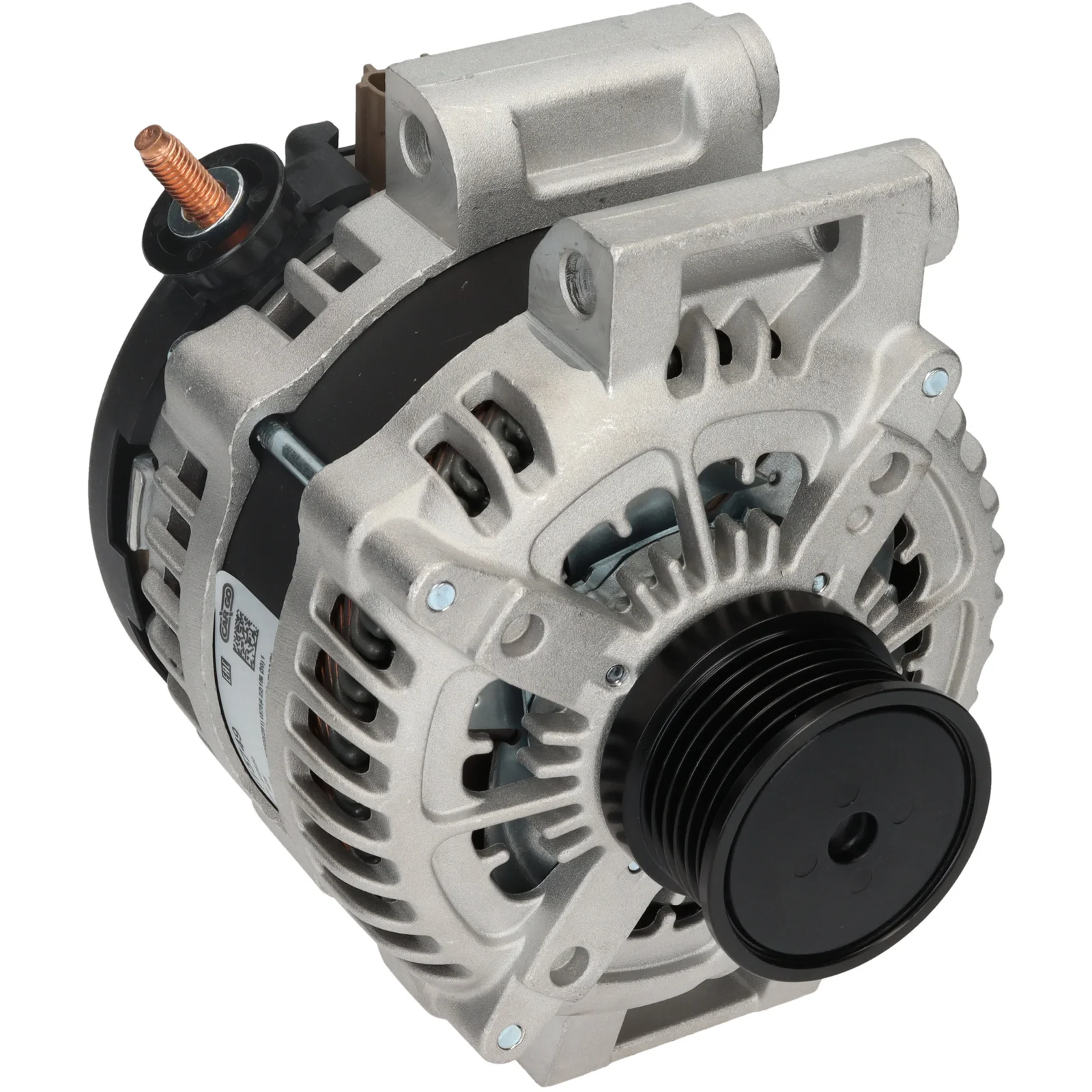

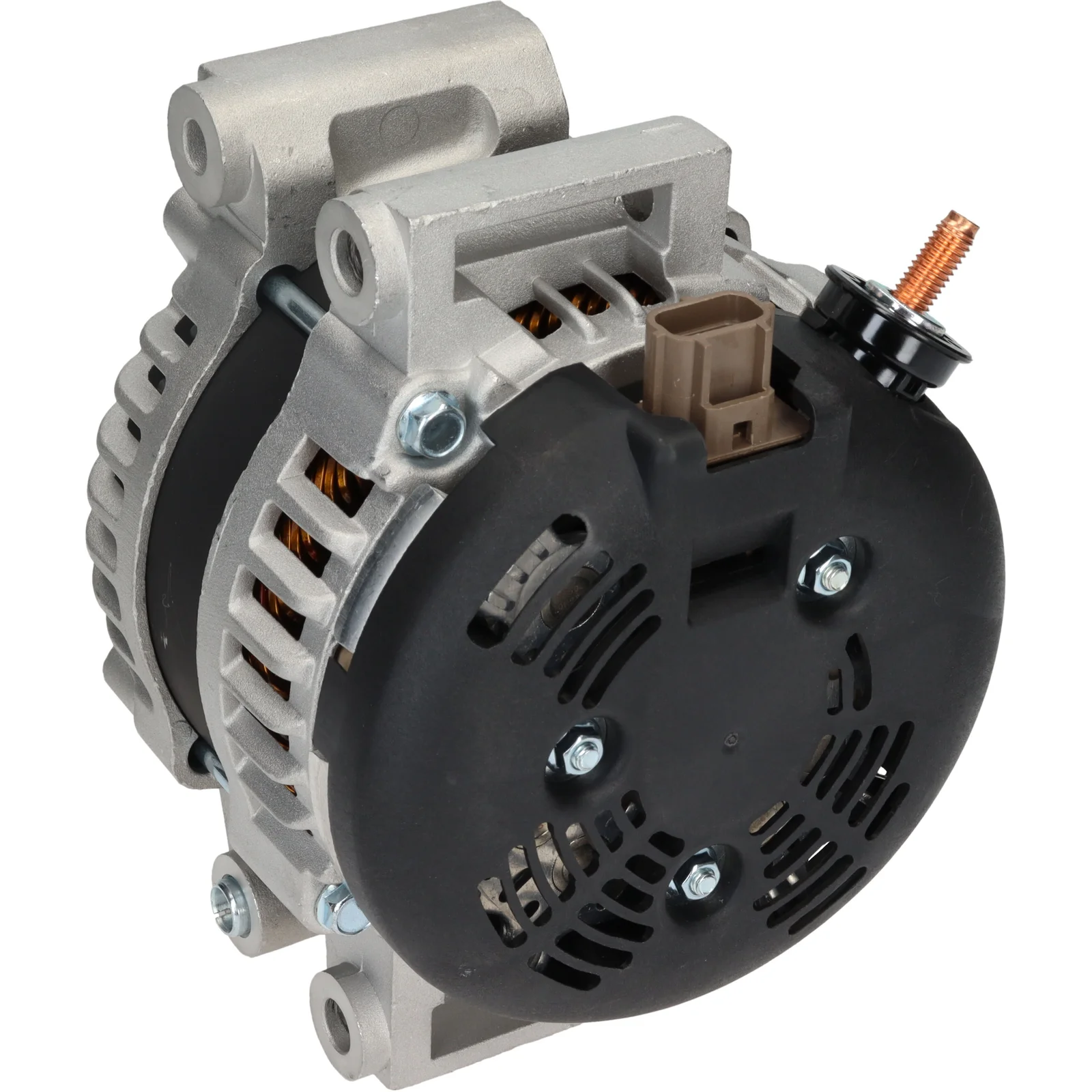

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperes: 220, Rotation: CW, Mounting bracket distributor: 41.50

Description

Voltage: 14
Amp: 220
Pulley: Alternator
dist.: 52.00
Width/holder arm: 70.00
Mounting bracket distance: 41.50
Bracket hole: 8.90
Belt adjustment bracket hole 1: 8.20x9.50
Belt adjustment bracket hole 2: 10.50
Pulley diameter: 52.50
Grooves/pulley: 6
Radius: 79.50
Radius 2: 83.50
B+: M8
Position/B+ in min.: 6
Rotation: CW
Plug no.: PL154
Total length mm: 170.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032115749, K04801835AB, k04801835ab, K04801835AD, P04801835AB, P04801835AC, 104210-6590, 104210-6591, 104210-6592, 04801835AB, 04801835AC, 04801835AD, 4801835AB, 4801835AD

  • Normalised article numbler
    a6274, a6274s, cal40415, dra1366, f032115749, k04801835ab, k04801835ad, p04801835ab, p04801835ac, 8el015630721, 20402n, 20402nos, 20402r, 286964, 554253ri, 04801835ab, 04801835ac, 04801835ad, 4801835ab, 4801835ad, 12090731, 835922220, 1042106590, 1042106591, 1042106592, 5701102202
  • Description
    Voltage: 14
    Amp: 220
    Pulley: Alternator
    dist.: 52.00
    Width/holder arm: 70.00
    Mounting bracket distance: 41.50
    Bracket hole: 8.90
    Belt adjustment bracket hole 1: 8.20x9.50
    Belt adjustment bracket hole 2: 10.50
    Pulley diameter: 52.50
    Grooves/pulley: 6
    Radius: 79.50
    Radius 2: 83.50
    B+: M8
    Position/B+ in min.: 6
    Rotation: CW
    Plug no.: PL154
    Total length mm: 170.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032115749, K04801835AB, k04801835ab, K04801835AD, P04801835AB, P04801835AC, 104210-6590, 104210-6591, 104210-6592, 04801835AB, 04801835AC, 04801835AD, 4801835AB, 4801835AD

    • Normalised article numbler
      a6274, a6274s, cal40415, dra1366, f032115749, k04801835ab, k04801835ad, p04801835ab, p04801835ac, 8el015630721, 20402n, 20402nos, 20402r, 286964, 554253ri, 04801835ab, 04801835ac, 04801835ad, 4801835ab, 4801835ad, 12090731, 835922220, 1042106590, 1042106591, 1042106592, 5701102202
