HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115752

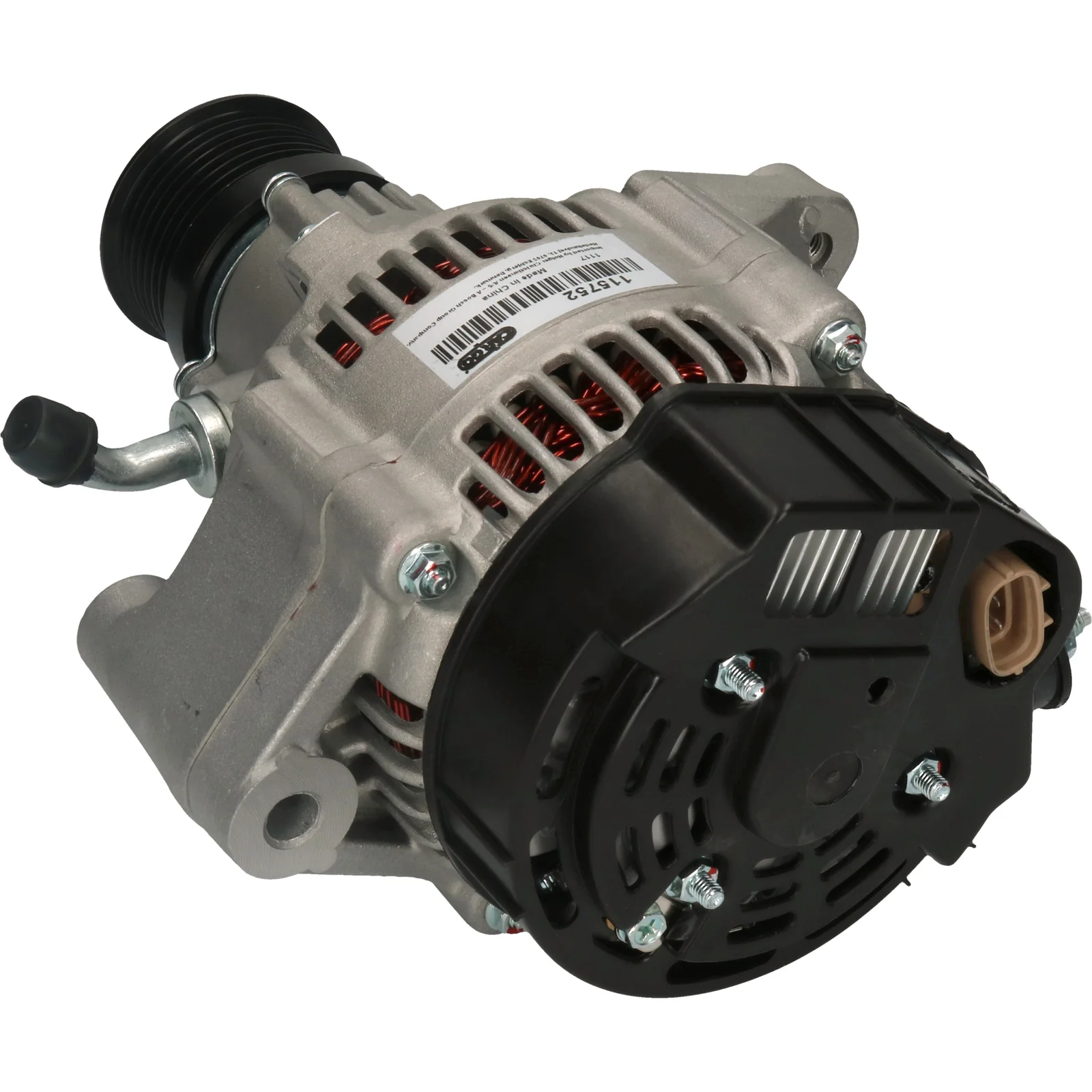

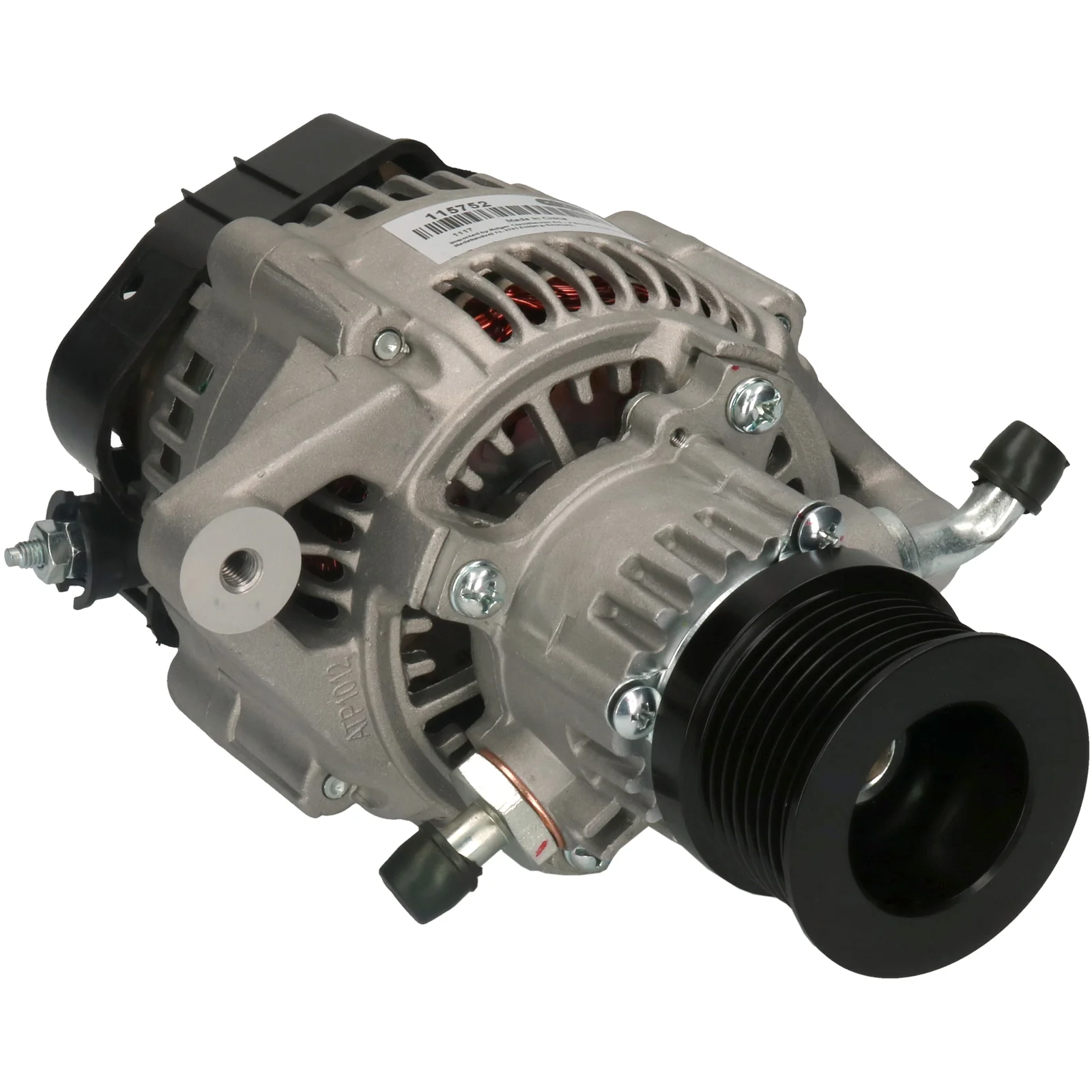

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 90, Rotation: CW, Pulley dia.: 57.50

Description

Voltage: 14
Amperage: 90
Pulley distance: 148.80
Width/holder arm: 69.80
Bracket hole: 10.50
Belt adjustment bracket hole position: 1
Belt adjustment bracket hole 1: M8
Pulley diameter: 57.50
Grooves/pulley: 8
Radius: 80.00
Radius 2: 84.00
B+: M6
Position/B+ in minutes: 3
D+ Size: Plug
Rotation: CW
Plug number: PL128
Total length mm: 234.00
Terminal type: P-IG-L
Pulley: Alternator
Regulator type: IR
Vacuum pump: Yes
Product info: BN

Files

  • OEM
    F032115752, R1030100, 3.852.2262F, 100213-2380, 3852226F, 6204050, 6204162, 9512806, 38522262F, 91153669, 93175822, 93175969, 8911536690

  • Normalised article numbler
    a6658s, dra0648, f032115752, lra02200, r1030100, 23200, 284664, 3852226f, 6204050, 6204162, 9512806, 12044500, 38522262f, 91153669, 93175822, 93175969, 135701090, 528142902, 0986044501, 0986044503, 1002132380, 8911536690
  • Description
    Voltage: 14
    Amperage: 90
    Pulley distance: 148.80
    Width/holder arm: 69.80
    Bracket hole: 10.50
    Belt adjustment bracket hole position: 1
    Belt adjustment bracket hole 1: M8
    Pulley diameter: 57.50
    Grooves/pulley: 8
    Radius: 80.00
    Radius 2: 84.00
    B+: M6
    Position/B+ in minutes: 3
    D+ Size: Plug
    Rotation: CW
    Plug number: PL128
    Total length mm: 234.00
    Terminal type: P-IG-L
    Pulley: Alternator
    Regulator type: IR
    Vacuum pump: Yes
    Product info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032115752, R1030100, 3.852.2262F, 100213-2380, 3852226F, 6204050, 6204162, 9512806, 38522262F, 91153669, 93175822, 93175969, 8911536690

    • Normalised article numbler
      a6658s, dra0648, f032115752, lra02200, r1030100, 23200, 284664, 3852226f, 6204050, 6204162, 9512806, 12044500, 38522262f, 91153669, 93175822, 93175969, 135701090, 528142902, 0986044501, 0986044503, 1002132380, 8911536690
