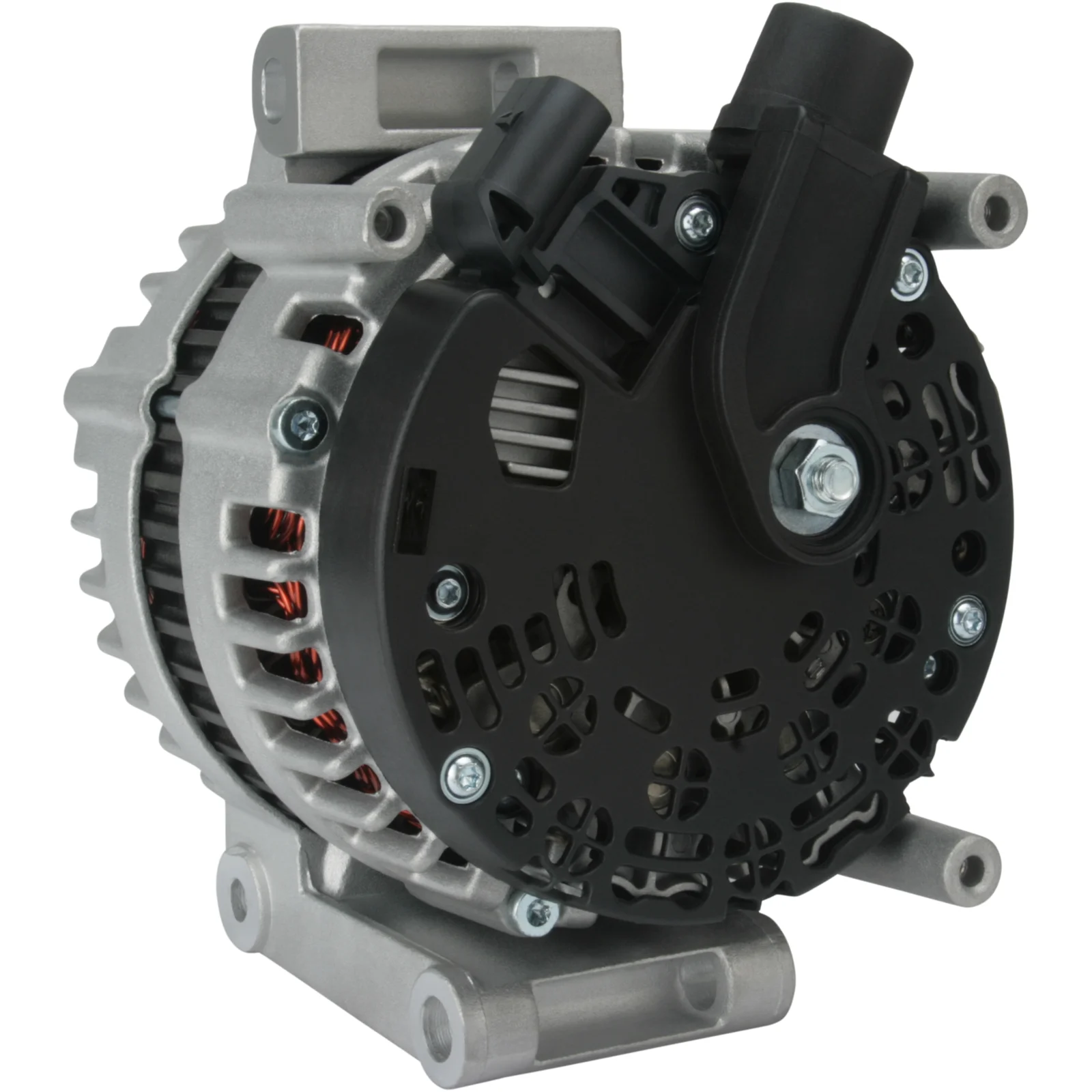

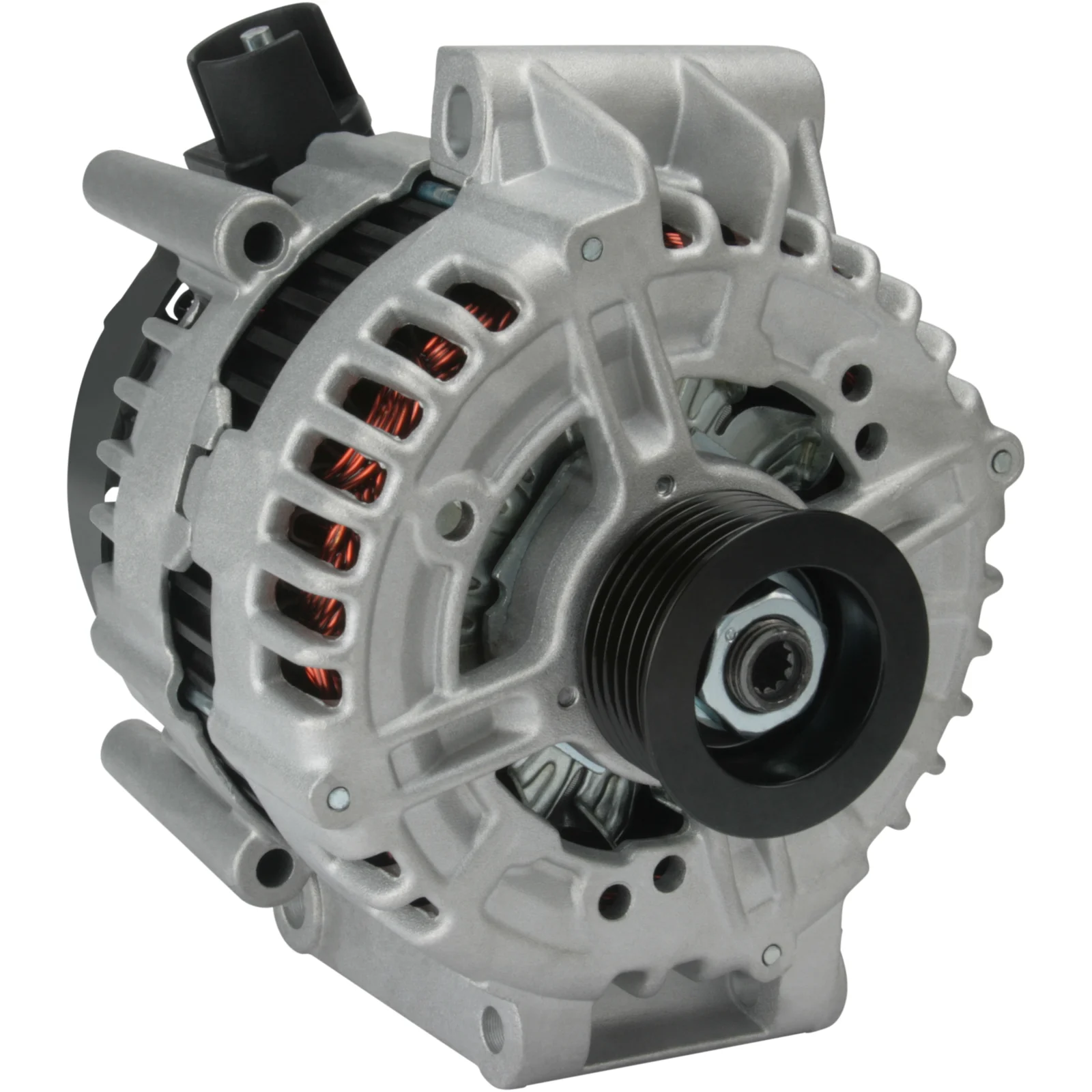

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115753

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 180, Rotation: CW, Mounting bracket distributor: 85.00

Description

Voltage: 14
Amp: 180
Pulley: SP
dist.: 23.50
Width/holder arm: 70.70
Mount. bracket dist.: 85.00
Bracket hole: 8.50
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 9.50/12.20
Pulley dia.: 52.00
Grooves/pulley: 6
B+: M8
Position/B+ in min.: 4
Rotation: CW
Plug no.: PL137
Total length mm: 170.00
Terminal type: COM
Communication: LIN
Pulley: SP
Regulator: IR
Prod. info: BN
Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032115753, 8603388, 8603605, 8603898, 30667018, 30667524, 30667525, 30667896, 30782032, 30795210, 36000791, 36002176, 86036050, 86038980, 0121715002, 0121715032, 0121715102, 0121715132, 307820320, 360007910, 360021760

  • Normalised article numbler
    a0285, a0705s, cal10370, cal10396, dra0477, f032115753, lra03368, 11223r, 285980, 8603388, 8603605, 8603898, 12090711, 30667018, 30667524, 30667525, 30667896, 30782032, 30795210, 36000791, 36002176, 86036050, 86038980, 0121715002, 0121715032, 0121715102, 0121715132, 307820320, 360007910, 360021760, 815516172, 815516180, 815525180, 0986080157, 2381541802
  • Description
    Voltage: 14
    Amp: 180
    Pulley: SP
    dist.: 23.50
    Width/holder arm: 70.70
    Mount. bracket dist.: 85.00
    Bracket hole: 8.50
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: 9.50/12.20
    Pulley dia.: 52.00
    Grooves/pulley: 6
    B+: M8
    Position/B+ in min.: 4
    Rotation: CW
    Plug no.: PL137
    Total length mm: 170.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP
    Regulator: IR
    Prod. info: BN
    Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032115753, 8603388, 8603605, 8603898, 30667018, 30667524, 30667525, 30667896, 30782032, 30795210, 36000791, 36002176, 86036050, 86038980, 0121715002, 0121715032, 0121715102, 0121715132, 307820320, 360007910, 360021760

    • Normalised article numbler
      a0285, a0705s, cal10370, cal10396, dra0477, f032115753, lra03368, 11223r, 285980, 8603388, 8603605, 8603898, 12090711, 30667018, 30667524, 30667525, 30667896, 30782032, 30795210, 36000791, 36002176, 86036050, 86038980, 0121715002, 0121715032, 0121715102, 0121715132, 307820320, 360007910, 360021760, 815516172, 815516180, 815525180, 0986080157, 2381541802
