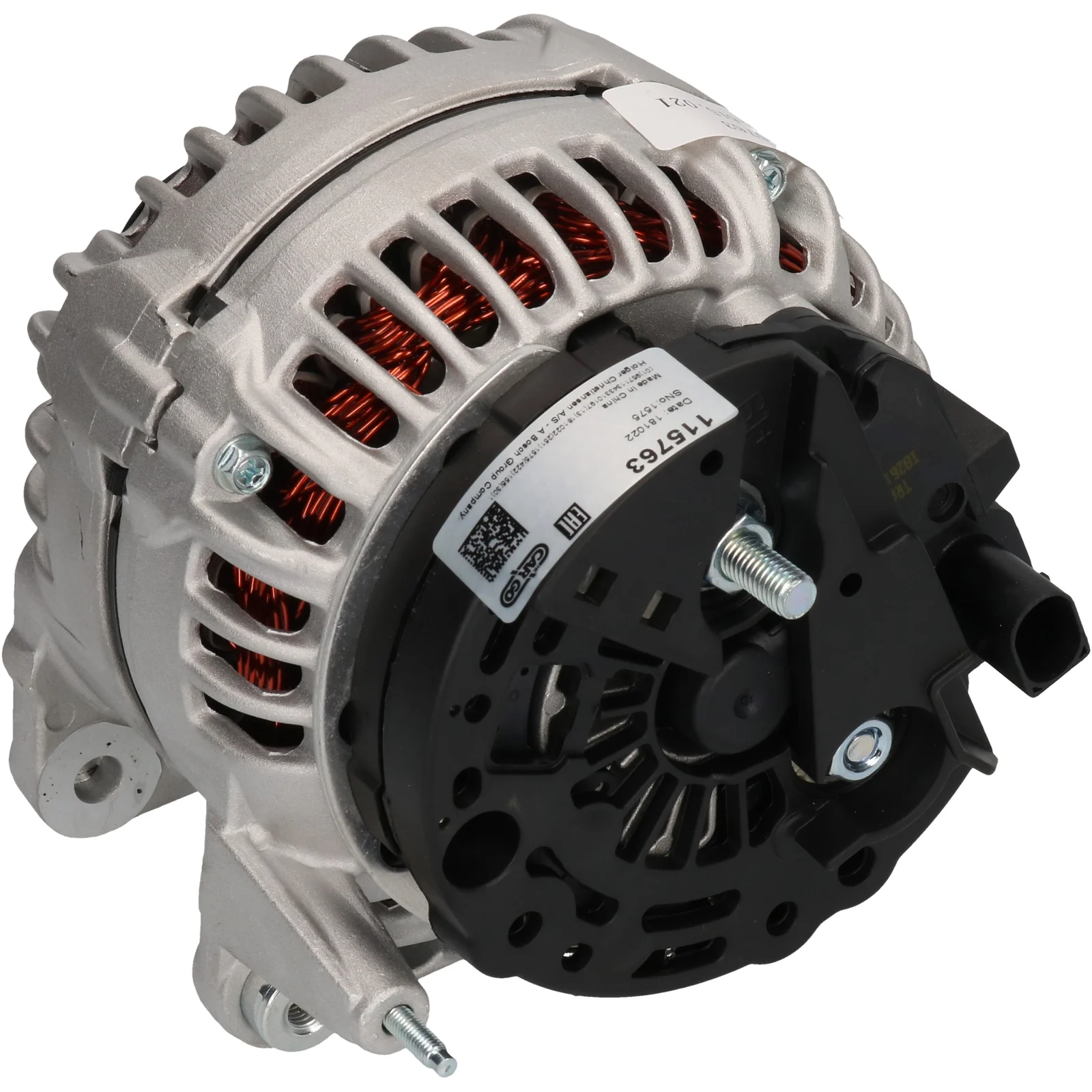

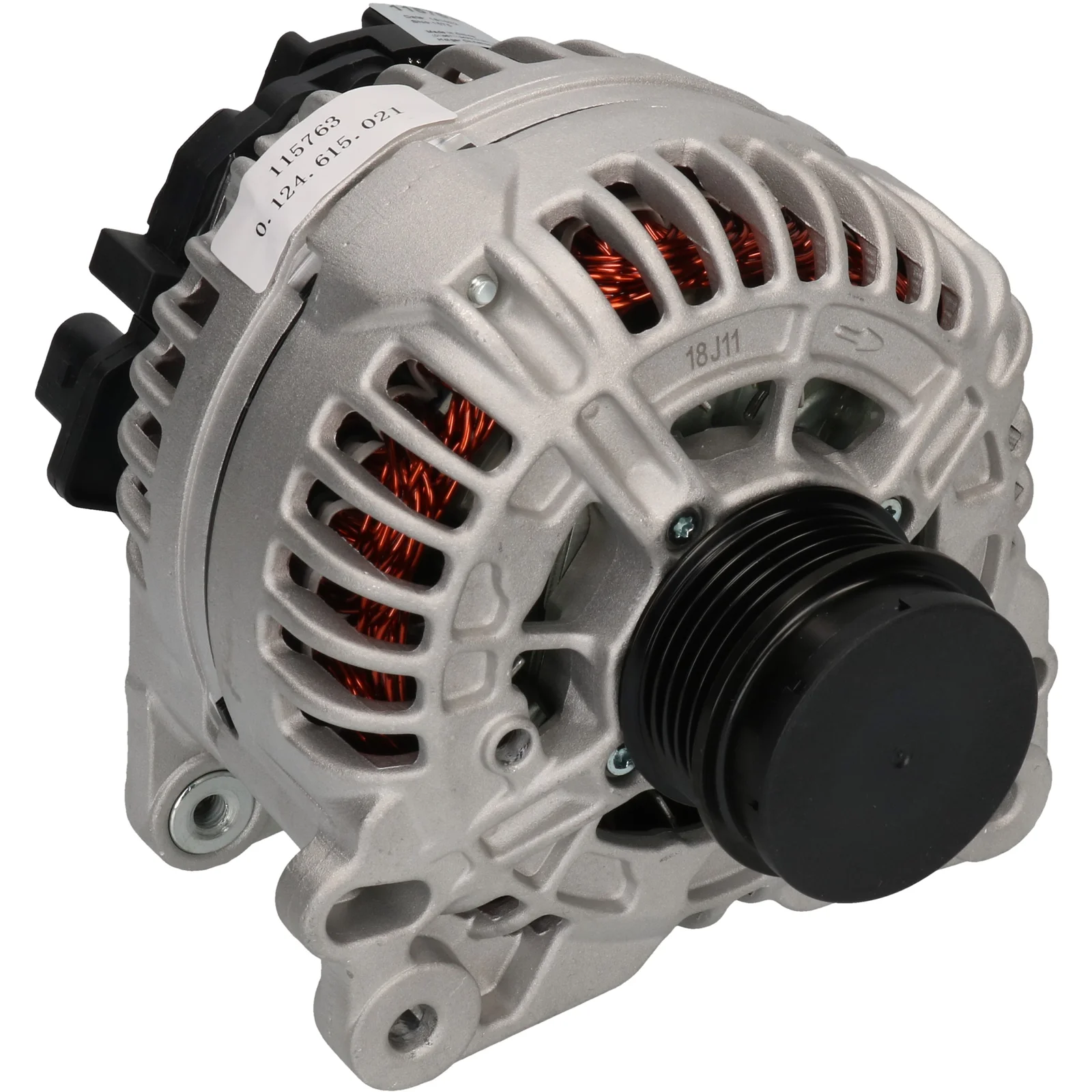

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115763

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 150, Rotation: CW, Mounting bracket distance: 60.70

Description

Voltage: 14
Amp: 150
Pulley dist.: 30.20
Width/holder arm: 14.20
Mounting bracket dist.: 60.70
Bracket hole: 8.50
Belt adjustment bracket hole position.: 15
Belt adjustment bracket hole 1: 8.50
Pulley dia.: 56.00
Grooves/pulley: 5
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 5
Rotation: CW
Plug no.: PL61
Total length mm: 199.50
Terminal type: L-DFM
Pulley: SP/FW
Voltage regulator type: IR

Files

  • OEM
    F032115763, 06B903019X, 028903029N, 028903029NX, 0124615021

  • Normalised article numbler
    a0495, dra0753, f032115763, lra03158, 06b903019x, 112552, 285770, 12090472, 028903029n, 028903029nx, 0124615021, 305525150, 2111971502
  • Description
    Voltage: 14
    Amp: 150
    Pulley dist.: 30.20
    Width/holder arm: 14.20
    Mounting bracket dist.: 60.70
    Bracket hole: 8.50
    Belt adjustment bracket hole position.: 15
    Belt adjustment bracket hole 1: 8.50
    Pulley dia.: 56.00
    Grooves/pulley: 5
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 5
    Rotation: CW
    Plug no.: PL61
    Total length mm: 199.50
    Terminal type: L-DFM
    Pulley: SP/FW
    Voltage regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F032115763, 06B903019X, 028903029N, 028903029NX, 0124615021

    • Normalised article numbler
      a0495, dra0753, f032115763, lra03158, 06b903019x, 112552, 285770, 12090472, 028903029n, 028903029nx, 0124615021, 305525150, 2111971502
