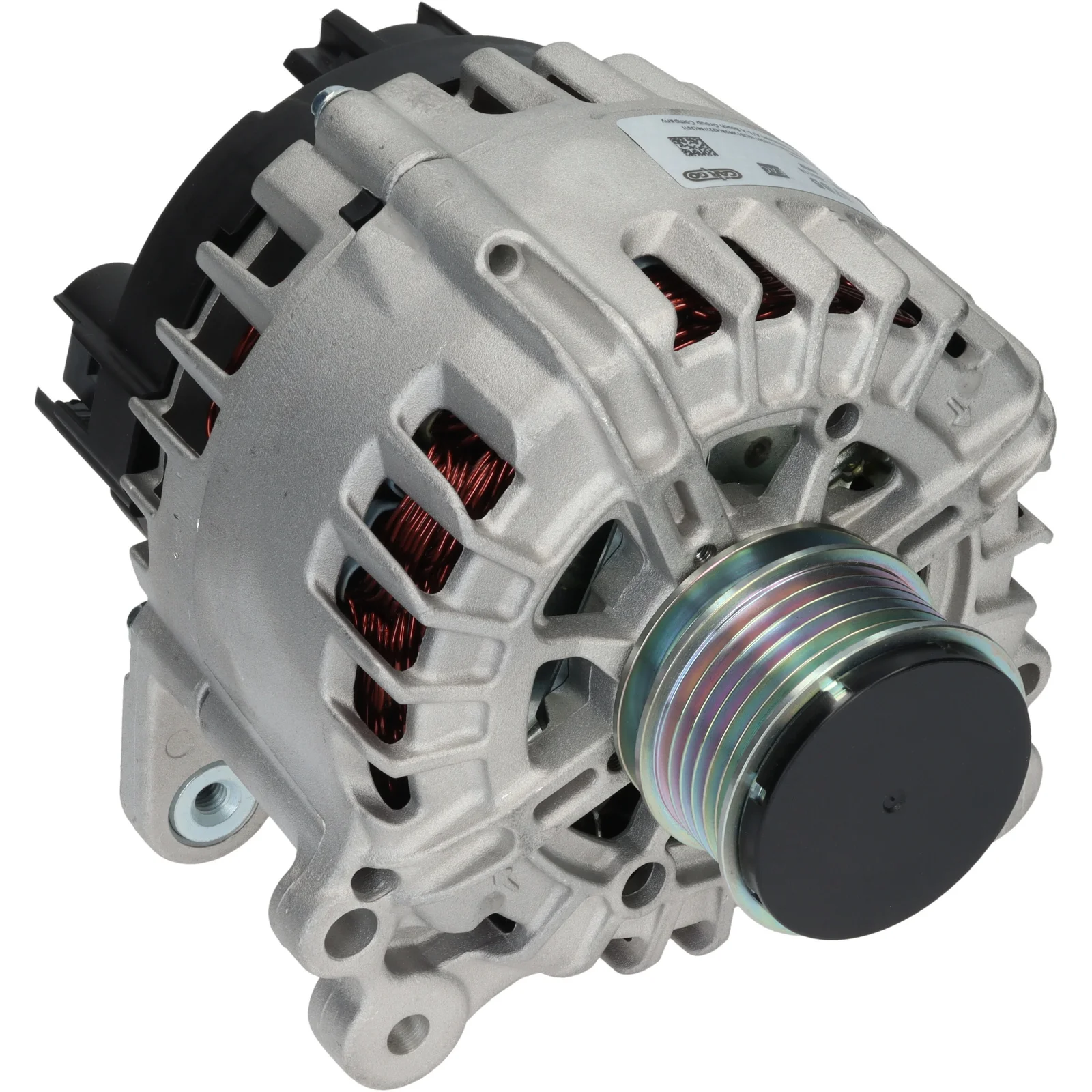

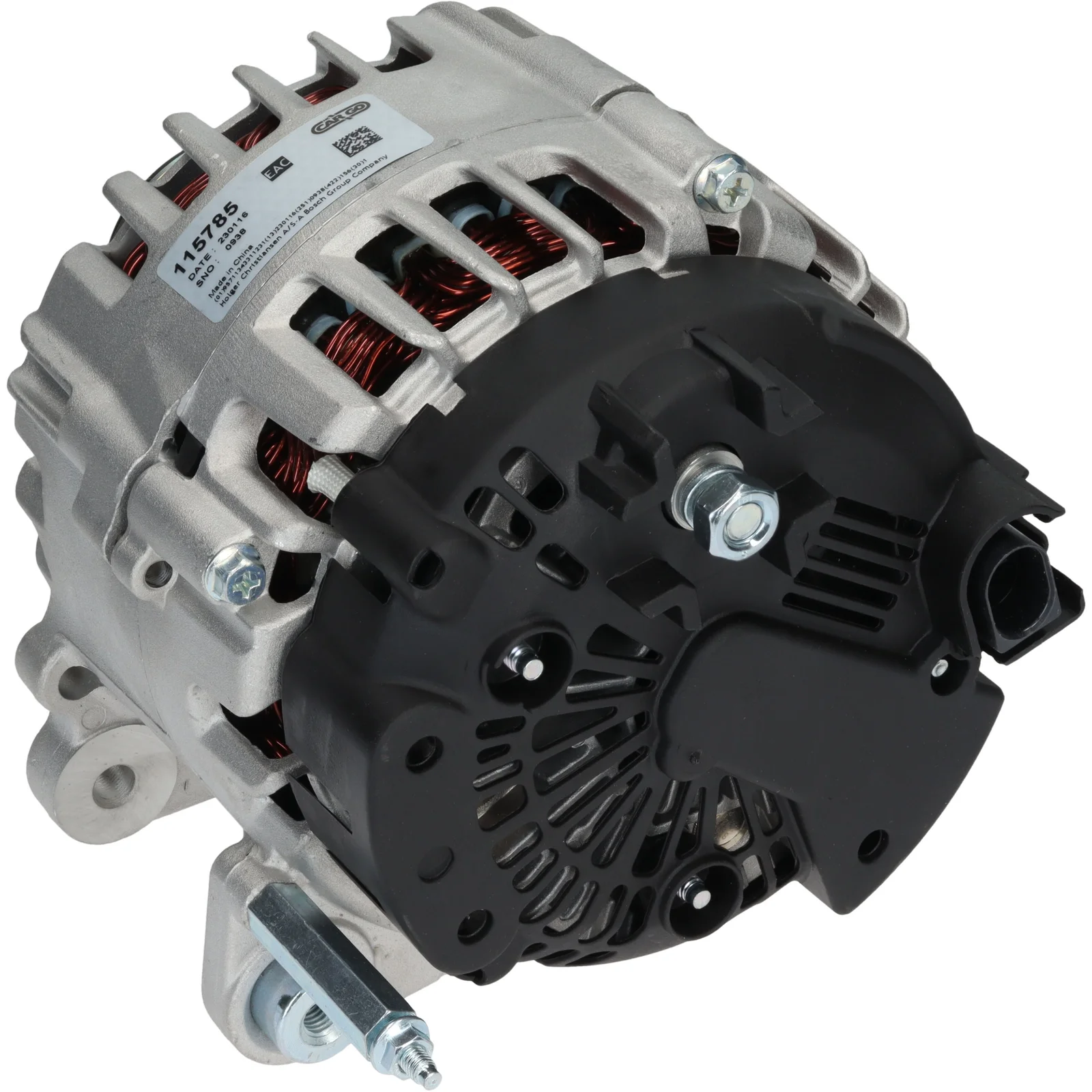

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115785

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 140, Rotation: CW, Mounting bracket distributor: 61.00

Description

Voltage: 14
Amp: 140
Pulley: Sprocket
dist.: 39.50
Width/holder arm: 14.00
Mount. bracket dist.: 61.00
Bracket hole: 8.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 56.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 53
Rotation: CW
Plug no.: PL166
Total length mm: 196.00
Terminal type: COM
ID Code: 25
Communication: LIN
Pulley: SP/FW
Regulator: Voltage regulator
Type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032115785, TG14C035, 03P903023A, 03p903023b, 2139ir, 2609874, 2609874A

  • Normalised article numbler
    a3286, a3286pr, cal15459, dra0809, f032115785, lra03319, tg14c035, 03p903023a, 03p903023b, 8el015630061, 2139ir, 20350, 20350n, 20350nos, 210732, 210732a, 285931, 440311, 553484ri, 2609874, 2609874a, 12090610, 32082840, 305590140, 0986082840, 2113721402
  • Description
    Voltage: 14
    Amp: 140
    Pulley: Sprocket
    dist.: 39.50
    Width/holder arm: 14.00
    Mount. bracket dist.: 61.00
    Bracket hole: 8.50
    Belt. adj. brackethole pos.: 45
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 56.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 53
    Rotation: CW
    Plug no.: PL166
    Total length mm: 196.00
    Terminal type: COM
    ID Code: 25
    Communication: LIN
    Pulley: SP/FW
    Regulator: Voltage regulator
    Type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032115785, TG14C035, 03P903023A, 03p903023b, 2139ir, 2609874, 2609874A

    • Normalised article numbler
      a3286, a3286pr, cal15459, dra0809, f032115785, lra03319, tg14c035, 03p903023a, 03p903023b, 8el015630061, 2139ir, 20350, 20350n, 20350nos, 210732, 210732a, 285931, 440311, 553484ri, 2609874, 2609874a, 12090610, 32082840, 305590140, 0986082840, 2113721402
