HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115804

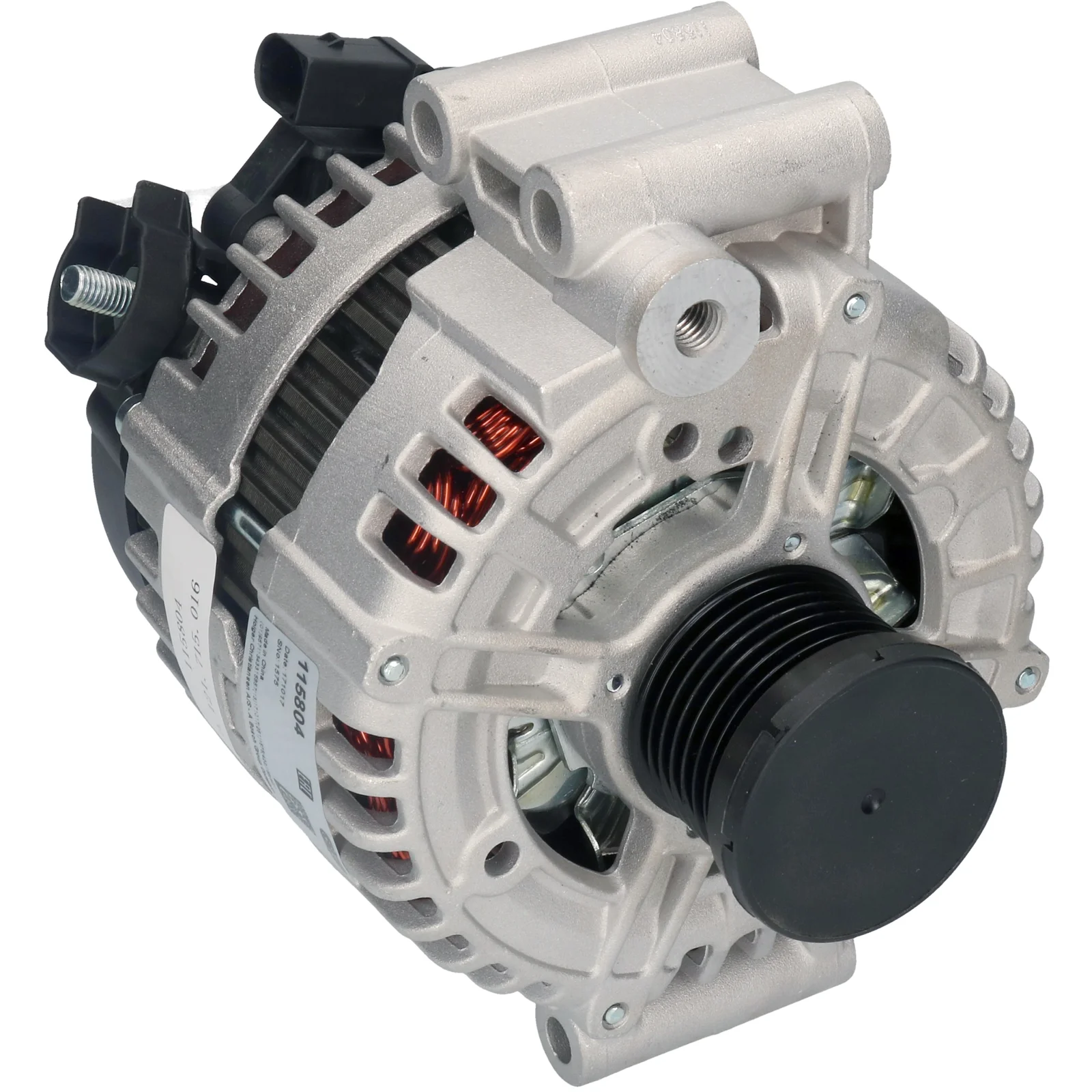

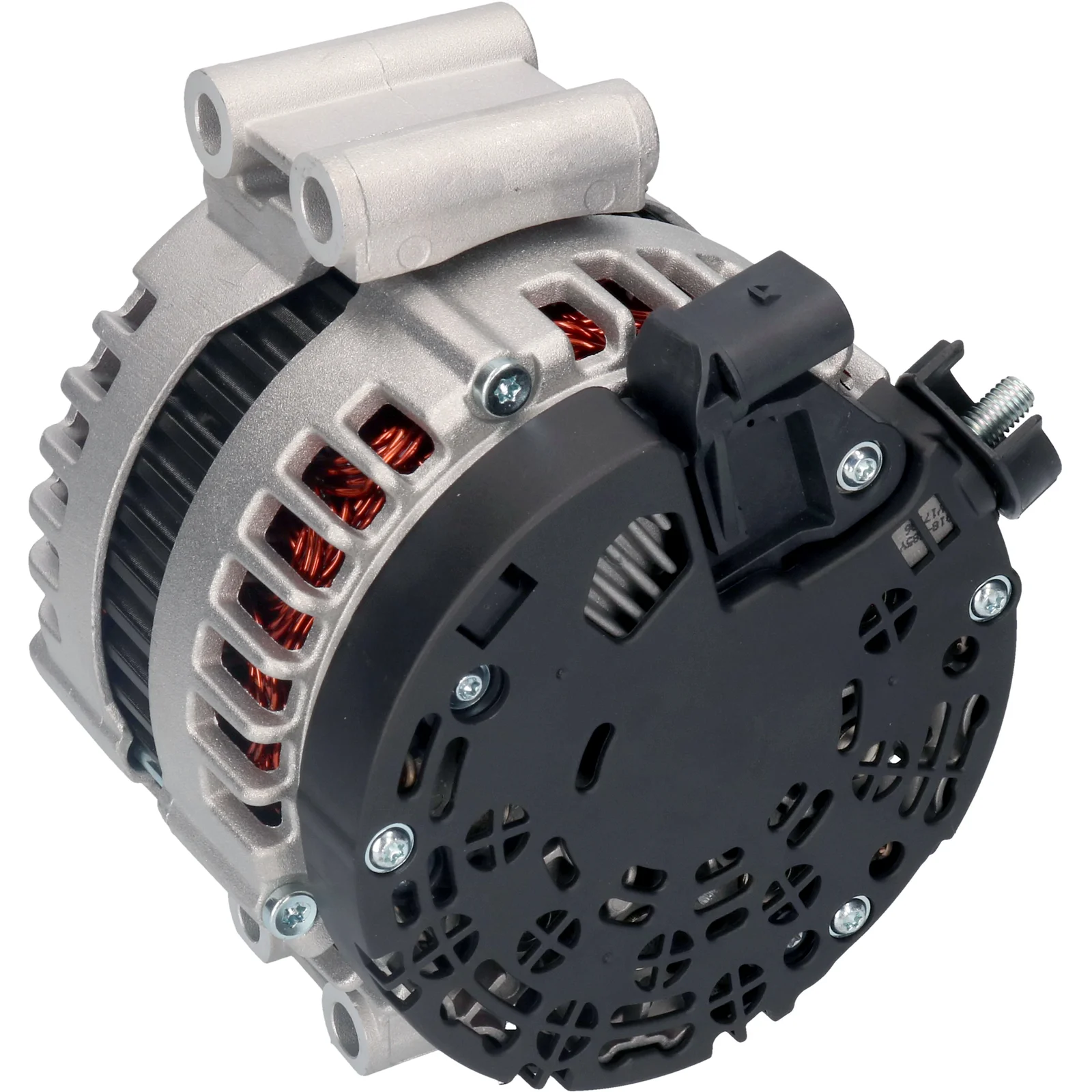

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 180, Rotation: CW, Mounting bracket distributor: 40.80

Description

Voltage: 14
Amp: 180
Pulley: Alternator
dist.: 30.00
Width/holder arm: 62.50
Mount. bracket dist.: 40.80
Bracket hole: 9.50x10.50
Belt. adj. bracket hole position: 60
Belt. adj. bracket hole 1: 9.50
Belt. adj. bracket hole 2: 10.50
Pulley diameter: 49.00
Grooves/pulley: 7
Radius: 86.00
Radius 2: 86.00
B+: M8
Position/B+ in min.: 9
Rotation: CW
Glow plug no.: PL86
Total length mm: 178.00
Terminal type: COM
Communication: BSS
Pulley: SP/FW
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032115804, 7557789, 7558219, 7558220, 0121715016, 0121715116, 12317557789, 12317558219, 12317558220

  • Normalised article numbler
    a0459, cal10445, dra0165, f032115804, lra03107, 11302n, 113050, 285719, 440956, 7557789, 7558219, 7558220, 9090690, 12090375, 32048837, 0121715016, 0121715116, 215548180, 0986048830, 0986048833, 0986048837, 2151811802, 12317557789, 12317558219, 12317558220
  • Description
    Voltage: 14
    Amp: 180
    Pulley: Alternator
    dist.: 30.00
    Width/holder arm: 62.50
    Mount. bracket dist.: 40.80
    Bracket hole: 9.50x10.50
    Belt. adj. bracket hole position: 60
    Belt. adj. bracket hole 1: 9.50
    Belt. adj. bracket hole 2: 10.50
    Pulley diameter: 49.00
    Grooves/pulley: 7
    Radius: 86.00
    Radius 2: 86.00
    B+: M8
    Position/B+ in min.: 9
    Rotation: CW
    Glow plug no.: PL86
    Total length mm: 178.00
    Terminal type: COM
    Communication: BSS
    Pulley: SP/FW
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032115804, 7557789, 7558219, 7558220, 0121715016, 0121715116, 12317557789, 12317558219, 12317558220

    • Normalised article numbler
      a0459, cal10445, dra0165, f032115804, lra03107, 11302n, 113050, 285719, 440956, 7557789, 7558219, 7558220, 9090690, 12090375, 32048837, 0121715016, 0121715116, 215548180, 0986048830, 0986048833, 0986048837, 2151811802, 12317557789, 12317558219, 12317558220
