HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115810

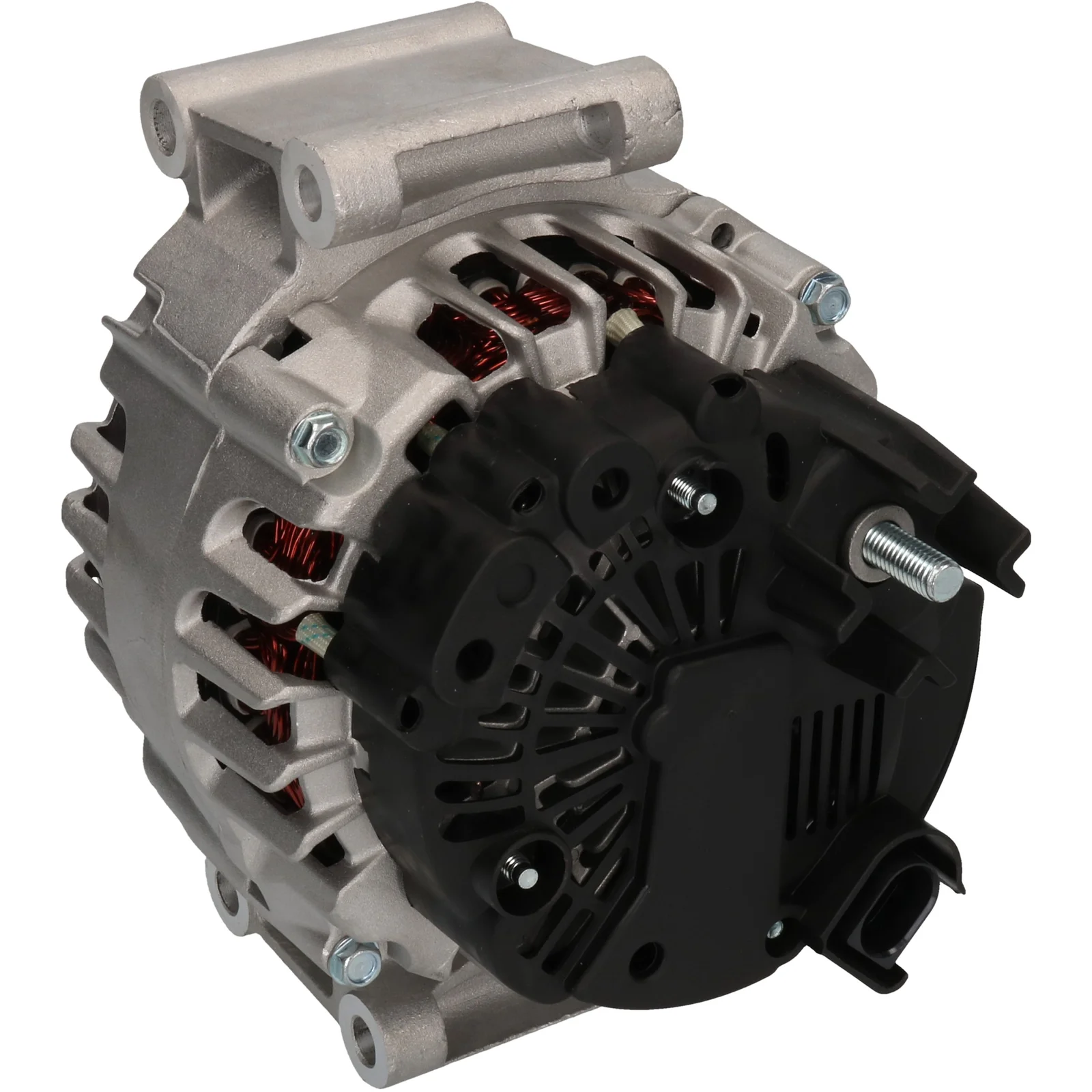

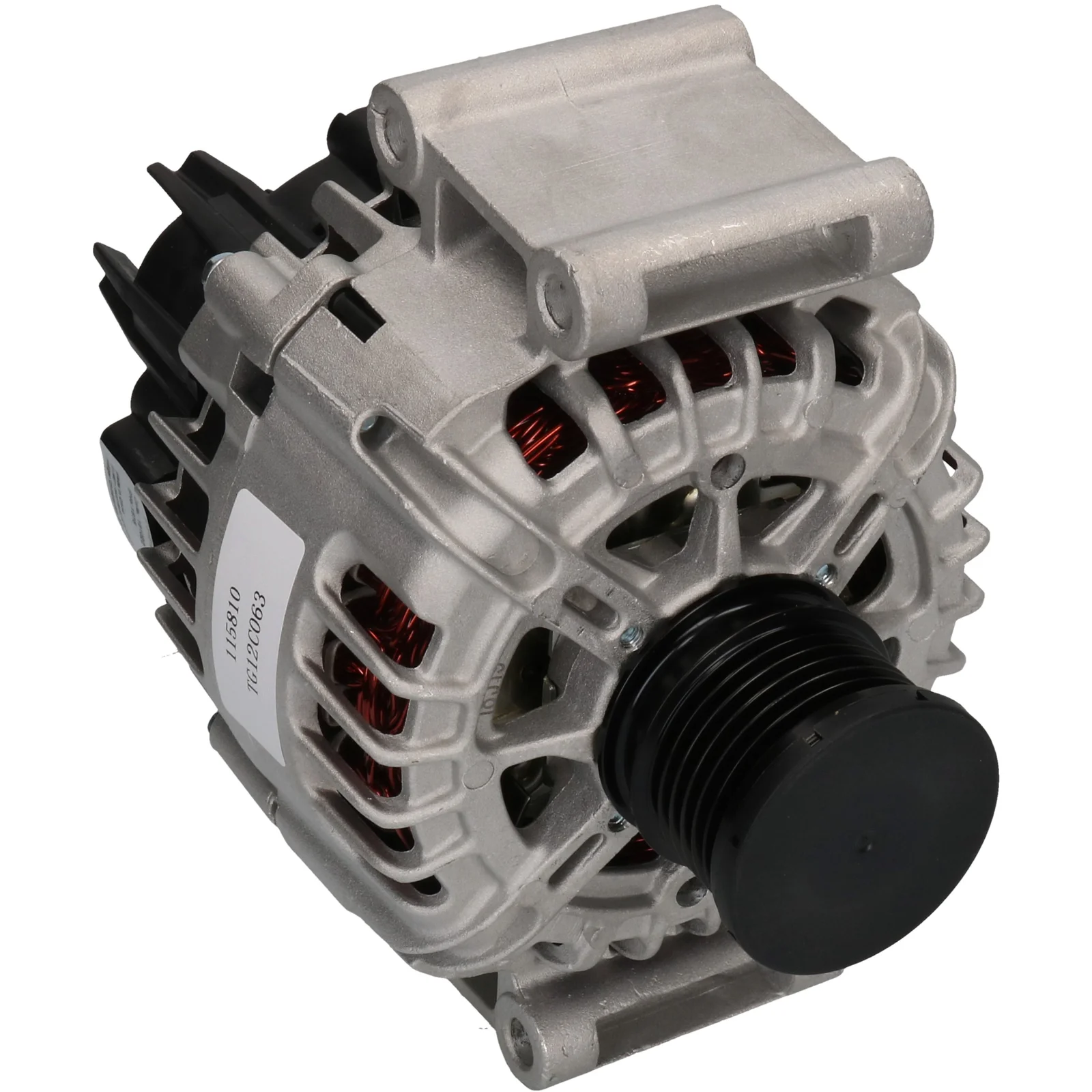

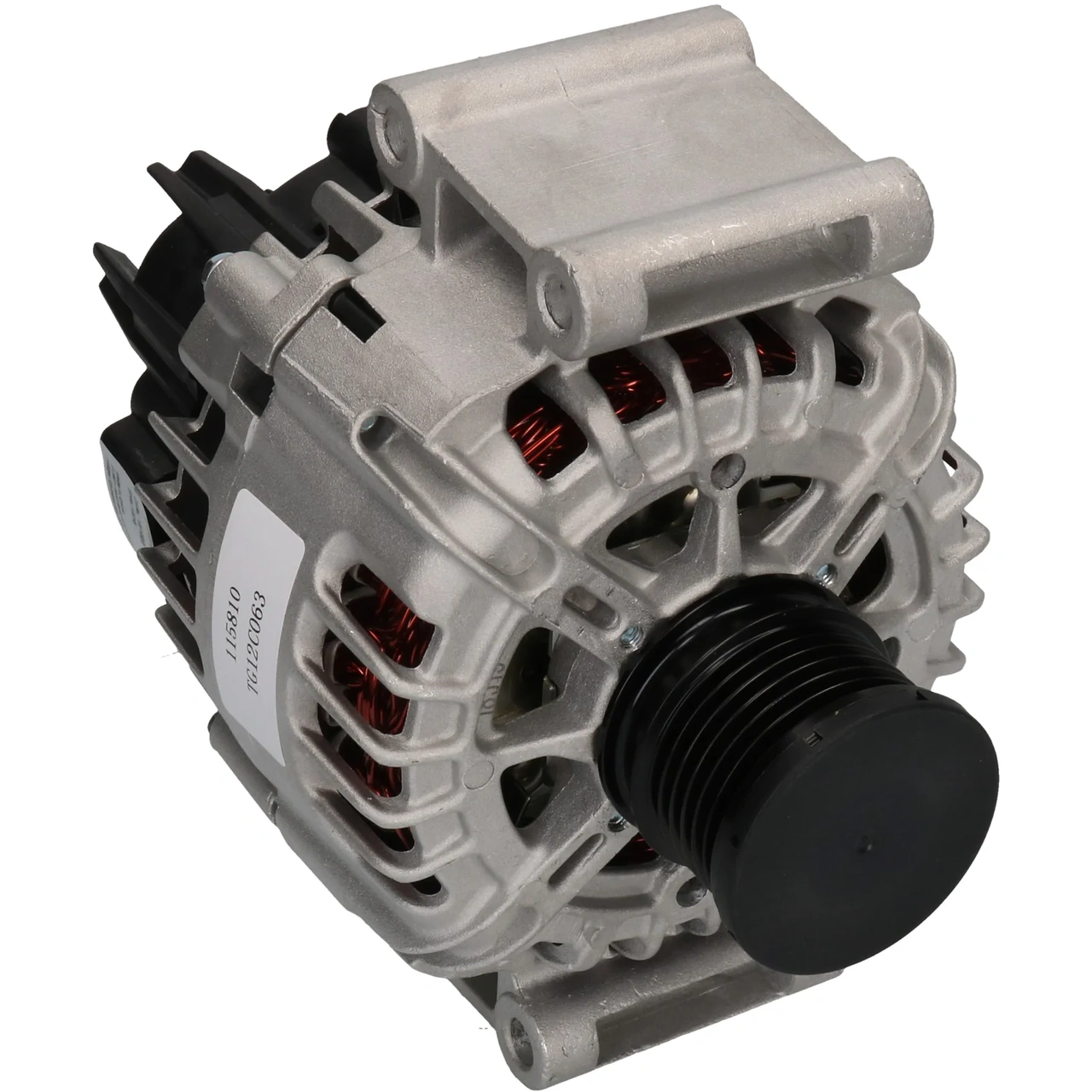

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 120, Rotation: CW, Mounting bracket distributor: 56.00

Description

HC-Cargo Alternator 14V - 120A, 6gr

Voltage: 14
Amps: 120
Pulley diameter: 31.00
Width/Holder arm: 70.00
Mounting bracket diameter: 56.00
Bracket hole: 9.50
Belt adjustment bracket hole position: 60
Belt adjustment bracket hole 1: 9.50
Pulley diameter: 50.00
Grooves/pulley: 6
Radius: 81.50
Radius 2: 81.50
B+: M8
Position/B+ in min.: 8
Rotation: CW
Plug number: PL125
Total length mm: 195.00
Terminal type: COM
Pulley: SP/FW
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    A014 1541402, a0141541402, F032115810, TG12C063, 014 154 1402, 115810, 2605420, 2605420A, 0141541402

  • Normalised article numbler
    a0141541402, a3284, a3284pr, cal15493, dra0984, f032115810, lra03481, tg12c063, 8el011713301, 8el012240151, 11716n, 115810, 209221, 209221a, 286591, 439678, 440263, 2605420, 2605420a, 9090606, 12090558, 0141541402, 555584120, 2253061202
  • Description
    HC-Cargo Alternator 14V - 120A, 6gr

    Voltage: 14
    Amps: 120
    Pulley diameter: 31.00
    Width/Holder arm: 70.00
    Mounting bracket diameter: 56.00
    Bracket hole: 9.50
    Belt adjustment bracket hole position: 60
    Belt adjustment bracket hole 1: 9.50
    Pulley diameter: 50.00
    Grooves/pulley: 6
    Radius: 81.50
    Radius 2: 81.50
    B+: M8
    Position/B+ in min.: 8
    Rotation: CW
    Plug number: PL125
    Total length mm: 195.00
    Terminal type: COM
    Pulley: SP/FW
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      A014 1541402, a0141541402, F032115810, TG12C063, 014 154 1402, 115810, 2605420, 2605420A, 0141541402

    • Normalised article numbler
      a0141541402, a3284, a3284pr, cal15493, dra0984, f032115810, lra03481, tg12c063, 8el011713301, 8el012240151, 11716n, 115810, 209221, 209221a, 286591, 439678, 440263, 2605420, 2605420a, 9090606, 12090558, 0141541402, 555584120, 2253061202
