HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115834

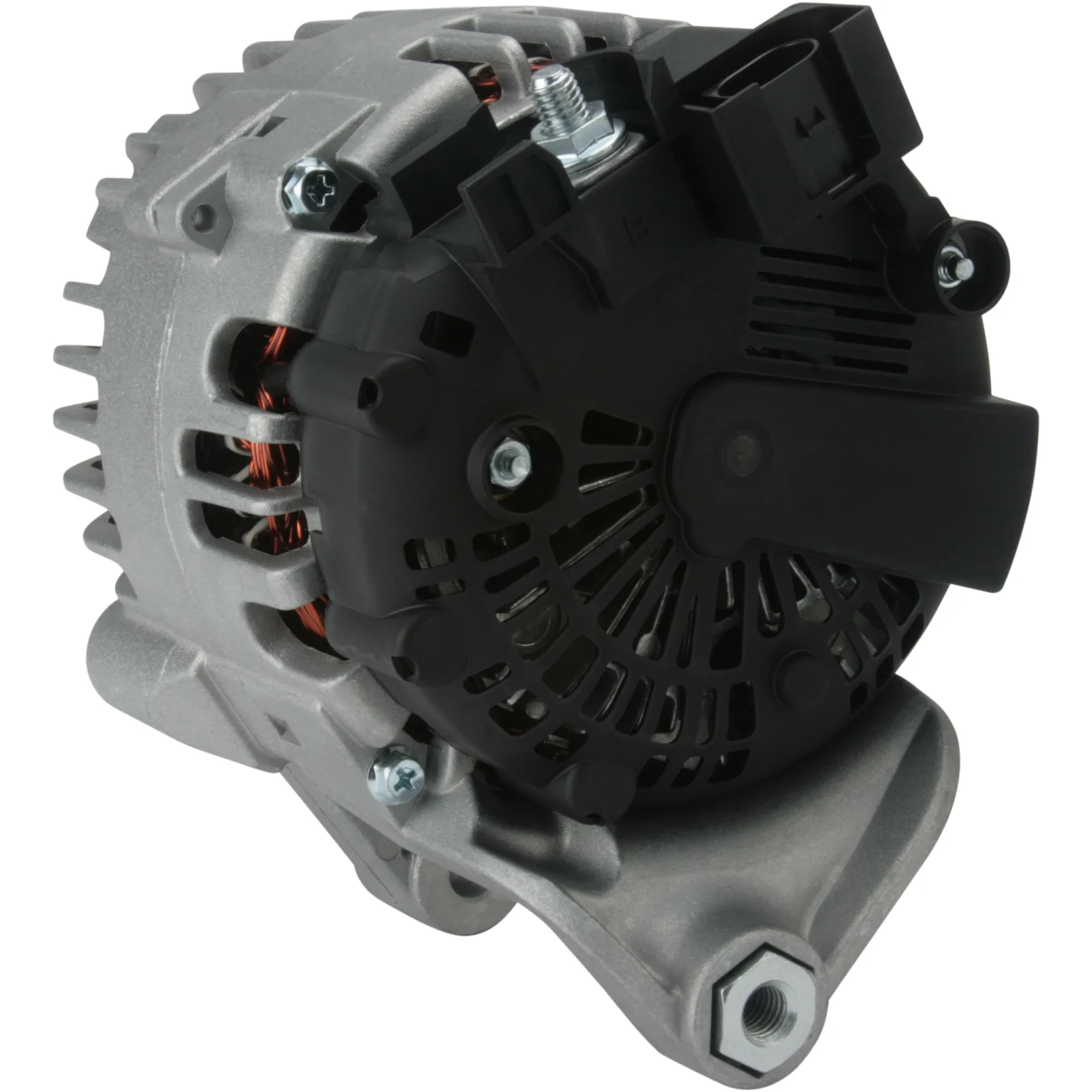

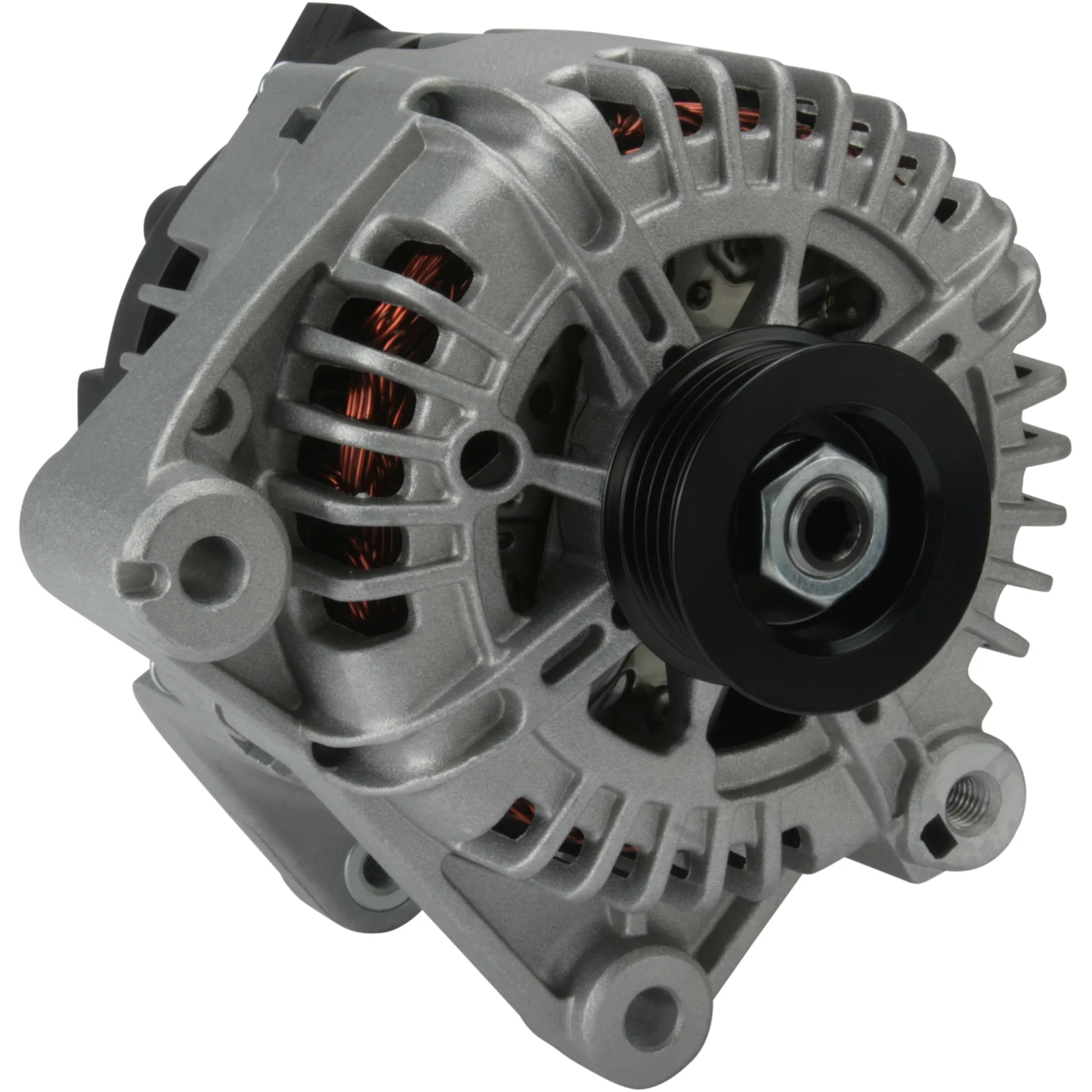

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 150, Rotation: CW, Mount. bracket dist.: 75.50

Description

HC-Cargo Generator 14V - 150A, 5gr

Voltage: 14
Amp: 150
Pulley dist.: 55.50
Width/holder arm: 28.00
Mount. bracket dist.: 75.50
Bracket hole: 10.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 10.50
Pulley dia.: 54.00
Grooves/pulley: 5
Radius: 92.00
Radius 2: 92.00
B+: M8
Position/B+ in min.: 55
Rotation: CW
Plug no.: PL125
Total length mm: 174.00
Terminal type: COM
Communication: BSS
Pulley: SP
Prod. info: BN
Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032115834, TG15C157, 1986A01764, 115834, 12317823291, 12317823292

  • Normalised article numbler
    a3505s, cal15479, dra0968, f032115834, lra03654, tg15c157, 8el012240371, 1986a01764, 20129, 20129n, 20129noe, 20129r, 115834, 200274, 209233, 209233a, 286794, 439723, 440313, 9090575, 12090563, 32083700, 215563150, 0986083700, 2151991502, 12317823291, 12317823292
  • Description
    HC-Cargo Generator 14V - 150A, 5gr

    Voltage: 14
    Amp: 150
    Pulley dist.: 55.50
    Width/holder arm: 28.00
    Mount. bracket dist.: 75.50
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 45
    Belt. adj. bracket hole 1: 10.50
    Pulley dia.: 54.00
    Grooves/pulley: 5
    Radius: 92.00
    Radius 2: 92.00
    B+: M8
    Position/B+ in min.: 55
    Rotation: CW
    Plug no.: PL125
    Total length mm: 174.00
    Terminal type: COM
    Communication: BSS
    Pulley: SP
    Prod. info: BN
    Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032115834, TG15C157, 1986A01764, 115834, 12317823291, 12317823292

    • Normalised article numbler
      a3505s, cal15479, dra0968, f032115834, lra03654, tg15c157, 8el012240371, 1986a01764, 20129, 20129n, 20129noe, 20129r, 115834, 200274, 209233, 209233a, 286794, 439723, 440313, 9090575, 12090563, 32083700, 215563150, 0986083700, 2151991502, 12317823291, 12317823292
