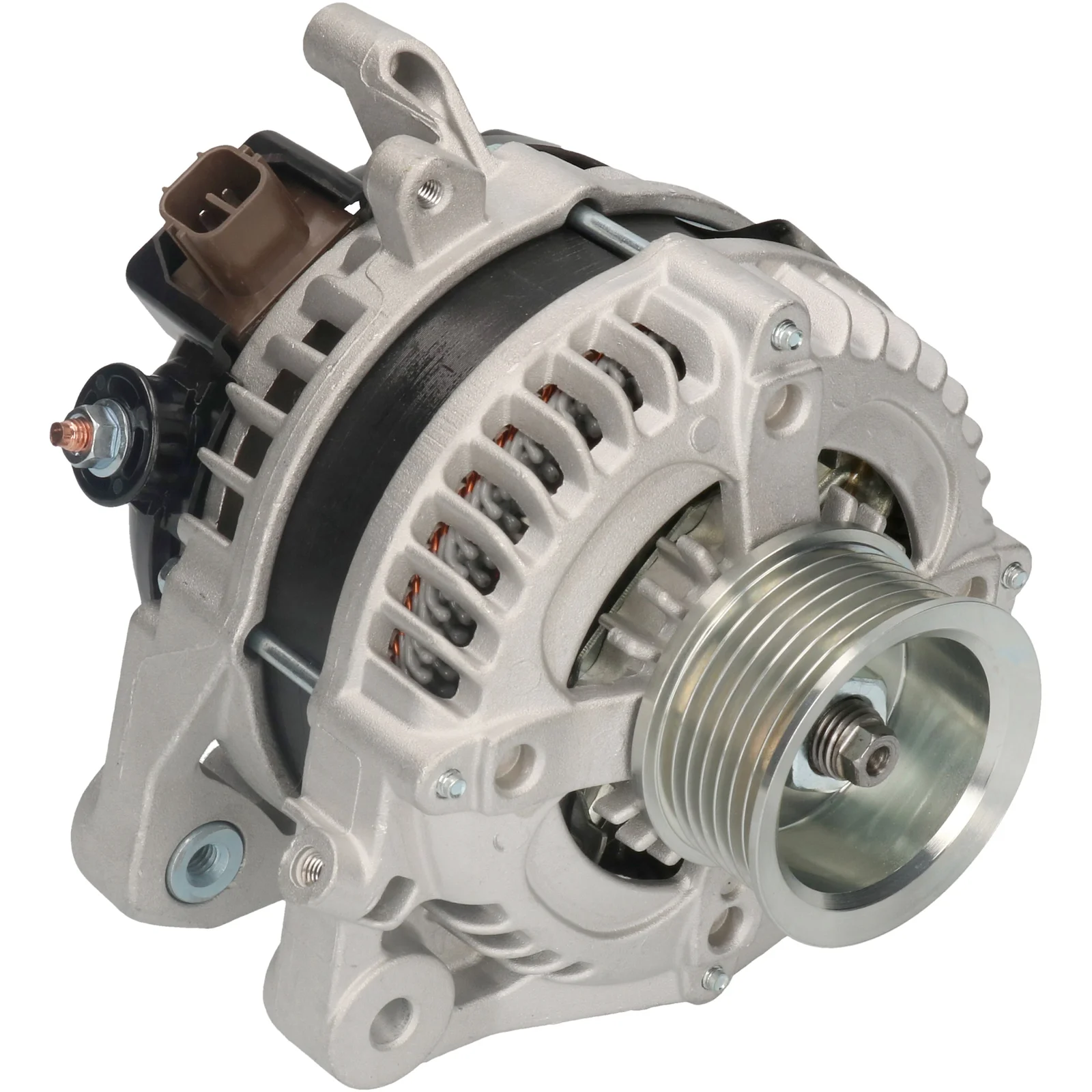

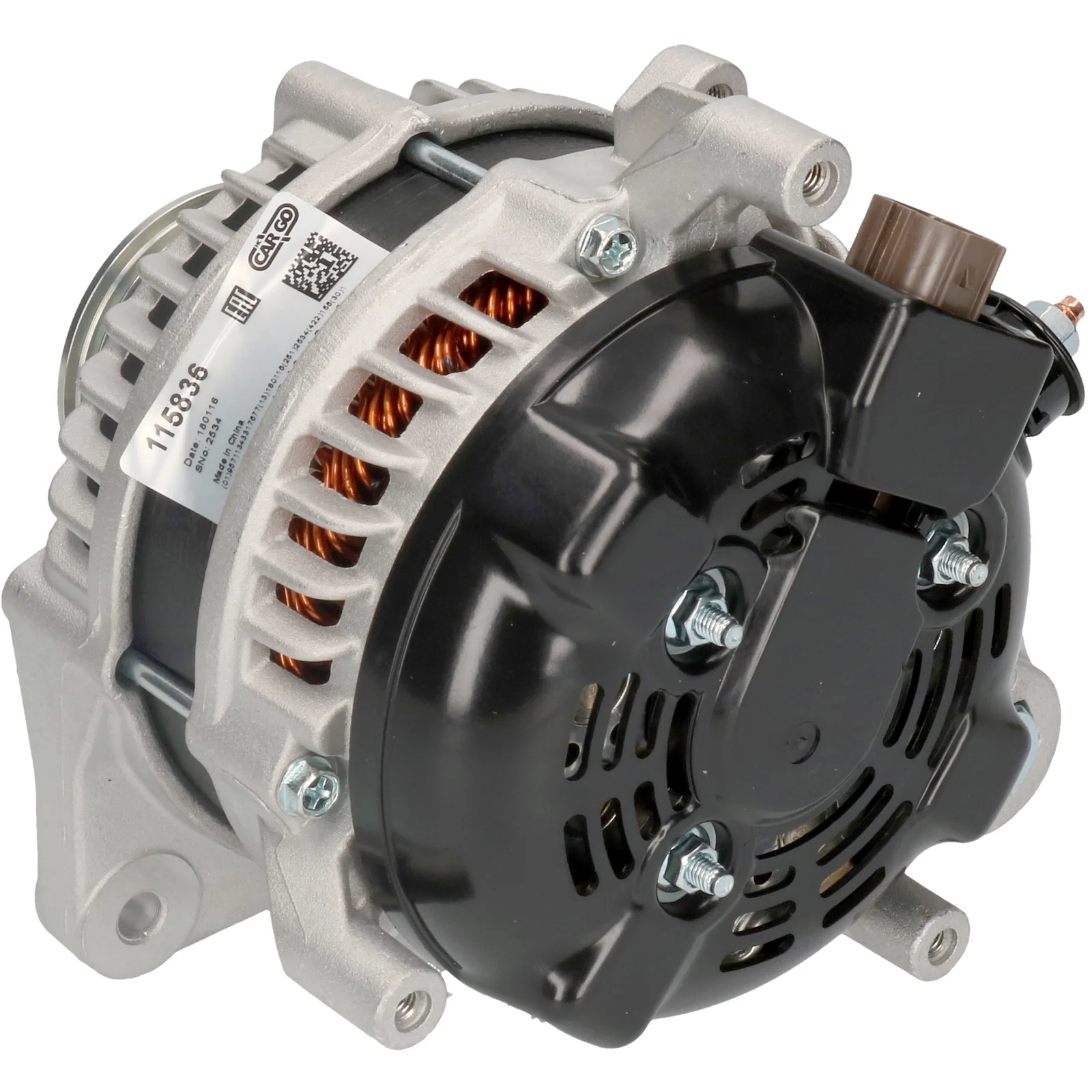

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115836

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 105, Rotation: CW, Mounting bracket distance: 38.00

Description

Honda CR-V Alternator 12V-100A 12V - 100A, 7 teeth, (L, IG, FR, C) For Your product order 90-222-4537

Voltage: 14
Amp: 105
Pulley diameter: 45.00
Width/holder arm: 20.00
Mounting bracket distance: 38.00
Bracket hole: 9.00
Belt adjustment bracket hole position: 13
Belt adjustment bracket hole 1: 8.50
Pulley diameter: 60.00
Grooves/pulley: 7
Radius: 85.00
Radius 2: 86.50
B+: M6
Position/B+ in min.: 20
D+ Size: Plug
Rotation: CW
Plug number: PL60
Total length mm: 160.00
Pulley: SP
Regulator type: IR
Prod. info: BN

Files

  • OEM
    CSF 37, CSF37, F032115836, 1986A00580, 2078ir, 021080-1610, 31100-RZP-G01, 31100-RZPG01, 104210-5370

  • Normalised article numbler
    a6172, a6483denso, cal40349, csf37, dan1148, dra0887, f032115836, f042302178, lra03491, 1986a00580, 2078ir, 20493r, 31100rzpg01, 113420, 209412, 209412a, 286601, 440553, 440977, 553677ri, 9090685, 12060977, 32082410, 125556130, 0210801610, 0986082410, 1042105370, 2221611002
  • Description
    Honda CR-V Alternator 12V-100A 12V - 100A, 7 teeth, (L, IG, FR, C) For Your product order 90-222-4537

    Voltage: 14
    Amp: 105
    Pulley diameter: 45.00
    Width/holder arm: 20.00
    Mounting bracket distance: 38.00
    Bracket hole: 9.00
    Belt adjustment bracket hole position: 13
    Belt adjustment bracket hole 1: 8.50
    Pulley diameter: 60.00
    Grooves/pulley: 7
    Radius: 85.00
    Radius 2: 86.50
    B+: M6
    Position/B+ in min.: 20
    D+ Size: Plug
    Rotation: CW
    Plug number: PL60
    Total length mm: 160.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      CSF 37, CSF37, F032115836, 1986A00580, 2078ir, 021080-1610, 31100-RZP-G01, 31100-RZPG01, 104210-5370

    • Normalised article numbler
      a6172, a6483denso, cal40349, csf37, dan1148, dra0887, f032115836, f042302178, lra03491, 1986a00580, 2078ir, 20493r, 31100rzpg01, 113420, 209412, 209412a, 286601, 440553, 440977, 553677ri, 9090685, 12060977, 32082410, 125556130, 0210801610, 0986082410, 1042105370, 2221611002
