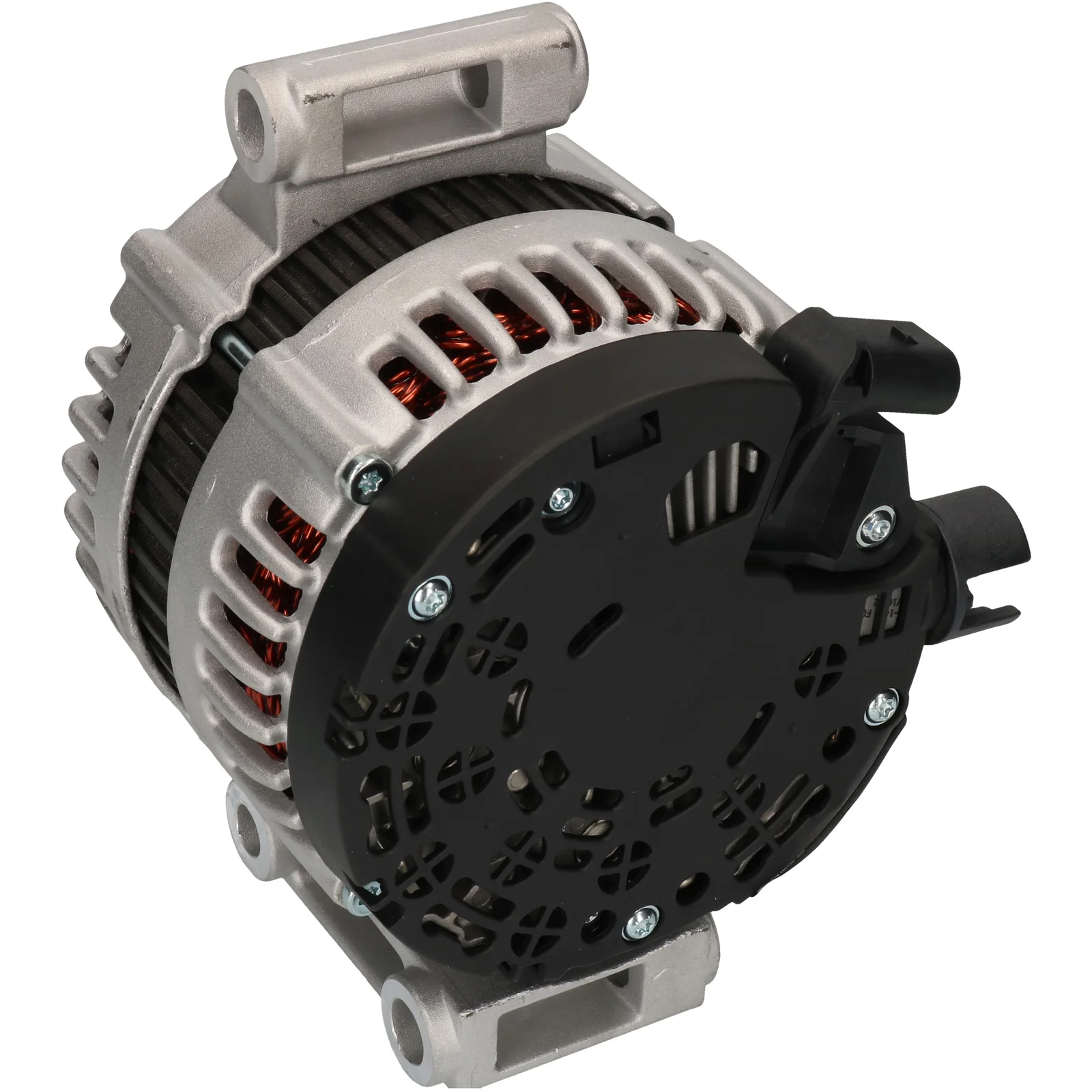

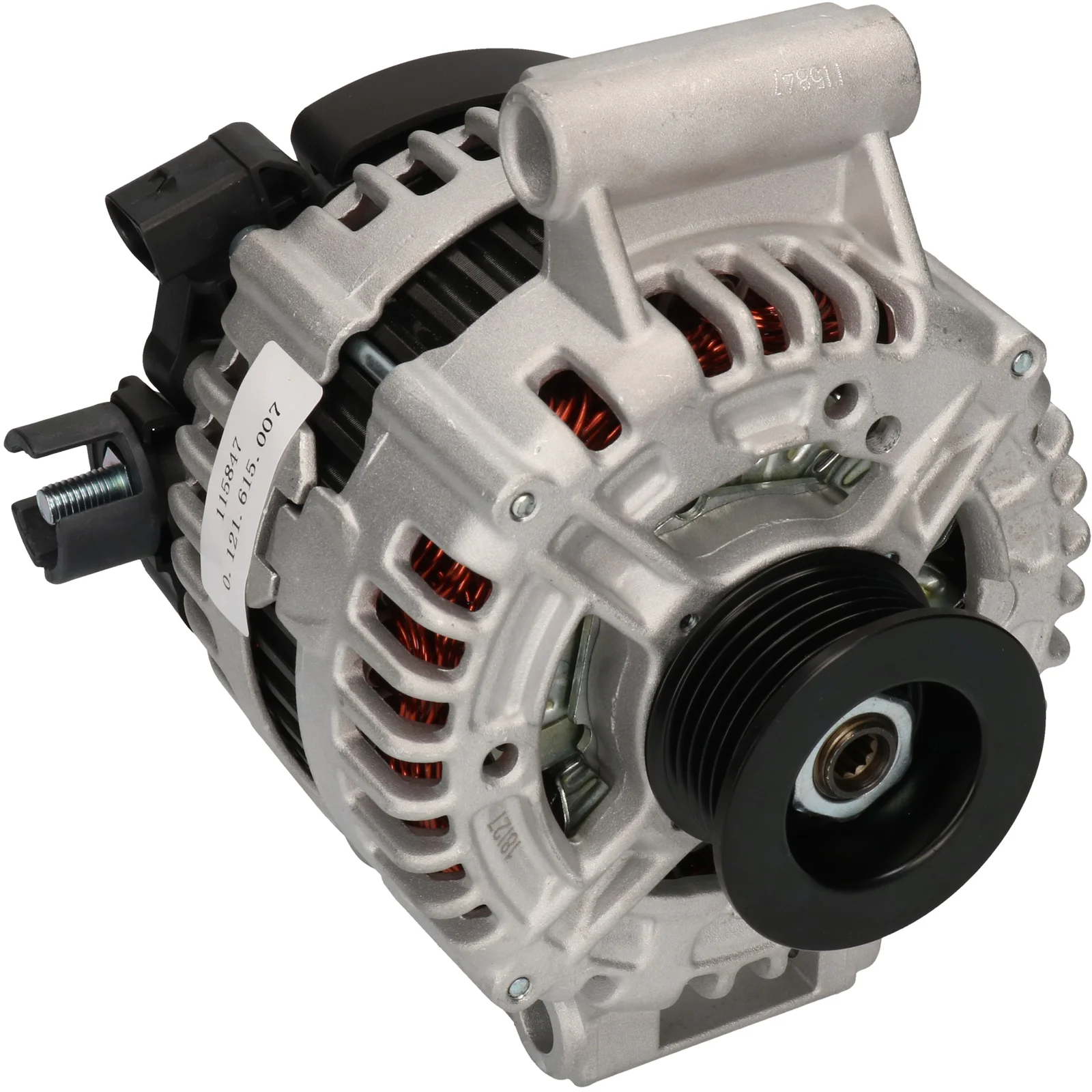

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115847

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 150, Rotation: CW, Mounting bracket distributor: 74.00

Description

Voltage: 14
Amp: 150
Pulley: Diameter: 40.80
Width/Holder arm: 70.00
Mounting bracket: Diameter: 74.00
Bracket hole: 14.50
Bracket hole 2: 12.50
Belt adjustment bracket hole position: 60
Belt adjustment bracket hole 1: 12.50
Pulley diameter: 53.00
Grooves/pulley: 6
Radius: 91.00
Radius 2: 85.00
B+: M8
Position/B+ in minutes: 15
Rotation: CW
Plug number: PL137
Total length mm: 164.00
Terminal type: COM
Communication: LIN
Pulley: SP
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032115847, 6G9J10300DA, 6G9N10300DA, 6g9n10300db, 6G9N10300DC, 6G9N10300DD, 1379700, 1388003, 1469400, 2099437, 0121615007, 0121615107

  • Normalised article numbler
    a0282, cal10002, dra0056, f032115847, lra03144, 6g9j10300da, 6g9n10300da, 6g9n10300db, 6g9n10300dc, 6g9n10300dd, 20010n, 20010r, 210429, 210429a, 285756, 440481, 1379700, 1388003, 1469400, 2099437, 9090483, 12090250, 0121615007, 0121615107, 595567150, 0986047950
  • Description
    Voltage: 14
    Amp: 150
    Pulley: Diameter: 40.80
    Width/Holder arm: 70.00
    Mounting bracket: Diameter: 74.00
    Bracket hole: 14.50
    Bracket hole 2: 12.50
    Belt adjustment bracket hole position: 60
    Belt adjustment bracket hole 1: 12.50
    Pulley diameter: 53.00
    Grooves/pulley: 6
    Radius: 91.00
    Radius 2: 85.00
    B+: M8
    Position/B+ in minutes: 15
    Rotation: CW
    Plug number: PL137
    Total length mm: 164.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032115847, 6G9J10300DA, 6G9N10300DA, 6g9n10300db, 6G9N10300DC, 6G9N10300DD, 1379700, 1388003, 1469400, 2099437, 0121615007, 0121615107

    • Normalised article numbler
      a0282, cal10002, dra0056, f032115847, lra03144, 6g9j10300da, 6g9n10300da, 6g9n10300db, 6g9n10300dc, 6g9n10300dd, 20010n, 20010r, 210429, 210429a, 285756, 440481, 1379700, 1388003, 1469400, 2099437, 9090483, 12090250, 0121615007, 0121615107, 595567150, 0986047950
