HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115902

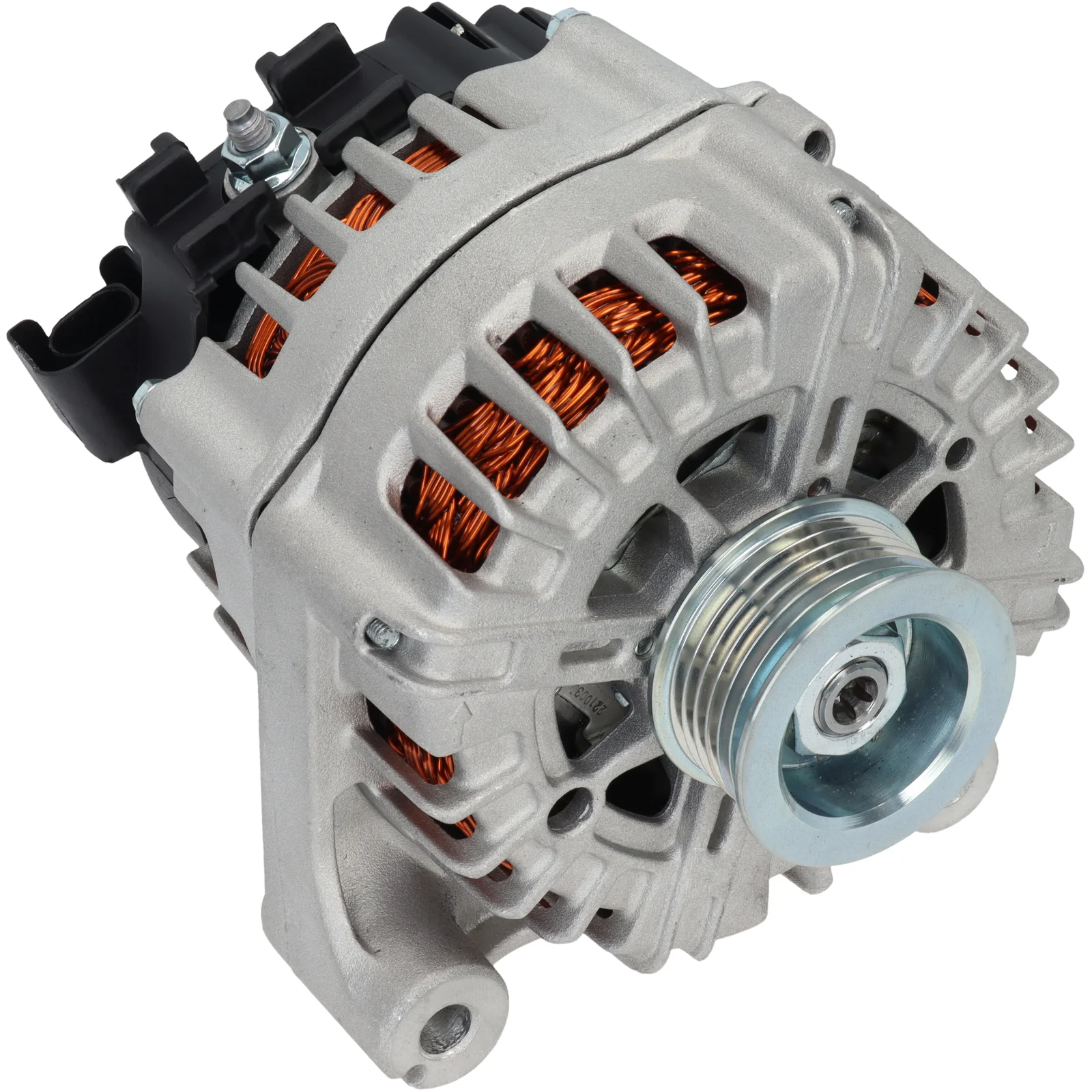

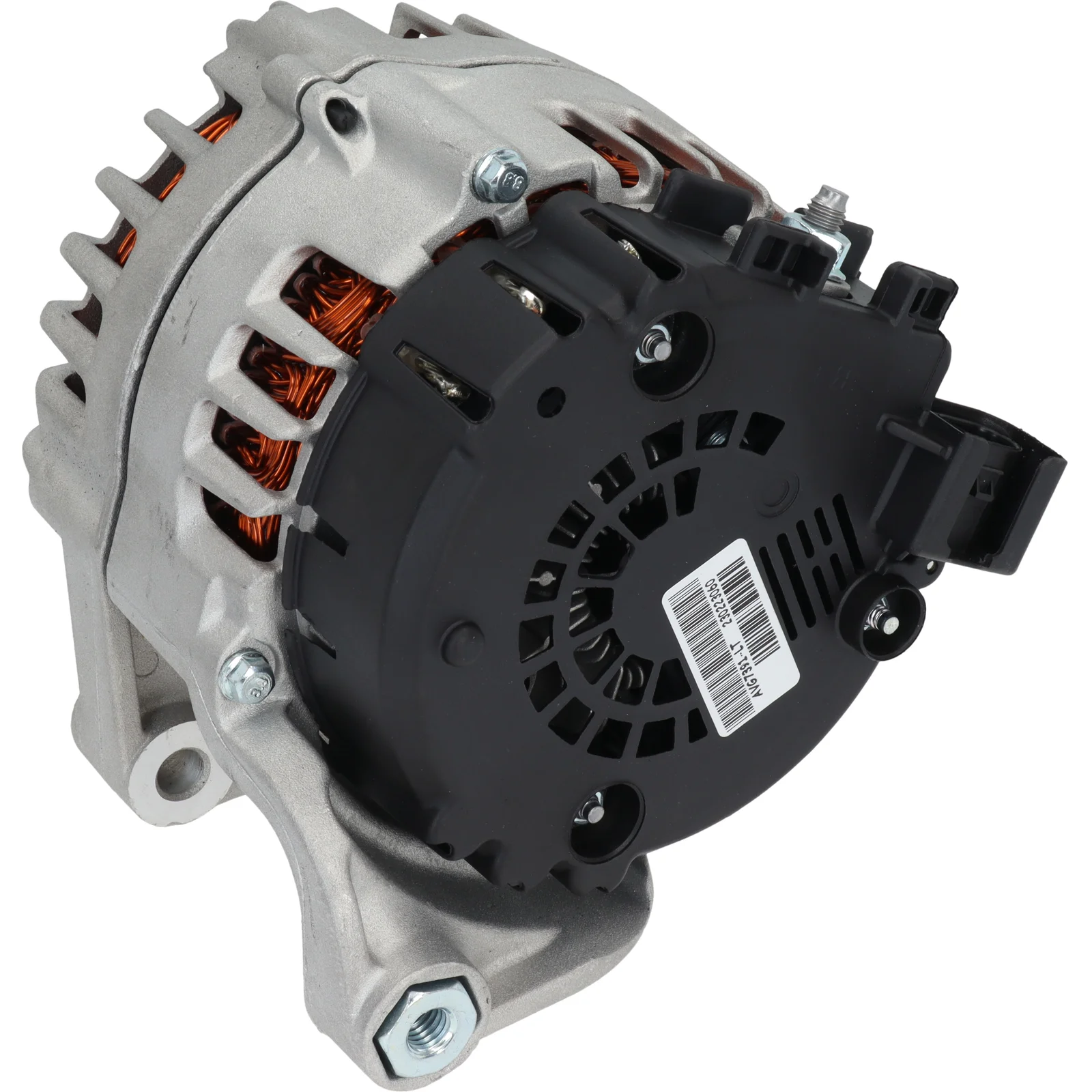

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 230, Rotation: CW, Mount. bracket dist.: 75.50

Description

Voltage: 14
Amp: 230
Pulley dist.: 57.80
Width/holder arm: 28.00
Mount. bracket dist.: 75.50
Bracket hole: 10.50
Belt. adj. brackethole pos.: 20
Pulley dia.: 53.30
Grooves/pulley: 6
Radius: 92.00
Radius 2: 92.00
B+ Length mm: 14.50
B+: M8
Position/B+ in min.: 55
Rotation: CW
Plug no.: PL125
Total length mm: 182.00
Terminal type: COM
Communication: BSS
Pulley: SP
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032115902, FG23S058, 2613207A, 12317823341, 12317823342, 12318515754, 12318516094

  • Normalised article numbler
    a3461s, cal15528, cal15531, dra0953, f032115902, fg23s058, lra03429, 24120n, 209210, 209210a, 286541, 439731, 439810, 440321, 2613207a, 12090594, 12090941, 32440321, 215566220, 2151942202, 2151942302, 12317823341, 12317823342, 12318515754, 12318516094
  • Description
    Voltage: 14
    Amp: 230
    Pulley dist.: 57.80
    Width/holder arm: 28.00
    Mount. bracket dist.: 75.50
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 20
    Pulley dia.: 53.30
    Grooves/pulley: 6
    Radius: 92.00
    Radius 2: 92.00
    B+ Length mm: 14.50
    B+: M8
    Position/B+ in min.: 55
    Rotation: CW
    Plug no.: PL125
    Total length mm: 182.00
    Terminal type: COM
    Communication: BSS
    Pulley: SP
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032115902, FG23S058, 2613207A, 12317823341, 12317823342, 12318515754, 12318516094

    • Normalised article numbler
      a3461s, cal15528, cal15531, dra0953, f032115902, fg23s058, lra03429, 24120n, 209210, 209210a, 286541, 439731, 439810, 440321, 2613207a, 12090594, 12090941, 32440321, 215566220, 2151942202, 2151942302, 12317823341, 12317823342, 12318515754, 12318516094
