HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115903

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 120, Rotation: CW, Mounting bracket distance: 61.00

Description

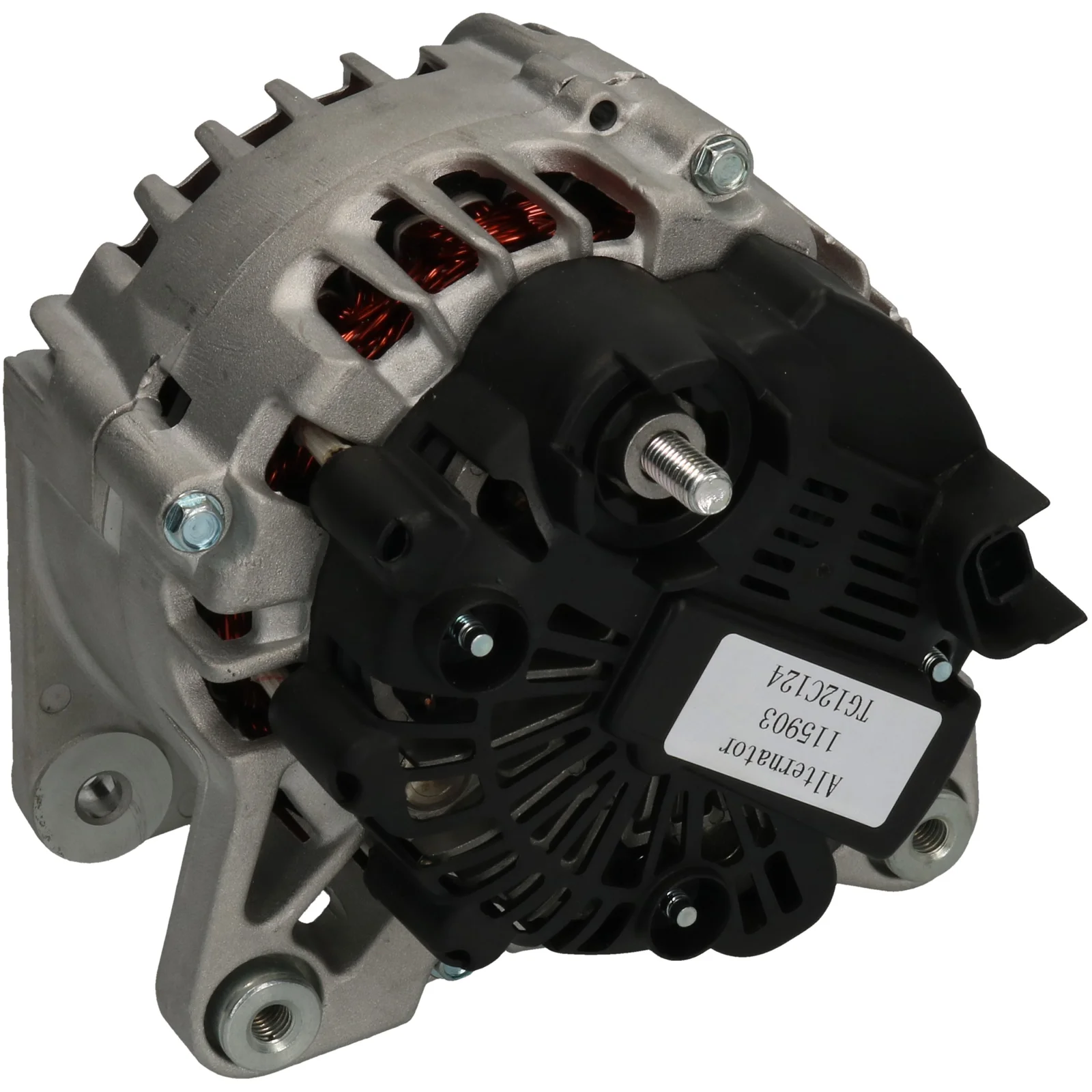

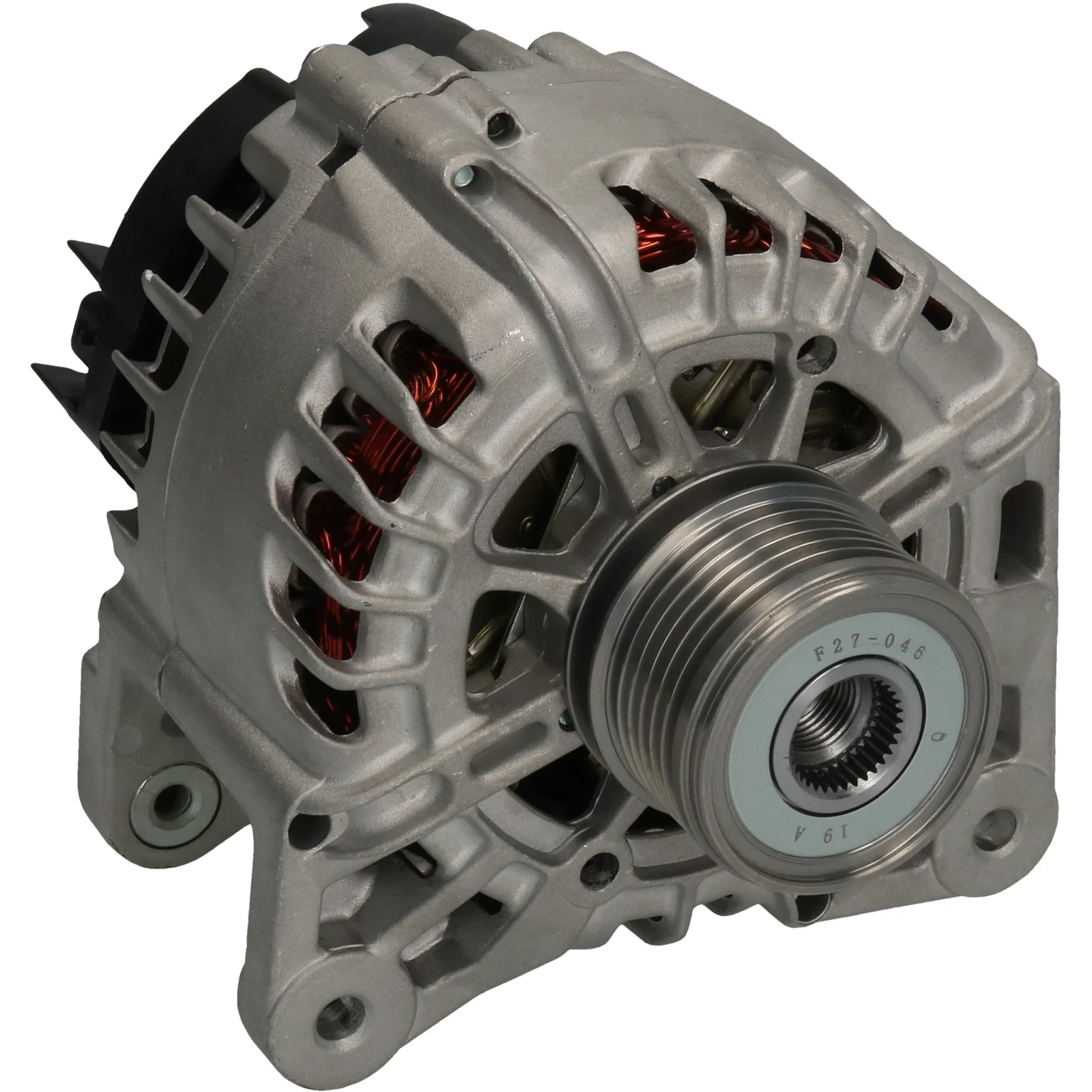

HC-Cargo Alternator 14V - 120A, 6 grooves

Voltage: 14
Amps: 120
Pulley diameter: 38.20
Width/holder arm: 14.00
Mounting bracket distance: 61.00
Bracket hole: 8.60
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 8.60
Belt adjustment bracket hole 2: M8
Pulley diameter: 55.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 50
Rotation: CW
Plug number: PL131
Total length mm: 193.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032115903, TG12C124, TG12S275, 1986A01763, 2310 078 65R, 115903, 286816, 2612718A, 2714146A, 231003424R, 231007865, 231007865R

  • Normalised article numbler
    a3215s, a3215valeo, cal15013, cal15534, dra1396, dra1468, f032115903, tg12c124, tg12s275, 8el011713561, 1986a01763, 20610n, 115903, 286816, 286827, 439829, 440503, 554107ri, 2612718a, 2714146a, 9090868, 12090878, 231003424r, 231007865, 231007865r, 575947120, 0986084780, 2303571202
  • Description
    HC-Cargo Alternator 14V - 120A, 6 grooves

    Voltage: 14
    Amps: 120
    Pulley diameter: 38.20
    Width/holder arm: 14.00
    Mounting bracket distance: 61.00
    Bracket hole: 8.60
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 8.60
    Belt adjustment bracket hole 2: M8
    Pulley diameter: 55.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 50
    Rotation: CW
    Plug number: PL131
    Total length mm: 193.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032115903, TG12C124, TG12S275, 1986A01763, 2310 078 65R, 115903, 286816, 2612718A, 2714146A, 231003424R, 231007865, 231007865R

    • Normalised article numbler
      a3215s, a3215valeo, cal15013, cal15534, dra1396, dra1468, f032115903, tg12c124, tg12s275, 8el011713561, 1986a01763, 20610n, 115903, 286816, 286827, 439829, 440503, 554107ri, 2612718a, 2714146a, 9090868, 12090878, 231003424r, 231007865, 231007865r, 575947120, 0986084780, 2303571202
