Article no.: F032115906

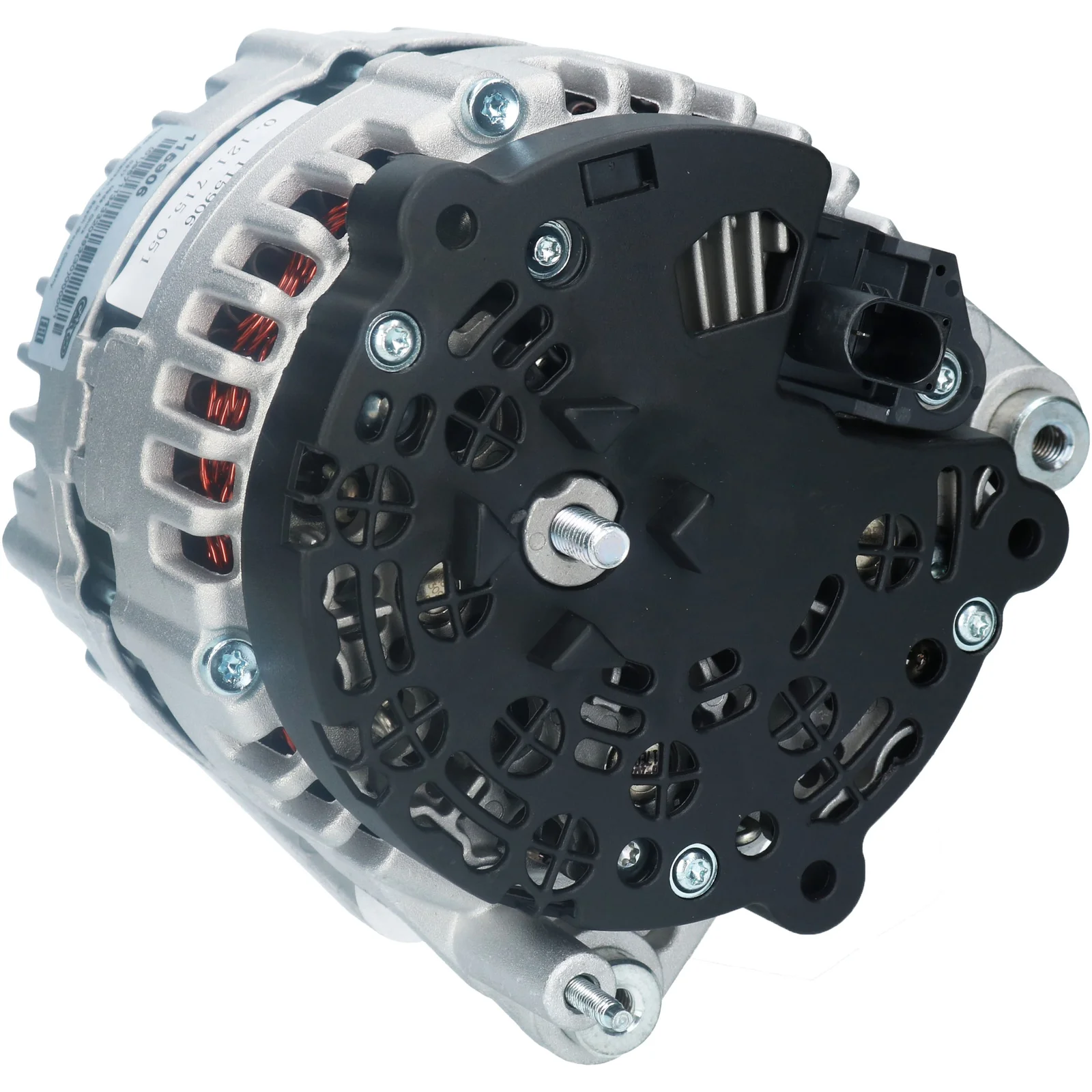

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 180, Rotation: CW, Mounting bracket distributor: 61.00

Description

Voltage: 14
Amp: 180
Pulley dist.: 30.00
Width/holder arm: 13.00
Mounting bracket dist.: 61.00
Bracket hole: 8.50
Belt adjustment bracket hole position.: 45
Belt adjustment bracket hole 1: 8.50
Pulley dia.: 56.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 3
Rotation: CW
Plug no.: PL86
Total length mm: 175.00
Terminal type: COM
Communication: LIN
Pulley: SP
Voltage regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032115906, FG18S043, 059903016P, 059903016PX, 059903016Q, 059903016QX, 0121715041, 0121715051, 0121715151

  • Normalised article numbler
    a0299, a3494s, cal10a14, cal15485, dra0372, f032115906, fg18s043, lra03216, 20331n, 113056, 285828, 443305, 444216, 12090422, 32000015, 059903016p, 059903016px, 059903016q, 059903016qx, 0121715041, 0121715051, 0121715151, 205541180, 2113631802
  • Description
    Voltage: 14
    Amp: 180
    Pulley dist.: 30.00
    Width/holder arm: 13.00
    Mounting bracket dist.: 61.00
    Bracket hole: 8.50
    Belt adjustment bracket hole position.: 45
    Belt adjustment bracket hole 1: 8.50
    Pulley dia.: 56.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 3
    Rotation: CW
    Plug no.: PL86
    Total length mm: 175.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP
    Voltage regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032115906, FG18S043, 059903016P, 059903016PX, 059903016Q, 059903016QX, 0121715041, 0121715051, 0121715151

    • Normalised article numbler
      a0299, a3494s, cal10a14, cal15485, dra0372, f032115906, fg18s043, lra03216, 20331n, 113056, 285828, 443305, 444216, 12090422, 32000015, 059903016p, 059903016px, 059903016q, 059903016qx, 0121715041, 0121715051, 0121715151, 205541180, 2113631802
