HC-Cargo Alternator

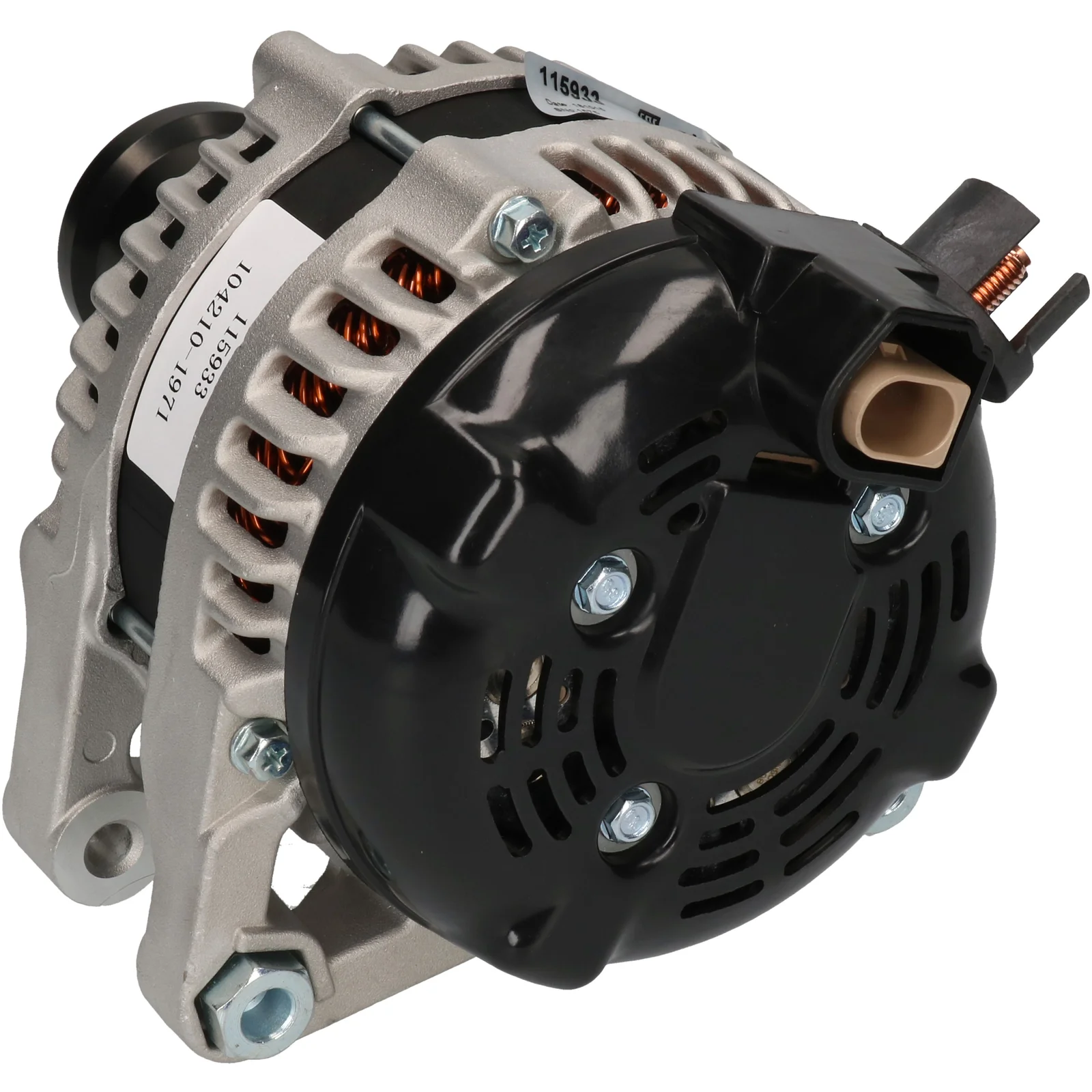

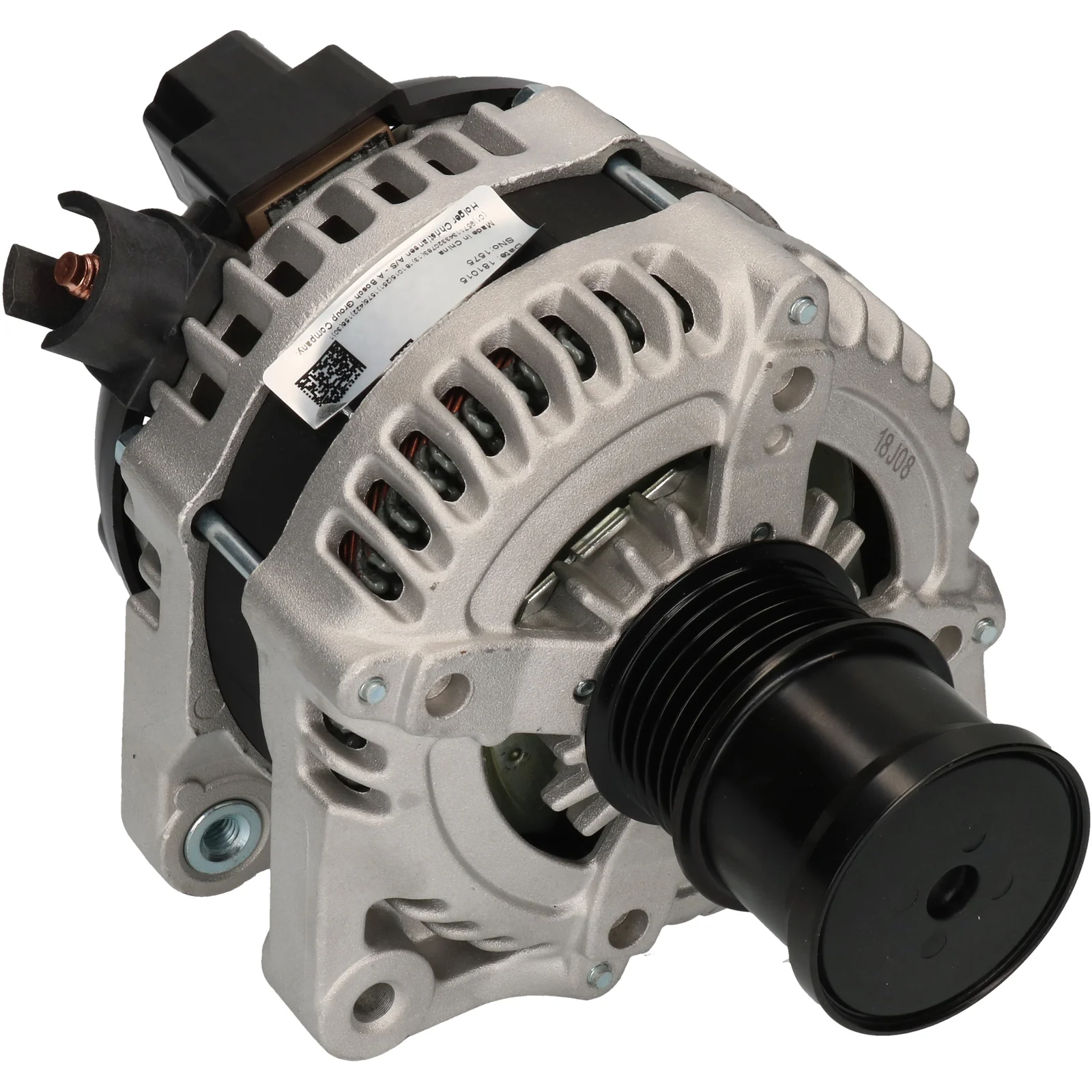

HC-Cargo Alternator
Article no.: F032115933

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 150, Rotation: CW, Mounting bracket distance: 31.50

Description

HC-Cargo Alternator 14V - 150A, 6-groove

Voltage: 14
Amp: 150
Pulley diameter: 42.50
Width/holder arm: 21.50
Mounting bracket diameter: 31.50
Bracket hole: 8.30
Belt adjustment bracket hole position: 15
Belt adjustment bracket hole 1: M8
Belt adjustment bracket hole 2: 9.00
Pulley diameter: 48.50
Grooves/pulley: 6
Radius: 90.00
Radius 2: 81.00
B+: M8
Position/B+ in min.: 20
Rotation: CW
Plug no.: PL174
Total length mm: 205.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Regulator type: IR
Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    CV6T-10300DB, CV6T-10300DC, CV6T10300DB, CV6T10300DC, F032115933, 104210-1970, 104210-1971, 104210-1972, 104210-1973, 115933, 1764817, 1821291

  • Normalised article numbler
    a6132, a6132denso, cal40371, cv6t10300db, cv6t10300dc, dan1074, dra1409, f032115933, 20362r, 115933, 286873, 444210, 1764817, 1821291, 12090785, 32003005, 595598150, 0986085630, 1042101970, 1042101971, 1042101972, 1042101973, 2193191502
  • Description
    HC-Cargo Alternator 14V - 150A, 6-groove

    Voltage: 14
    Amp: 150
    Pulley diameter: 42.50
    Width/holder arm: 21.50
    Mounting bracket diameter: 31.50
    Bracket hole: 8.30
    Belt adjustment bracket hole position: 15
    Belt adjustment bracket hole 1: M8
    Belt adjustment bracket hole 2: 9.00
    Pulley diameter: 48.50
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 81.00
    B+: M8
    Position/B+ in min.: 20
    Rotation: CW
    Plug no.: PL174
    Total length mm: 205.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      CV6T-10300DB, CV6T-10300DC, CV6T10300DB, CV6T10300DC, F032115933, 104210-1970, 104210-1971, 104210-1972, 104210-1973, 115933, 1764817, 1821291

    • Normalised article numbler
      a6132, a6132denso, cal40371, cv6t10300db, cv6t10300dc, dan1074, dra1409, f032115933, 20362r, 115933, 286873, 444210, 1764817, 1821291, 12090785, 32003005, 595598150, 0986085630, 1042101970, 1042101971, 1042101972, 1042101973, 2193191502
