HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115934

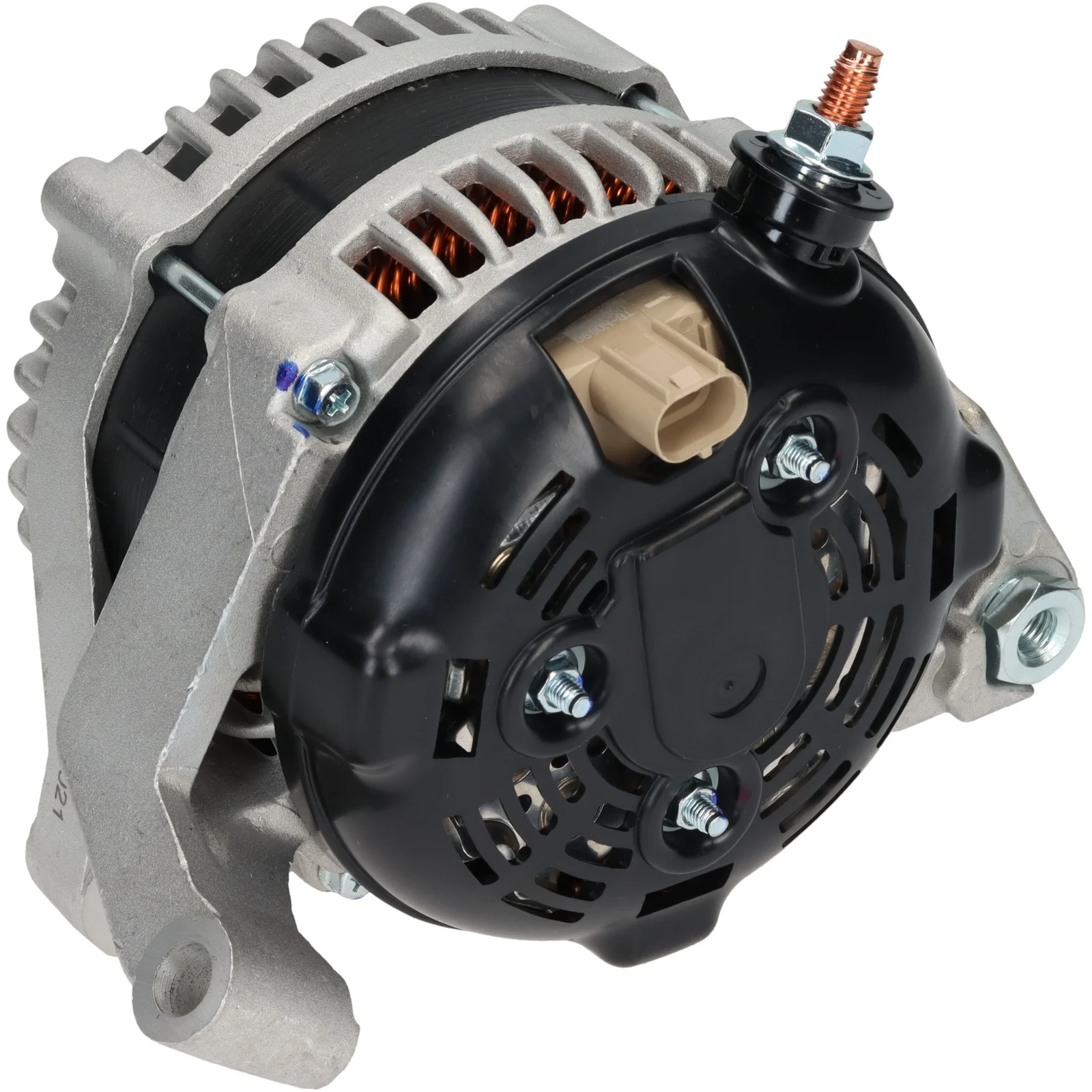

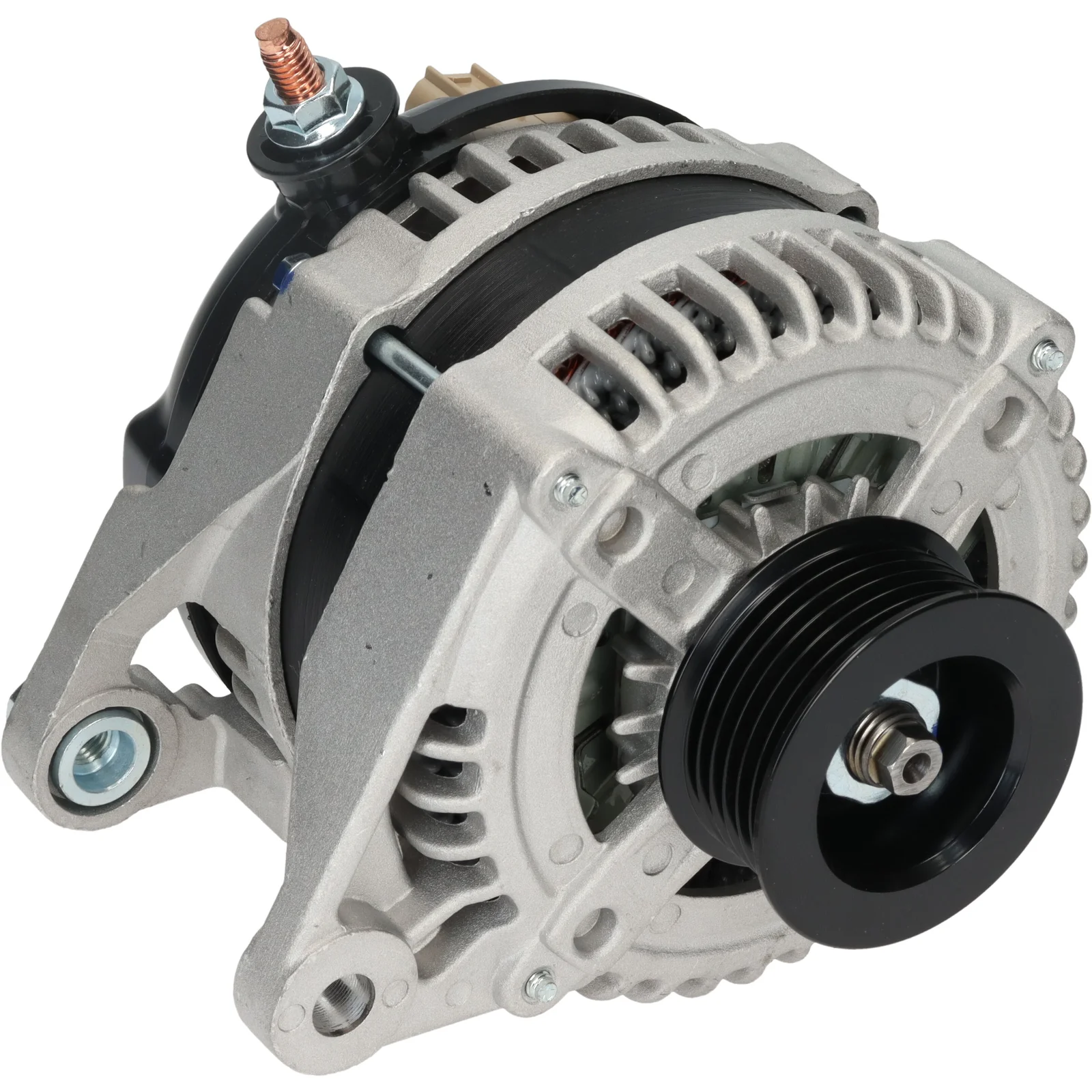

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 160, Rotation: CW, Mounting bracket distance: 68.00

Description

Voltage: 14
Amps: 160
Pulley dist.: 26.50
Width/holder arm: 12.00
Mounting bracket dist.: 68.00
Bracket hole: 11.20
Belt. adjustment bracket hole position: 10
Belt. adjustment bracket hole 1: 12.80
Belt. adjustment bracket hole 2: 10.00
Pulley diameter: 57.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 15
Rotation: CW
Plug no.: PL153
Total length mm: 162.00
Pulley: SP
Fan: IF

Files

  • OEM
    F032115934, R6029914AA, 421000-0040, 421000-0041, 421000-0042, 421000-0043, 4801252AA, 5170748aa, 56029914aa

  • Normalised article numbler
    a6148, cal40348, dra0827, f032115934, lra03175, r6029914aa, 13913, 13913n, 275787, 4801252aa, 5170748aa, 12060957, 56029914aa, 835906160, 4210000040, 4210000041, 4210000042, 4210000043, 5340251602
  • Description
    Voltage: 14
    Amps: 160
    Pulley dist.: 26.50
    Width/holder arm: 12.00
    Mounting bracket dist.: 68.00
    Bracket hole: 11.20
    Belt. adjustment bracket hole position: 10
    Belt. adjustment bracket hole 1: 12.80
    Belt. adjustment bracket hole 2: 10.00
    Pulley diameter: 57.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 15
    Rotation: CW
    Plug no.: PL153
    Total length mm: 162.00
    Pulley: SP
    Fan: IF

    Files

  • Suitable for these vehicles

    • OEM
      F032115934, R6029914AA, 421000-0040, 421000-0041, 421000-0042, 421000-0043, 4801252AA, 5170748aa, 56029914aa

    • Normalised article numbler
      a6148, cal40348, dra0827, f032115934, lra03175, r6029914aa, 13913, 13913n, 275787, 4801252aa, 5170748aa, 12060957, 56029914aa, 835906160, 4210000040, 4210000041, 4210000042, 4210000043, 5340251602
