HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115952

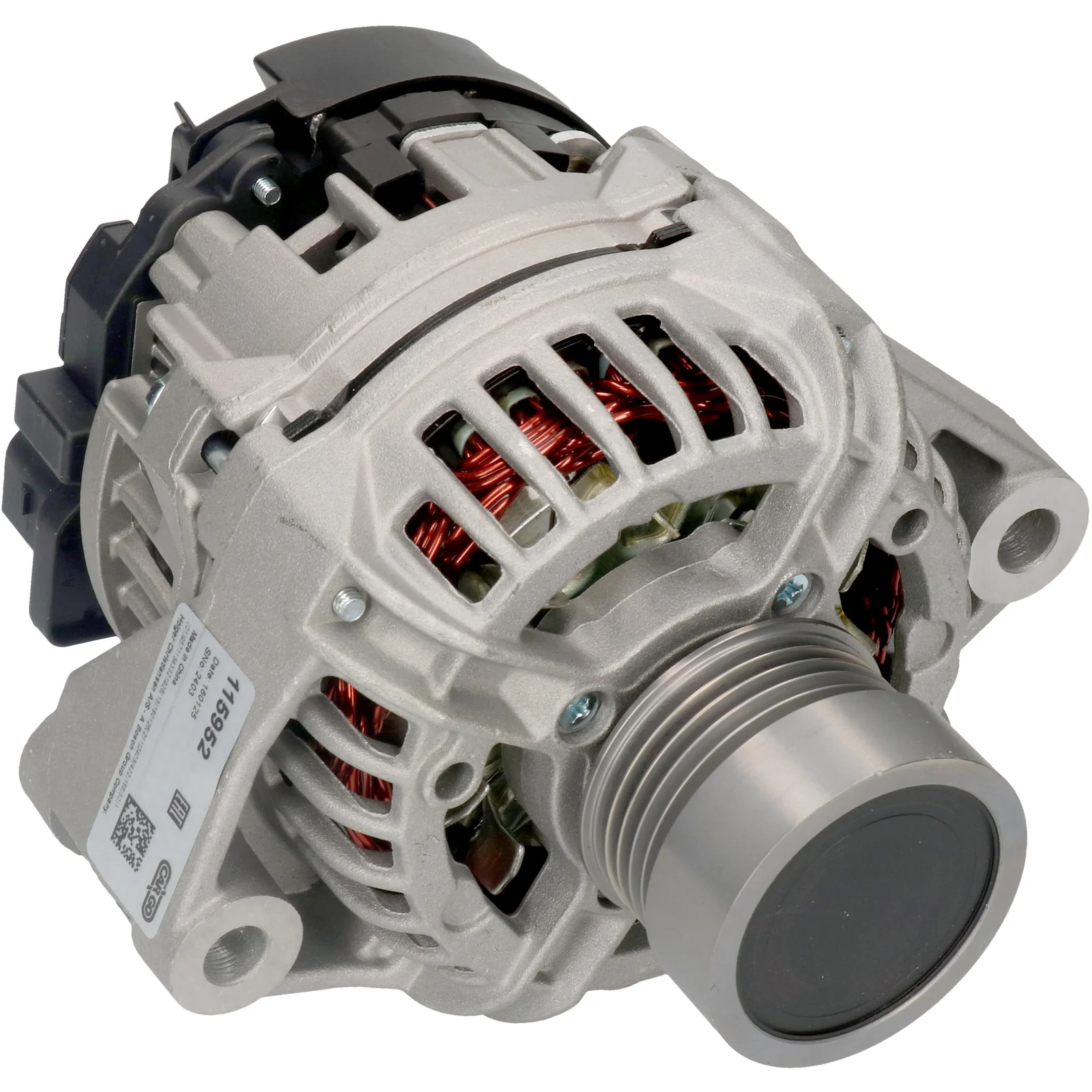

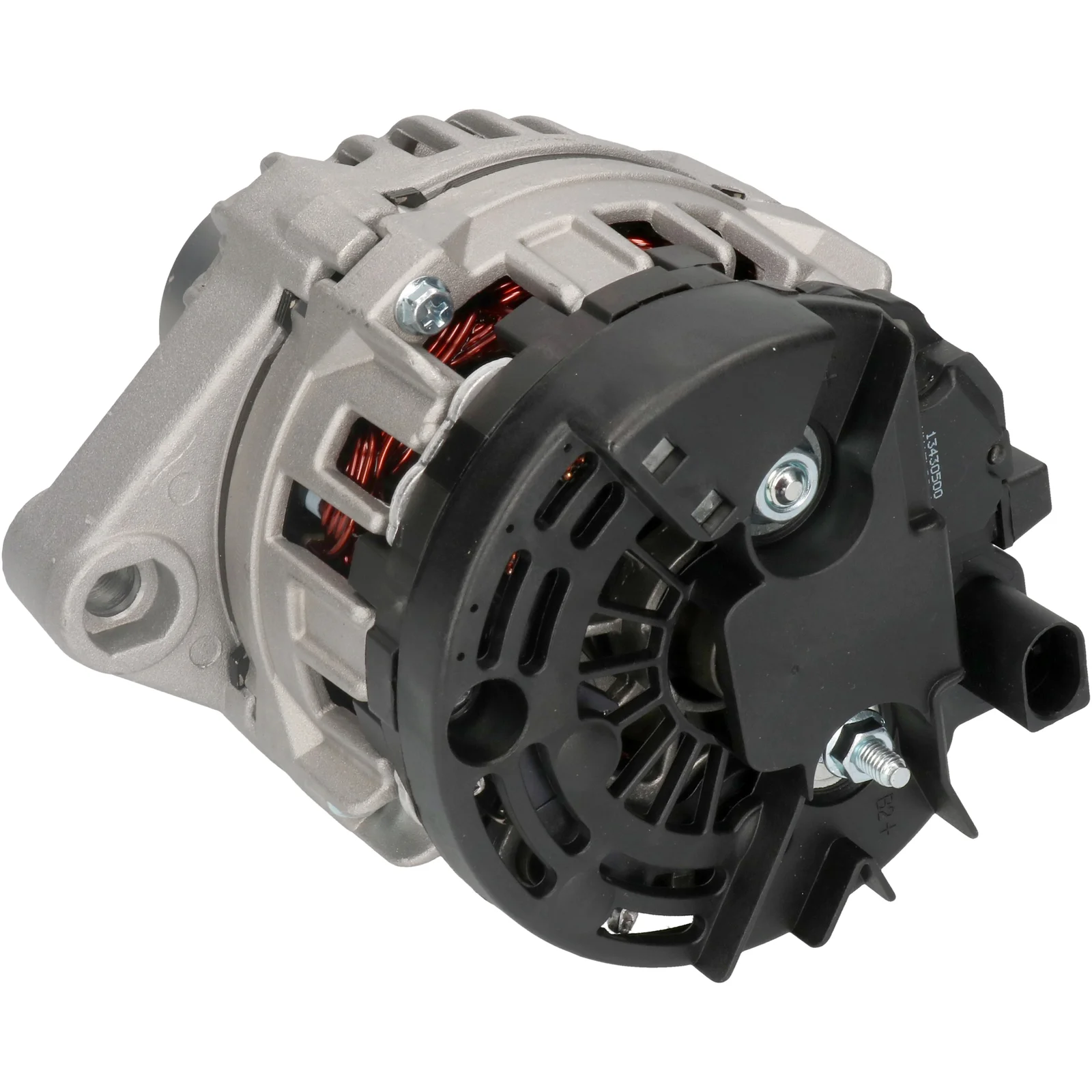

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 90, Rotation: CW, Pulley diameter: 54.00

Description

Voltage: 14
Amp: 90
Pulley dist.: 90.50
Width/holder arm: 58.00
Bracket hole: 10.50
Belt. adj. bracket hole position: 4
Belt. adj. bracket hole 1: 11.50
Pulley dia.: 54.00
Grooves/pulley: 5
Radius: 80.00
Radius 2: 80.00
B+: M8
Position/B+ in min.: 37
Rotation: CW
Plug no.: PL86
Total length mm: 190.00
Terminal type: COM
Communication: LIN
Alternator: SP/FW
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    A0009062400, A0009062401, F032115952, 0009062400, 0009062401, 0124225064

  • Normalised article numbler
    a0009062400, a0009062401, a0547s, cal10510, f032115952, lra03688, 286749, 554241ri, 0009062400, 0009062401, 9090796, 12090528, 0124225064, 525125902, 555938090
  • Description
    Voltage: 14
    Amp: 90
    Pulley dist.: 90.50
    Width/holder arm: 58.00
    Bracket hole: 10.50
    Belt. adj. bracket hole position: 4
    Belt. adj. bracket hole 1: 11.50
    Pulley dia.: 54.00
    Grooves/pulley: 5
    Radius: 80.00
    Radius 2: 80.00
    B+: M8
    Position/B+ in min.: 37
    Rotation: CW
    Plug no.: PL86
    Total length mm: 190.00
    Terminal type: COM
    Communication: LIN
    Alternator: SP/FW
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      A0009062400, A0009062401, F032115952, 0009062400, 0009062401, 0124225064

    • Normalised article numbler
      a0009062400, a0009062401, a0547s, cal10510, f032115952, lra03688, 286749, 554241ri, 0009062400, 0009062401, 9090796, 12090528, 0124225064, 525125902, 555938090
