HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115955

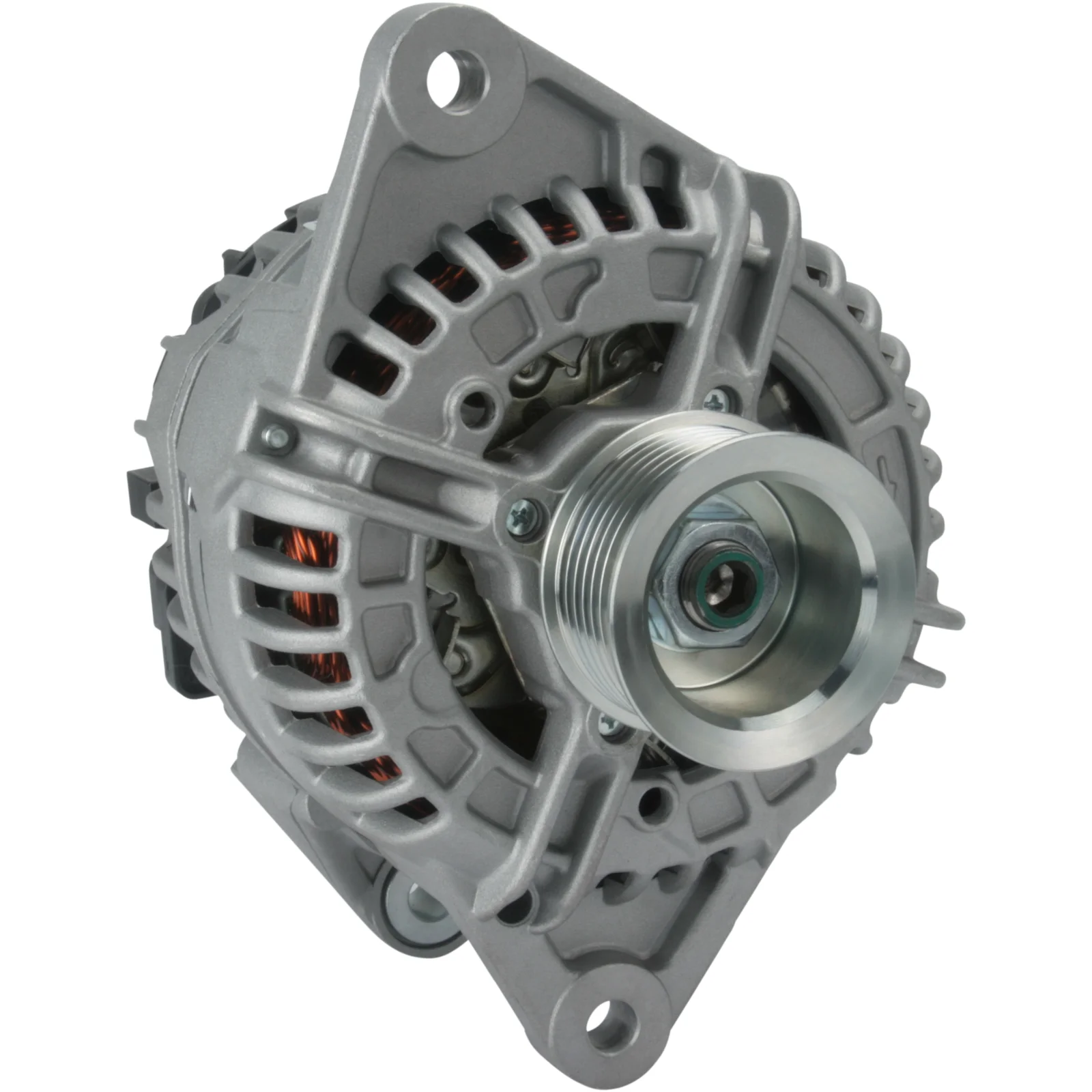

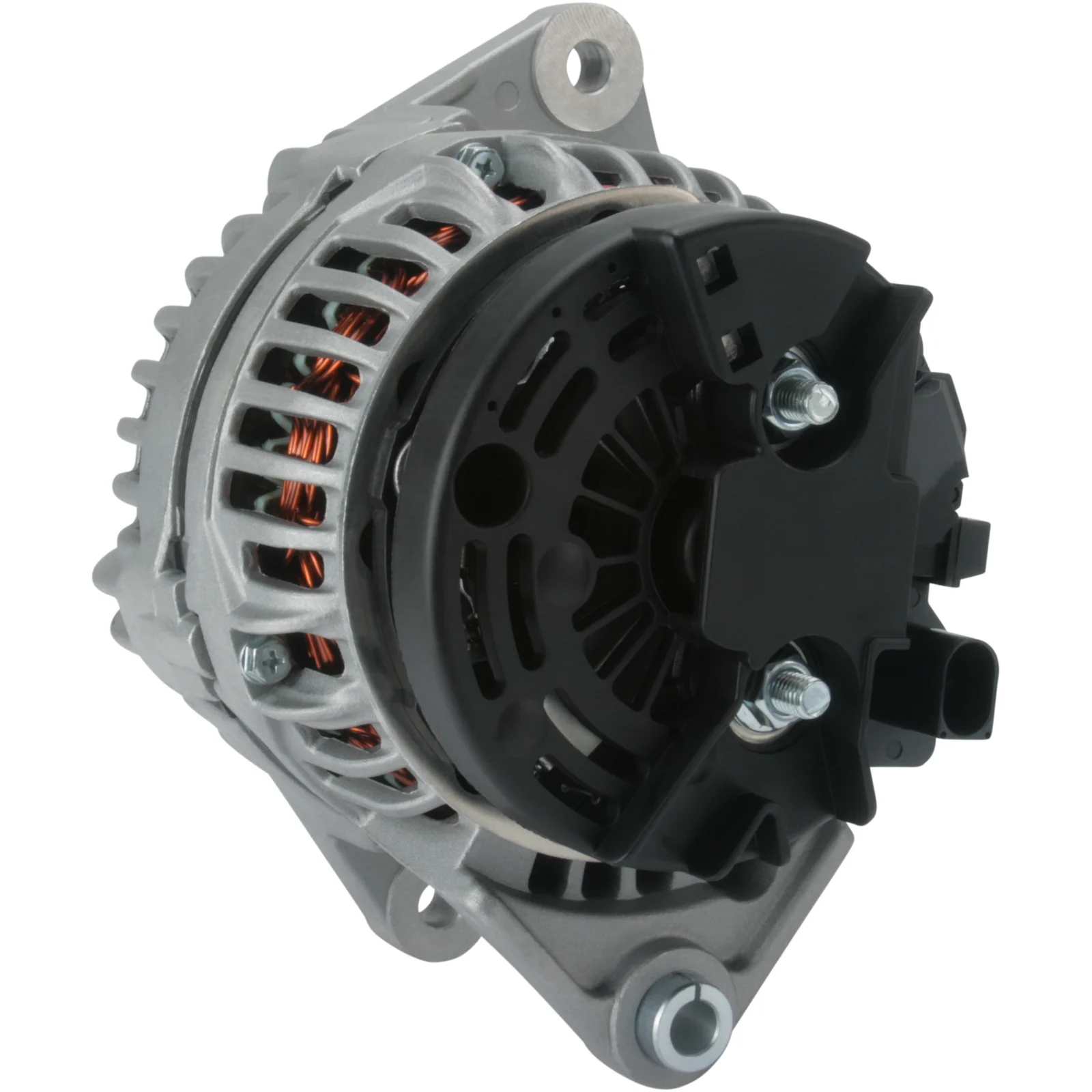

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 150, Rotation: CW, Mounting bracket distance: 80.00

Description

Voltage: 14
Amp: 150
Pulley distributor: 41.30
Width/holder arm: 14.00
Mounting bracket distributor: 80.00
Bracket hole: 10.50
Belt adjustment bracket hole position: 55
Belt adjustment bracket hole 1: 11.00
Pulley diameter: 55.00
Grooves/pulley: 7
Radius: 94.00
Radius 2: 94.00
B+: M8
Position/B+ in minutes: 2
D+ Size: Plug
Rotation: CW
Plug number: PL87
Total length mm: 191.00
Terminal type: L
Pulley: SP
Regulator type: IR
Product information: BN

Files

  • OEM
    F032115955, 1986A01517, 0124525130, 504204172

  • Normalised article numbler
    a0734s, cal10432, f032115955, lra03110, 1986a01517, 23421r, 209085, 209085a, 285722, 440919, 443263, 443469, 9090737, 12090460, 0124525130, 504204172, 505524150, 0986086270
  • Description
    Voltage: 14
    Amp: 150
    Pulley distributor: 41.30
    Width/holder arm: 14.00
    Mounting bracket distributor: 80.00
    Bracket hole: 10.50
    Belt adjustment bracket hole position: 55
    Belt adjustment bracket hole 1: 11.00
    Pulley diameter: 55.00
    Grooves/pulley: 7
    Radius: 94.00
    Radius 2: 94.00
    B+: M8
    Position/B+ in minutes: 2
    D+ Size: Plug
    Rotation: CW
    Plug number: PL87
    Total length mm: 191.00
    Terminal type: L
    Pulley: SP
    Regulator type: IR
    Product information: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032115955, 1986A01517, 0124525130, 504204172

    • Normalised article numbler
      a0734s, cal10432, f032115955, lra03110, 1986a01517, 23421r, 209085, 209085a, 285722, 440919, 443263, 443469, 9090737, 12090460, 0124525130, 504204172, 505524150, 0986086270
