HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115956

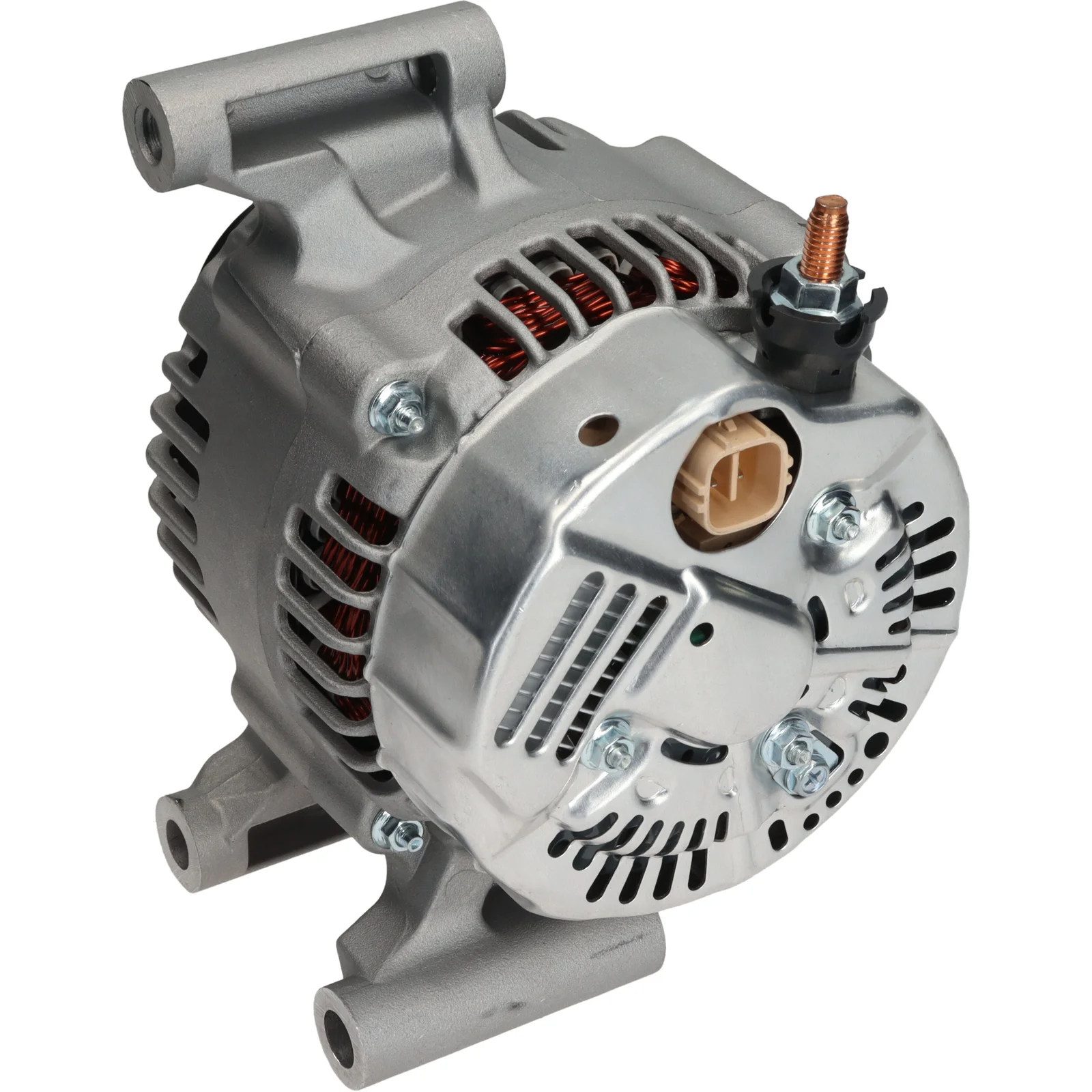

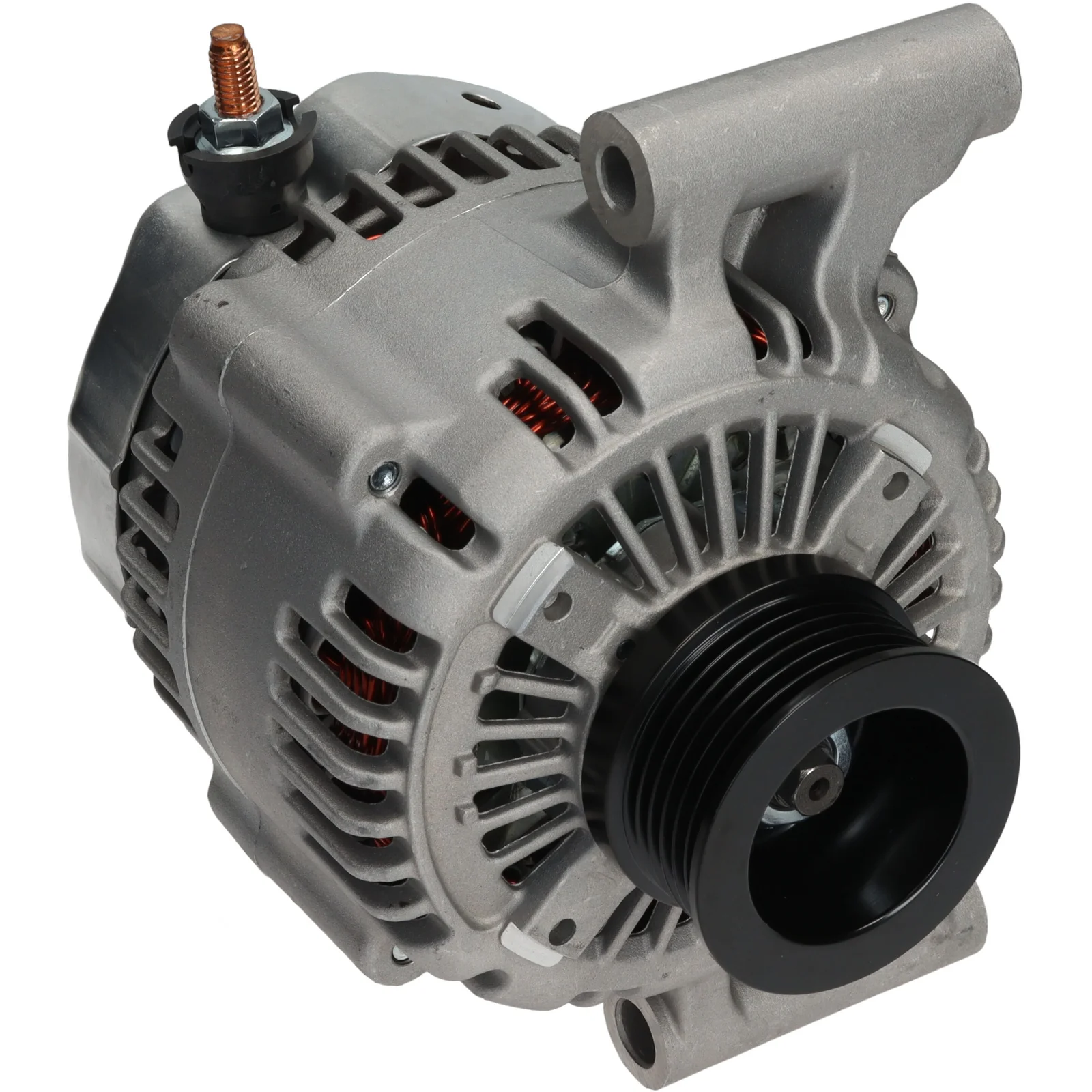

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 120, Rotation: CW, Mounting bracket distributor: 74.50

Description

Voltage: 14
Amp: 120
Pulley fixture: 41.50
Width/holder arm: 73.00
Mounting bracket distance: 74.50
Bracket hole: 10.50x11.50
Bracket hole 2: 12.20
Belt adjustment bracket hole position: 60
Belt adjustment bracket hole 1: 10.20
Pulley diameter: 58.00
Grooves/pulley: 6
Radius: 87.50
Radius 2: 87.50
B+: M8
Position/B+ in min.: 4
D+ Size: Plug
Rotation: CW
Plug number: PL60
Total length mm: 178.00
Pulley: SP
Regulator type: IR

Files

  • OEM
    A6360, CAL40221, DAN1408, DRA0987, F032115956, LRA03520, XR817076, XR8310300BA, XR8310300BC, XR8310300BD32, XR8310300CC, XR837164, XR842452, XR88577, 2R83-10300-BA, 2R8310300AA, 2R8310300AB, 2R83AB, 8EL015637-631, 28-6630, 214.174.1202, 595.535.120, 595.535.150, 11199N, 11199R, 102211-0980, 102211-0981, 12090680

  • Normalised article numbler
    a6360, cal40221, dan1408, dra0987, f032115956, lra03520, xr817076, xr8310300ba, xr8310300bc, xr8310300bd32, xr8310300cc, xr837164, xr842452, xr88577, 2r8310300aa, 2r8310300ab, 2r8310300ba, 2r83ab, 8el015637631, 11199n, 11199r, 286630, 12090680, 595535120, 595535150, 1022110980, 1022110981, 2141741202
  • Description
    Voltage: 14
    Amp: 120
    Pulley fixture: 41.50
    Width/holder arm: 73.00
    Mounting bracket distance: 74.50
    Bracket hole: 10.50x11.50
    Bracket hole 2: 12.20
    Belt adjustment bracket hole position: 60
    Belt adjustment bracket hole 1: 10.20
    Pulley diameter: 58.00
    Grooves/pulley: 6
    Radius: 87.50
    Radius 2: 87.50
    B+: M8
    Position/B+ in min.: 4
    D+ Size: Plug
    Rotation: CW
    Plug number: PL60
    Total length mm: 178.00
    Pulley: SP
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      A6360, CAL40221, DAN1408, DRA0987, F032115956, LRA03520, XR817076, XR8310300BA, XR8310300BC, XR8310300BD32, XR8310300CC, XR837164, XR842452, XR88577, 2R83-10300-BA, 2R8310300AA, 2R8310300AB, 2R83AB, 8EL015637-631, 28-6630, 214.174.1202, 595.535.120, 595.535.150, 11199N, 11199R, 102211-0980, 102211-0981, 12090680

    • Normalised article numbler
      a6360, cal40221, dan1408, dra0987, f032115956, lra03520, xr817076, xr8310300ba, xr8310300bc, xr8310300bd32, xr8310300cc, xr837164, xr842452, xr88577, 2r8310300aa, 2r8310300ab, 2r8310300ba, 2r83ab, 8el015637631, 11199n, 11199r, 286630, 12090680, 595535120, 595535150, 1022110980, 1022110981, 2141741202
