HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115958

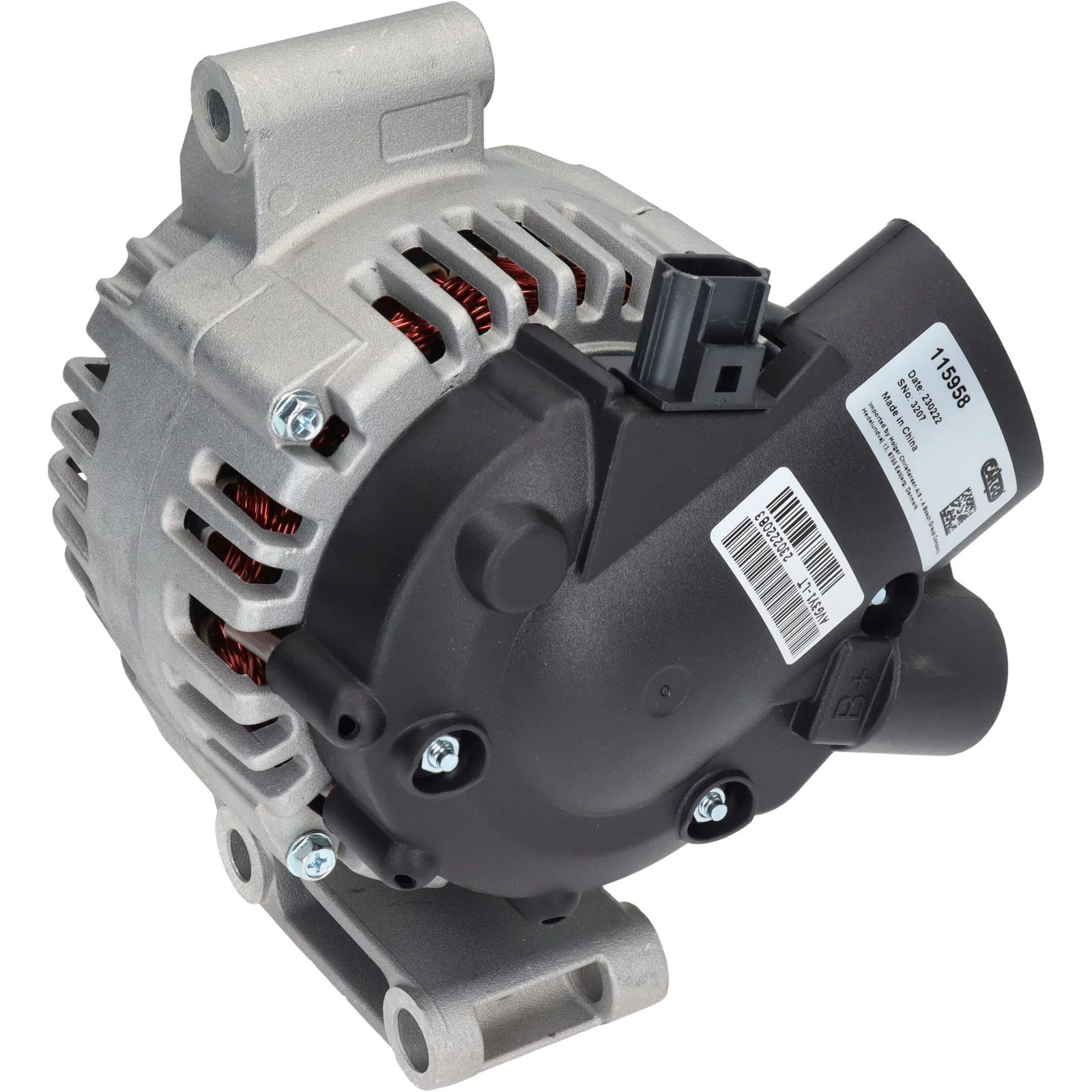

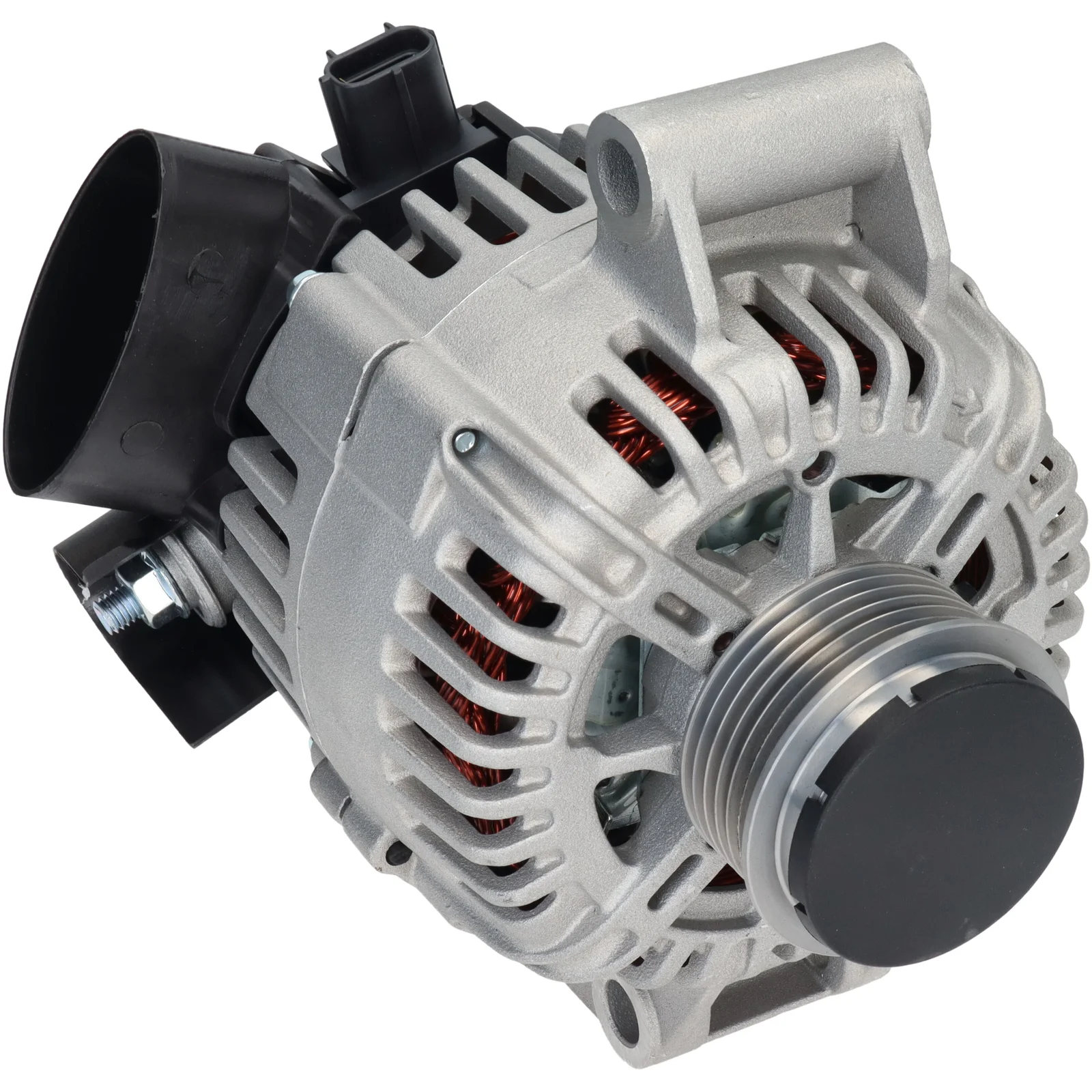

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 110, Rotation: CW, Mounting bracket distributor: 74.00

Description

Voltage: 14
Amp: 110
Pulley distance: 40.00
Width/holder arm: 55.00
Mounting bracket distance: 74.00
Bracket hole: 10.50
Belt adjustment bracket hole 1: 10.30
Pulley diameter: 60.00
Grooves/pulley: 6
Radius: 88.00
Radius 2: 88.00
B+ Length mm: 12.00
B+: M8
Position/B+ in minutes: 20
Rotation: CW
Plug no.: PL57
Total length mm: 182.00
Terminal type: FR-SIG-A
Pulley: SP/FW
Fan: IF
Regulator type: IR

Files

  • OEM
    F032115958, TG12C013, TG12C109, 2s7t10300aa, 2s7t10300ab, 2S7T10300AC, 1151639, 1225784, 2542737, 2542737A

  • Normalised article numbler
    cal15307, dra0134, f032115958, lra03001, tg12c013, tg12c109, 2s7t10300aa, 2s7t10300ab, 2s7t10300ac, 24002r, 210414, 210414a, 275614, 437448, 439483, 1151639, 1225784, 2542737, 2542737a, 9090382, 12090241, 595528110, 595587110
  • Description
    Voltage: 14
    Amp: 110
    Pulley distance: 40.00
    Width/holder arm: 55.00
    Mounting bracket distance: 74.00
    Bracket hole: 10.50
    Belt adjustment bracket hole 1: 10.30
    Pulley diameter: 60.00
    Grooves/pulley: 6
    Radius: 88.00
    Radius 2: 88.00
    B+ Length mm: 12.00
    B+: M8
    Position/B+ in minutes: 20
    Rotation: CW
    Plug no.: PL57
    Total length mm: 182.00
    Terminal type: FR-SIG-A
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F032115958, TG12C013, TG12C109, 2s7t10300aa, 2s7t10300ab, 2S7T10300AC, 1151639, 1225784, 2542737, 2542737A

    • Normalised article numbler
      cal15307, dra0134, f032115958, lra03001, tg12c013, tg12c109, 2s7t10300aa, 2s7t10300ab, 2s7t10300ac, 24002r, 210414, 210414a, 275614, 437448, 439483, 1151639, 1225784, 2542737, 2542737a, 9090382, 12090241, 595528110, 595587110
