HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115959

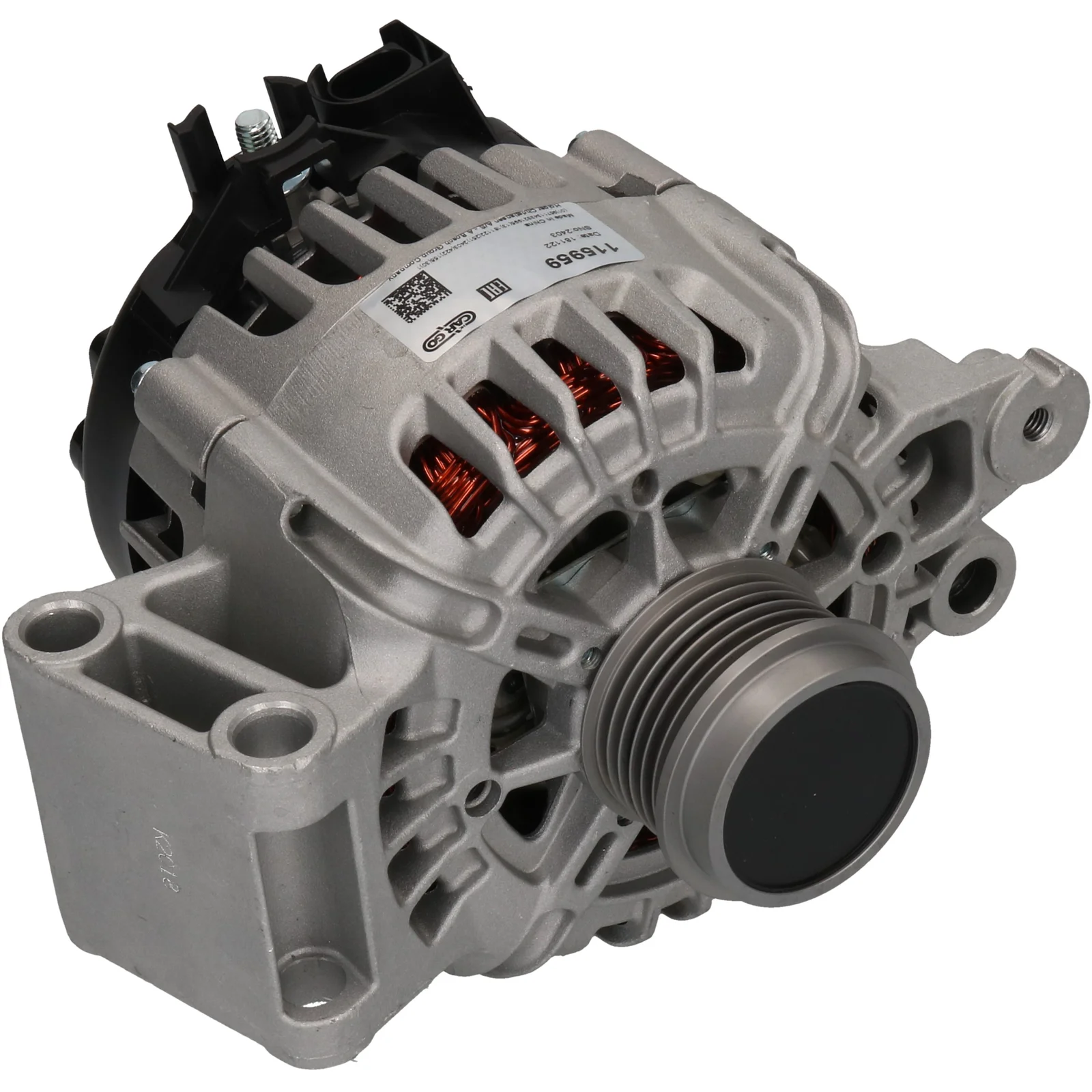

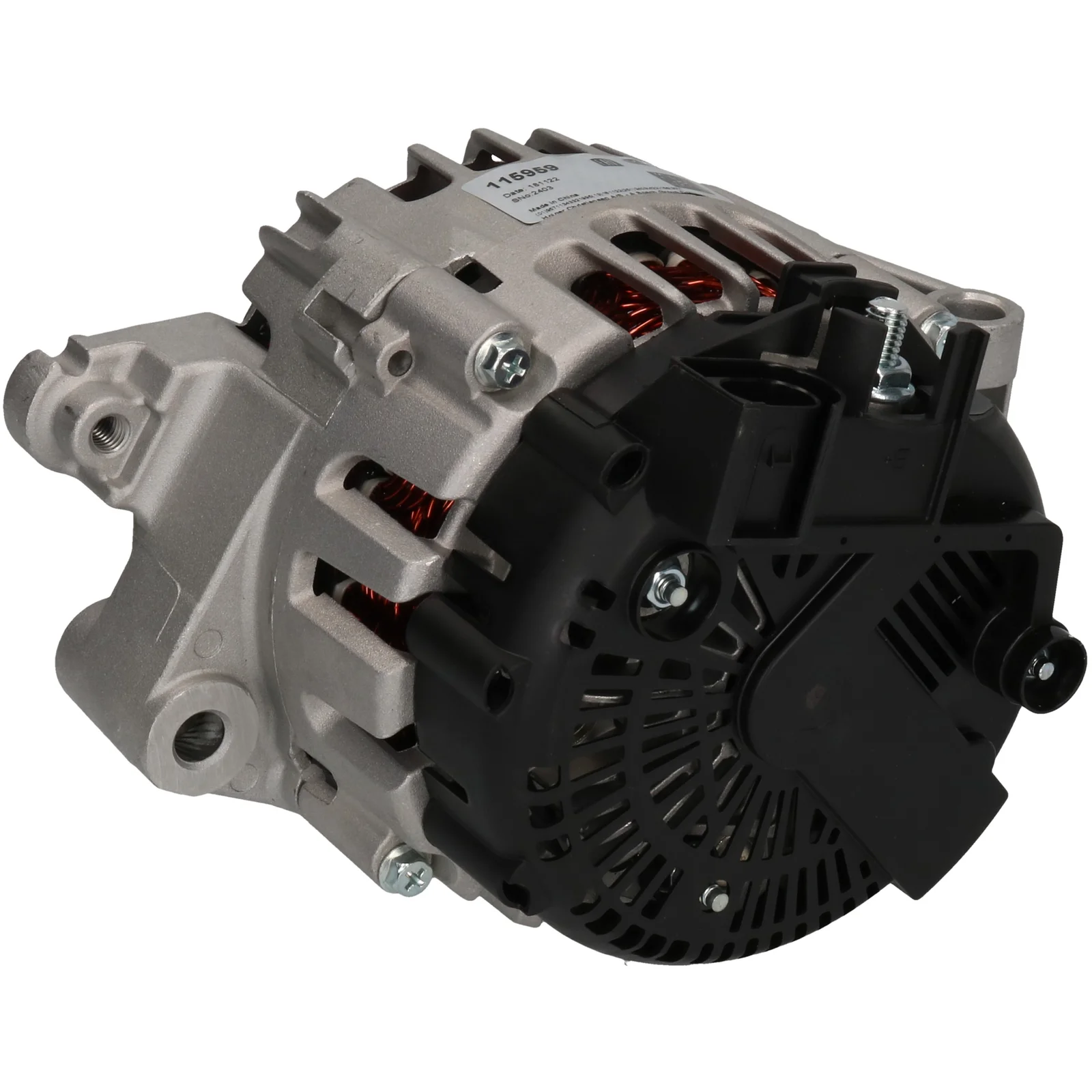

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 120, Rotation: CW, Mounting bracket distributor: 51.00

Description

Voltage: 14
Amp: 120
Pulley dist.: 11.50
Width/holder arm: 71.50
Mount. bracket dist.: 51.00
Bracket hole: 12.50
Belt. adj. brackethole pos.: 4
Belt. adj. bracket hole 1: 10.50
Pulley dia.: 51.70
Grooves/pulley: 6
Radius: 84.50
Radius 2: 87.00
B+: M8
Position/B+ in min.: 16
Rotation: CW
Plug no.: PL174
Total length mm: 186.50
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    bv6n10300aa, F032115959, tg12c107, 1704925

  • Normalised article numbler
    bv6n10300aa, cal15478, dra1412, f032115959, lra03768, tg12c107, 11698n, 210963, 210963a, 286878, 439899, 553824ri, 1704925, 12090627, 595592120, 2193211202
  • Description
    Voltage: 14
    Amp: 120
    Pulley dist.: 11.50
    Width/holder arm: 71.50
    Mount. bracket dist.: 51.00
    Bracket hole: 12.50
    Belt. adj. brackethole pos.: 4
    Belt. adj. bracket hole 1: 10.50
    Pulley dia.: 51.70
    Grooves/pulley: 6
    Radius: 84.50
    Radius 2: 87.00
    B+: M8
    Position/B+ in min.: 16
    Rotation: CW
    Plug no.: PL174
    Total length mm: 186.50
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      bv6n10300aa, F032115959, tg12c107, 1704925

    • Normalised article numbler
      bv6n10300aa, cal15478, dra1412, f032115959, lra03768, tg12c107, 11698n, 210963, 210963a, 286878, 439899, 553824ri, 1704925, 12090627, 595592120, 2193211202
