HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115960

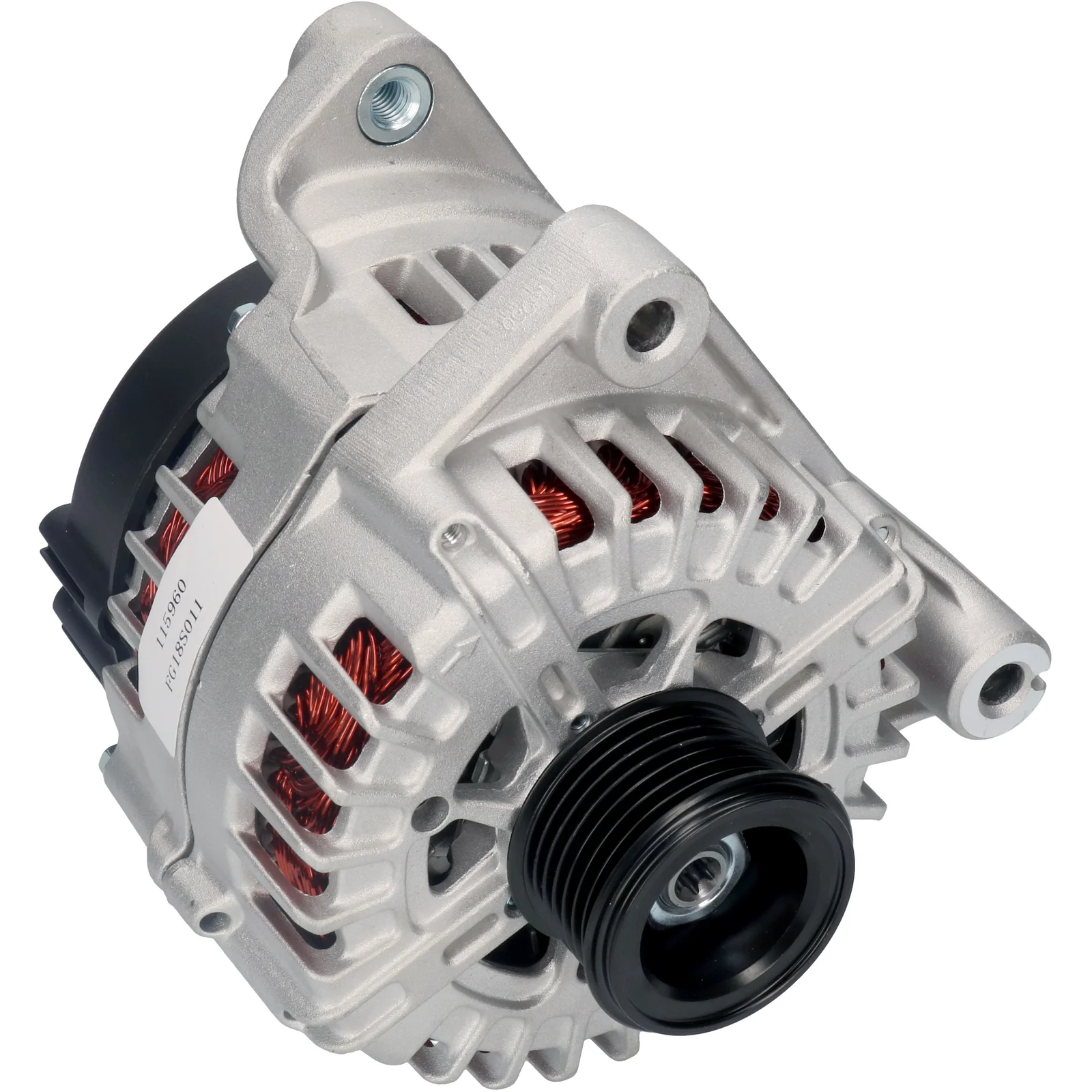

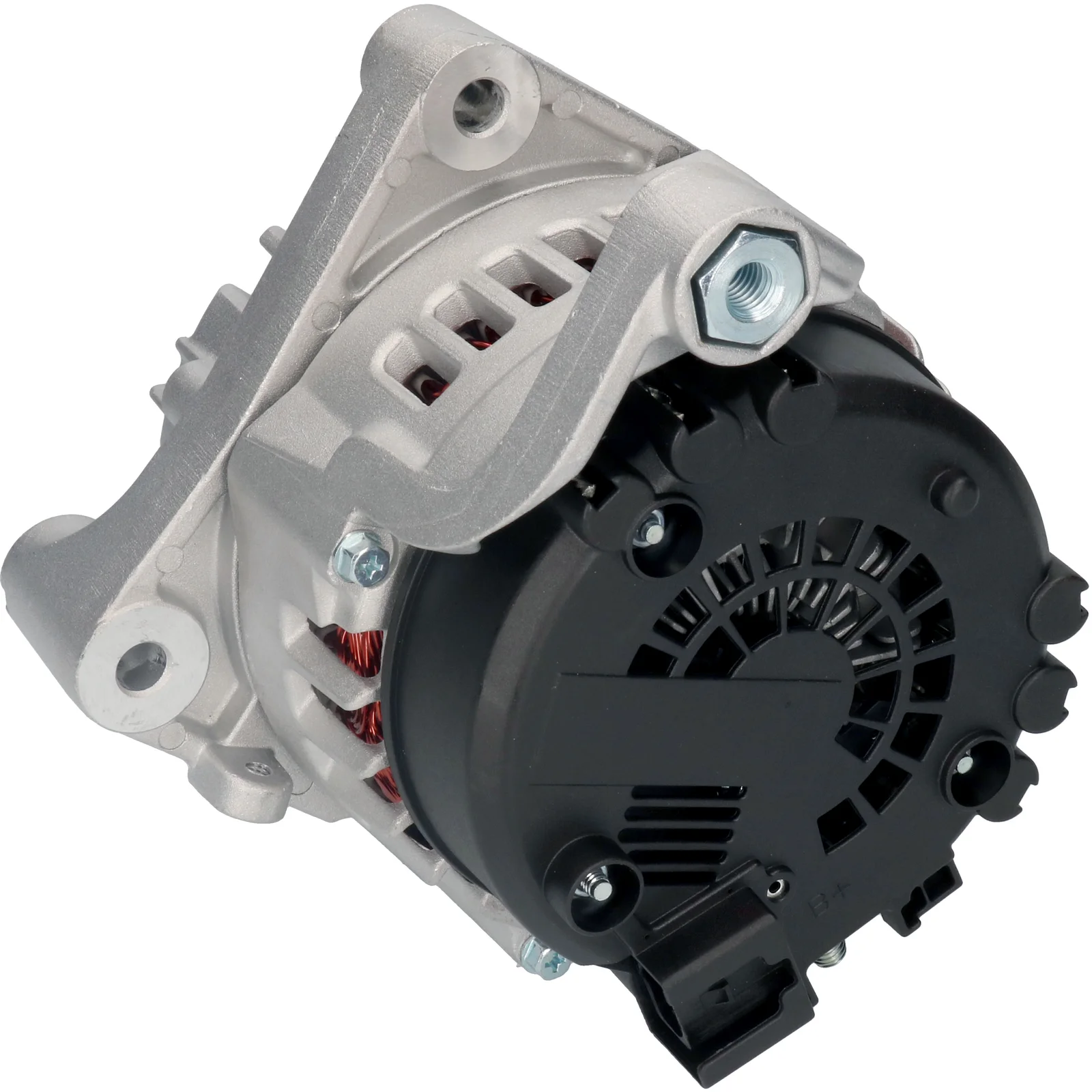

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 180, Rotation: CW, Mounting bracket distributor: 75.00

Description

Voltage: 14
Amp: 180
Pulley dist.: 55.50
Width/holder arm: 27.70
Mount. bracket dist.: 75.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 10.50
Pulley dia.: 53.80
Grooves/pulley: 7
Radius: 93.00
Radius 2: 93.00
B+: M8
Position/B+ in min.: 60
Rotation: CW
Plug no.: PL86
Total length mm: 188.00
Terminal type: COM
Pulley: SP
Regulator type: IR
Prod. info: BN
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032115960, FG18S011, 2543403B, 2543403C, 7803724, 7808074, 12317803724, 12317808074

  • Normalised article numbler
    a3469s, cal15469, dra0971, f032115960, fg18s011, lra03683, 8el012240281, 20979n, 200261, 209169, 209169a, 286744, 439668, 440255, 2543403b, 2543403c, 7803724, 7808074, 9090573, 12090299, 2151981802, 12317803724, 12317808074
  • Description
    Voltage: 14
    Amp: 180
    Pulley dist.: 55.50
    Width/holder arm: 27.70
    Mount. bracket dist.: 75.00
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 45
    Belt. adj. bracket hole 1: 10.50
    Pulley dia.: 53.80
    Grooves/pulley: 7
    Radius: 93.00
    Radius 2: 93.00
    B+: M8
    Position/B+ in min.: 60
    Rotation: CW
    Plug no.: PL86
    Total length mm: 188.00
    Terminal type: COM
    Pulley: SP
    Regulator type: IR
    Prod. info: BN
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032115960, FG18S011, 2543403B, 2543403C, 7803724, 7808074, 12317803724, 12317808074

    • Normalised article numbler
      a3469s, cal15469, dra0971, f032115960, fg18s011, lra03683, 8el012240281, 20979n, 200261, 209169, 209169a, 286744, 439668, 440255, 2543403b, 2543403c, 7803724, 7808074, 9090573, 12090299, 2151981802, 12317803724, 12317808074
