HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115966

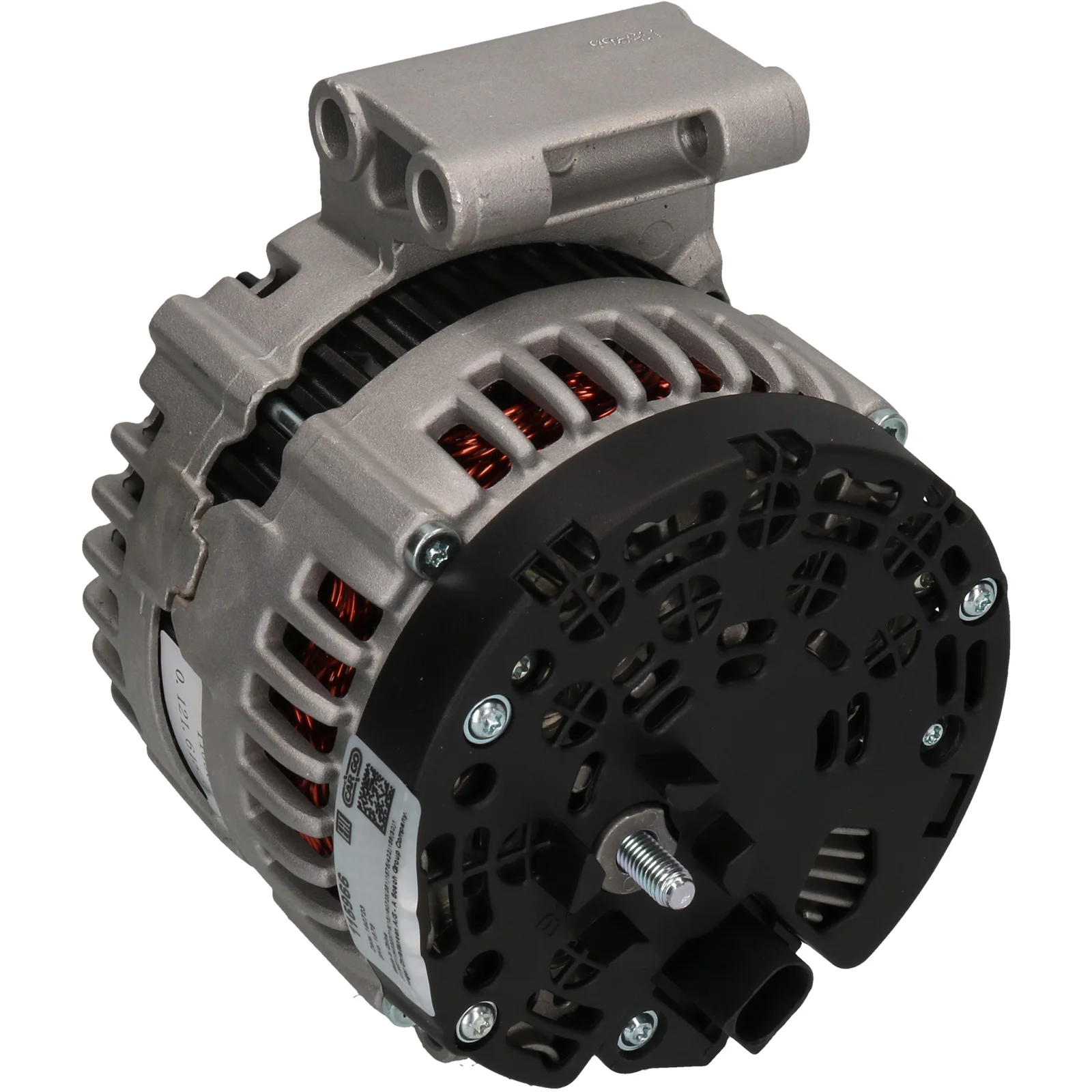

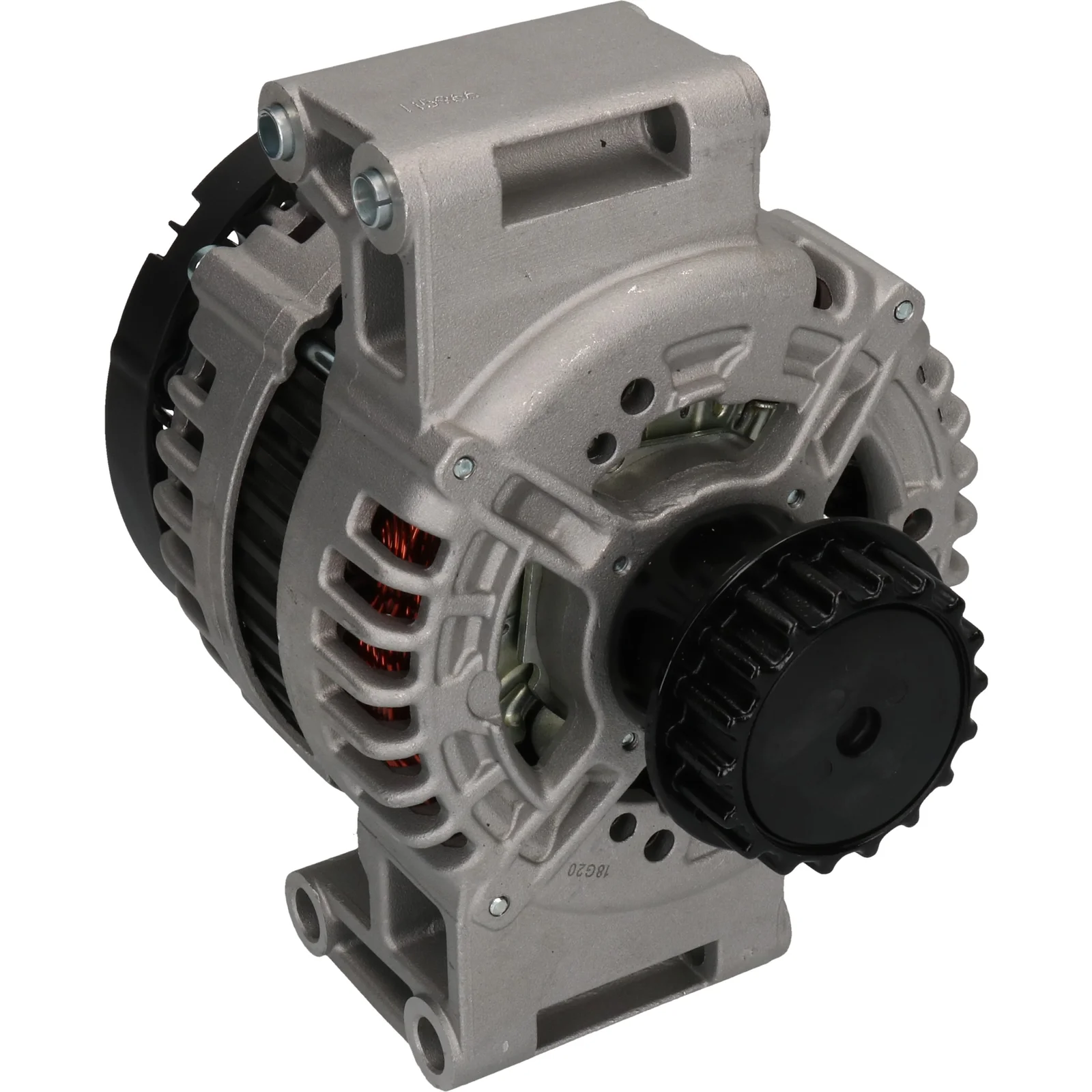

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 150, Rotation: CCW, Mounting bracket distance: 36.00

Description

Voltage: 14
Amp: 150
Width/holder arm: 77.00
Mounting bracket dist.: 36.00
Bracket hole: 8.00
Bracket hole 2: 8.00
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 11.00
Radius: 92.50
Radius 2: 87.50
B+: M8
Position/B+ in min.: 15
Rotation: CCW
Plug no.: PL174
Total length mm: 170.00
Terminal type: COM
Communication: LIN
Pulley: FW
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F00E100025, F032115966, LR002426, 6g9n10300la, 31110082, 36000210, 0121615011, 0121615111

  • Normalised article numbler
    a0464, a0464p, cal10425, dra0571, f00e100025, f032115966, lr002426, 6g9n10300la, 11345n, 11345r, 209378, 209378a, 286570, 444317, 12090618, 31110082, 32615111, 36000210, 0121615011, 0121615111, 0986086420
  • Description
    Voltage: 14
    Amp: 150
    Width/holder arm: 77.00
    Mounting bracket dist.: 36.00
    Bracket hole: 8.00
    Bracket hole 2: 8.00
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: 11.00
    Radius: 92.50
    Radius 2: 87.50
    B+: M8
    Position/B+ in min.: 15
    Rotation: CCW
    Plug no.: PL174
    Total length mm: 170.00
    Terminal type: COM
    Communication: LIN
    Pulley: FW
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F00E100025, F032115966, LR002426, 6g9n10300la, 31110082, 36000210, 0121615011, 0121615111

    • Normalised article numbler
      a0464, a0464p, cal10425, dra0571, f00e100025, f032115966, lr002426, 6g9n10300la, 11345n, 11345r, 209378, 209378a, 286570, 444317, 12090618, 31110082, 32615111, 36000210, 0121615011, 0121615111, 0986086420
