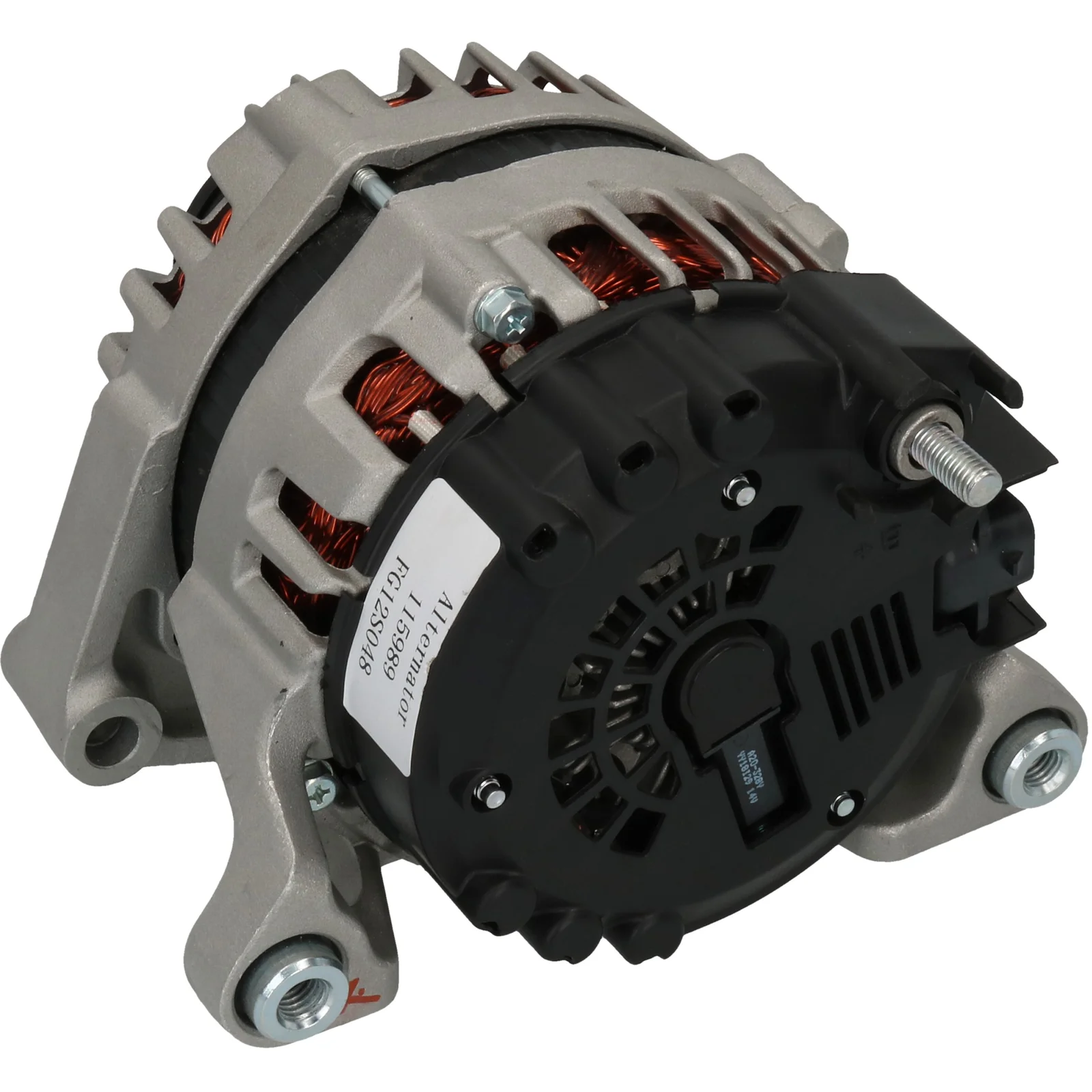

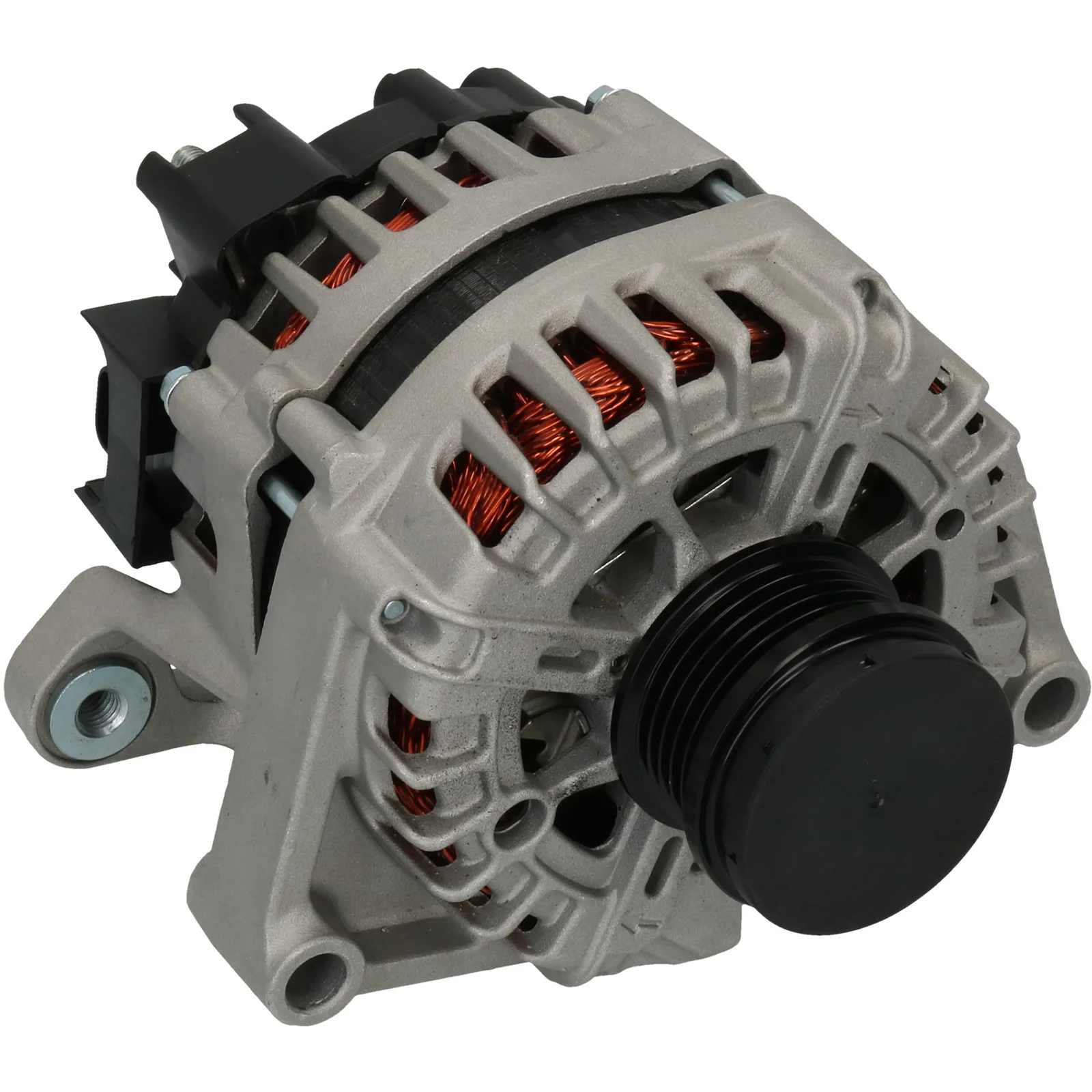

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115989

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 130, Rotation: CW, Mounting bracket distance: 59.00

Description

Voltage: 14
Amp: 130
Pulley: Pulleyn → Alternator pulley
dist.: 54.50
Width/holder arm: 33.50
Mount. bracket dist.: 59.00
Bracket hole: 11.20
Belt. adj. brackethole pos.: 10
Belt. adj. bracket hole 1: 11.20
Pulley dia.: 54.00
Grooves/pulley: 5
Radius: 92.00
Radius 2: 92.00
B+: M8
Position/B+ in min.: 57
Rotation: CW
Plug no.: PL180
Total length mm: 190.00
Pulley: SP/FW
Regulator type: IR
Remarks: This Alternator has a PWM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032115989, FG12S048, FG12S054, FG12S065, TG12C048, 1202245, 2614154A, 2619574, 2619574A, 13581891, 13588290, 95523602, 95939944

  • Normalised article numbler
    a3488s, cal15568, dra1238, f032115989, fg12s048, fg12s054, fg12s065, lra03613, tg12c048, 8el011713911, 11142n, 11654n, 11654r, 209089, 209089a, 286723, 439805, 440459, 554167ri, 554293ri, 849050, 1202245, 2614154a, 2619574, 2619574a, 12090662, 13581891, 13588290, 95523602, 95939944, 135577120, 2281941302
  • Description
    Voltage: 14
    Amp: 130
    Pulley: Pulleyn → Alternator pulley
    dist.: 54.50
    Width/holder arm: 33.50
    Mount. bracket dist.: 59.00
    Bracket hole: 11.20
    Belt. adj. brackethole pos.: 10
    Belt. adj. bracket hole 1: 11.20
    Pulley dia.: 54.00
    Grooves/pulley: 5
    Radius: 92.00
    Radius 2: 92.00
    B+: M8
    Position/B+ in min.: 57
    Rotation: CW
    Plug no.: PL180
    Total length mm: 190.00
    Pulley: SP/FW
    Regulator type: IR
    Remarks: This Alternator has a PWM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032115989, FG12S048, FG12S054, FG12S065, TG12C048, 1202245, 2614154A, 2619574, 2619574A, 13581891, 13588290, 95523602, 95939944

    • Normalised article numbler
      a3488s, cal15568, dra1238, f032115989, fg12s048, fg12s054, fg12s065, lra03613, tg12c048, 8el011713911, 11142n, 11654n, 11654r, 209089, 209089a, 286723, 439805, 440459, 554167ri, 554293ri, 849050, 1202245, 2614154a, 2619574, 2619574a, 12090662, 13581891, 13588290, 95523602, 95939944, 135577120, 2281941302
