HC-Cargo Alternator
HC-Cargo Alternator

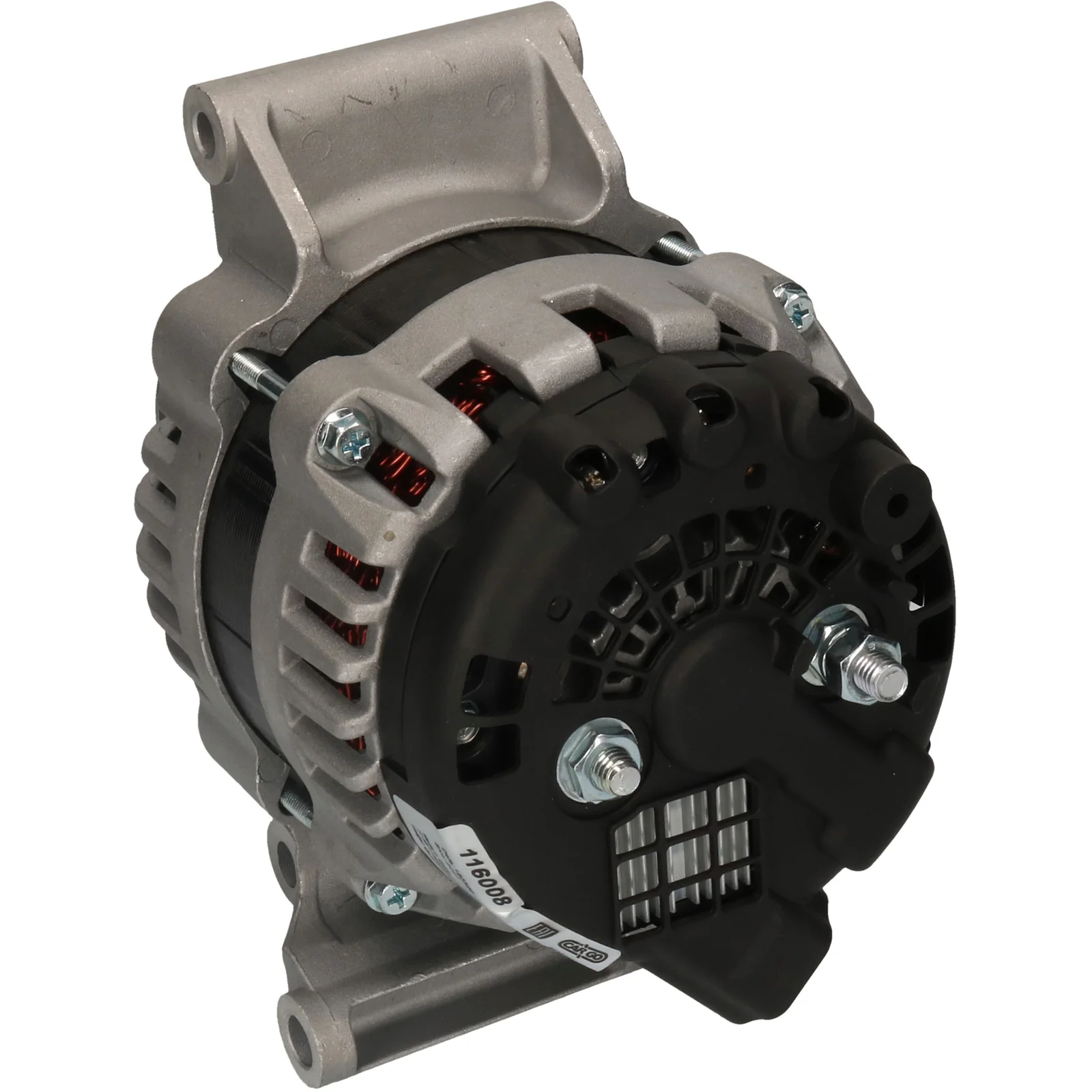

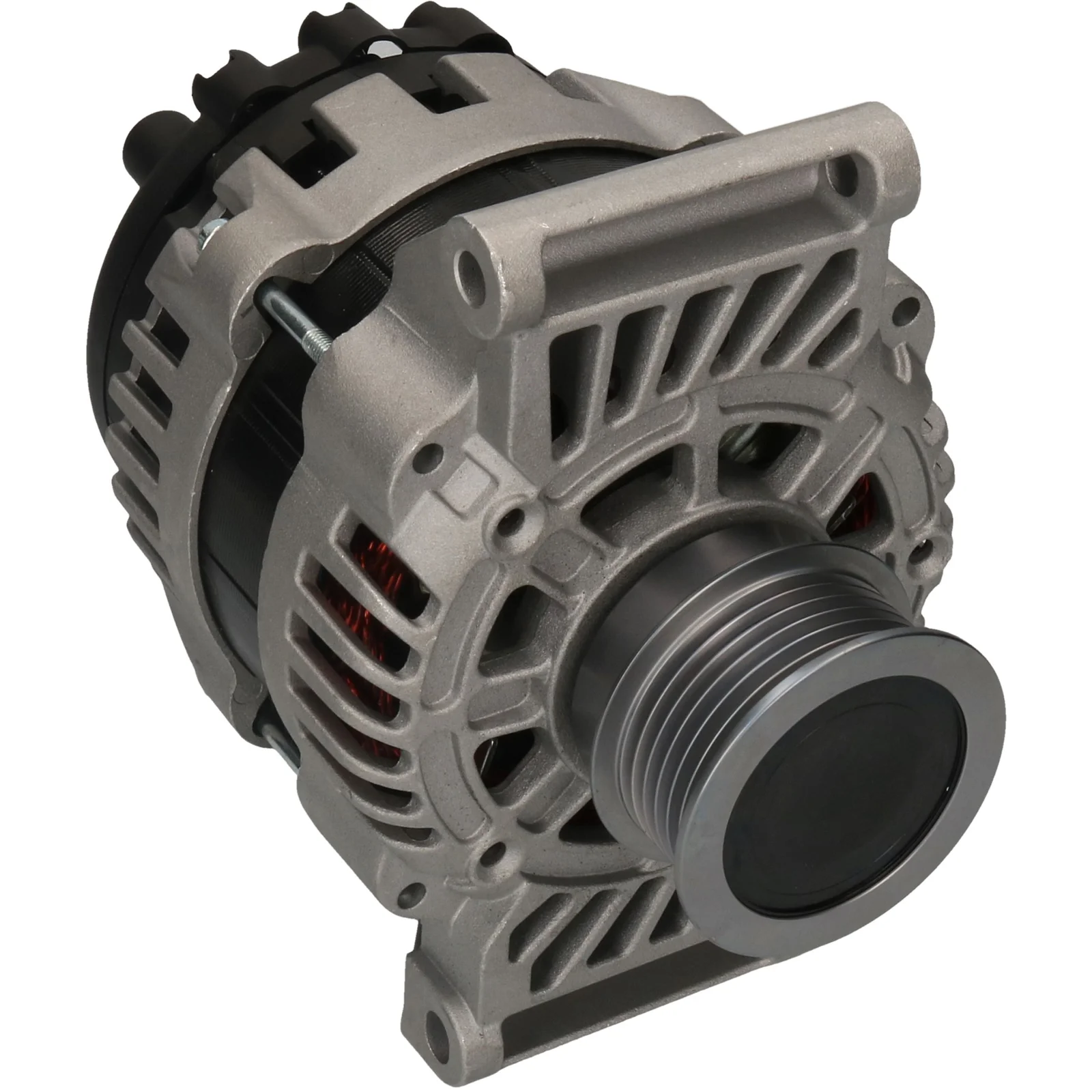

Article no.: F032116008

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 100, Rotation: CW, Mounting bracket distributor: 56.00

Description

Voltage: 14
Amp: 100
Pulley dist.: 32.00
Width/holder arm: 79.00
Mounting bracket dist.: 56.00
Bracket hole: 10.20
Belt. adj. bracket hole pos.: 60
Belt. adj. bracket hole 1: 8.20
Pulley diameter.: 56.00
Grooves/pulley: 6
Radius: 81.50
Radius 2: 81.50
B+: M8
Position/B+ in min.: 15
D+ Size: Plug
Rotation: CW
Plug no.: PL75
Total length mm: 194.00
Pulley: SP/FW

Files

  • OEM
    F032116008, 1204648, 13500330, 13502592, 13579673

  • Normalised article numbler
    f032116008, 209245, 209245a, 287778, 1204648, 13500330, 13502592, 13579673, 135929100, 2283131002
  • Description
    Voltage: 14
    Amp: 100
    Pulley dist.: 32.00
    Width/holder arm: 79.00
    Mounting bracket dist.: 56.00
    Bracket hole: 10.20
    Belt. adj. bracket hole pos.: 60
    Belt. adj. bracket hole 1: 8.20
    Pulley diameter.: 56.00
    Grooves/pulley: 6
    Radius: 81.50
    Radius 2: 81.50
    B+: M8
    Position/B+ in min.: 15
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL75
    Total length mm: 194.00
    Pulley: SP/FW

    Files

  • Suitable for these vehicles

    • OEM
      F032116008, 1204648, 13500330, 13502592, 13579673

    • Normalised article numbler
      f032116008, 209245, 209245a, 287778, 1204648, 13500330, 13502592, 13579673, 135929100, 2283131002
