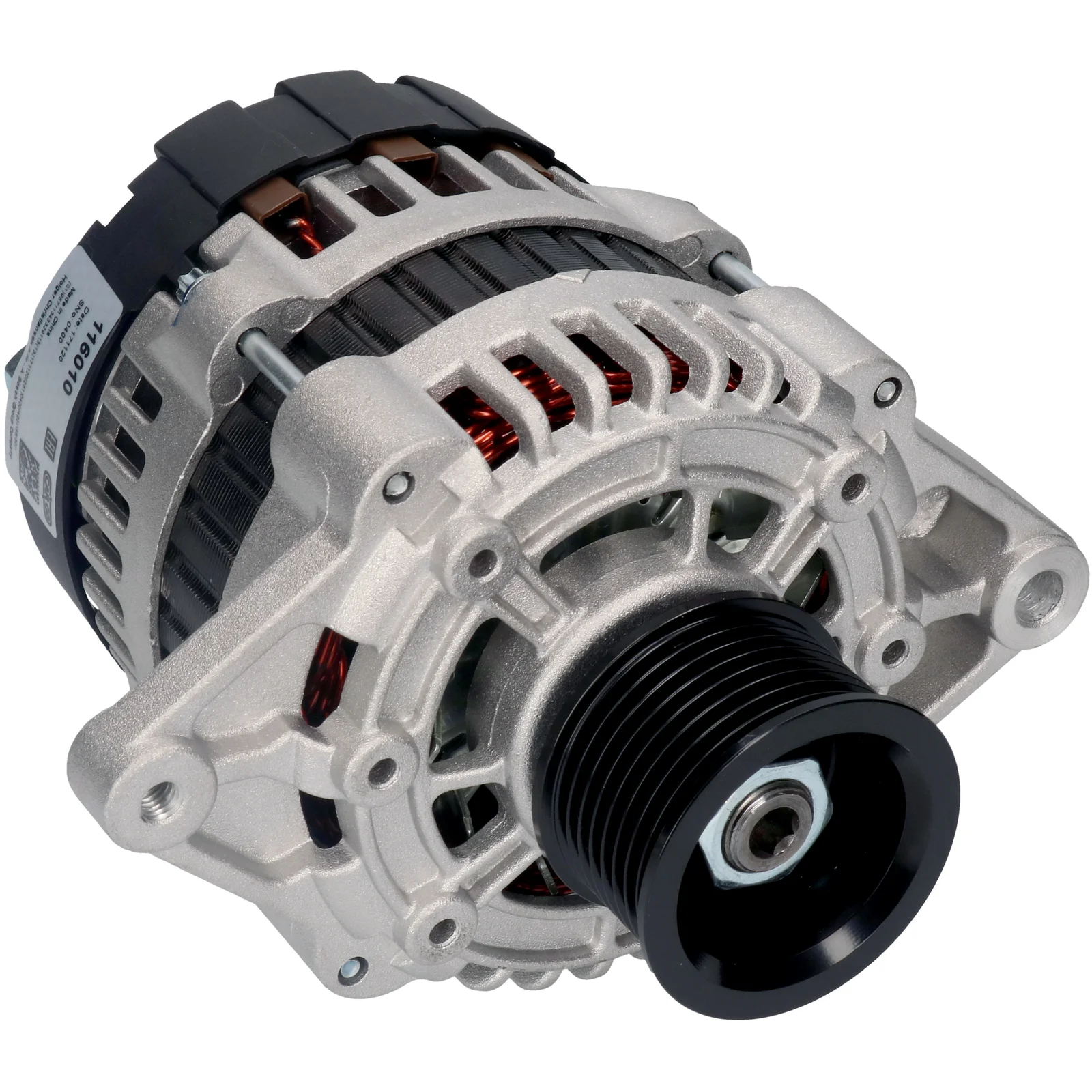

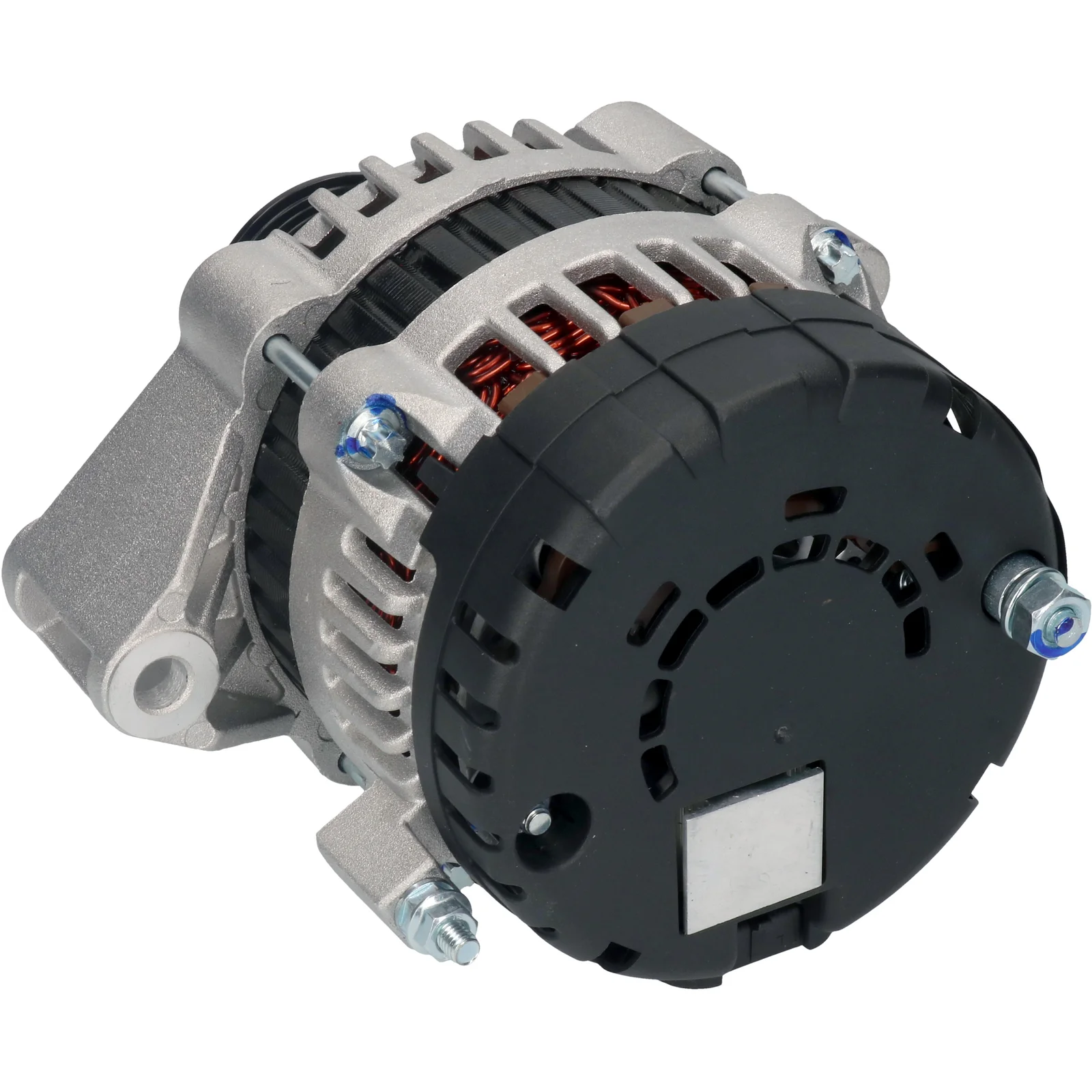

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116010

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 95, Rotation: CW, Pulley dia.: 55.00

Description

Voltage: 14
Amp: 95
Pulley distance: 75.00
Width/holder arm: 51.00
Bracket hole: 10.20
Belt adjustment bracket hole position: 60
Belt adjustment bracket hole 1: M8
Pulley diameter: 55.00
Grooves/pulley: 8
Radius: 87.00
Radius 2: 87.00
B+: M8
Position/B+ in min.: 60
D+ Size: Plug
Rotation: CW
Plug no.: PL196
Total length mm: 195.00
Pulley: SP
Regulator type: IR
Prod. info: BN

Files

  • OEM
    F032116010, 8600000, 19020208, 87038475, 87042117

  • Normalised article numbler
    cal60123, f032116010, 8721, 8721n, 8721r, 287691, 554319ri, 8600000, 19020208, 87038475, 87042117
  • Description
    Voltage: 14
    Amp: 95
    Pulley distance: 75.00
    Width/holder arm: 51.00
    Bracket hole: 10.20
    Belt adjustment bracket hole position: 60
    Belt adjustment bracket hole 1: M8
    Pulley diameter: 55.00
    Grooves/pulley: 8
    Radius: 87.00
    Radius 2: 87.00
    B+: M8
    Position/B+ in min.: 60
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL196
    Total length mm: 195.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032116010, 8600000, 19020208, 87038475, 87042117

    • Normalised article numbler
      cal60123, f032116010, 8721, 8721n, 8721r, 287691, 554319ri, 8600000, 19020208, 87038475, 87042117
