HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116021

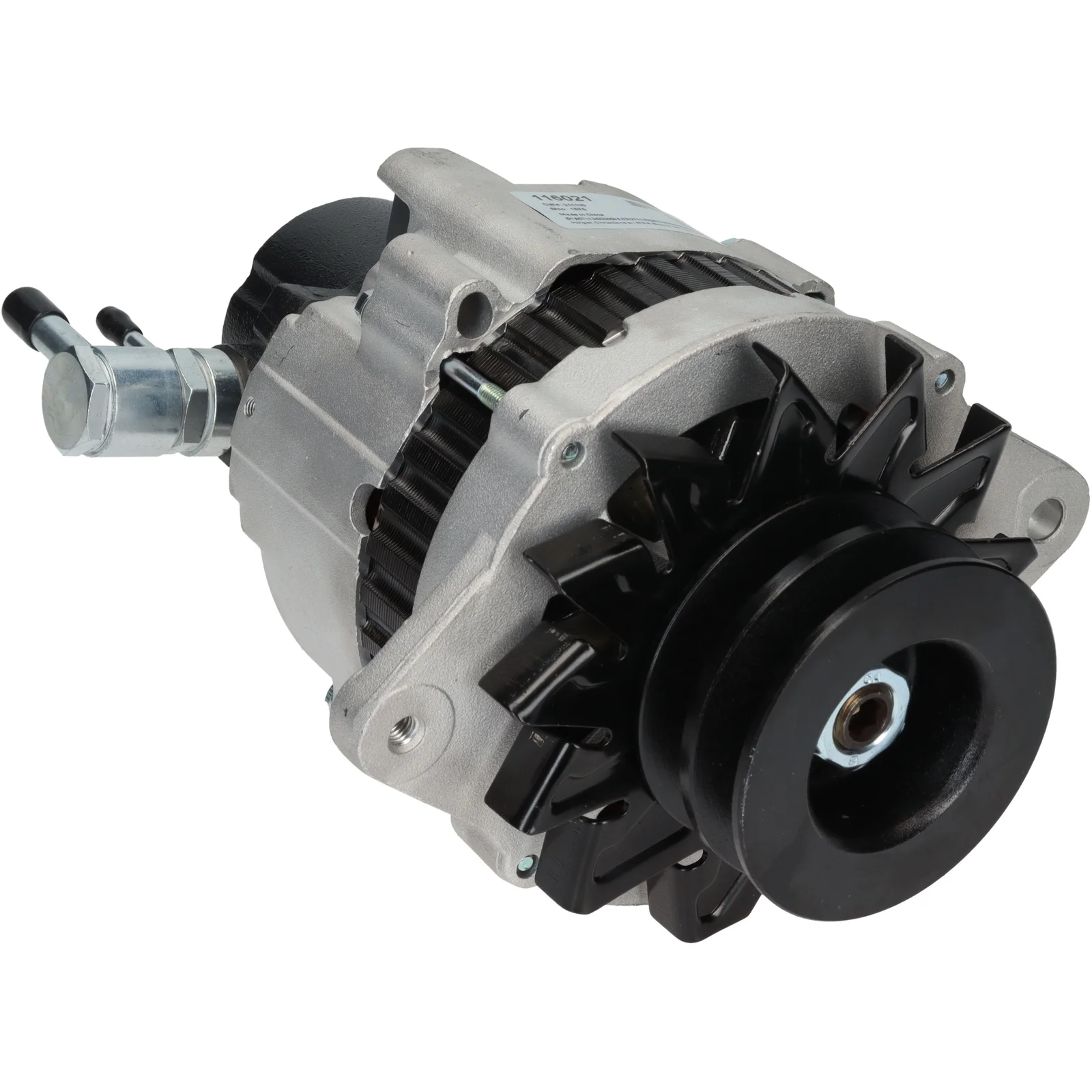

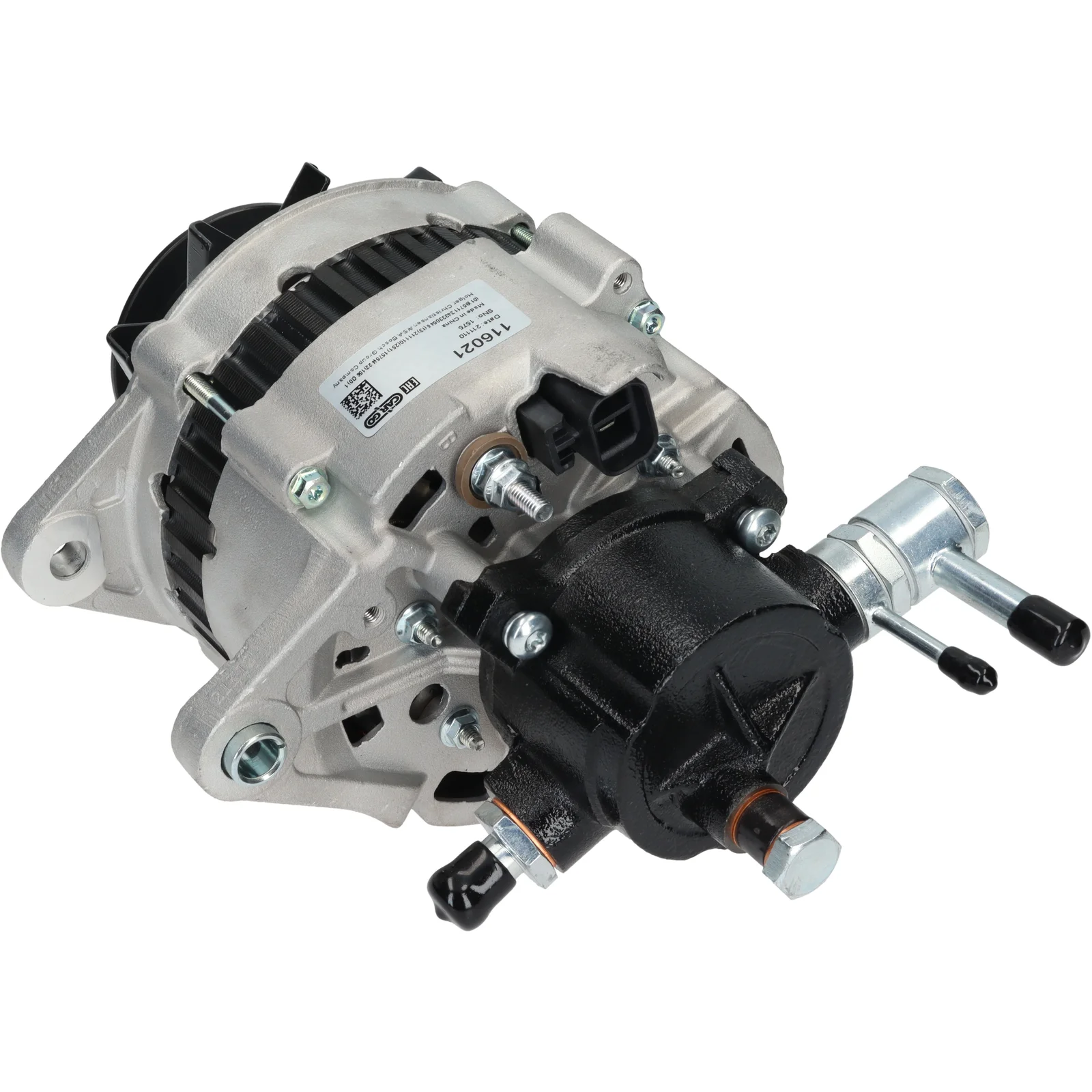

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 90, Rotation: CW, Mounting bracket distributor: 79.50

Description

Voltage: 14
Amp: 90
Pulley dist.: 42.50
Width/holder arm: 13.00
Mounting bracket dist.: 79.50
Bracket hole: 10.50
Belt adjustment bracket hole position.: 60
Belt adjustment bracket hole 1: M8
Pulley diameter: 84.00
Grooves/pulley: 2
Radius: 90.00
Radius 2: 85.00
B+: M6
Position/B+ in min.: 44
D+ Size: Plug
Rotation: CW
Plug no.: PL07
Total length mm: 260.00
Lamp type: Inactive
Pulley: DP
Fan: EF
Regulator type: IR
Vacuum pump: Yes

Files

  • Description
    Voltage: 14
    Amp: 90
    Pulley dist.: 42.50
    Width/holder arm: 13.00
    Mounting bracket dist.: 79.50
    Bracket hole: 10.50
    Belt adjustment bracket hole position.: 60
    Belt adjustment bracket hole 1: M8
    Pulley diameter: 84.00
    Grooves/pulley: 2
    Radius: 90.00
    Radius 2: 85.00
    B+: M6
    Position/B+ in min.: 44
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL07
    Total length mm: 260.00
    Lamp type: Inactive
    Pulley: DP
    Fan: EF
    Regulator type: IR
    Vacuum pump: Yes

    Files

  • Suitable for these vehicles
