HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116027

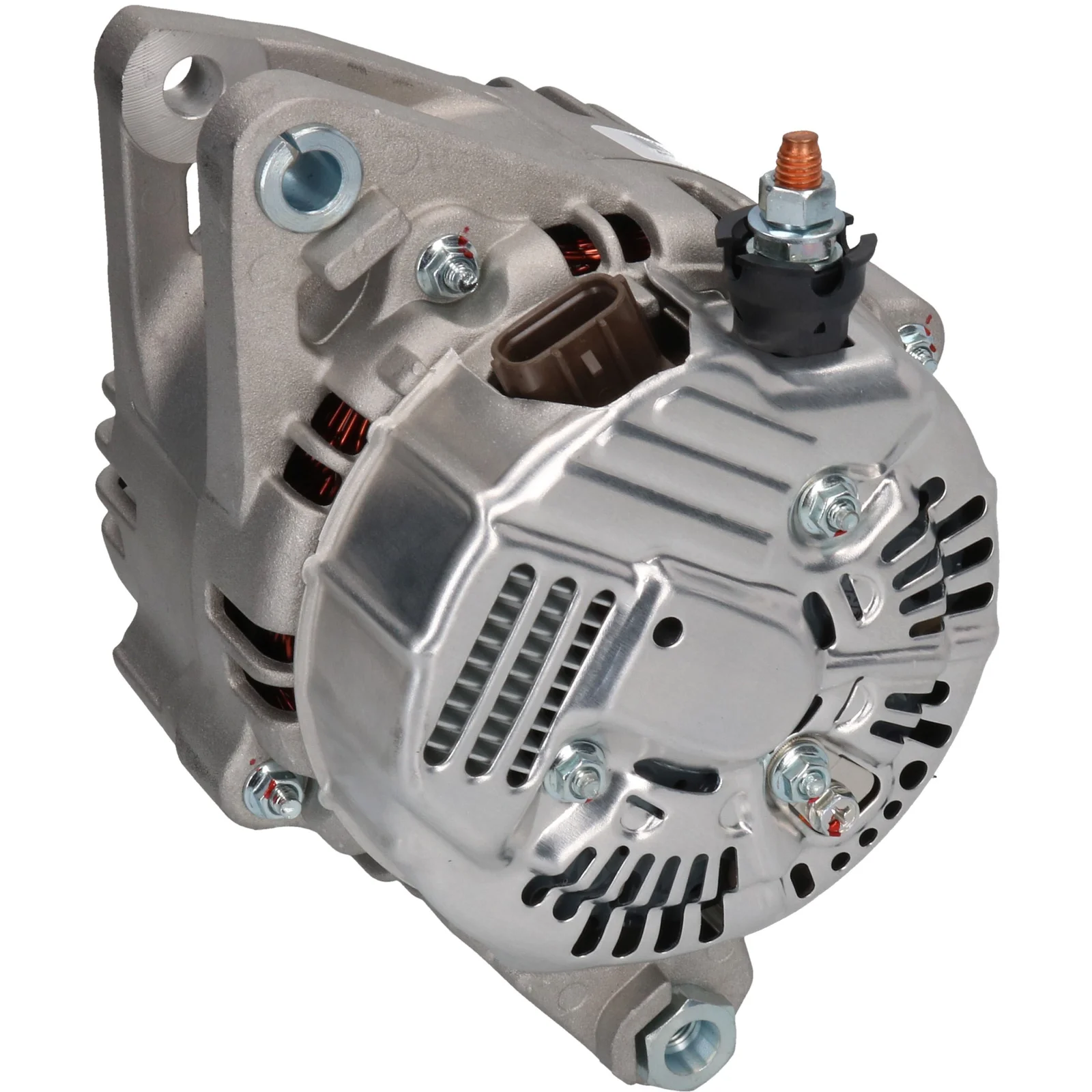

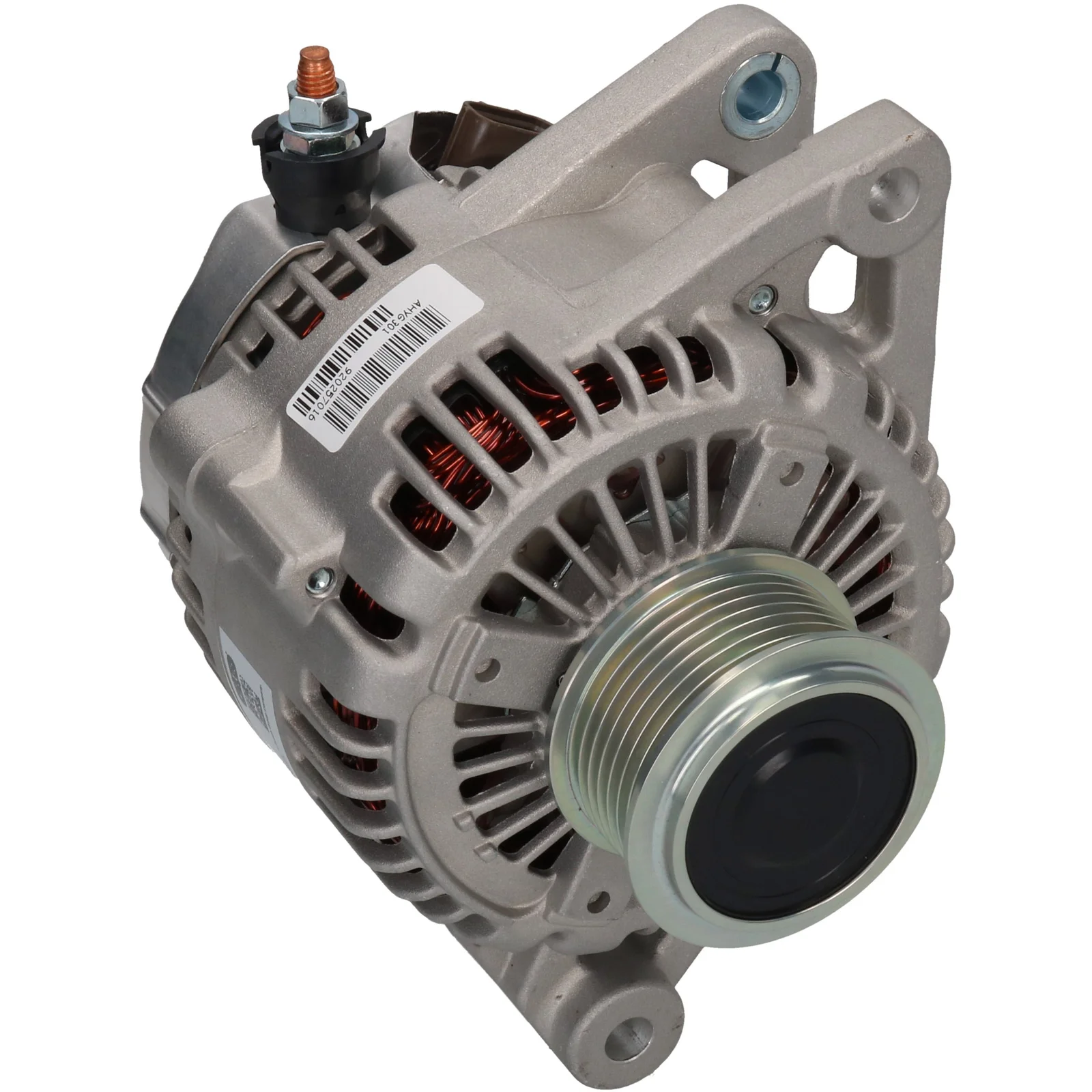

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 110, Rotation: CW, Mount. bracket dist.: 54.50

Description

Voltage: 14
Ampere: 110
Pulley distance: 43.00
Width/holder arm: 27.80
Mounting bracket distance: 54.50
Bracket hole: 11.00
Belt adjustment bracket hole position: 5
Belt adjustment bracket hole 1: 11.00
Pulley diameter: 60.00
Grooves/pulley: 7
Radius: 90.00
Radius 2: 97.50
B+: M8
Position/B+ in minutes: 58
D+ size: Plug
Rotation: CW
Plug no.: PL173
Total length mm: 174.00
Terminal type: L
Lamp type: Inactive
Pulley: SP/FW
Regulator type: IR

Files

  • OEM
    F032116027, 1986A01610, 02131-9340, 37300-4a310

  • Normalised article numbler
    a6219denso, a9311s, cal32136, dra0902, dra0902n, f032116027, lra03351, 1986a01610, 113276, 285963, 373004a310, 554100ri, 12061036, 021319340, 155586110, 5261511102
  • Description
    Voltage: 14
    Ampere: 110
    Pulley distance: 43.00
    Width/holder arm: 27.80
    Mounting bracket distance: 54.50
    Bracket hole: 11.00
    Belt adjustment bracket hole position: 5
    Belt adjustment bracket hole 1: 11.00
    Pulley diameter: 60.00
    Grooves/pulley: 7
    Radius: 90.00
    Radius 2: 97.50
    B+: M8
    Position/B+ in minutes: 58
    D+ size: Plug
    Rotation: CW
    Plug no.: PL173
    Total length mm: 174.00
    Terminal type: L
    Lamp type: Inactive
    Pulley: SP/FW
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F032116027, 1986A01610, 02131-9340, 37300-4a310

    • Normalised article numbler
      a6219denso, a9311s, cal32136, dra0902, dra0902n, f032116027, lra03351, 1986a01610, 113276, 285963, 373004a310, 554100ri, 12061036, 021319340, 155586110, 5261511102
