HC-Cargo Alternator

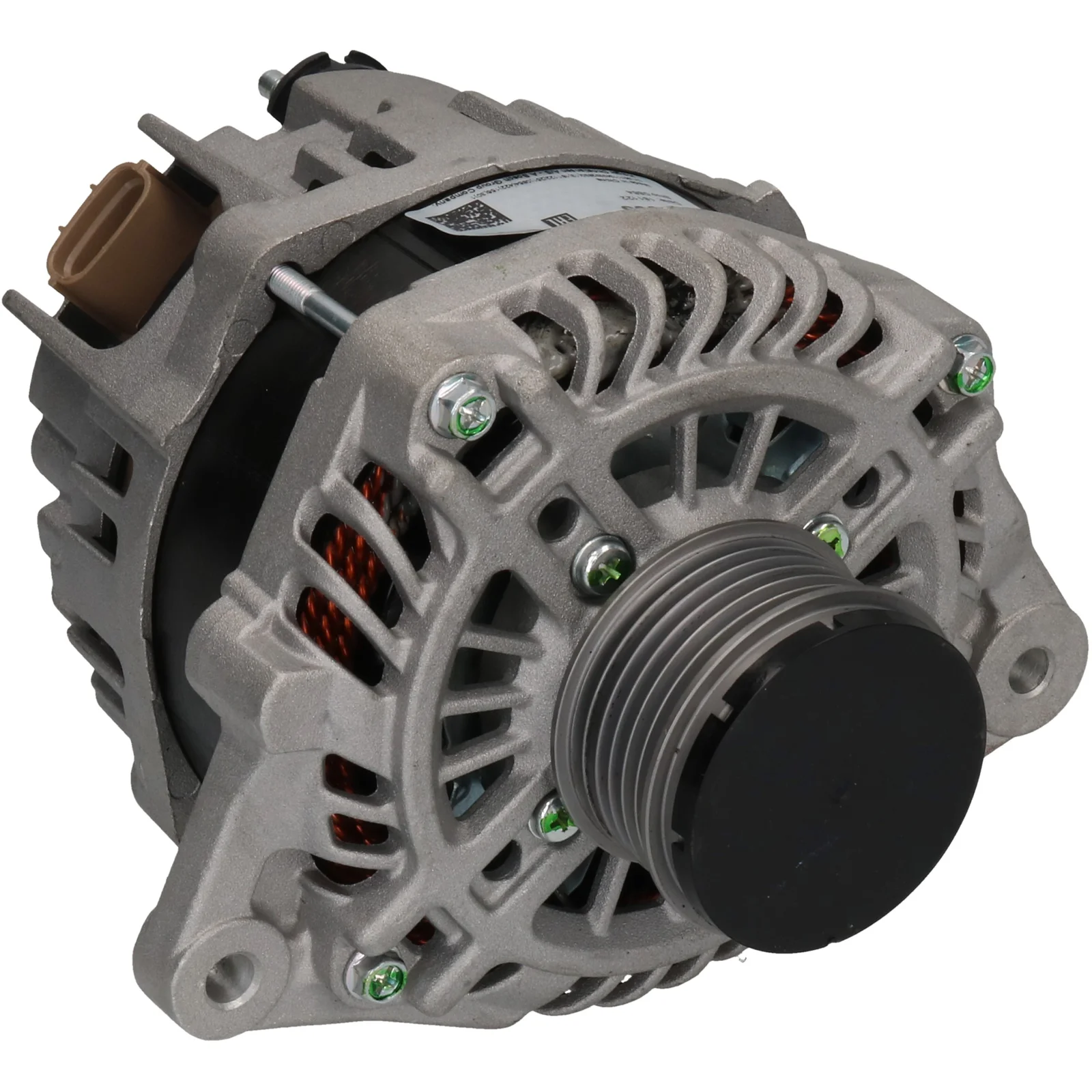

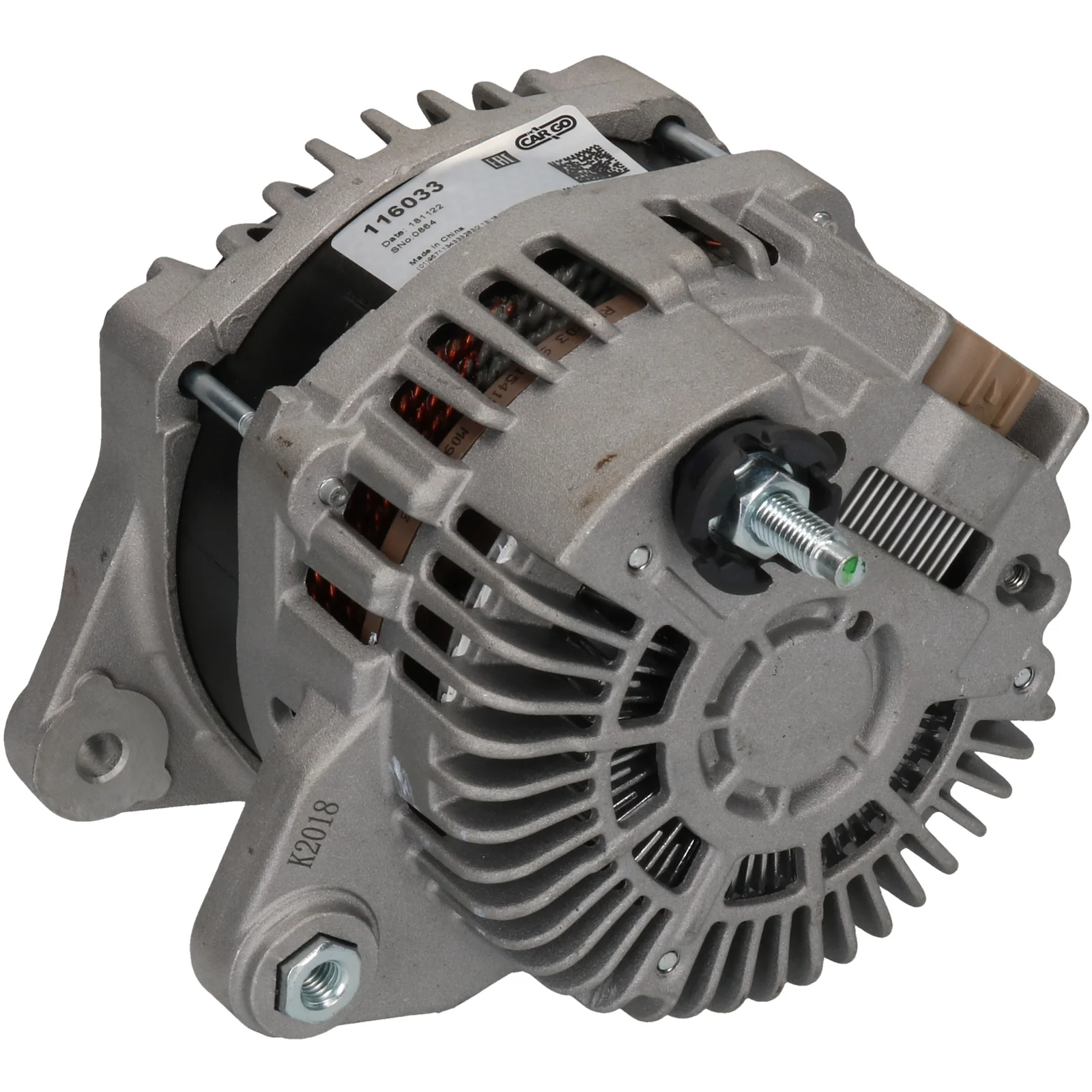

HC-Cargo Alternator
Article no.: F032116033

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 150, Rotation: CW, Mounting bracket distributor: 59.00

Description

Voltage: 14
Amp: 150
Pulley diameter: 33.00
Width/holder arm: 13.00
Mounting bracket distance: 59.00
Bracket hole: 8.50
Belt adjustment bracket hole position: 52
Belt adjustment bracket hole 1: 8.50
Pulley diameter: 55.00
Grooves/pulley: 6
Radius: 85.00
Radius 2: 85.00
B+: M8
Position/B+ in min.: 46
D+ Size: Plug
Rotation: CW
Plug no.: PL163
Total length mm: 192.00
Terminal type: L-S-C
Pulley: SP/FW
Regulator type: IR

Files

  • OEM
    A002TX1981, A002TX1981ZT, A2TX1981, A2TX1981AE, A2TX1981ZT, F032116033, 23100-3HD1A, 23100-3HN1A, 23100-3HN1B, 23100-3VS5M

  • Normalised article numbler
    a002tx1981, a002tx1981zt, a2tx1981, a2tx1981ae, a2tx1981zt, a5430s, cal35389, dra1064, f032116033, 231003hd1a, 231003hn1a, 231003hn1b, 231003vs5m, 287558, 554429ri, 12061242, 165918150
  • Description
    Voltage: 14
    Amp: 150
    Pulley diameter: 33.00
    Width/holder arm: 13.00
    Mounting bracket distance: 59.00
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 52
    Belt adjustment bracket hole 1: 8.50
    Pulley diameter: 55.00
    Grooves/pulley: 6
    Radius: 85.00
    Radius 2: 85.00
    B+: M8
    Position/B+ in min.: 46
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL163
    Total length mm: 192.00
    Terminal type: L-S-C
    Pulley: SP/FW
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      A002TX1981, A002TX1981ZT, A2TX1981, A2TX1981AE, A2TX1981ZT, F032116033, 23100-3HD1A, 23100-3HN1A, 23100-3HN1B, 23100-3VS5M

    • Normalised article numbler
      a002tx1981, a002tx1981zt, a2tx1981, a2tx1981ae, a2tx1981zt, a5430s, cal35389, dra1064, f032116033, 231003hd1a, 231003hn1a, 231003hn1b, 231003vs5m, 287558, 554429ri, 12061242, 165918150
