HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116034

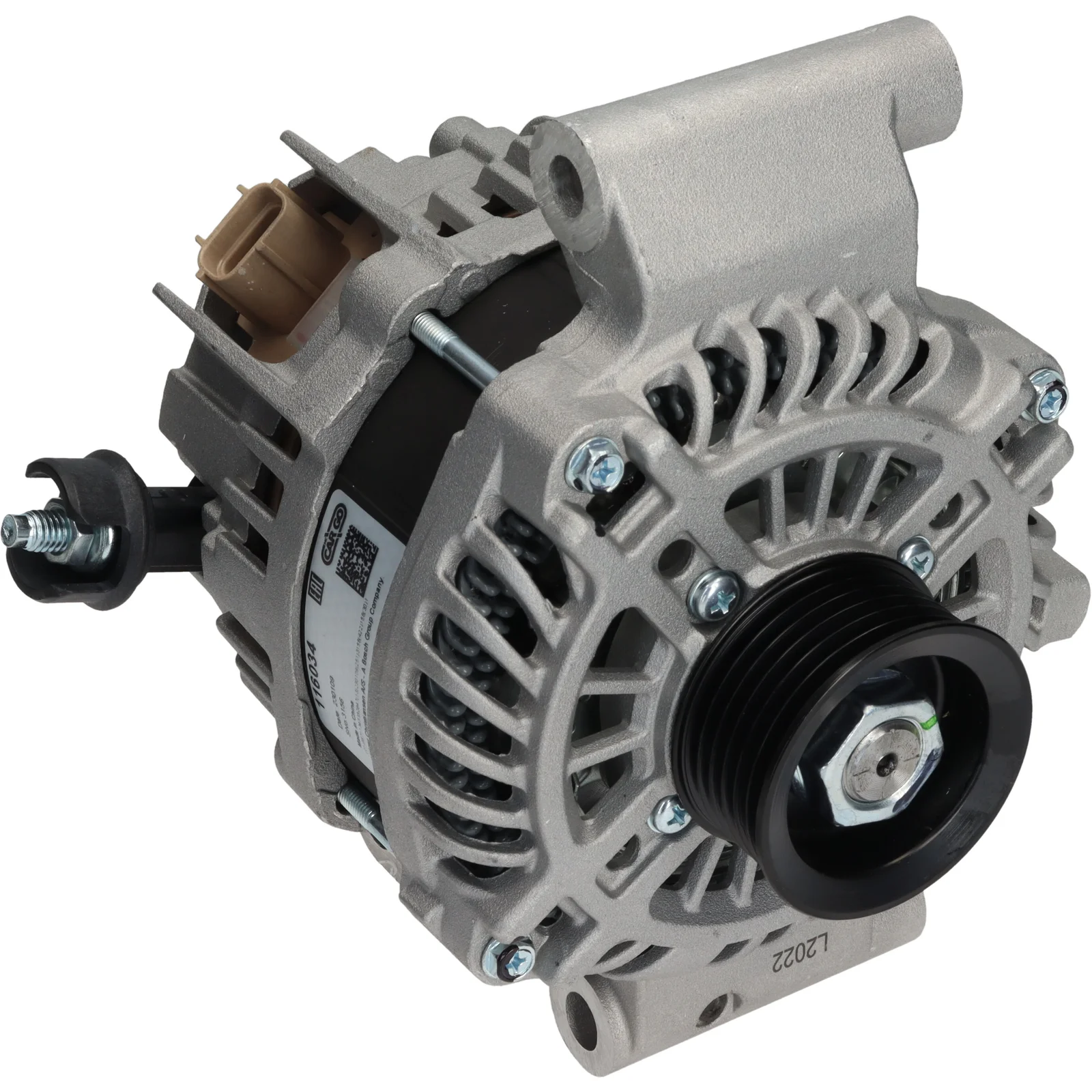

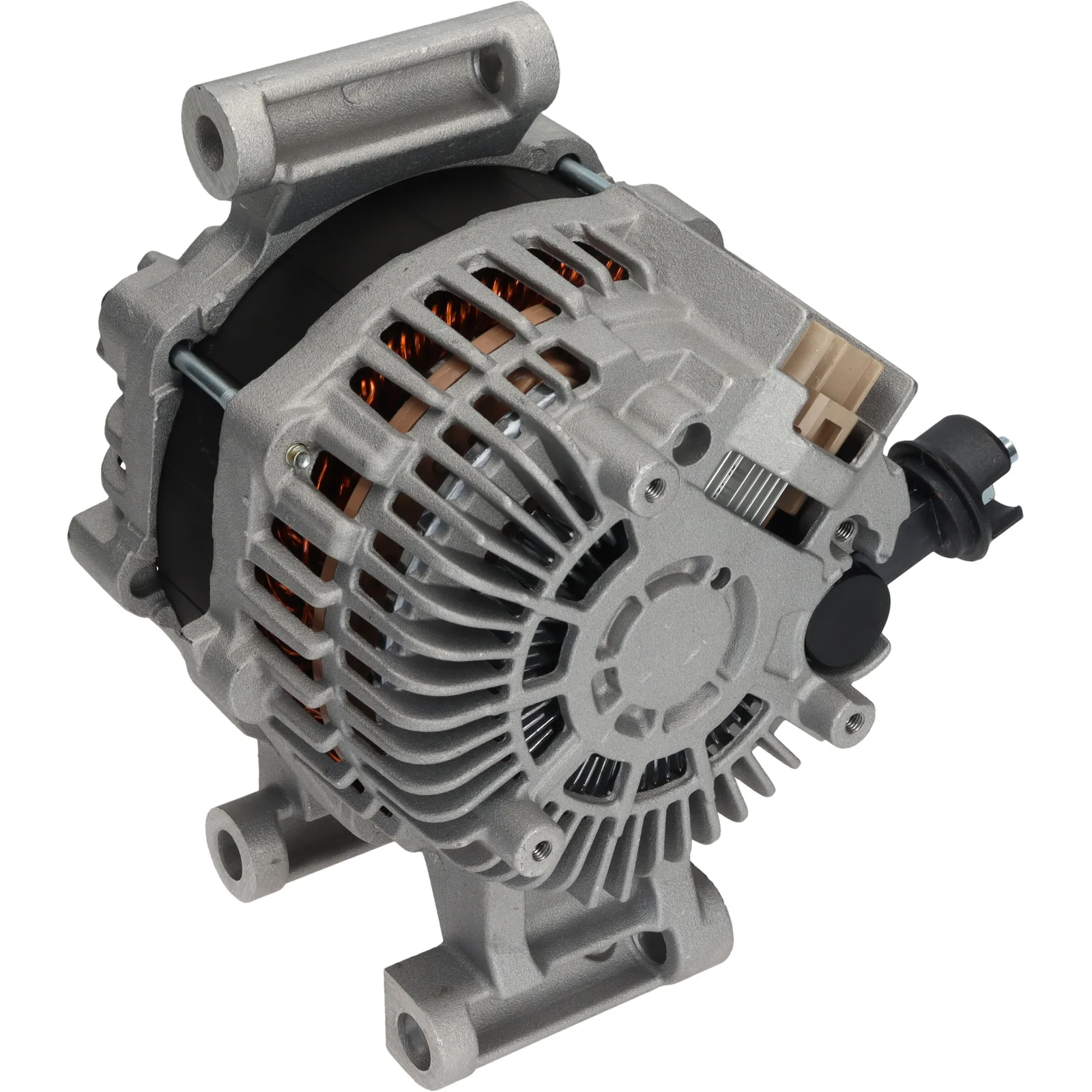

HC-Cargo Alternator

Technical info:

Voltage: 14, Current: 150, Rotation: CW, Mounting bracket for distributor: 74.50

Description

Voltage: 14
Amp: 150
Pulley dist.: 39.50
Width/holder arm: 74.00
Mount. bracket dist.: 74.50
Bracket hole: 10.50x11.50
Belt. adj. bracket hole 1: 10.00
Pulley dia.: 53.50
Grooves/pulley: 6
Radius: 87.50
Radius 2: 87.50
B+: M8
Position/B+ in min.: 15
Rotation: CW
Plug no.: PL57
Total length mm: 164.00
Terminal type: FR-SIG-A
Pulley: SP
Fan: IF
Regulator type: IR

Files

  • OEM
    A002TX0191ZC, A2TX0191, A2TX0191ZC, F032116034, zzc7-18-300, 8s4t10300aa, 8S4T10300AC, 8S4T10300AD, 8S4Z10346A, 4838679, 4844254, 4852388, 5115806

  • Normalised article numbler
    a002tx0191zc, a2tx0191, a2tx0191zc, a5283, cal35257, f032116034, zzc718300, 8s4t10300aa, 8s4t10300ac, 8s4t10300ad, 8s4z10346a, 11272, 11272n, 113244, 209348, 209348a, 553460ri, 4838679, 4844254, 4852388, 5115806, 9090629, 595586150
  • Description
    Voltage: 14
    Amp: 150
    Pulley dist.: 39.50
    Width/holder arm: 74.00
    Mount. bracket dist.: 74.50
    Bracket hole: 10.50x11.50
    Belt. adj. bracket hole 1: 10.00
    Pulley dia.: 53.50
    Grooves/pulley: 6
    Radius: 87.50
    Radius 2: 87.50
    B+: M8
    Position/B+ in min.: 15
    Rotation: CW
    Plug no.: PL57
    Total length mm: 164.00
    Terminal type: FR-SIG-A
    Pulley: SP
    Fan: IF
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      A002TX0191ZC, A2TX0191, A2TX0191ZC, F032116034, zzc7-18-300, 8s4t10300aa, 8S4T10300AC, 8S4T10300AD, 8S4Z10346A, 4838679, 4844254, 4852388, 5115806

    • Normalised article numbler
      a002tx0191zc, a2tx0191, a2tx0191zc, a5283, cal35257, f032116034, zzc718300, 8s4t10300aa, 8s4t10300ac, 8s4t10300ad, 8s4z10346a, 11272, 11272n, 113244, 209348, 209348a, 553460ri, 4838679, 4844254, 4852388, 5115806, 9090629, 595586150
