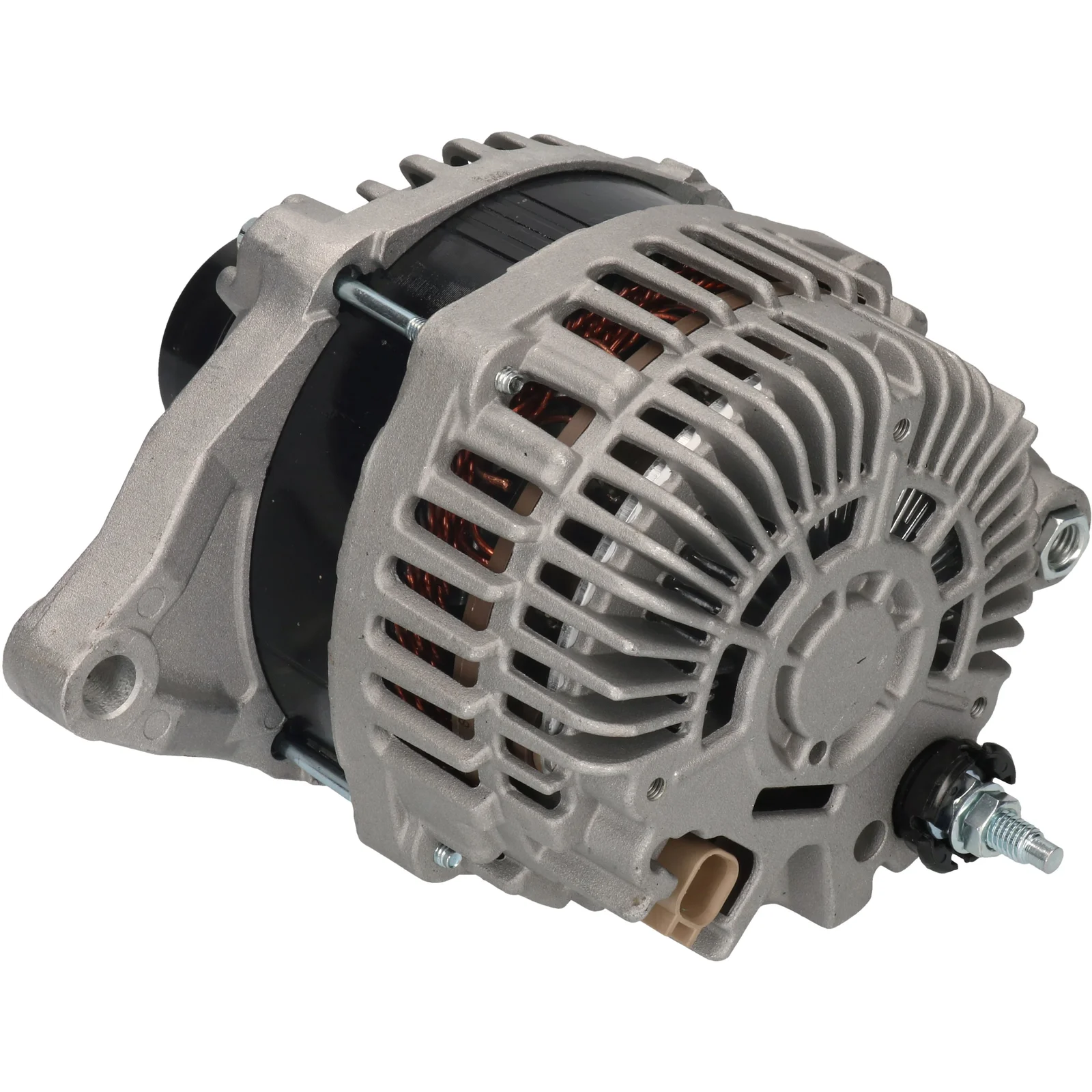

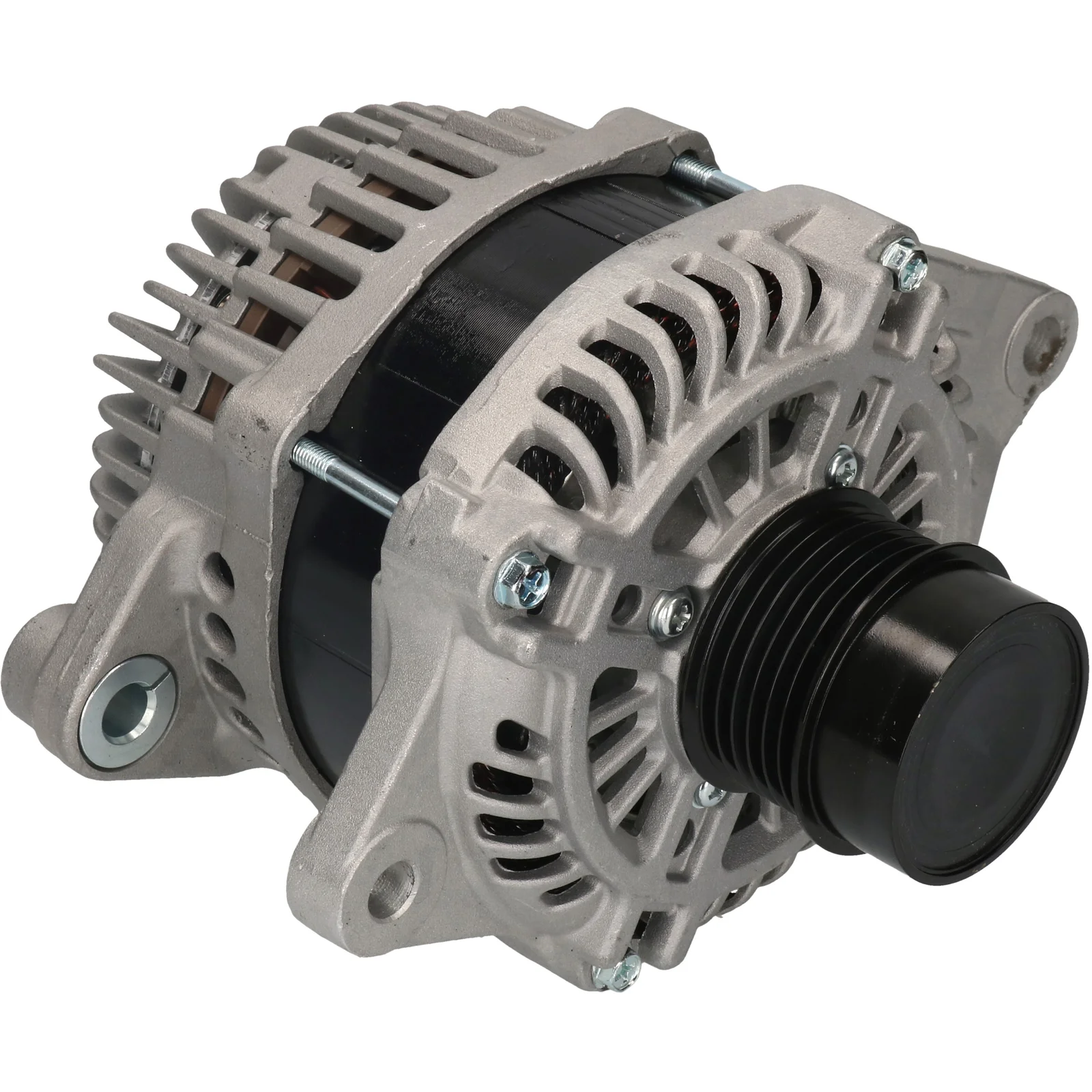

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116037

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 160, Rotation: CW, Mount. bracket dist.: 55.00

Description

Voltage: 14 Amp: 160 Pulley dist.: 34.20 Width/holder arm: 13.00 Mount. bracket dist.: 55.00 Bracket hole: 10.50 Belt. adj. brackethole pos.: 2 Belt. adj. bracket hole 1: 11.50 Pulley dia.: 53.00 Grooves/pulley: 6 Radius: 82.50 Radius 2: 102.50 B+: M8 Position/B+ in min.: 37 Rotation: CW Plug no.: PL177 Total length mm: 204.00 Pulley: SP/FW Regulator: w/o

Files

  • OEM
    A002TX0281, A002TX0281ZC, a2tx0281, A2TX0281ZC, F032116037, 04801490AA, 4801490aa

  • Normalised article numbler
    a002tx0281, a002tx0281zc, a2tx0281, a2tx0281zc, a5232, f032116037, lra03689, 11440n, 11440r, 276750, 554200ri, 04801490aa, 4801490aa, 12061033, 835915160, 5340381602
  • Description
    Voltage: 14 Amp: 160 Pulley dist.: 34.20 Width/holder arm: 13.00 Mount. bracket dist.: 55.00 Bracket hole: 10.50 Belt. adj. brackethole pos.: 2 Belt. adj. bracket hole 1: 11.50 Pulley dia.: 53.00 Grooves/pulley: 6 Radius: 82.50 Radius 2: 102.50 B+: M8 Position/B+ in min.: 37 Rotation: CW Plug no.: PL177 Total length mm: 204.00 Pulley: SP/FW Regulator: w/o

    Files

  • Suitable for these vehicles

    • OEM
      A002TX0281, A002TX0281ZC, a2tx0281, A2TX0281ZC, F032116037, 04801490AA, 4801490aa

    • Normalised article numbler
      a002tx0281, a002tx0281zc, a2tx0281, a2tx0281zc, a5232, f032116037, lra03689, 11440n, 11440r, 276750, 554200ri, 04801490aa, 4801490aa, 12061033, 835915160, 5340381602
