HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116047

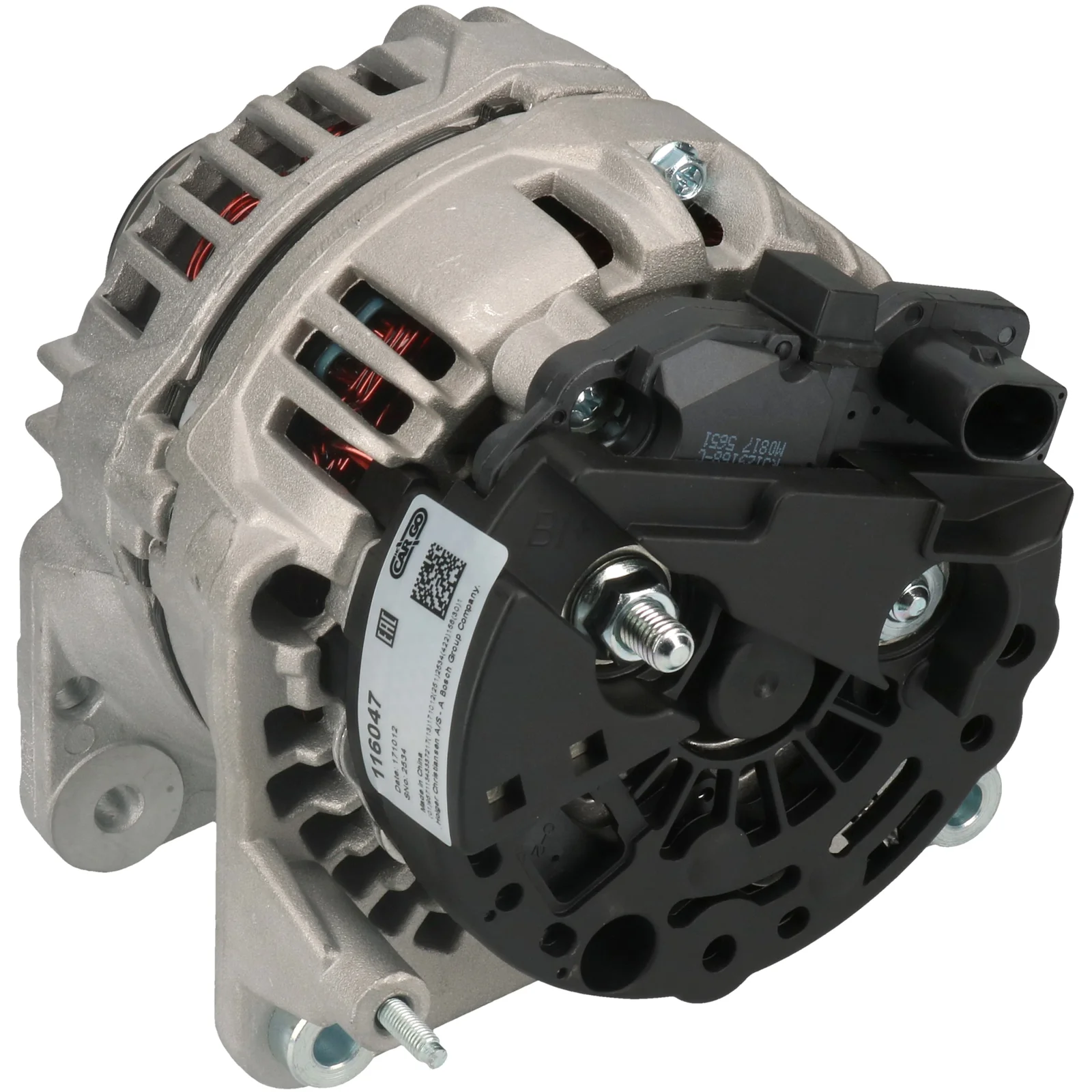

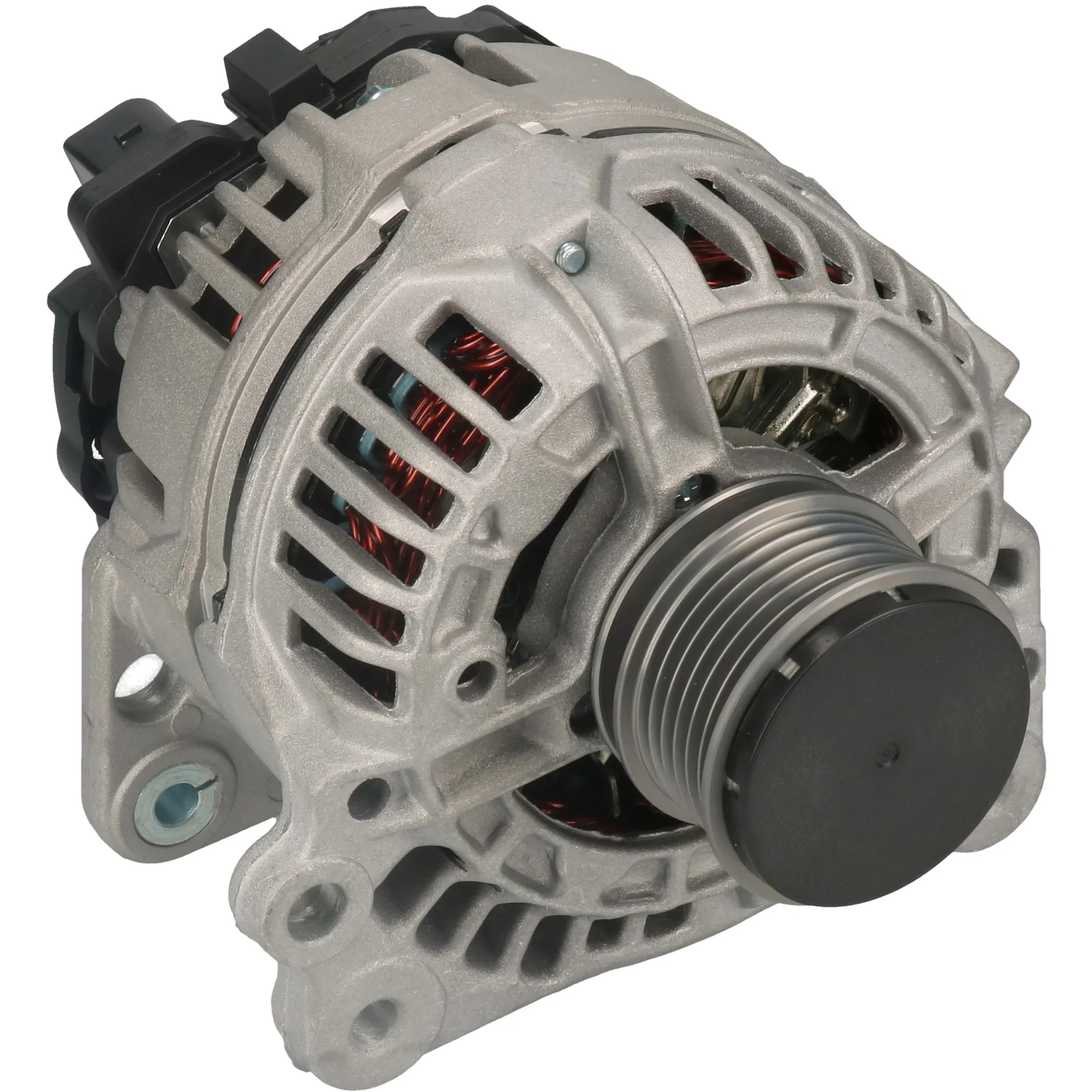

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 110, Rotation: CW, Mounting bracket distributor: 61.10

Description

Voltage: 14
Amp: 110
Pulley dist.: 39.00
Width/holder arm: 14.00
Mount. bracket dist.: 61.10
Bracket hole: 8.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 56.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 45
D+ Size: Plug
Rotation: CW
Plug no.: PL61
Total length mm: 192.00
Pulley: SP/FW
Regulator type: Infrared
Prod. info: BN

Files

  • OEM
    F032116047, 3.852.2319F, 1986A00811, 0124325178, 0124325280, 528110010

  • Normalised article numbler
    a0345, cal10372, cal21204, dra0034, f032116047, 8el011713351, 1986a00811, 20014n, 23949r, 285891, 12090451, 38522319f, 0124325178, 0124325280, 425502110, 528110010, 2141701102
  • Description
    Voltage: 14
    Amp: 110
    Pulley dist.: 39.00
    Width/holder arm: 14.00
    Mount. bracket dist.: 61.10
    Bracket hole: 8.50
    Belt. adj. brackethole pos.: 45
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 56.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 45
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL61
    Total length mm: 192.00
    Pulley: SP/FW
    Regulator type: Infrared
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032116047, 3.852.2319F, 1986A00811, 0124325178, 0124325280, 528110010

    • Normalised article numbler
      a0345, cal10372, cal21204, dra0034, f032116047, 8el011713351, 1986a00811, 20014n, 23949r, 285891, 12090451, 38522319f, 0124325178, 0124325280, 425502110, 528110010, 2141701102
