HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116057

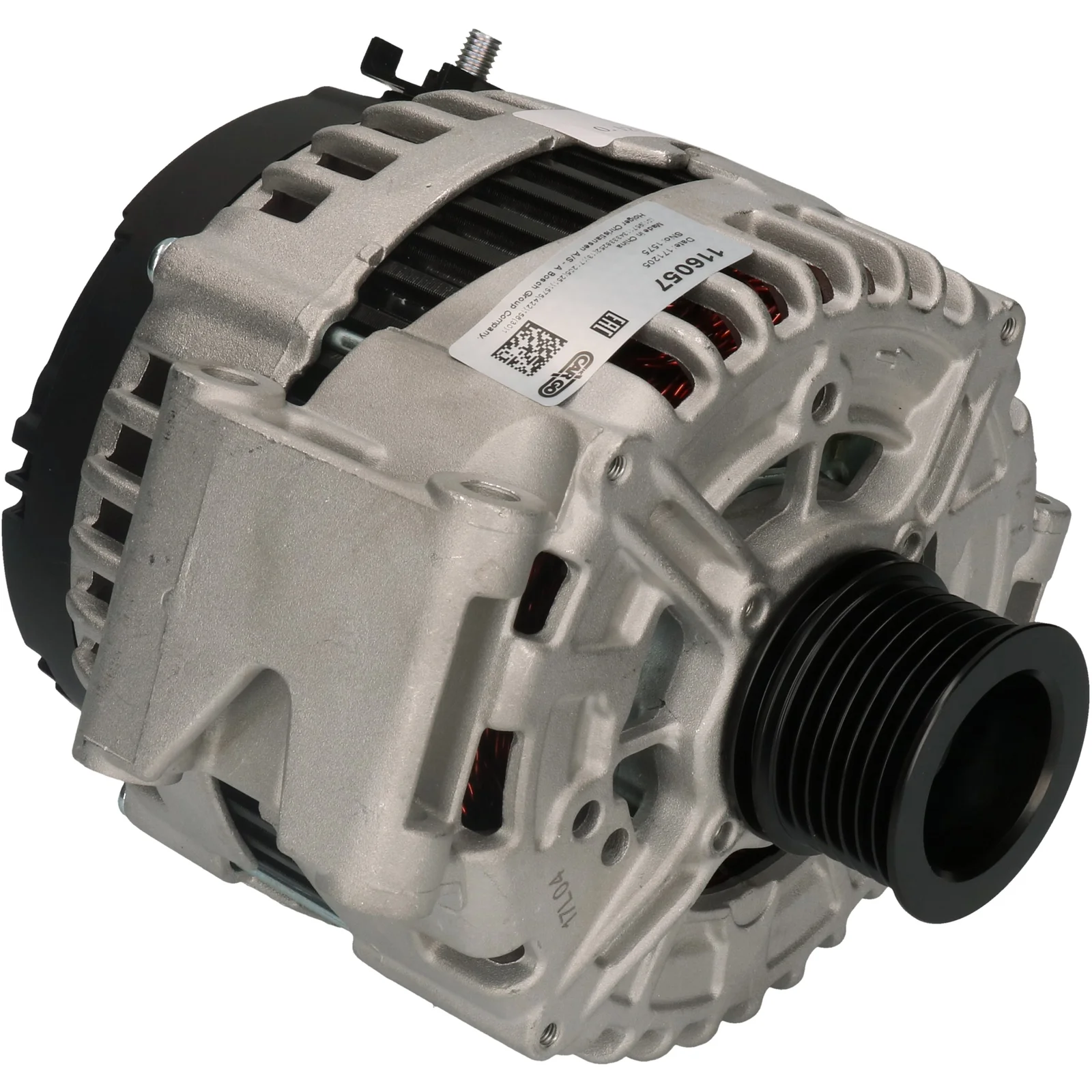

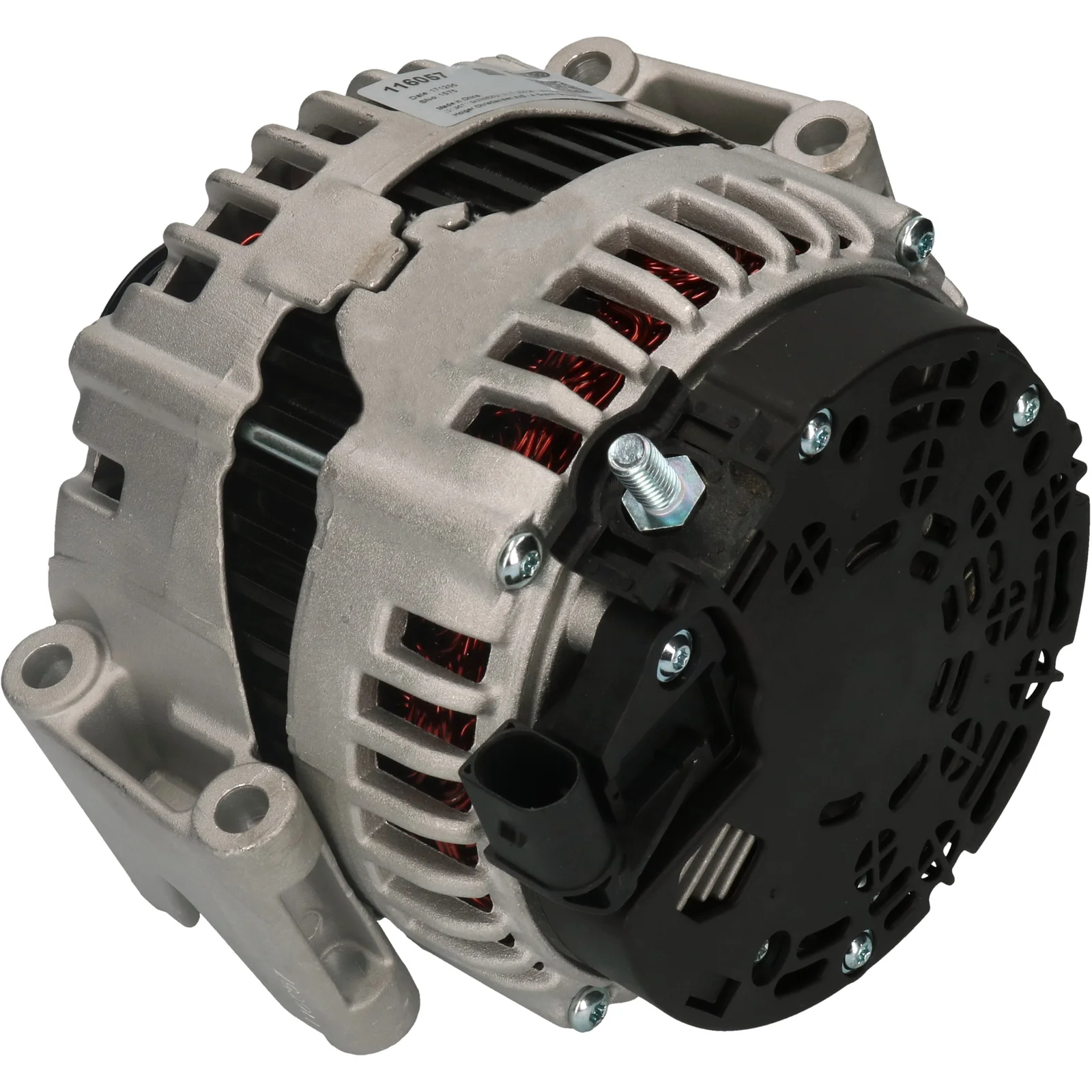

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 220, Rotation: CW, Mount. bracket dist.: 56.00

Description

Voltage: 14
Amp: 220
Pulley: Alternator
Dist. pulley: 31.50
Width/holder arm: 70.00
Mounting bracket dist.: 56.00
Bracket hole: 9.00
Belt tensioning bracket hole position: 60
Belt tensioning bracket hole 1: 9.00
Belt tensioning bracket hole 2: 8.50
Pulley diameter: 56.00
Grooves/pulley: 7
Radius: 81.50
Radius 2: 81.50
B+: M8
Position/B+ in min.: 13
Rotation: CW
Plug no.: PL166
Total length mm: 186.00
Terminal type: COM
Communication: LIN
Pulley: SP
Regulator type: IR
Prod. info: BN
Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    A0131549902, F032116057, 0121813014, 0121813114, 0131549902

  • Normalised article numbler
    a0131549902, a0526, a0570s, cal10497, dra0695, f032116057, 11304n, 0121813014, 0121813114, 0131549902, 0986048513, 0986048517
  • Description
    Voltage: 14
    Amp: 220
    Pulley: Alternator
    Dist. pulley: 31.50
    Width/holder arm: 70.00
    Mounting bracket dist.: 56.00
    Bracket hole: 9.00
    Belt tensioning bracket hole position: 60
    Belt tensioning bracket hole 1: 9.00
    Belt tensioning bracket hole 2: 8.50
    Pulley diameter: 56.00
    Grooves/pulley: 7
    Radius: 81.50
    Radius 2: 81.50
    B+: M8
    Position/B+ in min.: 13
    Rotation: CW
    Plug no.: PL166
    Total length mm: 186.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP
    Regulator type: IR
    Prod. info: BN
    Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      A0131549902, F032116057, 0121813014, 0121813114, 0131549902

    • Normalised article numbler
      a0131549902, a0526, a0570s, cal10497, dra0695, f032116057, 11304n, 0121813014, 0121813114, 0131549902, 0986048513, 0986048517
