HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116066

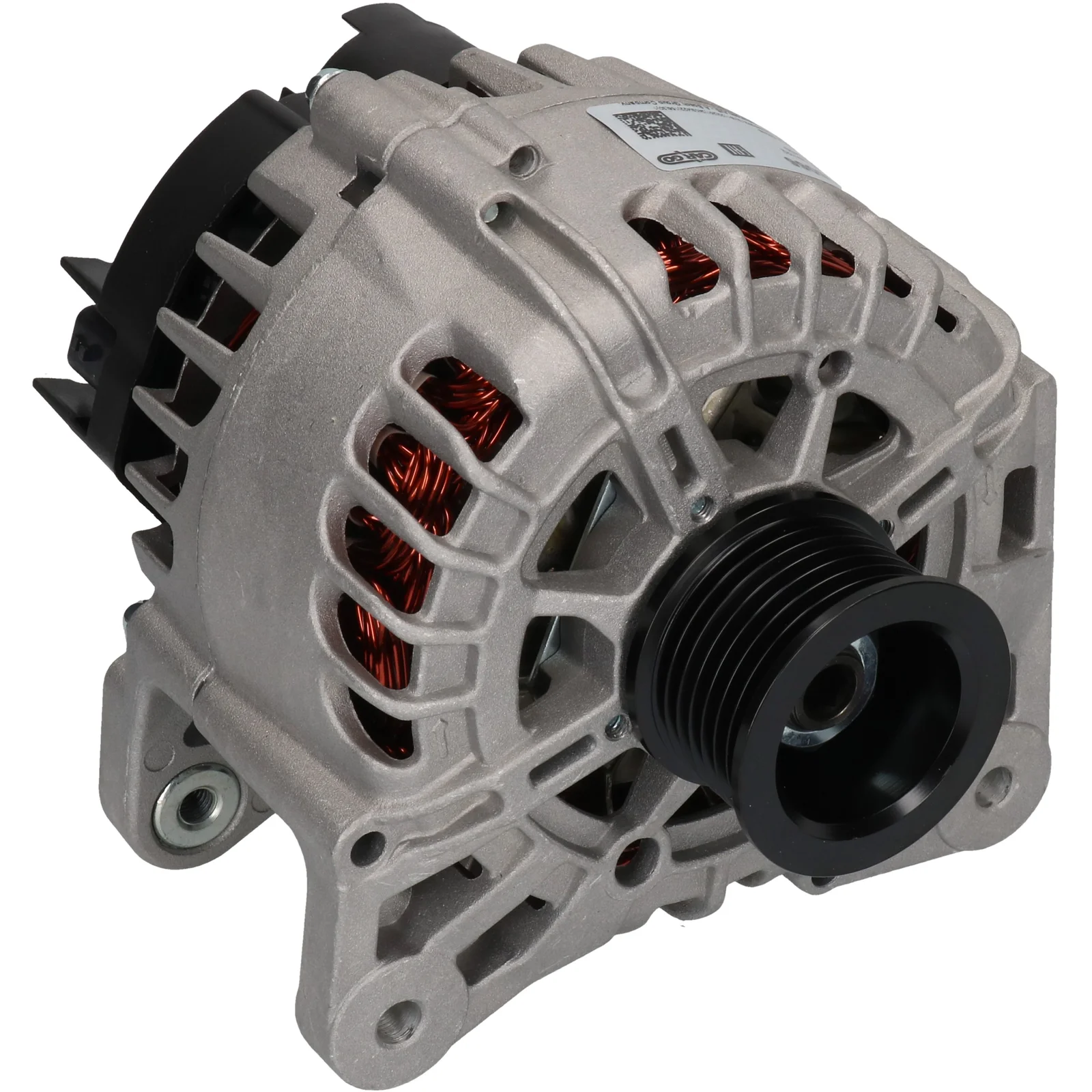

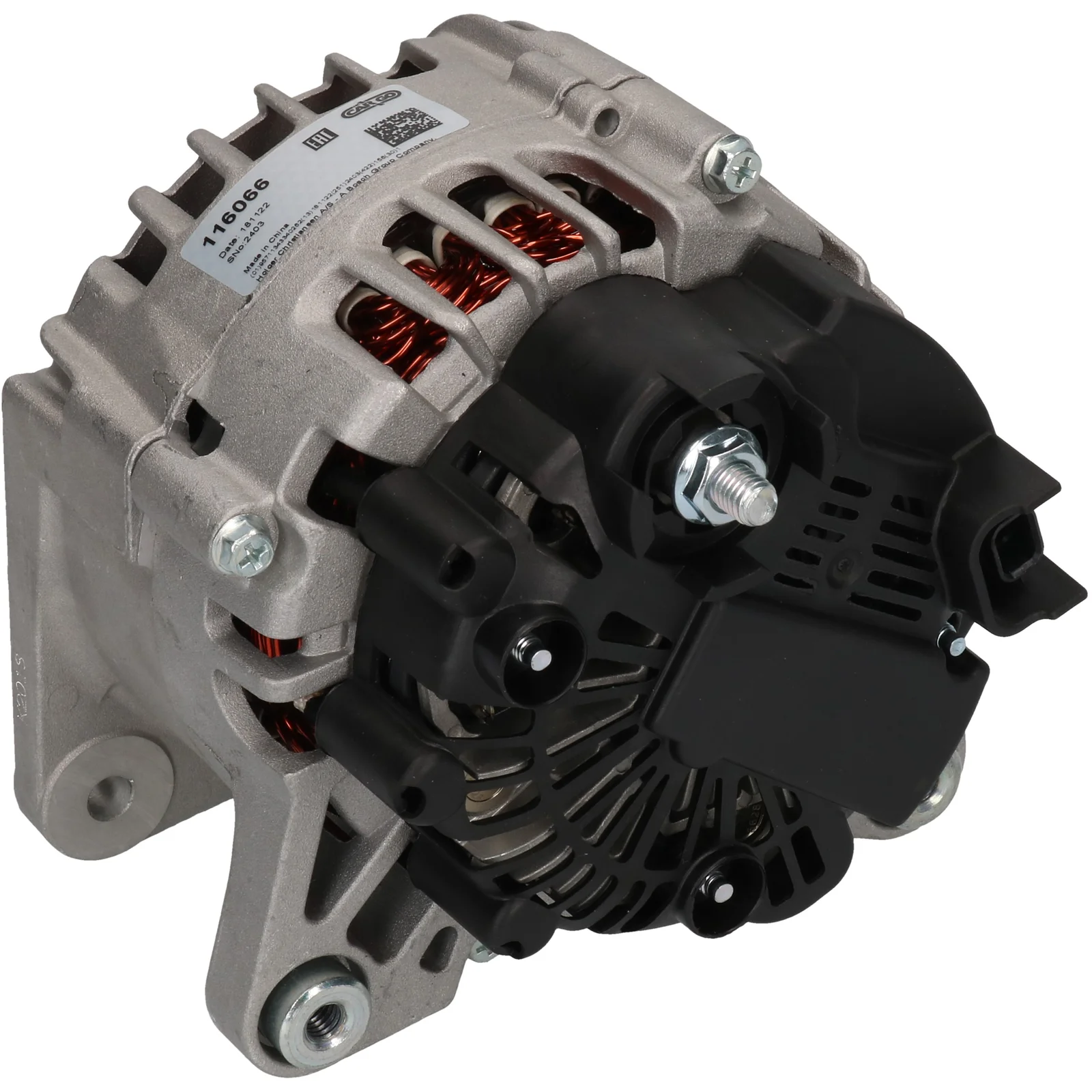

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 120, Rotation: CW, Mount. bracket dist.: 60.50

Description

Voltage: 14
Amp: 120
Pulley diameter: 33.50
Width/holder arm: 13.70
Mounting bracket distance: 60.50
Bracket hole: 8.20
Belt tensioning bracket hole position: 45
Belt tensioning bracket hole 1: 8.20
Pulley diameter: 49.00
Grooves/pulley: 7
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 6
Rotation: CW
Plug no.: PL131
Total length mm: 184.00
Terminal type: COM
Communication: BSS
Pulley: SP
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    A3313(VALEO), A3313S, CAL15391, DRA0379, F032116066, LR1100705F, LRA03253, tg12c062, TG12C062, 8EL012240-141, 28-5865, 230.344.1202, 575.913.120, 20878N-OE, 210698, 210698A, 231000W80A, 439648, 440218, 553593RI, 2605419B, 9090836, 12090480, 32005011, 7711497371, 8200757870

  • Normalised article numbler
    a3313s, a3313valeo, cal15391, dra0379, f032116066, lr1100705f, lra03253, tg12c062, 8el012240141, 20878noe, 210698, 210698a, 231000w80a, 285865, 439648, 440218, 553593ri, 2605419b, 9090836, 12090480, 32005011, 575913120, 2303441202, 7711497371, 8200757870
  • Description
    Voltage: 14
    Amp: 120
    Pulley diameter: 33.50
    Width/holder arm: 13.70
    Mounting bracket distance: 60.50
    Bracket hole: 8.20
    Belt tensioning bracket hole position: 45
    Belt tensioning bracket hole 1: 8.20
    Pulley diameter: 49.00
    Grooves/pulley: 7
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 6
    Rotation: CW
    Plug no.: PL131
    Total length mm: 184.00
    Terminal type: COM
    Communication: BSS
    Pulley: SP
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      A3313(VALEO), A3313S, CAL15391, DRA0379, F032116066, LR1100705F, LRA03253, tg12c062, TG12C062, 8EL012240-141, 28-5865, 230.344.1202, 575.913.120, 20878N-OE, 210698, 210698A, 231000W80A, 439648, 440218, 553593RI, 2605419B, 9090836, 12090480, 32005011, 7711497371, 8200757870

    • Normalised article numbler
      a3313s, a3313valeo, cal15391, dra0379, f032116066, lr1100705f, lra03253, tg12c062, 8el012240141, 20878noe, 210698, 210698a, 231000w80a, 285865, 439648, 440218, 553593ri, 2605419b, 9090836, 12090480, 32005011, 575913120, 2303441202, 7711497371, 8200757870
