HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116081

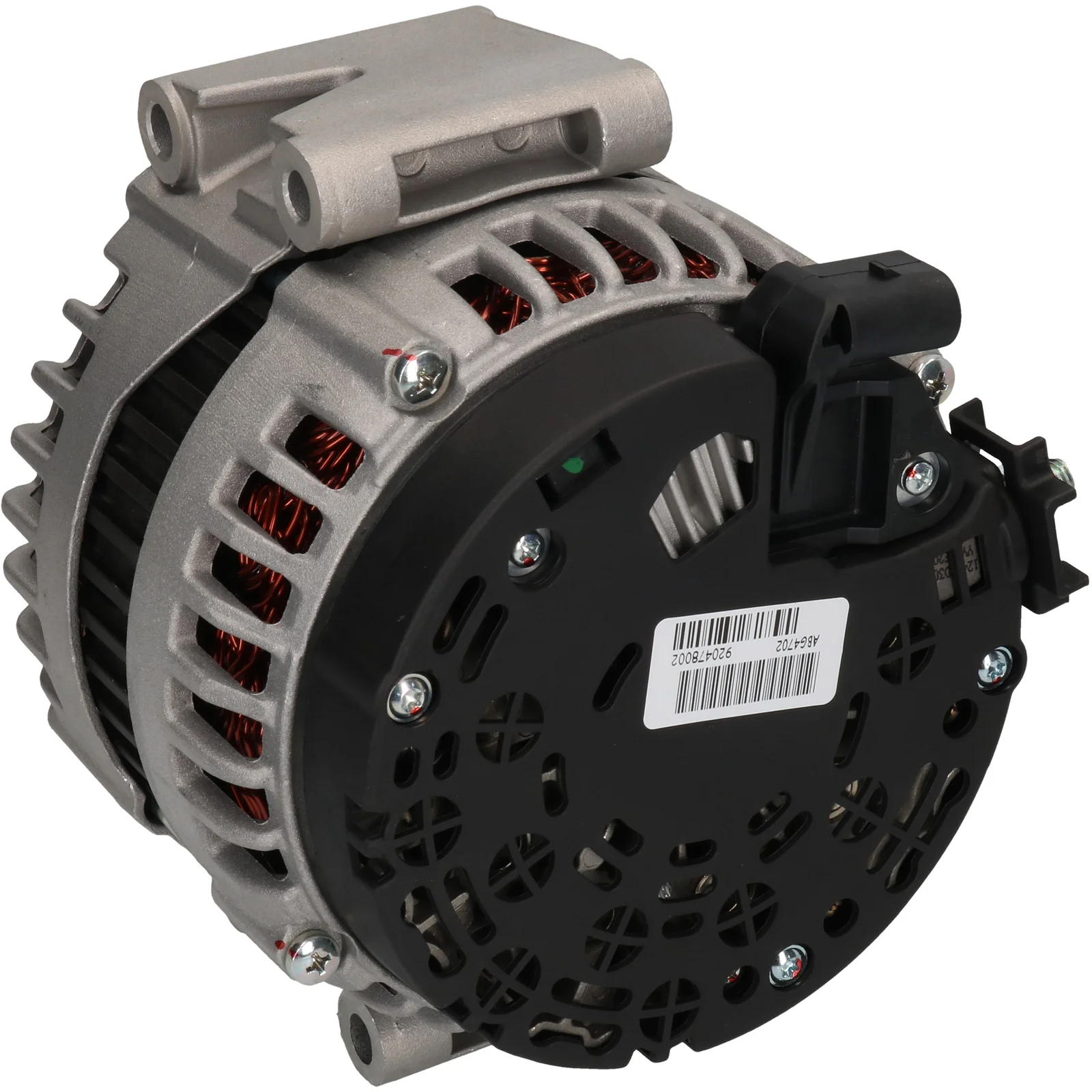

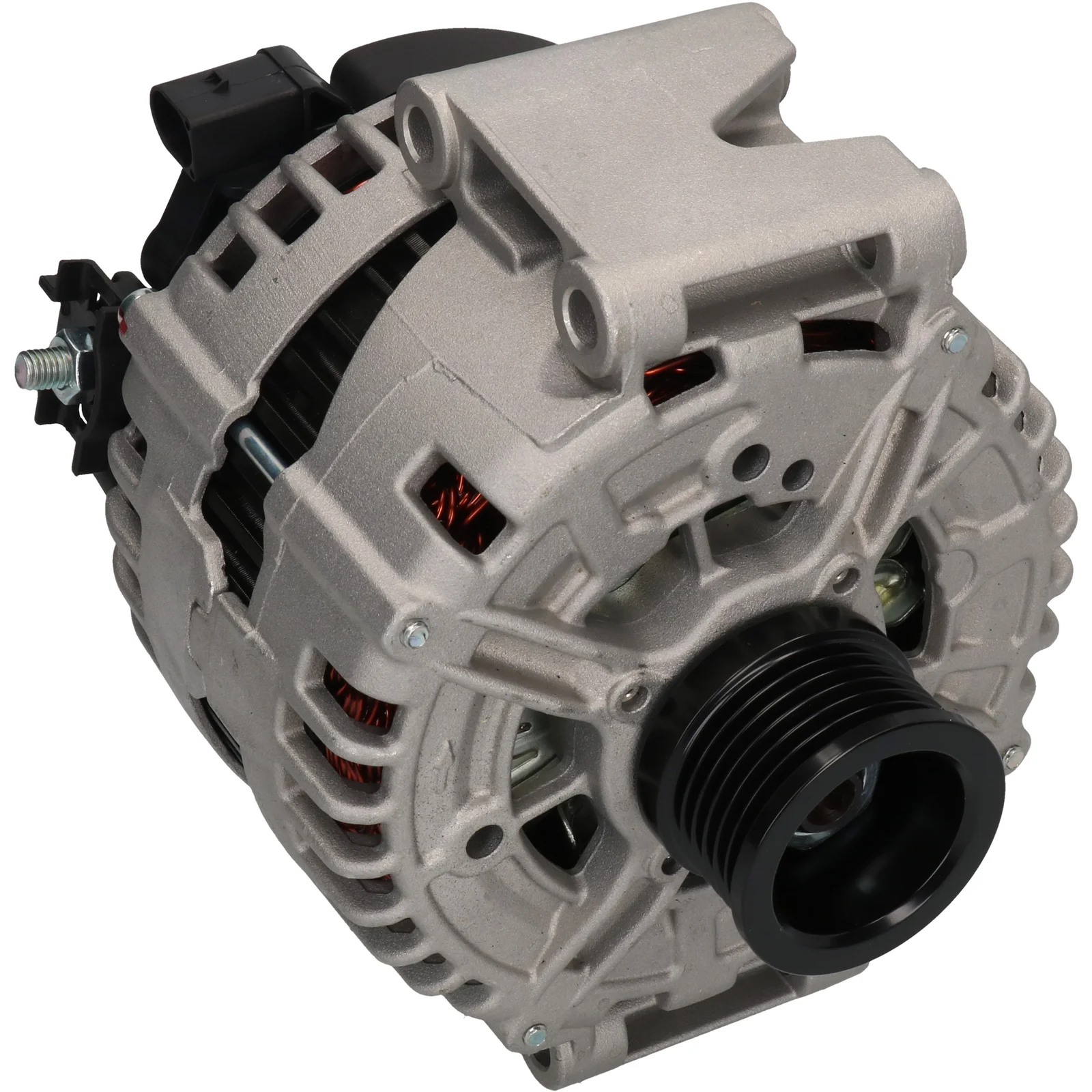

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 220, Rotation: CW, Mount. bracket dist.: 56.00

Description

Voltage: 14
Amp: 220
Pulley: SP
dist.: 31.50
Width/holder arm: 70.00
Mounting bracket distance: 56.00
Bracket hole: 9.80
Bracket hole 2: 9.80
Belt. adjust. bracket hole position: 60
Belt. adjust. bracket hole 1: 9.80
Alternator pulley diameter: 50.00
Grooves/pulley: 6
Radius: 80.00
Radius 2: 84.00
B+: M8
Position/B+ in min.: 12
Rotation: CW
Plug number: PL86
Total length mm: 181.00
Terminal type: COM
Communication: LIN
Pulley: SP
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    a0131540502, A013154050280, F032116081, 1986A00769, 06811843AA, 6811843AA, 68011843AA, 68011843AC, 68011843AD, 0121813001, 0121813101, 0131540502, 013154050280

  • Normalised article numbler
    a0131540502, a013154050280, a0570s, cal10389, drb7640, f032116081, lra03135, 8el011712621, 1986a00769, 11305n, 112207, 209080, 209080a, 285747, 440923, 443270, 553632ri, 06811843aa, 6811843aa, 9047640, 12047640, 32047640, 68011843aa, 68011843ac, 68011843ad, 0121813001, 0121813101, 0131540502, 225182202, 555551220, 0986047640, 0986047643, 0986047644, 0986047647, 013154050280
  • Description
    Voltage: 14
    Amp: 220
    Pulley: SP
    dist.: 31.50
    Width/holder arm: 70.00
    Mounting bracket distance: 56.00
    Bracket hole: 9.80
    Bracket hole 2: 9.80
    Belt. adjust. bracket hole position: 60
    Belt. adjust. bracket hole 1: 9.80
    Alternator pulley diameter: 50.00
    Grooves/pulley: 6
    Radius: 80.00
    Radius 2: 84.00
    B+: M8
    Position/B+ in min.: 12
    Rotation: CW
    Plug number: PL86
    Total length mm: 181.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      a0131540502, A013154050280, F032116081, 1986A00769, 06811843AA, 6811843AA, 68011843AA, 68011843AC, 68011843AD, 0121813001, 0121813101, 0131540502, 013154050280

    • Normalised article numbler
      a0131540502, a013154050280, a0570s, cal10389, drb7640, f032116081, lra03135, 8el011712621, 1986a00769, 11305n, 112207, 209080, 209080a, 285747, 440923, 443270, 553632ri, 06811843aa, 6811843aa, 9047640, 12047640, 32047640, 68011843aa, 68011843ac, 68011843ad, 0121813001, 0121813101, 0131540502, 225182202, 555551220, 0986047640, 0986047643, 0986047644, 0986047647, 013154050280
