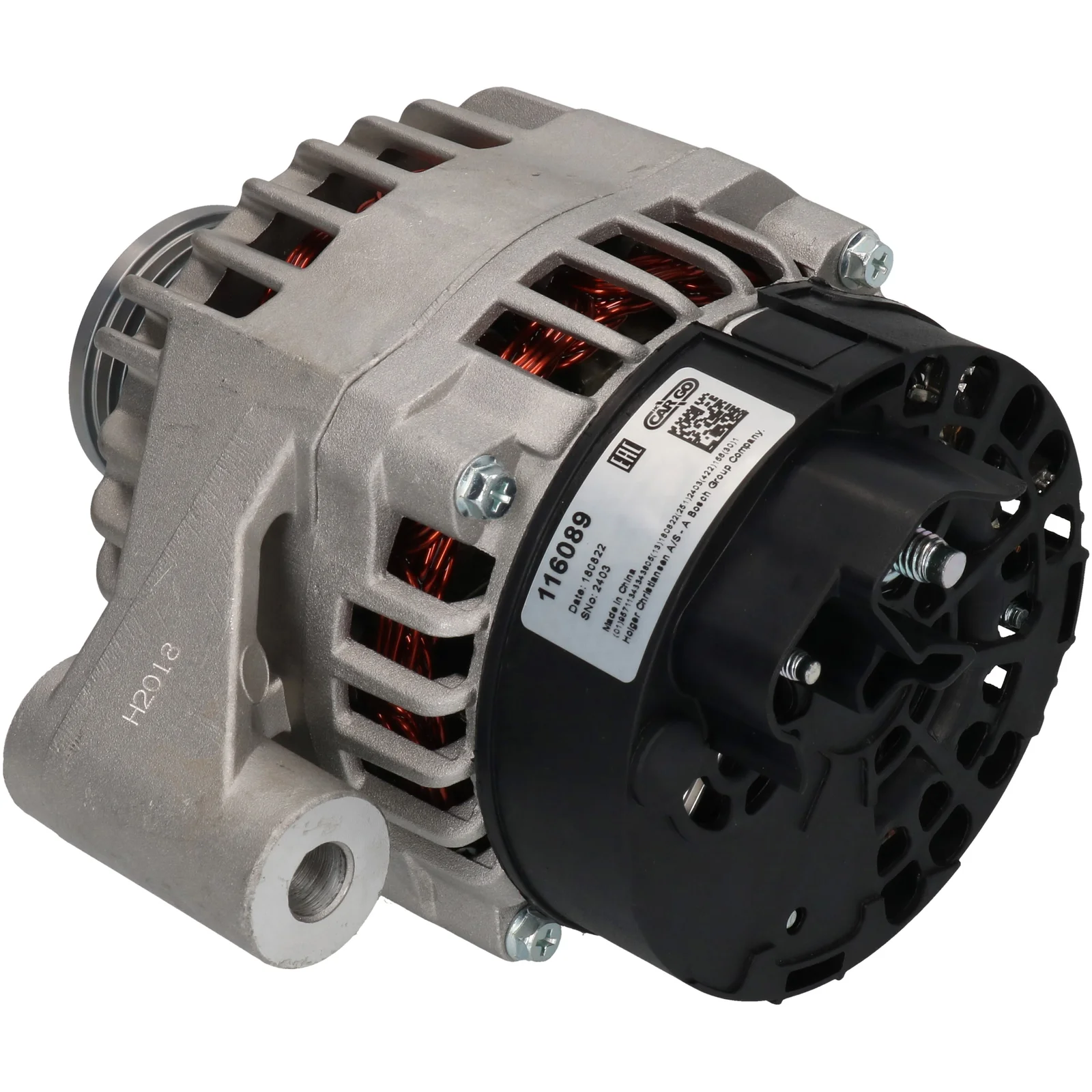

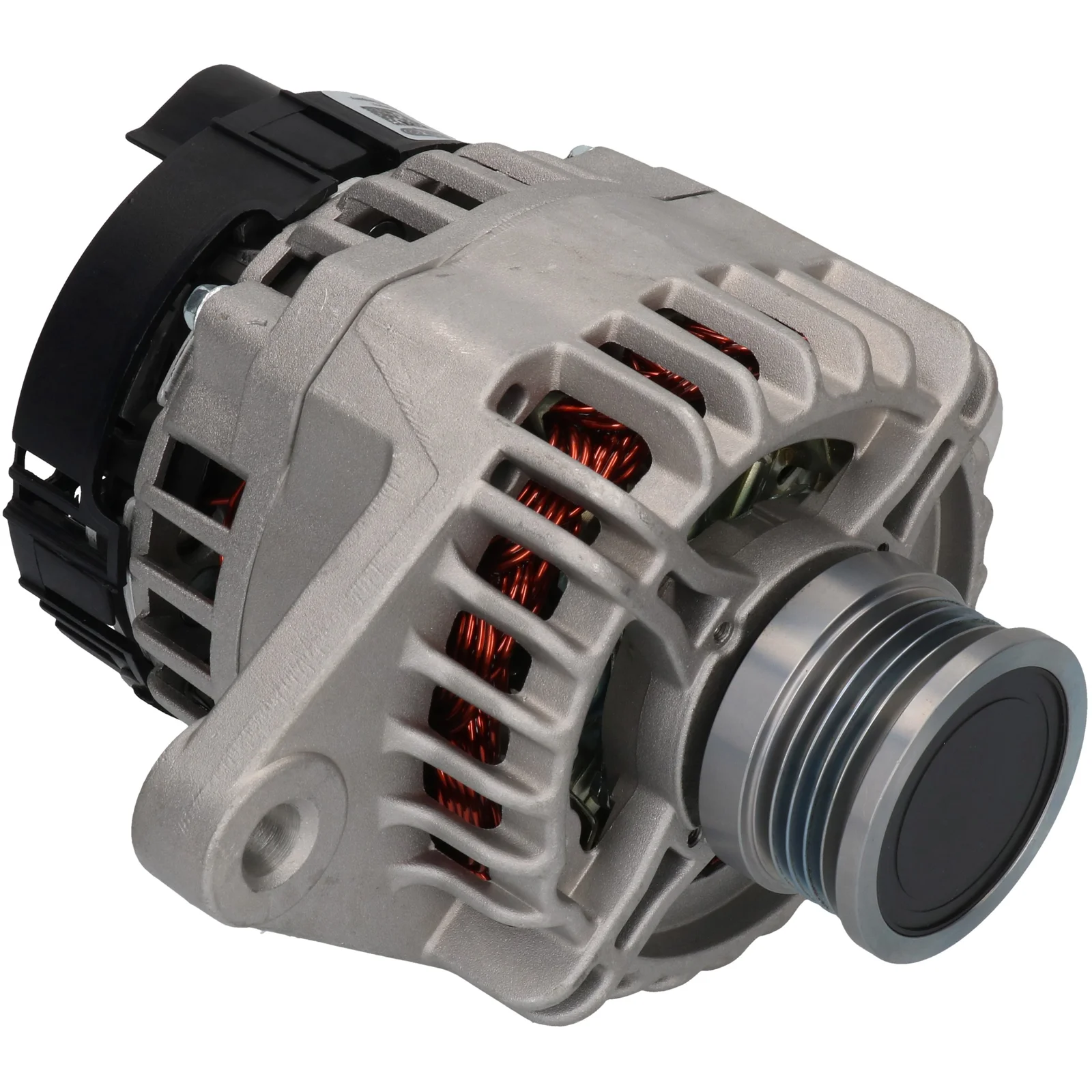

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116089

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 120, Rotation: CW, Pulley diameter: 54.00

Description

Voltage: 14
Amp: 120
Pulley dist.: 116.00
Width/holder arm: 61.00
Bracket hole: 12.30
Belt. adj. bracket hole position.: 59
Belt. adj. bracket hole 1: 12.30
Pulley dia.: 54.00
Grooves/pulley: 5
Radius: 90.00
Radius 2: 90.00
B+: M8
D+ Size: M5
Rotation: CW
Total length mm: 199.00
Pulley: SP/FW
Fan: IF
Regulator type: IR

Files

  • OEM
    F032116089, 101210-1330, 101210-1331, 51820622, 51854917, 52003514

  • Normalised article numbler
    a6165denso, cal30238, dan1083, f032116089, lra03657, 209105, 209105a, 286797, 444223, 554151ri, 9090728, 12090853, 51820622, 51854917, 52003514, 1012101330, 1012101331, 2183241202
  • Description
    Voltage: 14
    Amp: 120
    Pulley dist.: 116.00
    Width/holder arm: 61.00
    Bracket hole: 12.30
    Belt. adj. bracket hole position.: 59
    Belt. adj. bracket hole 1: 12.30
    Pulley dia.: 54.00
    Grooves/pulley: 5
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    D+ Size: M5
    Rotation: CW
    Total length mm: 199.00
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F032116089, 101210-1330, 101210-1331, 51820622, 51854917, 52003514

    • Normalised article numbler
      a6165denso, cal30238, dan1083, f032116089, lra03657, 209105, 209105a, 286797, 444223, 554151ri, 9090728, 12090853, 51820622, 51854917, 52003514, 1012101330, 1012101331, 2183241202
