HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116090

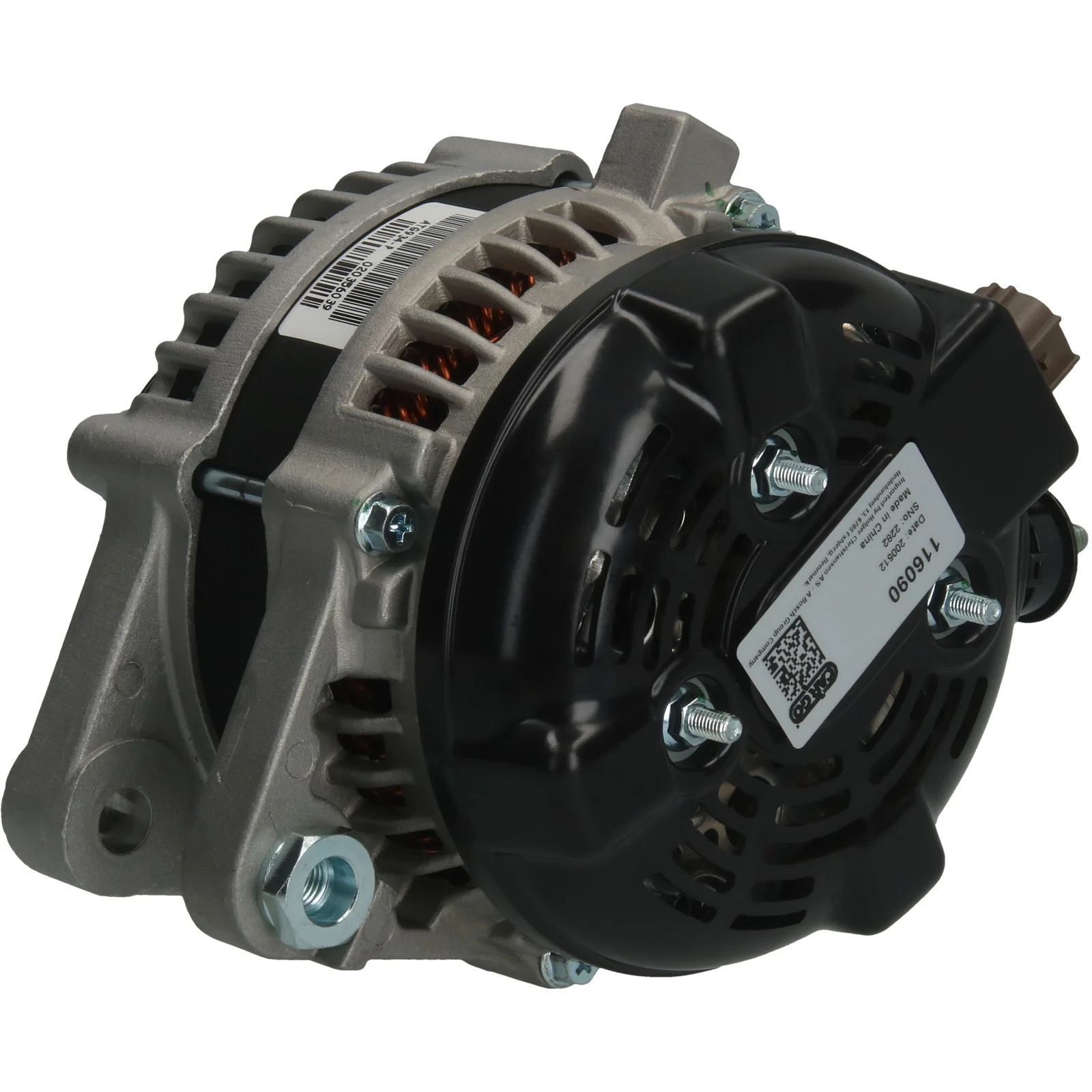

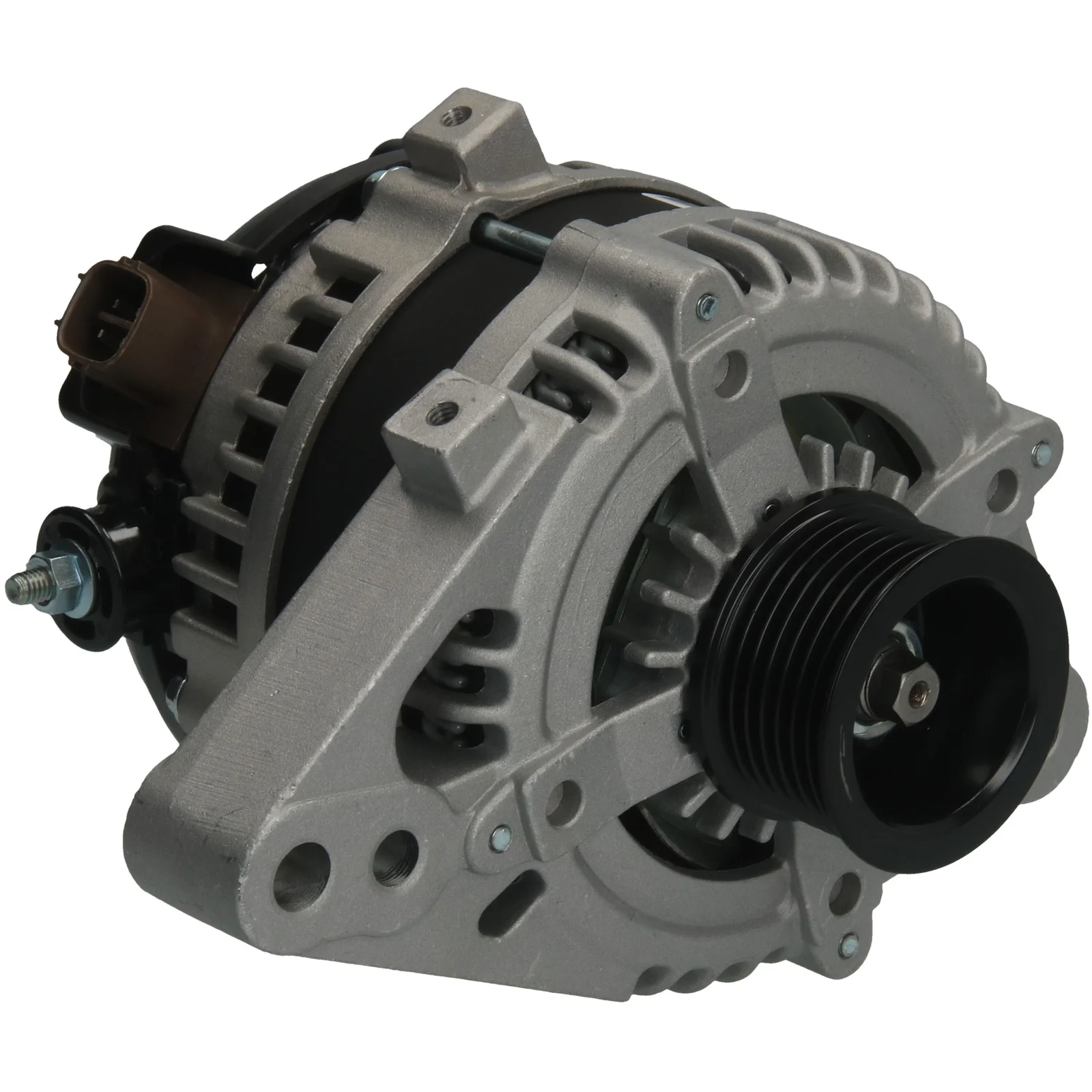

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 100, Rotation: CW, Mount. bracket dist.: 30.60

Description

Voltage: 14
Amp: 100
Pulley: 40.00
Width/holder arm: 18.20
Mounting bracket distance: 30.60
Bracket hole: 11.30
Belt adjustment bracket hole position: 55
Belt adjustment bracket hole 1: 11.30
Belt adjustment bracket hole 2: 9.00
Pulley diameter: 52.00
Grooves/pulley: 7
Radius: 85.00
Radius 2: 83.00
Radius 3: 103.00
B+: M6
Position/B+ in minutes: 5
D+ size: Plug
Rotation: CW
Plug number: PL78
Total length mm: 164.00
Pulley: SP
Fan: IF
Regulator type: IR

Files

  • OEM
    F032116090, 27060-0P030, 27060-31120, 104210-4230, 104210-4920, 104210-4921

  • Normalised article numbler
    a6327, cal40324, f032116090, 11138, 11138n, 11324, 11324n, 11324r, 270600p030, 553765ri, 12060960, 195960100, 1042104230, 1042104920, 1042104921, 2706031120
  • Description
    Voltage: 14
    Amp: 100
    Pulley: 40.00
    Width/holder arm: 18.20
    Mounting bracket distance: 30.60
    Bracket hole: 11.30
    Belt adjustment bracket hole position: 55
    Belt adjustment bracket hole 1: 11.30
    Belt adjustment bracket hole 2: 9.00
    Pulley diameter: 52.00
    Grooves/pulley: 7
    Radius: 85.00
    Radius 2: 83.00
    Radius 3: 103.00
    B+: M6
    Position/B+ in minutes: 5
    D+ size: Plug
    Rotation: CW
    Plug number: PL78
    Total length mm: 164.00
    Pulley: SP
    Fan: IF
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F032116090, 27060-0P030, 27060-31120, 104210-4230, 104210-4920, 104210-4921

    • Normalised article numbler
      a6327, cal40324, f032116090, 11138, 11138n, 11324, 11324n, 11324r, 270600p030, 553765ri, 12060960, 195960100, 1042104230, 1042104920, 1042104921, 2706031120
