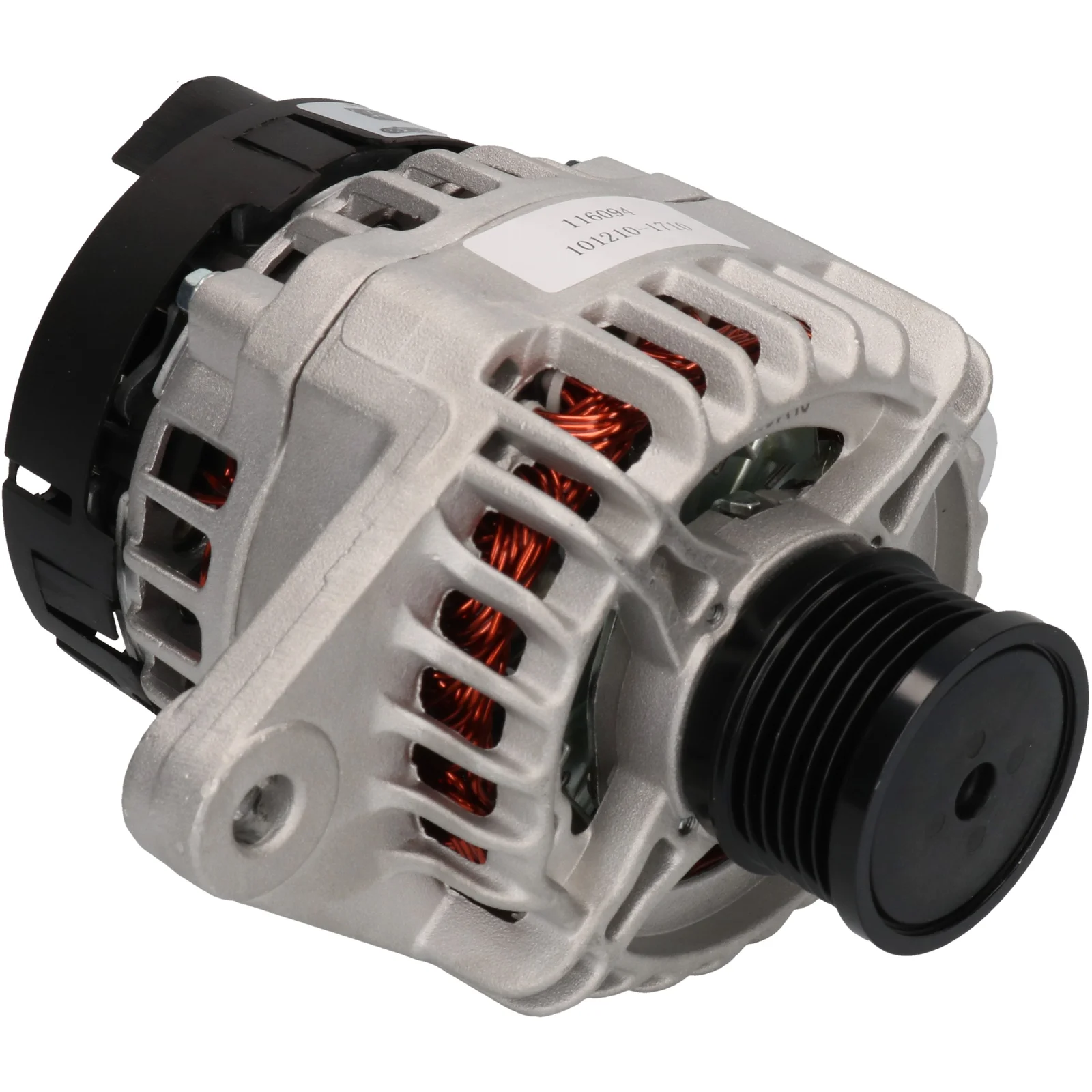

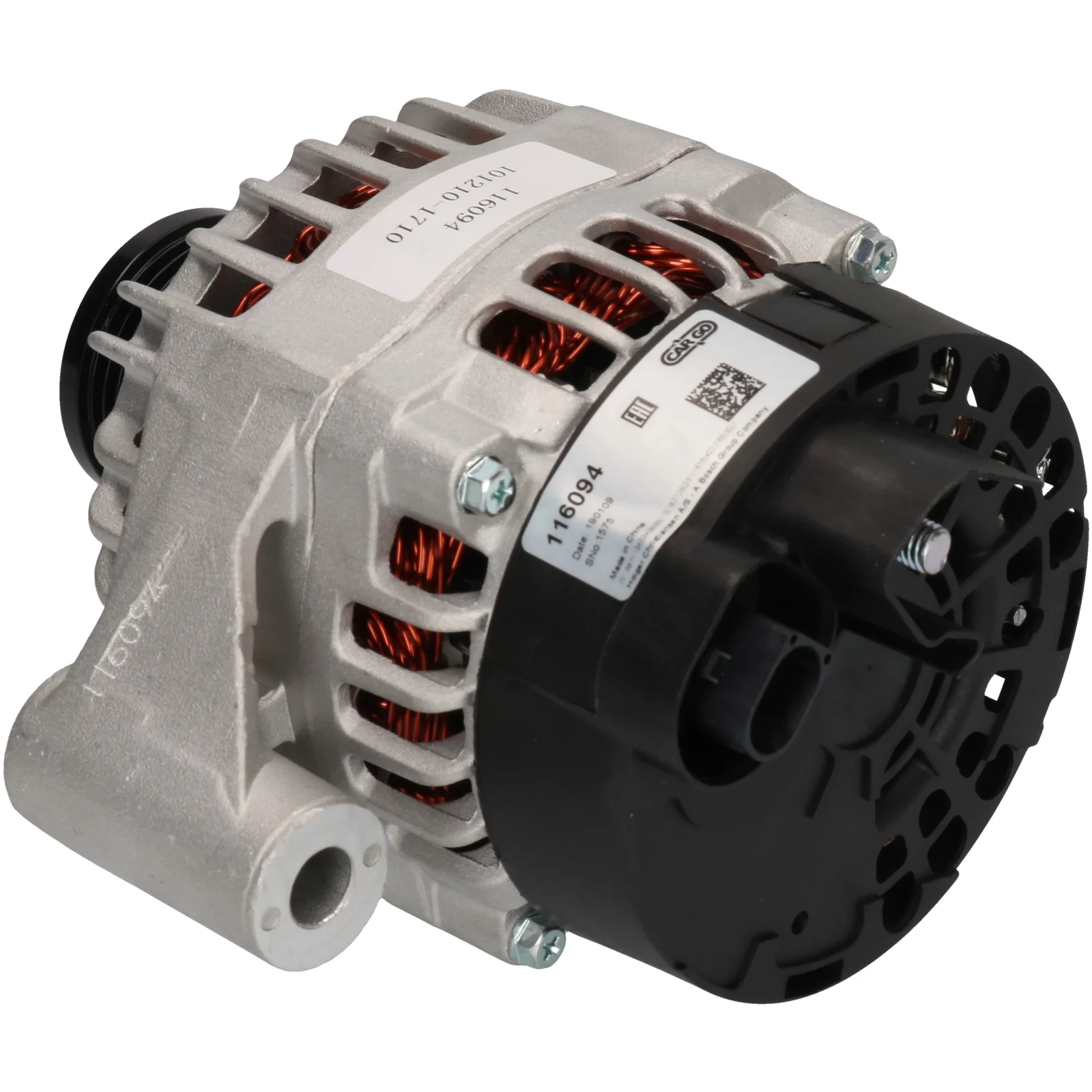

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116094

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 120, Rotation: CW, Pulley diameter: 54.00

Description

Voltage: 14
Amp: 120
Pulley diameter: 112.50
Width/holder arm: 61.00
Bracket hole: 12.80
Belt adjustment bracket hole position: 59
Belt adjustment bracket hole 1: 12.20
Pulley diameter: 54.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+ Length mm: 43.50
B+: M8
Position/B+ in min.: 43
Rotation: CW
Plug no.: PL174
Total length mm: 198.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116094, 1986A00608, 101210-1710, 101210-2010, 51884351, 51944891

  • Normalised article numbler
    a6362, a6509pr, cal30239, dan1121, dra1451, f032116094, 8el015637011, 1986a00608, 24127nos, 210936, 210936a, 286943, 554221ri, 849227, 12090623, 51884351, 51944891, 105516120, 0986084720, 1012101710, 1012102010, 2183291202
  • Description
    Voltage: 14
    Amp: 120
    Pulley diameter: 112.50
    Width/holder arm: 61.00
    Bracket hole: 12.80
    Belt adjustment bracket hole position: 59
    Belt adjustment bracket hole 1: 12.20
    Pulley diameter: 54.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+ Length mm: 43.50
    B+: M8
    Position/B+ in min.: 43
    Rotation: CW
    Plug no.: PL174
    Total length mm: 198.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116094, 1986A00608, 101210-1710, 101210-2010, 51884351, 51944891

    • Normalised article numbler
      a6362, a6509pr, cal30239, dan1121, dra1451, f032116094, 8el015637011, 1986a00608, 24127nos, 210936, 210936a, 286943, 554221ri, 849227, 12090623, 51884351, 51944891, 105516120, 0986084720, 1012101710, 1012102010, 2183291202
