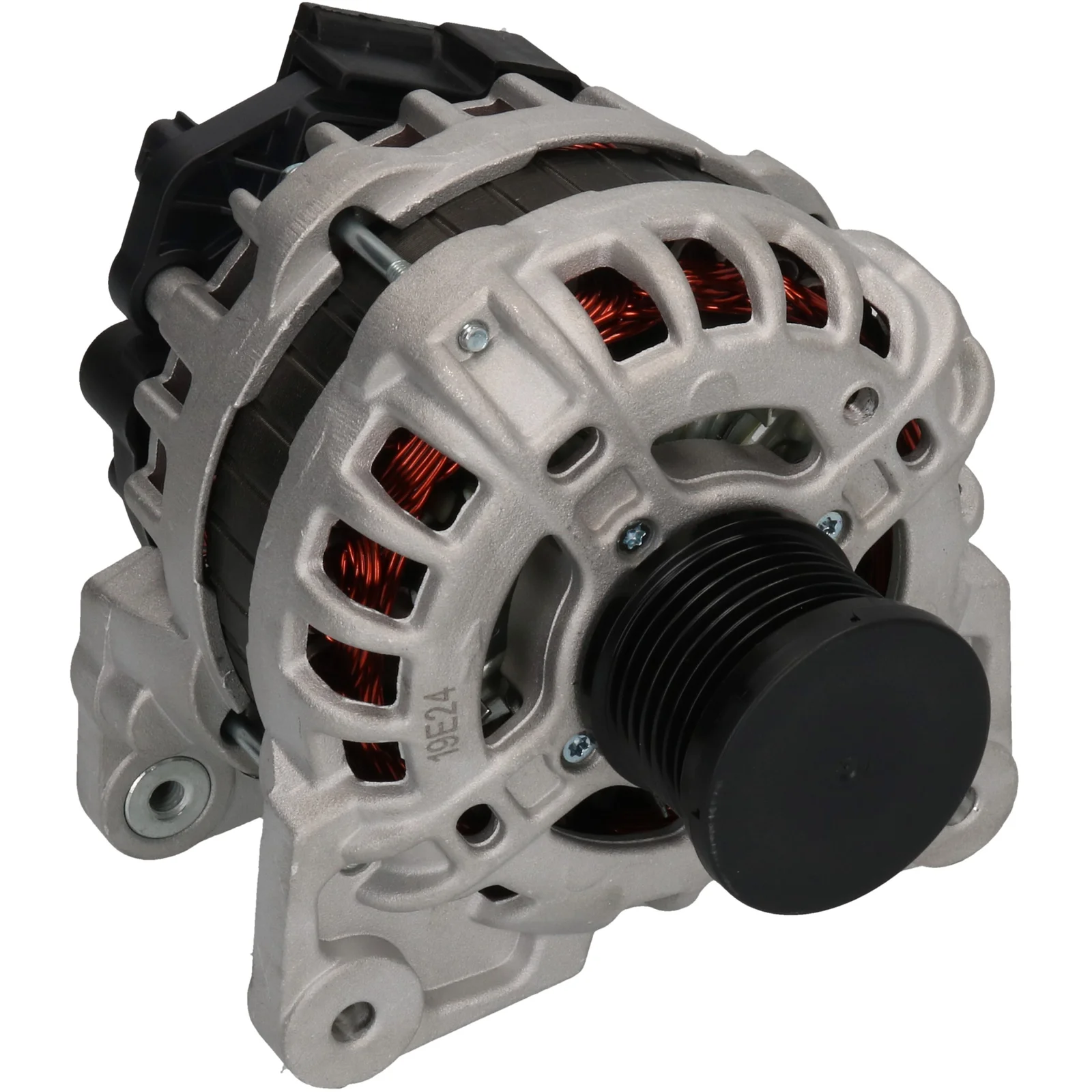

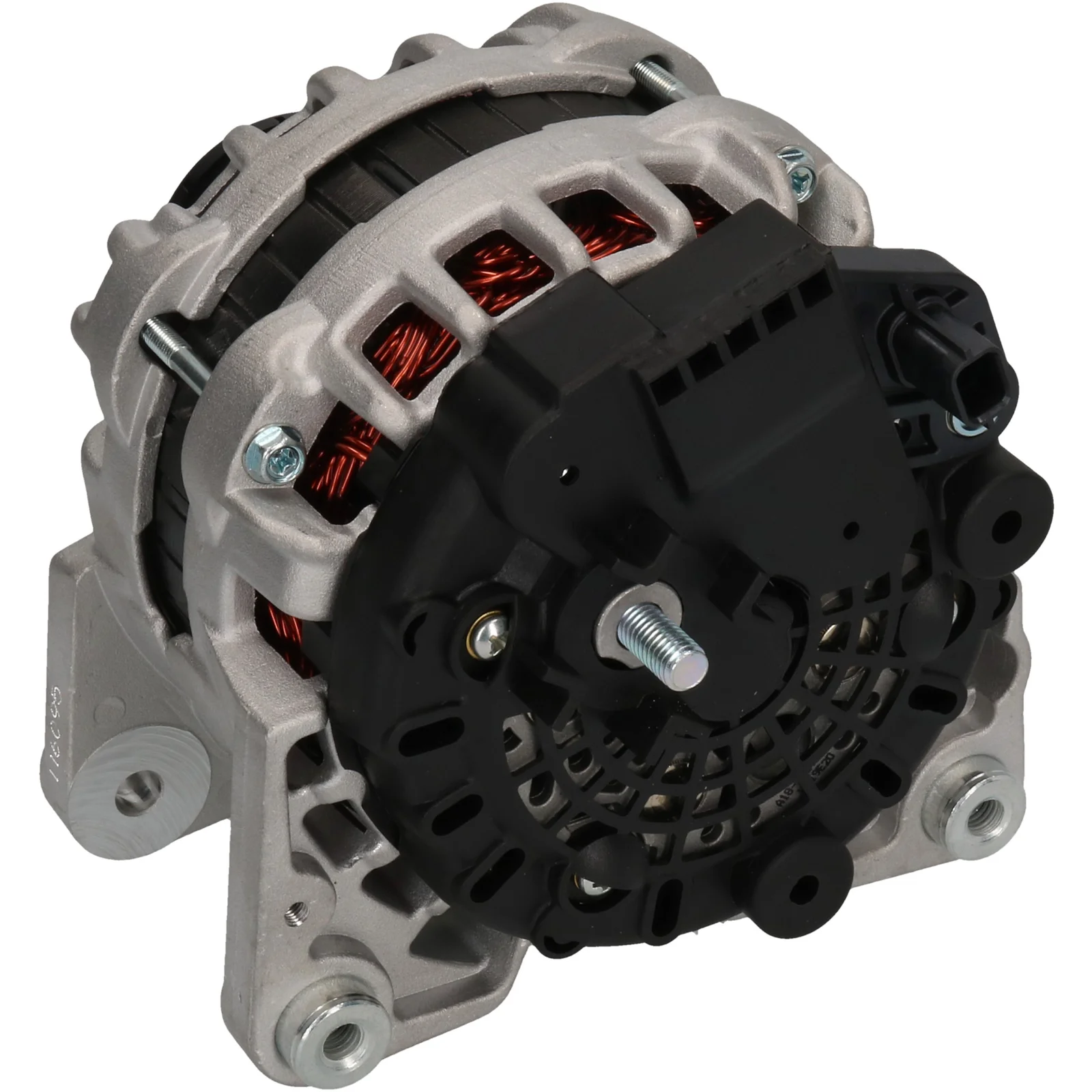

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116095

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 90, Rotation: CW, Mounting bracket distributor: 61.00

Description

HC-Cargo Alternator 14V - 90A, 7g

Voltage: 14
Amp: 90
Pulley dist.: 32.30
Width/holder arm: 14.50
Mount. bracket dist.: 61.00
Bracket hole: 8.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 49.00
Grooves/pulley: 7
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 45
Rotation: CW
Plug no.: PL131
Total length mm: 179.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Regulator type: IR
Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    A4539063900, F000 BL0 410, F000 BL0 4C3, F000 BL0 4C4, F000BL0410, F000BL04BF, F000BL04C3, F000BL04C4, F000BL04CX, F032116095, 1986A01559, 23100-2243R, 23100-6007R, 23100-7644R, 23100-8593R, 116095, 231002243R, 231002854, 231002854R, 231006007R, 231008593, 231008593R, 4539063900, 8201342064

  • Normalised article numbler
    a0710s, a4539063900, cal10559, dra1365, f000bl0410, f000bl04bf, f000bl04c3, f000bl04c4, f000bl04cx, f032116095, 8el011713661, 1986a01559, 20641n, 116095, 286981, 444344, 446530, 554467ri, 12090700, 32118603, 230359902, 231002243r, 231002854, 231002854r, 231006007r, 231007644r, 231008593, 231008593r, 575946090, 575954090, 0986085170, 0986086240, 4539063900, 8201342064
  • Description
    HC-Cargo Alternator 14V - 90A, 7g

    Voltage: 14
    Amp: 90
    Pulley dist.: 32.30
    Width/holder arm: 14.50
    Mount. bracket dist.: 61.00
    Bracket hole: 8.50
    Belt. adj. brackethole pos.: 45
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 49.00
    Grooves/pulley: 7
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 45
    Rotation: CW
    Plug no.: PL131
    Total length mm: 179.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      A4539063900, F000 BL0 410, F000 BL0 4C3, F000 BL0 4C4, F000BL0410, F000BL04BF, F000BL04C3, F000BL04C4, F000BL04CX, F032116095, 1986A01559, 23100-2243R, 23100-6007R, 23100-7644R, 23100-8593R, 116095, 231002243R, 231002854, 231002854R, 231006007R, 231008593, 231008593R, 4539063900, 8201342064

    • Normalised article numbler
      a0710s, a4539063900, cal10559, dra1365, f000bl0410, f000bl04bf, f000bl04c3, f000bl04c4, f000bl04cx, f032116095, 8el011713661, 1986a01559, 20641n, 116095, 286981, 444344, 446530, 554467ri, 12090700, 32118603, 230359902, 231002243r, 231002854, 231002854r, 231006007r, 231007644r, 231008593, 231008593r, 575946090, 575954090, 0986085170, 0986086240, 4539063900, 8201342064
