HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116100

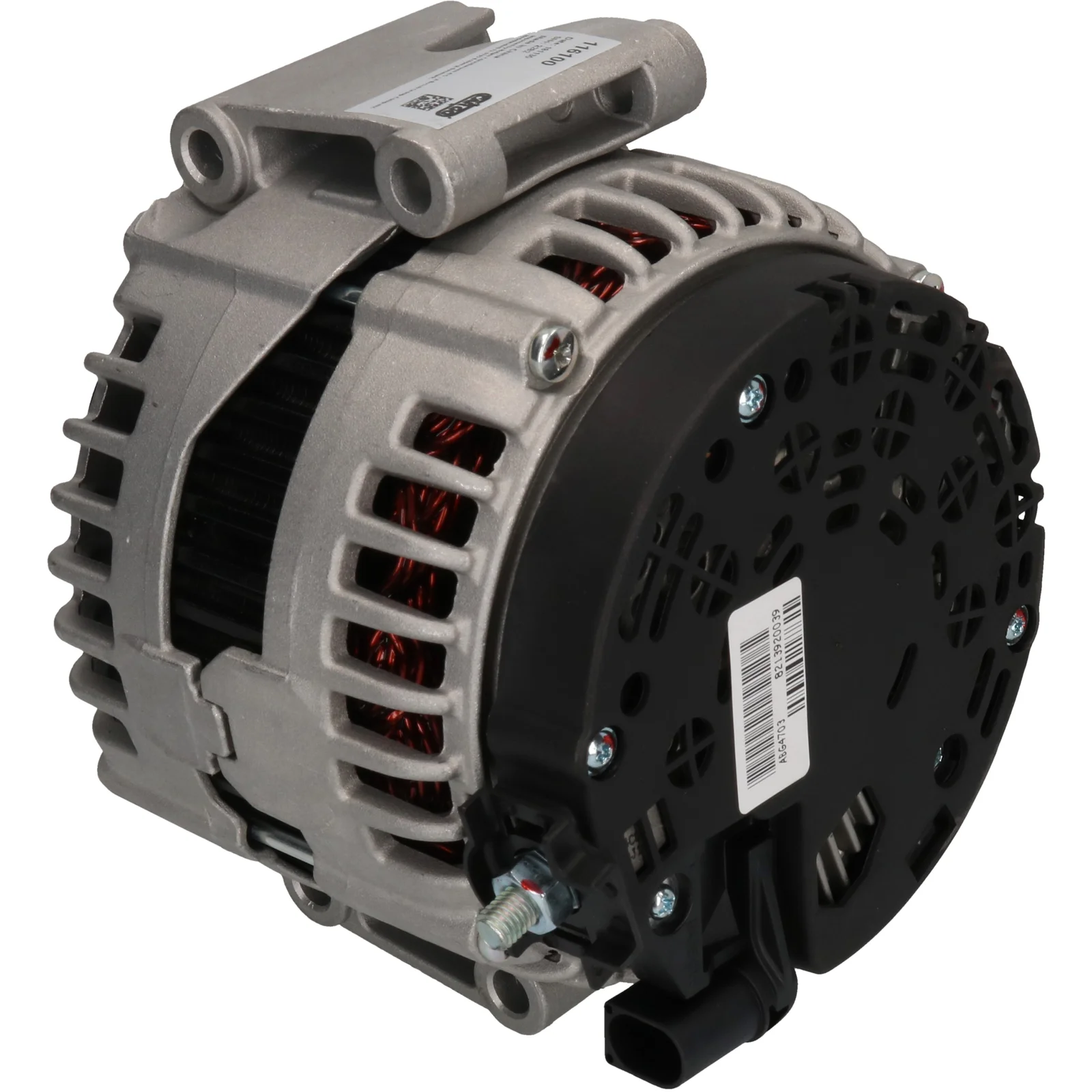

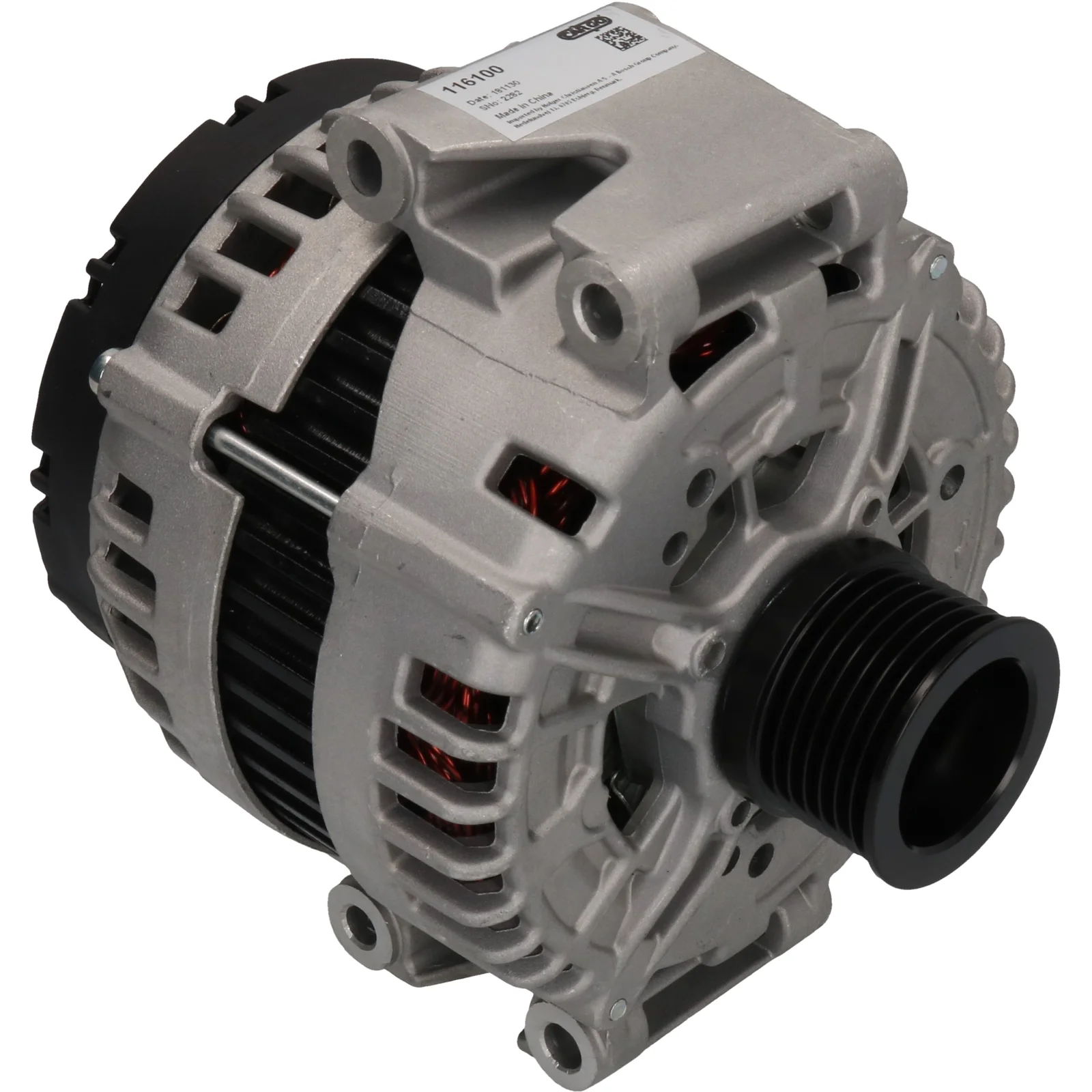

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 220, Rotation: CW, Mount. bracket dist.: 56.00

Description

Voltage: 14
Amp: 220
Pulley diameter: 32.20
Width/holder arm: 70.00
Mounting bracket distance: 56.00
Bracket hole: 9.50
Bracket hole 2: 9.50
Belt adjustment bracket hole position: 30
Belt adjustment bracket hole 1: 9.50
Pulley diameter: 50.00
Grooves/pulley: 7
Radius: 81.00
Radius 2: 81.00
B+: M8
Position/B+ in min.: 10
Rotation: CW
Plug no.: PL86
Total length mm: 190.00
Terminal type: COM
Communication: LIN
Pulley: SP
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    A0131540602, A013154060280, A013154060287, F032116100, 0121813002, 0121813102, 0131540602, 013154060280, 013154060287

  • Normalised article numbler
    a0131540602, a013154060280, a013154060287, a0504, cal10454, drb7790, f032116100, 11304n, 287521, 443299, 553634ri, 12047790, 0121813002, 0121813102, 0131540602, 555552220, 0986047790, 0986047793, 0986047797, 2253222202, 013154060280, 013154060287
  • Description
    Voltage: 14
    Amp: 220
    Pulley diameter: 32.20
    Width/holder arm: 70.00
    Mounting bracket distance: 56.00
    Bracket hole: 9.50
    Bracket hole 2: 9.50
    Belt adjustment bracket hole position: 30
    Belt adjustment bracket hole 1: 9.50
    Pulley diameter: 50.00
    Grooves/pulley: 7
    Radius: 81.00
    Radius 2: 81.00
    B+: M8
    Position/B+ in min.: 10
    Rotation: CW
    Plug no.: PL86
    Total length mm: 190.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      A0131540602, A013154060280, A013154060287, F032116100, 0121813002, 0121813102, 0131540602, 013154060280, 013154060287

    • Normalised article numbler
      a0131540602, a013154060280, a013154060287, a0504, cal10454, drb7790, f032116100, 11304n, 287521, 443299, 553634ri, 12047790, 0121813002, 0121813102, 0131540602, 555552220, 0986047790, 0986047793, 0986047797, 2253222202, 013154060280, 013154060287
