HC-Cargo Alternator

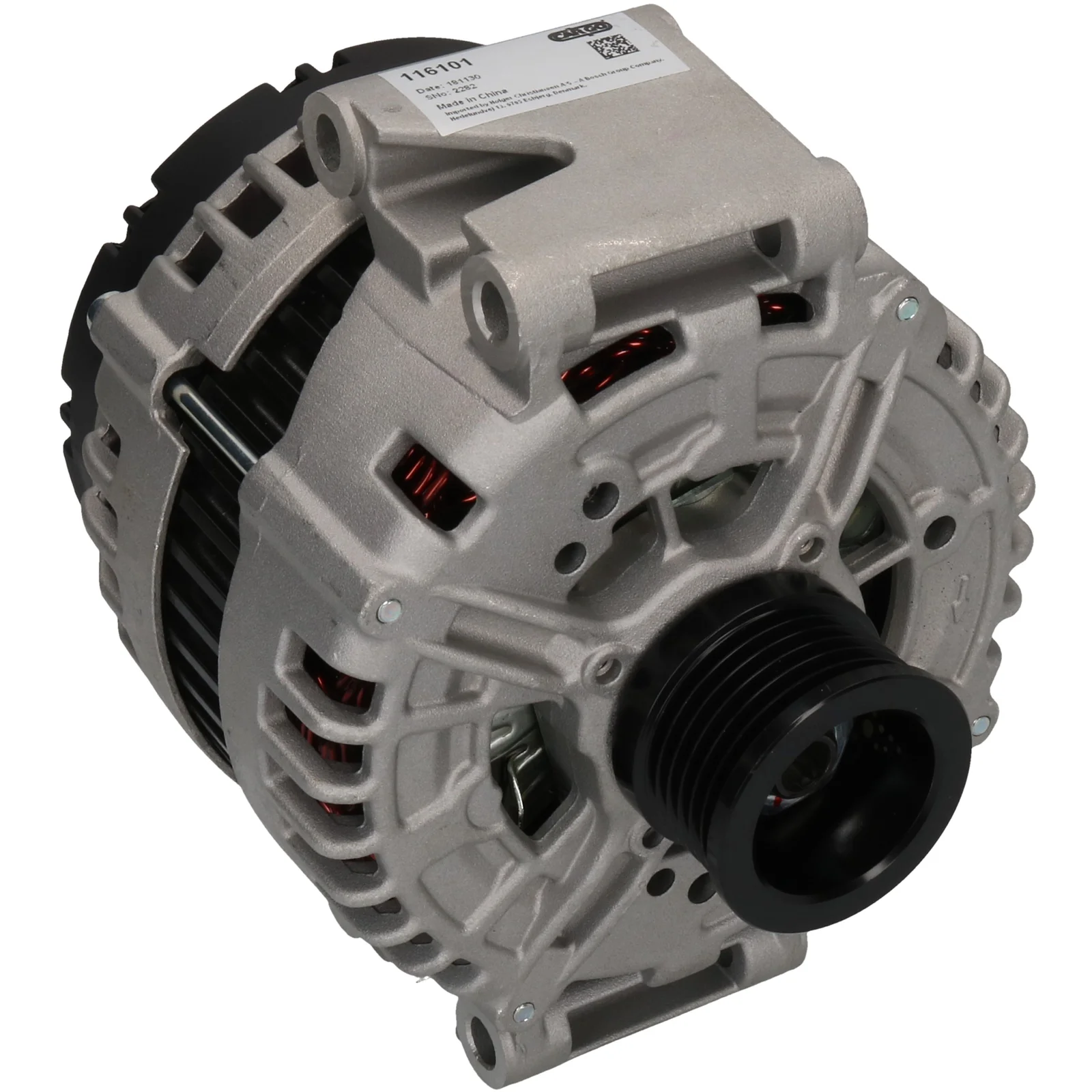

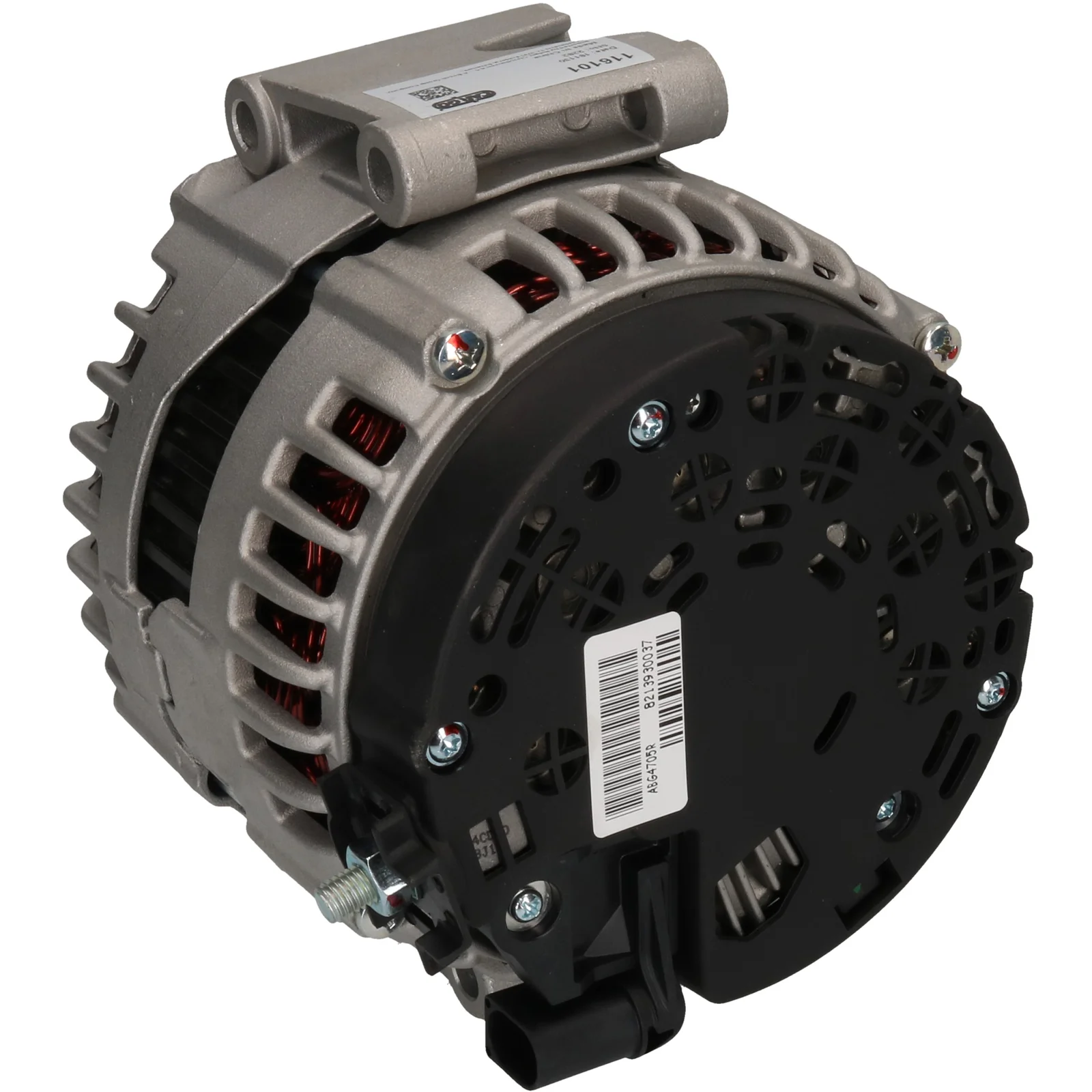

HC-Cargo Alternator
Article no.: F032116101

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 220, Rotation: CW, Mount. bracket dist.: 56.00

Description

Voltage: 14
Amp: 220
Pulley dist.: 32.00
Width/holder arm: 70.00
Mount. bracket dist.: 56.00
Bracket hole: 9.20
Bracket hole 2: 9.20
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 9.20
Belt. adj. bracket hole 2: 9.20
Pulley dia.: 50.00
Grooves/pulley: 6
B+: M8
Position/B+ in min.: 10
Rotation: CW
Plug no.: PL86
Total length mm: 182.50
Terminal type: COM
Communication: LIN
Pulley: SP
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    a0131545502, A013154550280, F032116101, 0121813006, 0121813106, 0131545502, 013154550280

  • Normalised article numbler
    a0131545502, a013154550280, a0214, a0214r, dra0695, f032116101, 11310r, 286957, 553806ri, 9090801, 12090413, 0121813006, 0121813106, 0131545502, 555570220, 0986048430, 0986048433, 0986048434, 0986048437, 2253202202, 013154550280
  • Description
    Voltage: 14
    Amp: 220
    Pulley dist.: 32.00
    Width/holder arm: 70.00
    Mount. bracket dist.: 56.00
    Bracket hole: 9.20
    Bracket hole 2: 9.20
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: 9.20
    Belt. adj. bracket hole 2: 9.20
    Pulley dia.: 50.00
    Grooves/pulley: 6
    B+: M8
    Position/B+ in min.: 10
    Rotation: CW
    Plug no.: PL86
    Total length mm: 182.50
    Terminal type: COM
    Communication: LIN
    Pulley: SP
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      a0131545502, A013154550280, F032116101, 0121813006, 0121813106, 0131545502, 013154550280

    • Normalised article numbler
      a0131545502, a013154550280, a0214, a0214r, dra0695, f032116101, 11310r, 286957, 553806ri, 9090801, 12090413, 0121813006, 0121813106, 0131545502, 555570220, 0986048430, 0986048433, 0986048434, 0986048437, 2253202202, 013154550280
