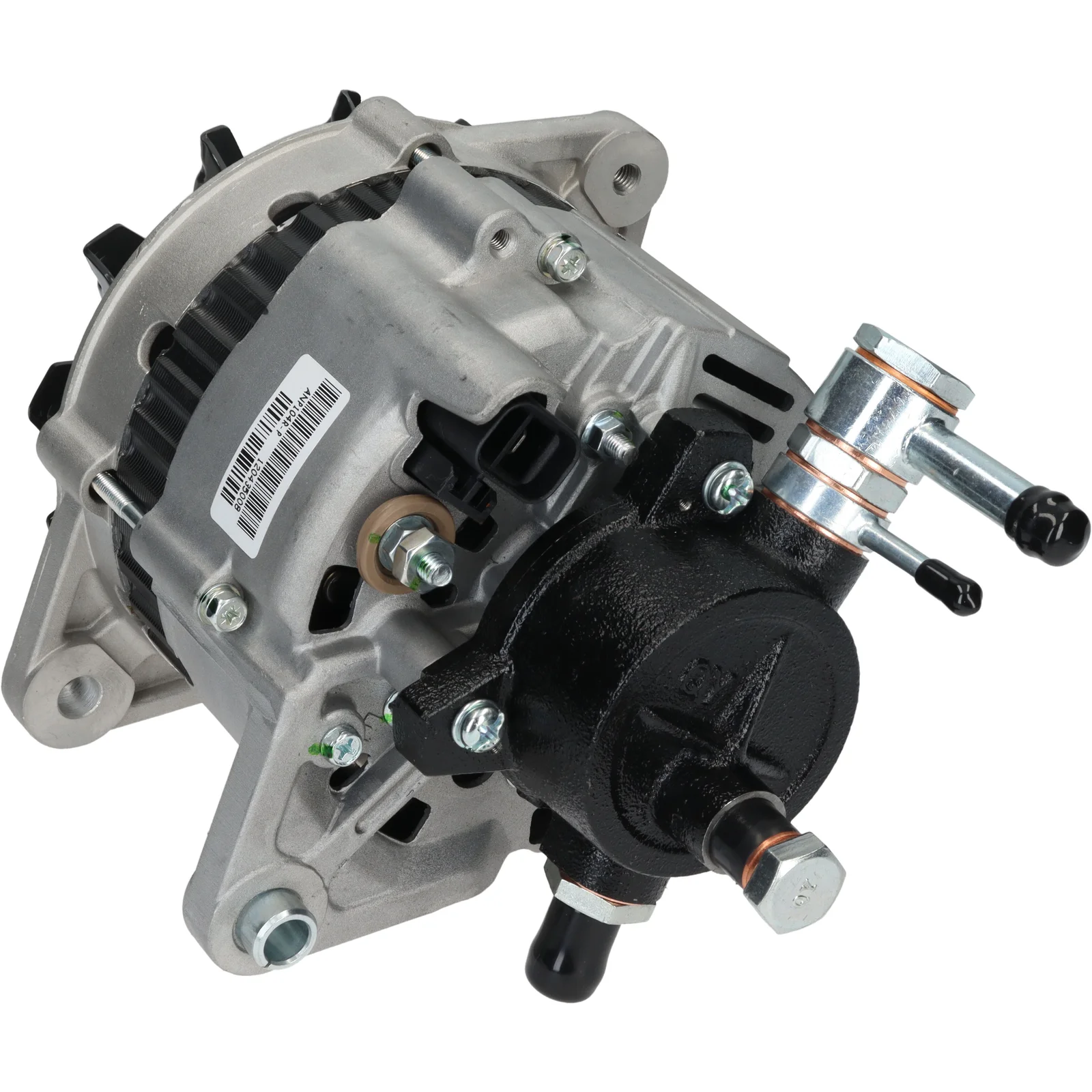

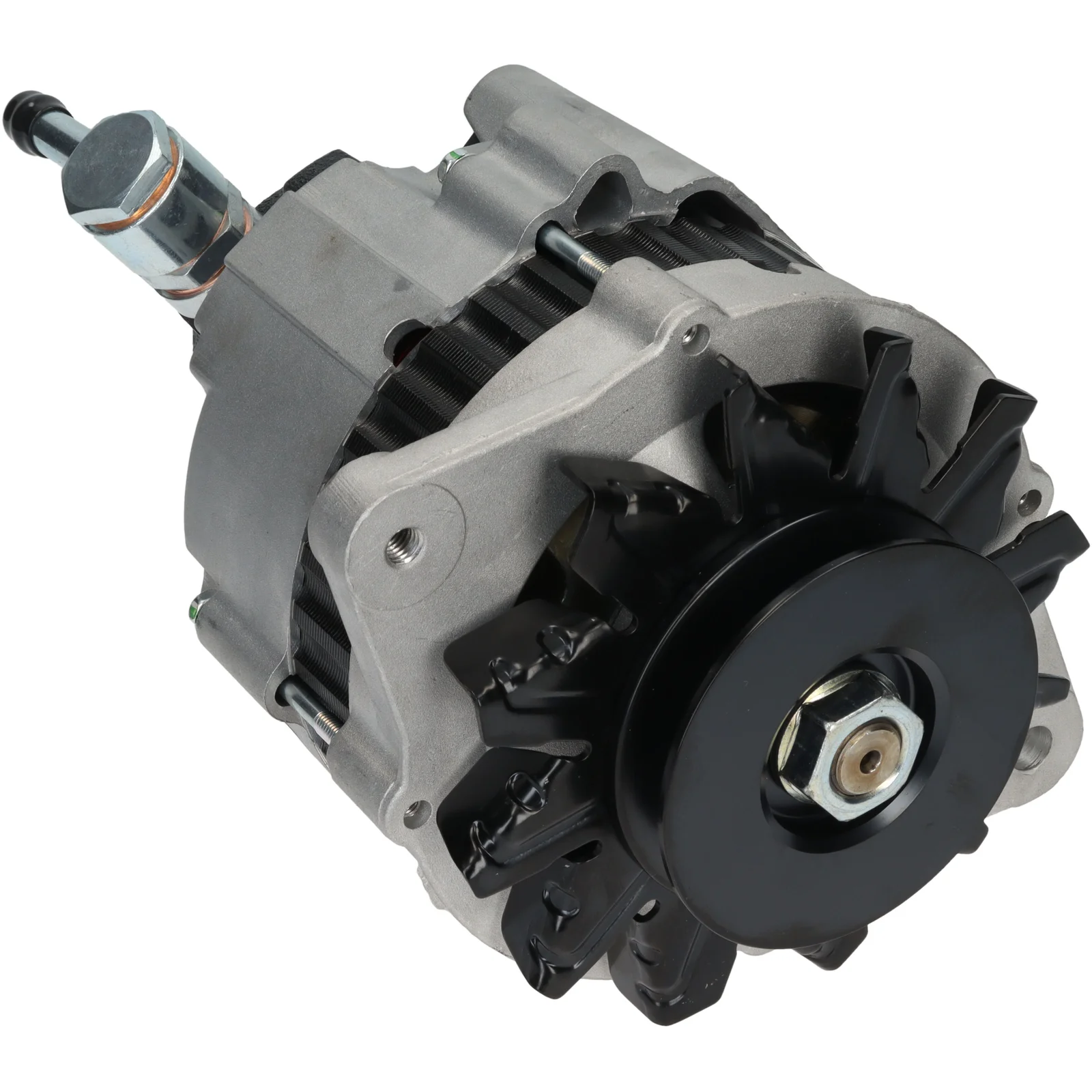

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116106

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 2.67, Rotation: CW, Mount. bracket dist.: 80.00

Description

Voltage: 14
Amp: 2.67
Pulley dist.: 42.30
Width/holder arm: 13.00
Mount. bracket dist.: 80.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 83.50
Grooves/pulley: 1
Radius: 90.00
Radius 2: 85.00
B+: M6
Position/B+ in min.: 42
D+ Size: Plug
Rotation: CW
Plug no.: PL07
Total length mm: 207.00
Lamp type: Inactive
Pulley: P
Fan: EF
Regulator type: IR
Vacuum pump: Yes

Files

  • OEM
    F032116106, lr140-415, lr140-415b, 23100-18g02

  • Normalised article numbler
    a2114s, ada351, cal20165, f032116106, lr140415, lr140415b, 8el726331001, 5326, 56236, 280987, 2310018g02, 2851115, 12060239, 227112402
  • Description
    Voltage: 14
    Amp: 2.67
    Pulley dist.: 42.30
    Width/holder arm: 13.00
    Mount. bracket dist.: 80.00
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 83.50
    Grooves/pulley: 1
    Radius: 90.00
    Radius 2: 85.00
    B+: M6
    Position/B+ in min.: 42
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL07
    Total length mm: 207.00
    Lamp type: Inactive
    Pulley: P
    Fan: EF
    Regulator type: IR
    Vacuum pump: Yes

    Files

  • Suitable for these vehicles

    • OEM
      F032116106, lr140-415, lr140-415b, 23100-18g02

    • Normalised article numbler
      a2114s, ada351, cal20165, f032116106, lr140415, lr140415b, 8el726331001, 5326, 56236, 280987, 2310018g02, 2851115, 12060239, 227112402
