HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116114

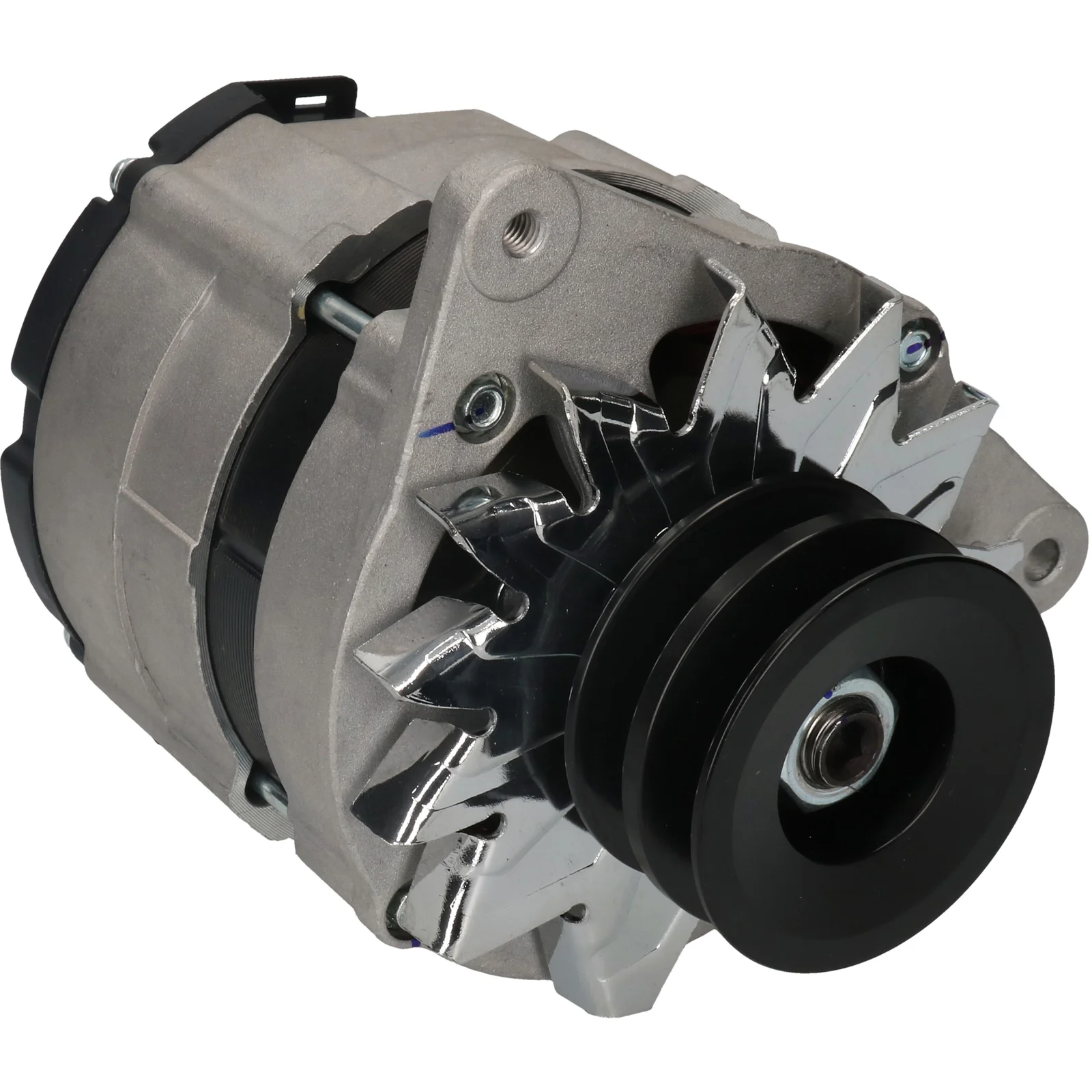

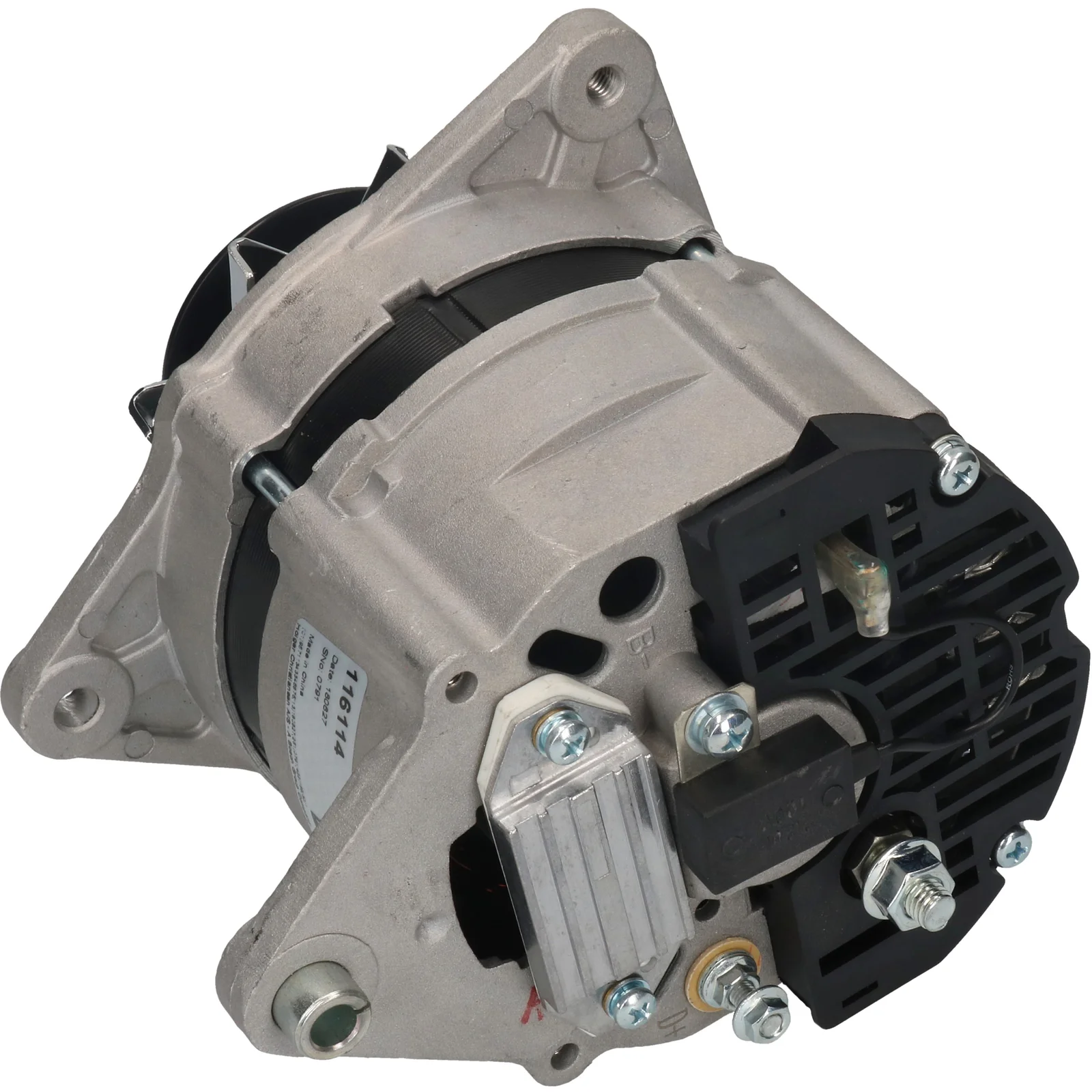

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 80, Rotation: CW, Mounting bracket distance: 81.70

Description

Voltage: 14
Amp: 80
Pulley distance: 38.50
Width/holder arm: 11.00
Mounting bracket distance: 81.70
Bracket hole: 8.40
Belt adjustment bracket hole position: 10
Belt adjustment bracket hole 1: M8
Pulley diameter: 73.00
Grooves/pulley: 2
Radius: 85.00
Radius 2: 85.00
B+: M8
Position/B+ in minutes: 12
D+ Size: M5
Rotation: CW
Total length mm: 186.00
Pulley: DP
Voltage regulator type: IR

Files

  • OEM
    aak3355, aak3356, AAK4344, F032116114, 11.201.984, 11.201.985, 11.203.392, 3821974M91, 3821974m92, 3821975M91, 4279540M93, 82036252

  • Normalised article numbler
    aak3355, aak3356, aak4344, aia0030, alt20651, cal21143, dra0176, f032116114, ia0984, lra03436, mg539, 2354, 11165n, 12697, 12697n, 286548, 553876ri, 3821974m91, 3821974m92, 3821975m91, 4279540m93, 11201984, 11201985, 11203392, 82036252, 705014080
  • Description
    Voltage: 14
    Amp: 80
    Pulley distance: 38.50
    Width/holder arm: 11.00
    Mounting bracket distance: 81.70
    Bracket hole: 8.40
    Belt adjustment bracket hole position: 10
    Belt adjustment bracket hole 1: M8
    Pulley diameter: 73.00
    Grooves/pulley: 2
    Radius: 85.00
    Radius 2: 85.00
    B+: M8
    Position/B+ in minutes: 12
    D+ Size: M5
    Rotation: CW
    Total length mm: 186.00
    Pulley: DP
    Voltage regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      aak3355, aak3356, AAK4344, F032116114, 11.201.984, 11.201.985, 11.203.392, 3821974M91, 3821974m92, 3821975M91, 4279540M93, 82036252

    • Normalised article numbler
      aak3355, aak3356, aak4344, aia0030, alt20651, cal21143, dra0176, f032116114, ia0984, lra03436, mg539, 2354, 11165n, 12697, 12697n, 286548, 553876ri, 3821974m91, 3821974m92, 3821975m91, 4279540m93, 11201984, 11201985, 11203392, 82036252, 705014080
