HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116125

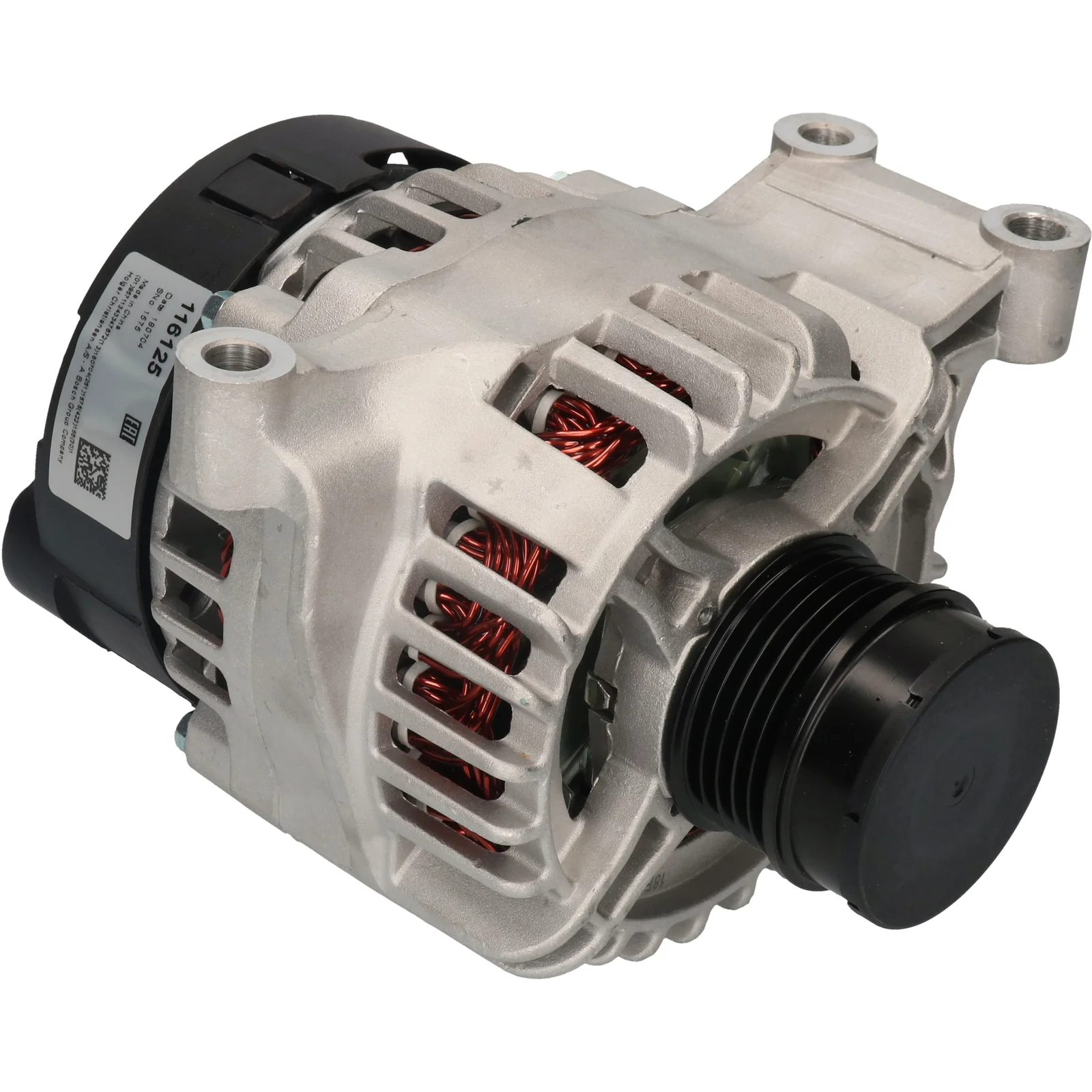

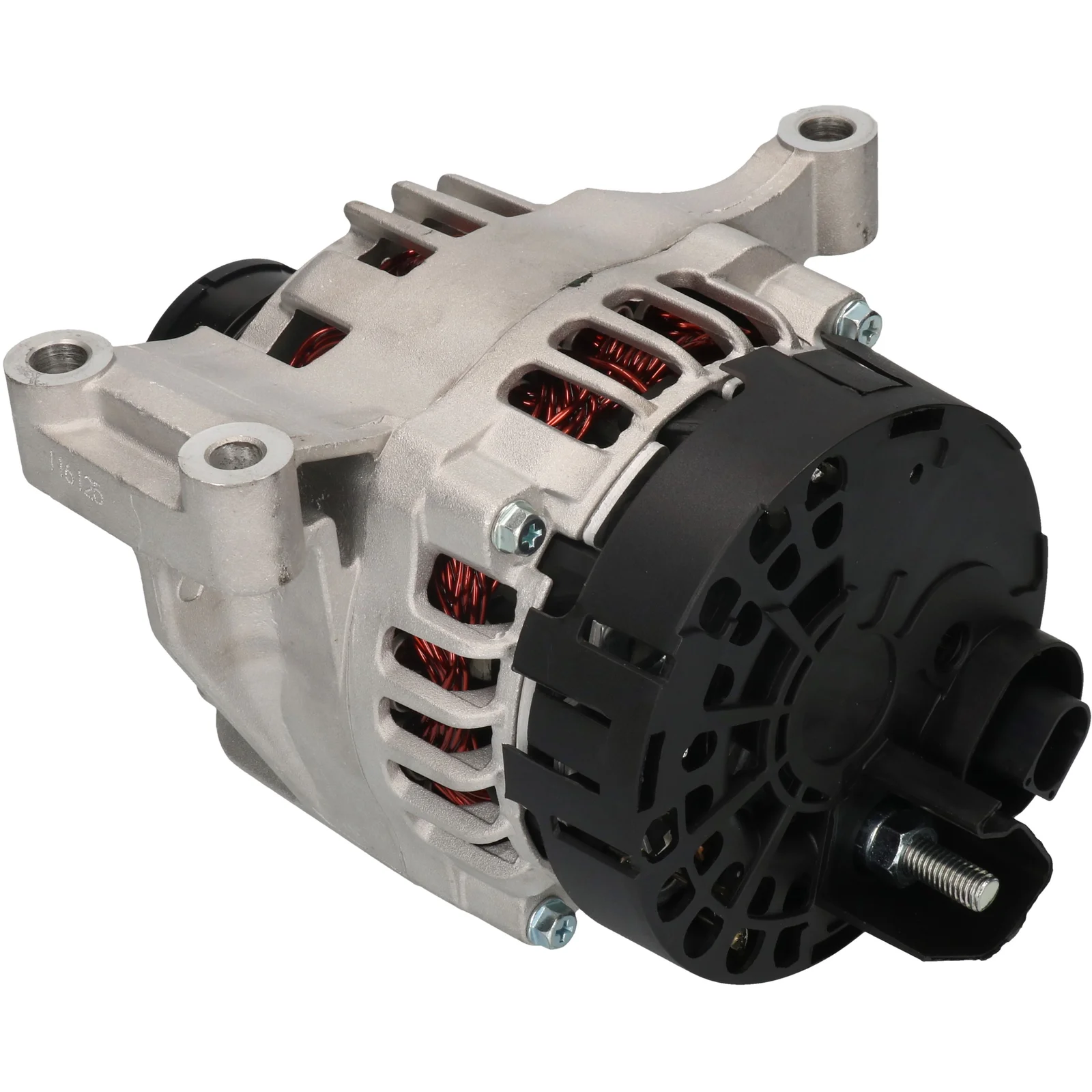

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 120, Rotation: CW, Mounting bracket distance: 50.00

Description

HC-Cargo Alternator 14V - 120A, 5 grooves

Voltage: 14
Amperage: 120
Pulley diameter: 17.00
Width/holder arm: 24.00
Mounting bracket diameter: 50.00
Bracket hole: 8.50
Bracket hole 2: 10.50
Belt adjustment bracket hole 1: 8.50
Belt adjustment bracket hole 2: 10.50
Pulley diameter: 54.00
Grooves/pulley: 5
B+: M8
Position/B+ in min.: 10
Rotation: CW
Plug no.: PL174
Total length mm: 197.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Regulator type: IR
Prod. info: BN
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116125, 1986A00607, 101210-1660, 101210-1670, 101210-1840, 104211-4820, 116125, 51874104, 51874105, 51929095, 52137908

  • Normalised article numbler
    a6130, a6130denso, a6130s, cal40372, dan1078, dra1318, f032116125, lra03659, 1986a00607, 116125, 210948, 210948a, 286799, 553583ri, 12090749, 32561010, 51874104, 51874105, 51929095, 52137908, 505574120, 0986084710, 1012101660, 1012101670, 1012101840, 1042114820
  • Description
    HC-Cargo Alternator 14V - 120A, 5 grooves

    Voltage: 14
    Amperage: 120
    Pulley diameter: 17.00
    Width/holder arm: 24.00
    Mounting bracket diameter: 50.00
    Bracket hole: 8.50
    Bracket hole 2: 10.50
    Belt adjustment bracket hole 1: 8.50
    Belt adjustment bracket hole 2: 10.50
    Pulley diameter: 54.00
    Grooves/pulley: 5
    B+: M8
    Position/B+ in min.: 10
    Rotation: CW
    Plug no.: PL174
    Total length mm: 197.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Regulator type: IR
    Prod. info: BN
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116125, 1986A00607, 101210-1660, 101210-1670, 101210-1840, 104211-4820, 116125, 51874104, 51874105, 51929095, 52137908

    • Normalised article numbler
      a6130, a6130denso, a6130s, cal40372, dan1078, dra1318, f032116125, lra03659, 1986a00607, 116125, 210948, 210948a, 286799, 553583ri, 12090749, 32561010, 51874104, 51874105, 51929095, 52137908, 505574120, 0986084710, 1012101660, 1012101670, 1012101840, 1042114820
