HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116147

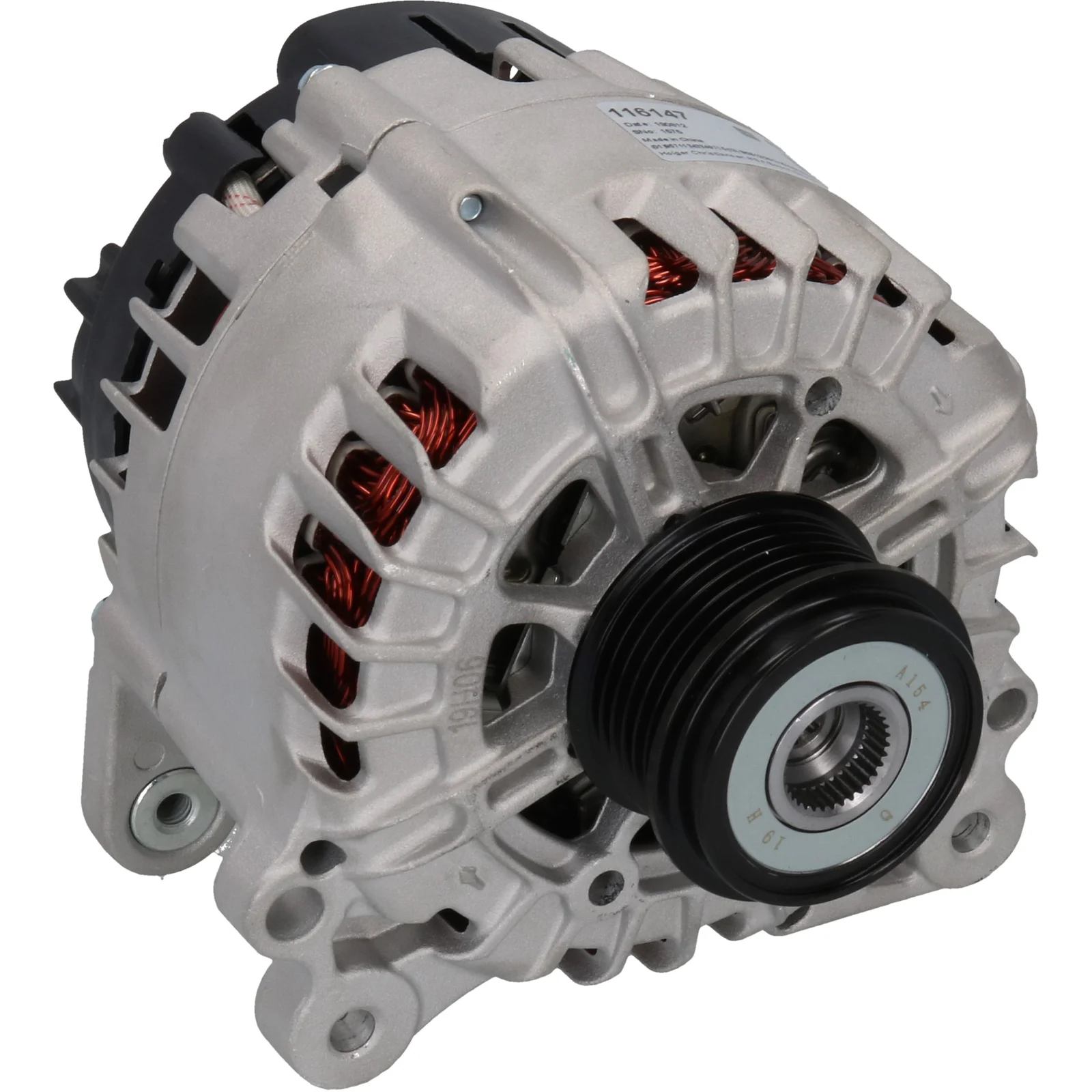

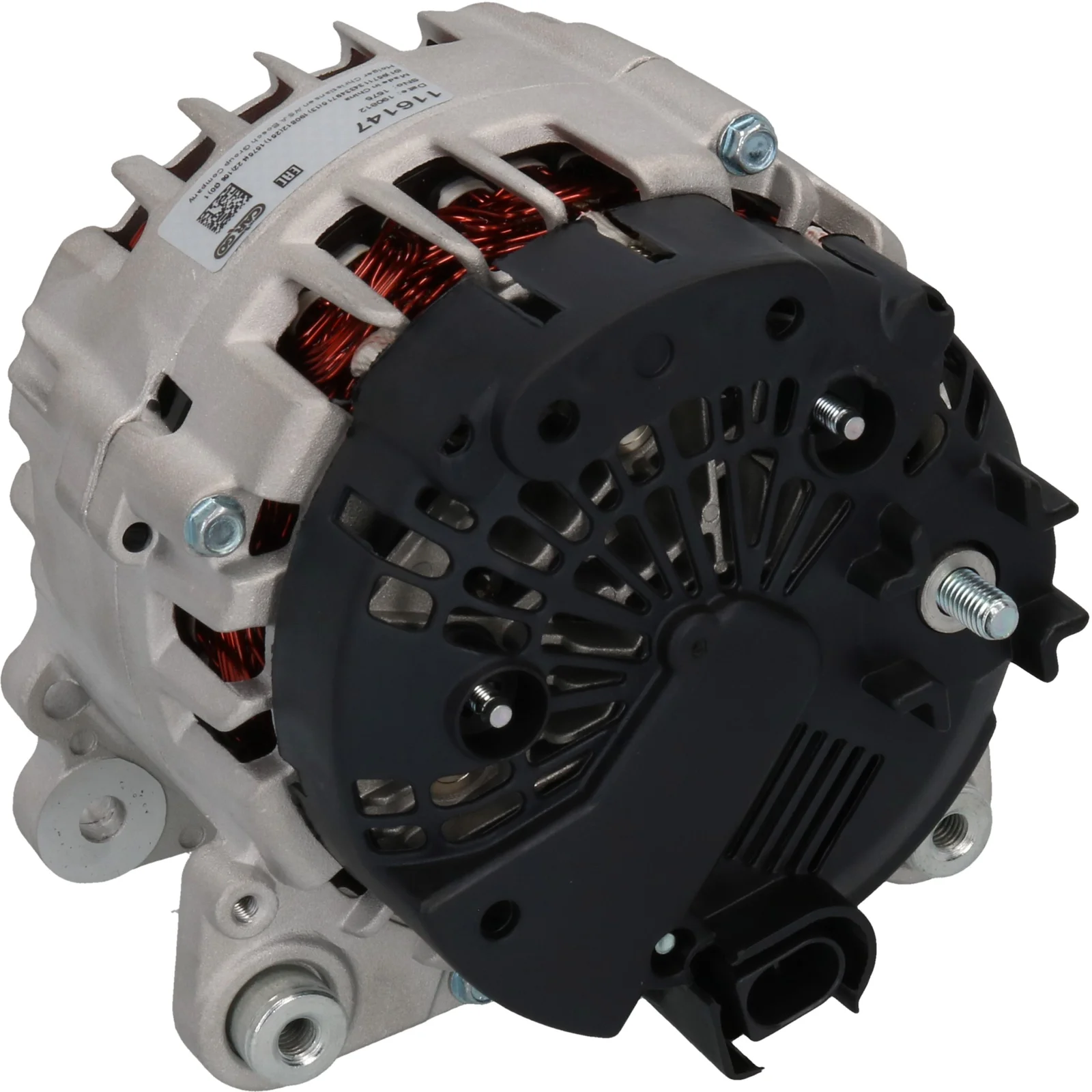

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 180, Rotation: CW, Mounting bracket distributor: 60.80

Description

Voltage: 14
Amp: 180
Pulley dist.: 29.30
Width/holder arm: 13.70
Mounting bracket dist.: 60.80
Bracket hole: 8.50
Belt adjustment bracket hole position.: 15
Belt adjustment bracket hole 1: 8.50
Pulley dia.: 56.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 25
Rotation: CW
Plug no.: PL181
Total length mm: 191.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Regulator type: IR
Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116147, FG18S100, FG18T094, FG18T120, FGN18S100, 059903019D, 059903023K, 059903023KX, 059903023M, 059903023MX

  • Normalised article numbler
    a3147, a3147valeo, a3468s, a3600s, cal15399, cal15485, cal15514, cal15543, dra0675, dra0794, f032116147, fg18s100, fg18t094, fg18t120, fgn18s100, lra03358, 20939an, 113447, 209195, 209195a, 285970, 439777, 439784, 439838, 440410, 440416, 440563, 553442ri, 553626ri, 553959ri, 9090608, 9090860, 12090474, 12090661, 059903019d, 059903023k, 059903023kx, 059903023m, 059903023mx, 305902180, 305912180, 2113751802
  • Description
    Voltage: 14
    Amp: 180
    Pulley dist.: 29.30
    Width/holder arm: 13.70
    Mounting bracket dist.: 60.80
    Bracket hole: 8.50
    Belt adjustment bracket hole position.: 15
    Belt adjustment bracket hole 1: 8.50
    Pulley dia.: 56.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 25
    Rotation: CW
    Plug no.: PL181
    Total length mm: 191.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116147, FG18S100, FG18T094, FG18T120, FGN18S100, 059903019D, 059903023K, 059903023KX, 059903023M, 059903023MX

    • Normalised article numbler
      a3147, a3147valeo, a3468s, a3600s, cal15399, cal15485, cal15514, cal15543, dra0675, dra0794, f032116147, fg18s100, fg18t094, fg18t120, fgn18s100, lra03358, 20939an, 113447, 209195, 209195a, 285970, 439777, 439784, 439838, 440410, 440416, 440563, 553442ri, 553626ri, 553959ri, 9090608, 9090860, 12090474, 12090661, 059903019d, 059903023k, 059903023kx, 059903023m, 059903023mx, 305902180, 305912180, 2113751802
