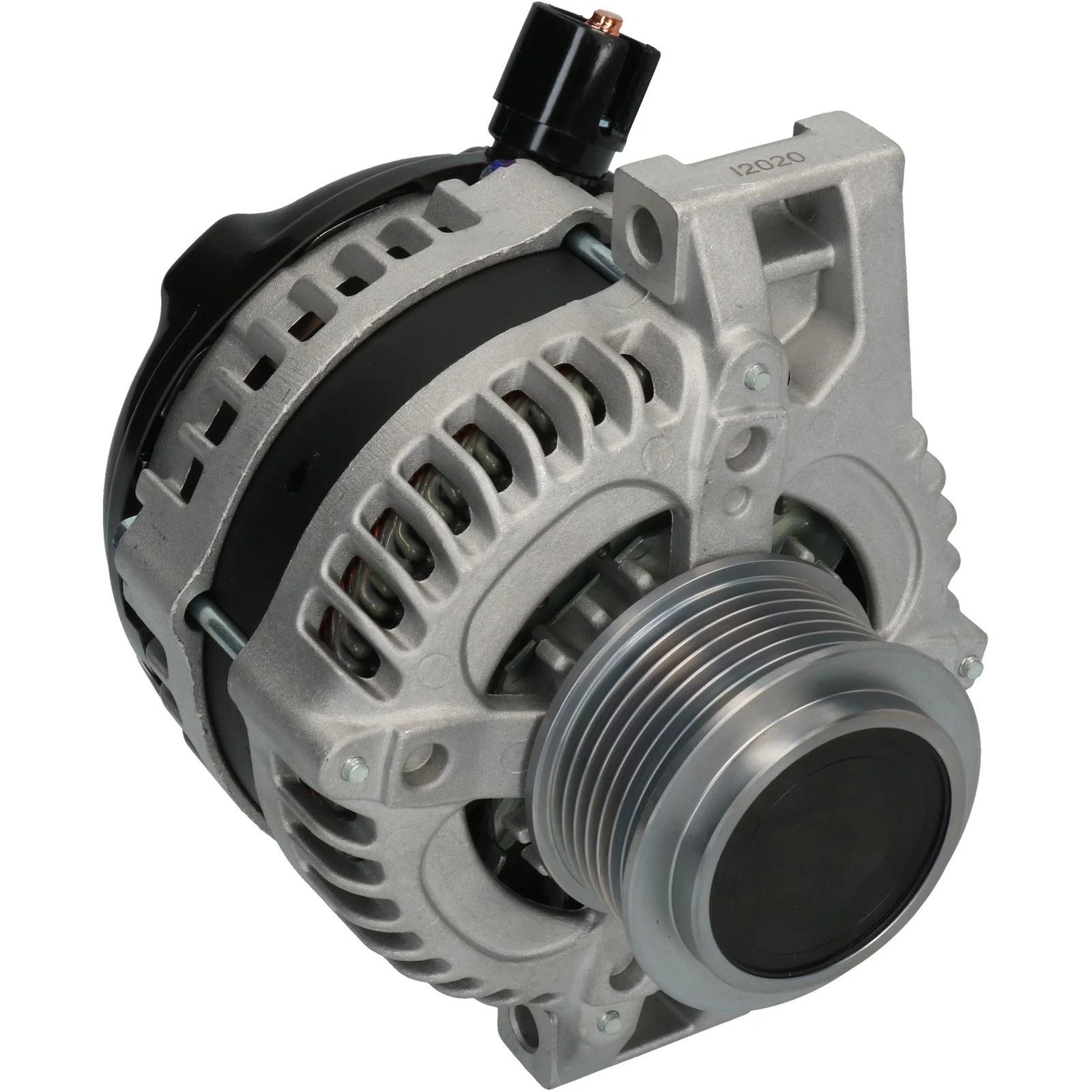

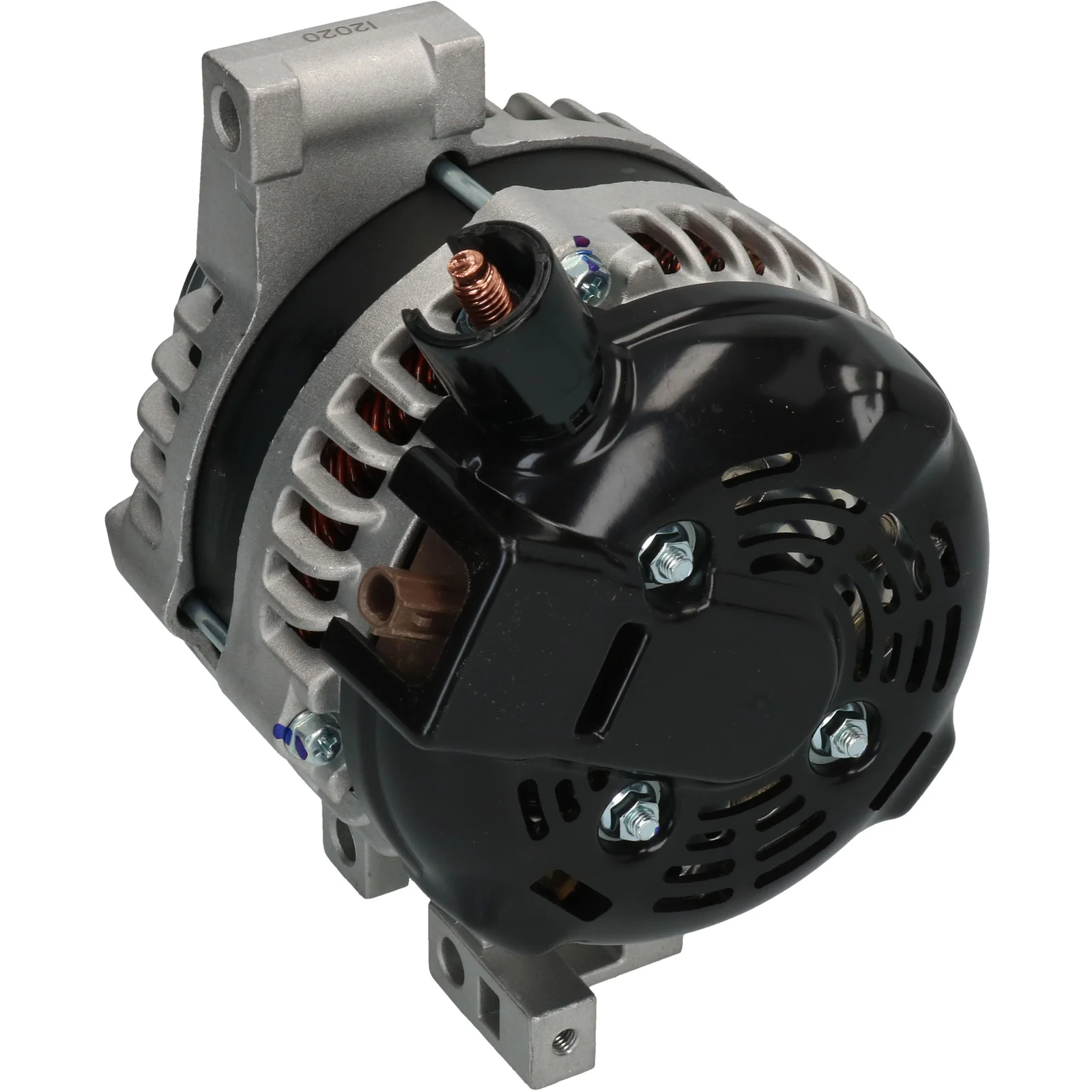

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116148

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 150, Rotation: CW, Mounting bracket distance: 43.50

Description

Voltage: 14
Amp: 150
Width/holder arm: 46.00
Mounting bracket distance: 43.50
Bracket hole: 8.90
Belt adjustment bracket hole 1: 9.00
Pulley diameter: 65.00
Grooves/pulley: 7
Radius: 81.50
Radius 2: 80.50
B+: M8
Position/B+ in min.: 58
Rotation: CW
Plug number: PL205
Total length mm: 167.00
Terminal type: COM
Lamp type: Active
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    CSJ65, F032116148, MAN7582, 31100-R3L-G01, 104210-1650

  • Normalised article numbler
    a6566s, cal40430, csj65, dan1308, dra1218, f032116148, lra04008, man7582, 8el015637471, 31100r3lg01, 210970, 210970a, 287618, 554459ri, 12061217, 125570150, 1042101650, 2221691502
  • Description
    Voltage: 14
    Amp: 150
    Width/holder arm: 46.00
    Mounting bracket distance: 43.50
    Bracket hole: 8.90
    Belt adjustment bracket hole 1: 9.00
    Pulley diameter: 65.00
    Grooves/pulley: 7
    Radius: 81.50
    Radius 2: 80.50
    B+: M8
    Position/B+ in min.: 58
    Rotation: CW
    Plug number: PL205
    Total length mm: 167.00
    Terminal type: COM
    Lamp type: Active
    Communication: LIN
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      CSJ65, F032116148, MAN7582, 31100-R3L-G01, 104210-1650

    • Normalised article numbler
      a6566s, cal40430, csj65, dan1308, dra1218, f032116148, lra04008, man7582, 8el015637471, 31100r3lg01, 210970, 210970a, 287618, 554459ri, 12061217, 125570150, 1042101650, 2221691502
