HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116150

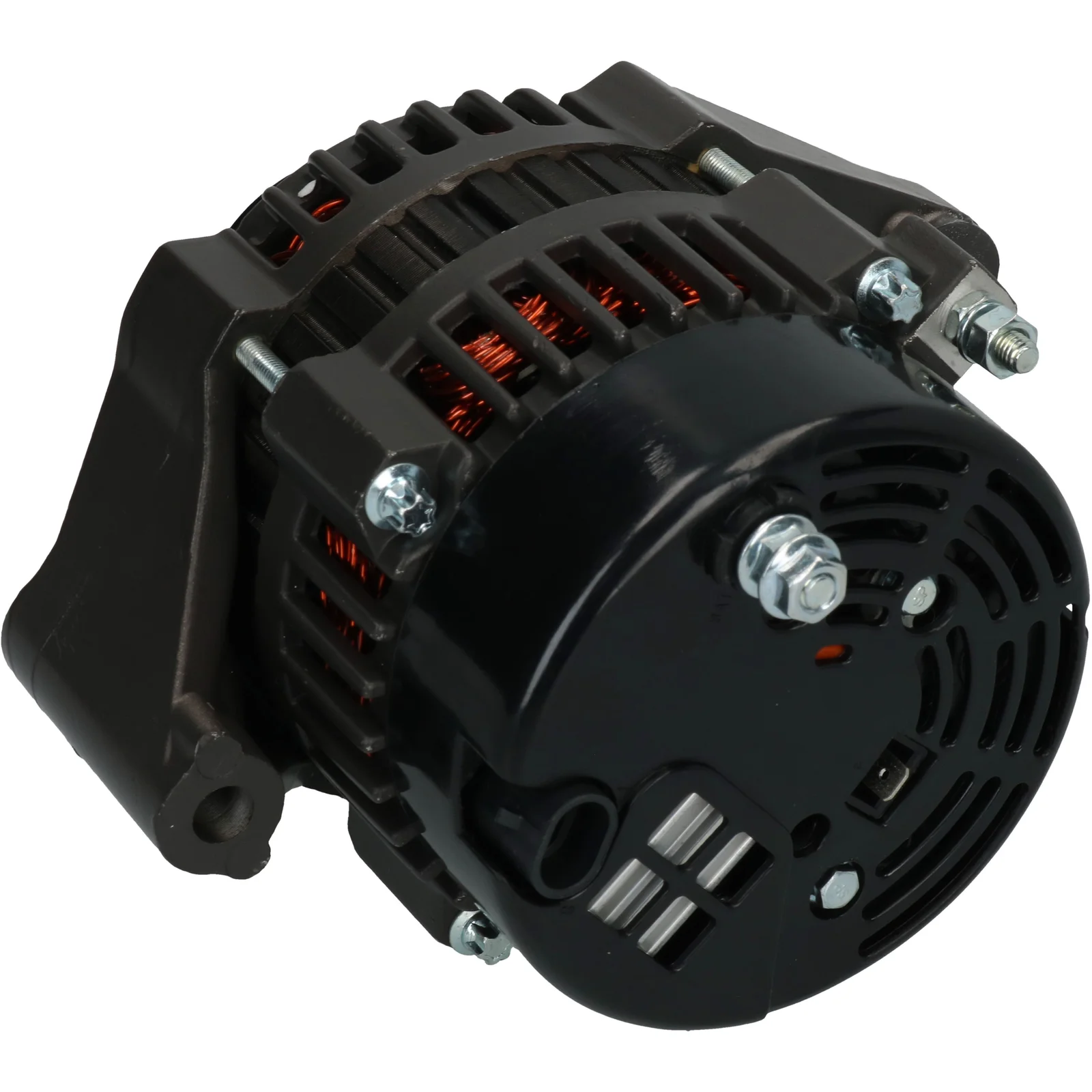

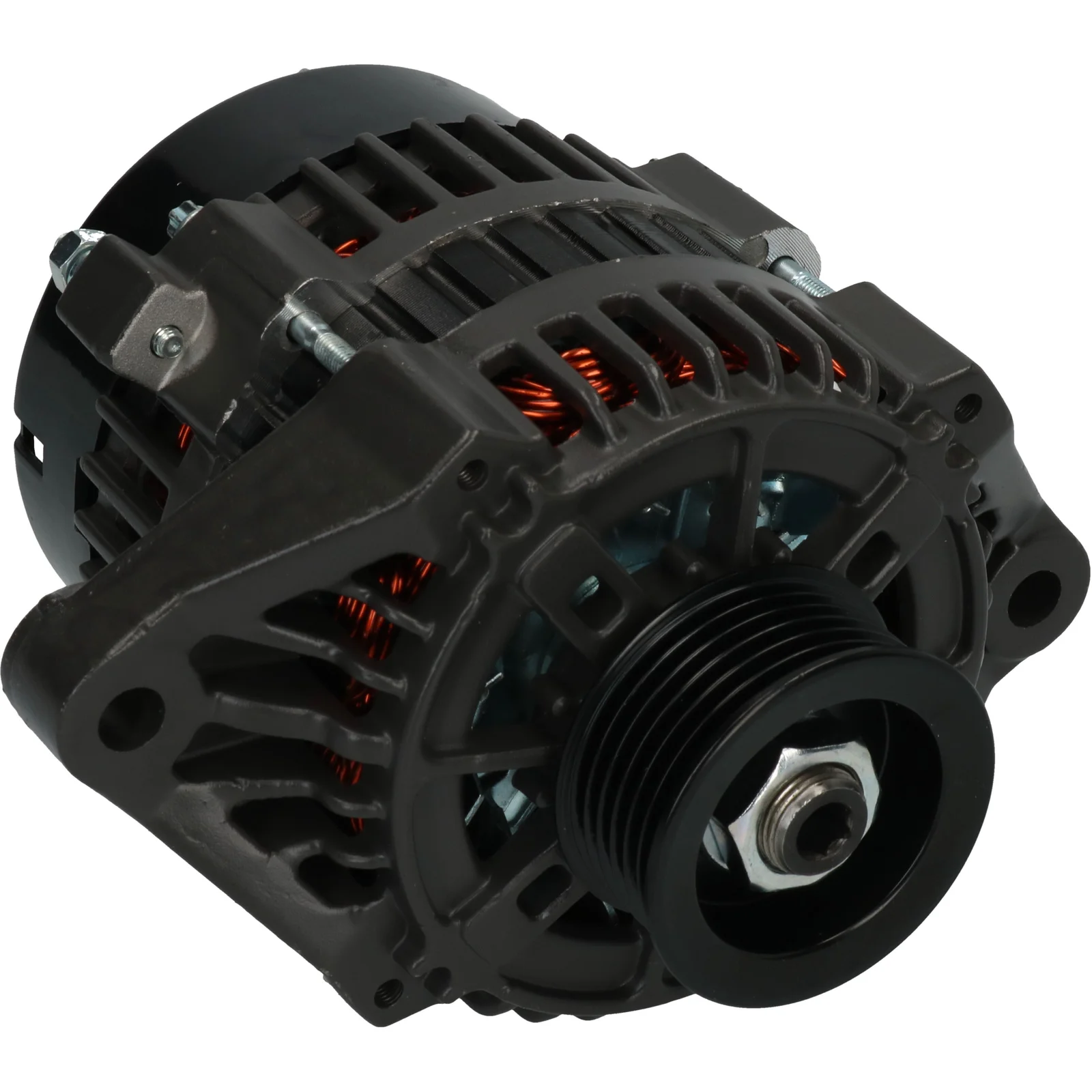

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 70, Rotation: CW, Pulley diameter: 55.00

Description

Voltage: 14
Amp: 70
Pulley dist.: 91.50
Width/holder arm: 61.00
Bracket hole: 10.20
Belt. adjustment bracket hole position: 60
Belt. adjustment bracket hole 1: 10.20
Pulley diameter: 55.00
Grooves/pulley: 6
Radius: 79.50
Radius 2: 84.00
B+: M6
Position/B+ in min.: 45
D+ Size: Plug
Rotation: CW
Plug no.: PL145
W plug type: 6.30
Total length mm: 177.00
Alternator: SP
Fan: IF
Voltage regulator type: IR

Files

  • OEM
    F032116150, 89-2940T, 892940T, 892940T01, 892940T02, 19020618

  • Normalised article numbler
    adr0294, cal60121, f032116150, 8464, 8464n, 554306ri, 892940t, 892940t01, 892940t02, 19020618, 975513070
  • Description
    Voltage: 14
    Amp: 70
    Pulley dist.: 91.50
    Width/holder arm: 61.00
    Bracket hole: 10.20
    Belt. adjustment bracket hole position: 60
    Belt. adjustment bracket hole 1: 10.20
    Pulley diameter: 55.00
    Grooves/pulley: 6
    Radius: 79.50
    Radius 2: 84.00
    B+: M6
    Position/B+ in min.: 45
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL145
    W plug type: 6.30
    Total length mm: 177.00
    Alternator: SP
    Fan: IF
    Voltage regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F032116150, 89-2940T, 892940T, 892940T01, 892940T02, 19020618

    • Normalised article numbler
      adr0294, cal60121, f032116150, 8464, 8464n, 554306ri, 892940t, 892940t01, 892940t02, 19020618, 975513070
