HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116154

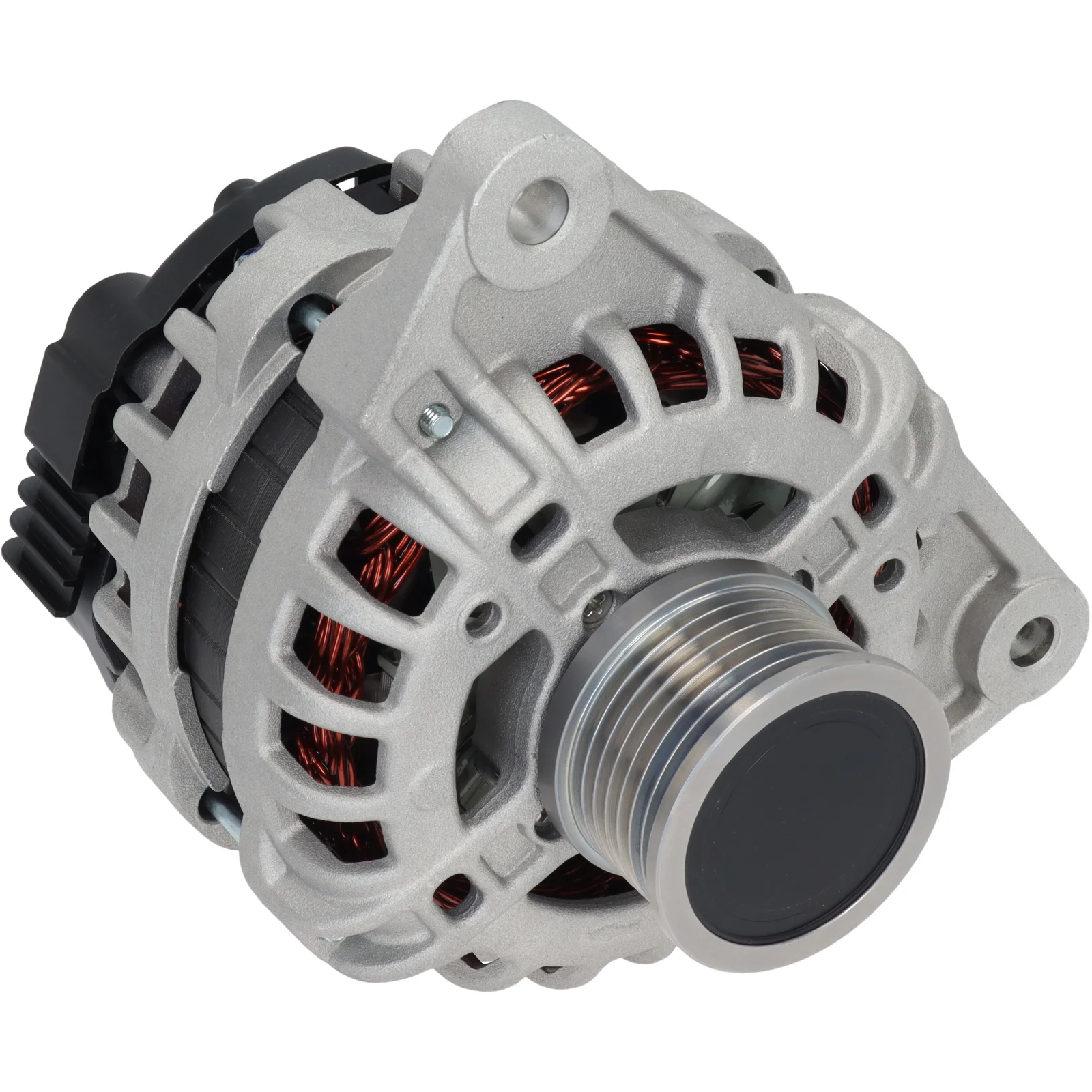

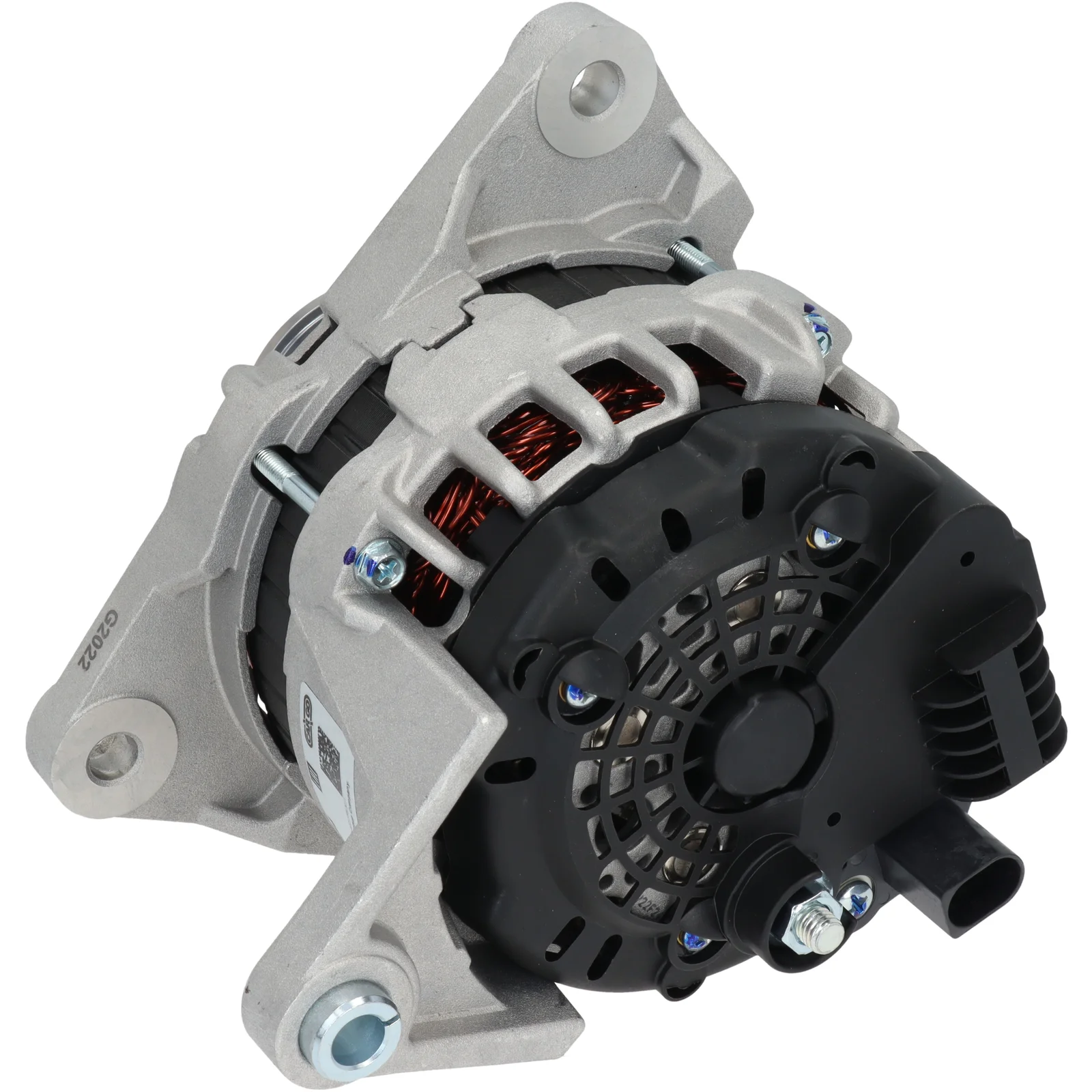

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 120, Rotation: CW, Mounting bracket dist.: 83.50

Description

Voltage: 14
Amp: 120
Pulley dist.: 38.00
Width/holder arm: 14.00
Mount. bracket dist.: 83.50
Bracket hole: 10.50
Belt. adj. brackethole pos.: 10
Belt. adj. bracket hole 1: 11.00
Pulley dia.: 54.80
Grooves/pulley: 7
Radius: 94.20
Radius 2: 95.80
B+: M8
Position/B+ in min.: 16
D+ Size: Plug
Rotation: CW
Plug no.: PL61
Total length mm: 167.00
Pulley: SP/FW
Fan: IF
Regulator type: IR

Files

  • OEM
    F000BL0622, F000BL06M5, F032116154, ME230742, MK667724, 1986A01983

  • Normalised article numbler
    a0579s, cal10543, f000bl0622, f000bl06m5, f032116154, me230742, mk667724, 1986a01983, 21209n, 554298ri, 12061190, 155903110
  • Description
    Voltage: 14
    Amp: 120
    Pulley dist.: 38.00
    Width/holder arm: 14.00
    Mount. bracket dist.: 83.50
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 10
    Belt. adj. bracket hole 1: 11.00
    Pulley dia.: 54.80
    Grooves/pulley: 7
    Radius: 94.20
    Radius 2: 95.80
    B+: M8
    Position/B+ in min.: 16
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL61
    Total length mm: 167.00
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F000BL0622, F000BL06M5, F032116154, ME230742, MK667724, 1986A01983

    • Normalised article numbler
      a0579s, cal10543, f000bl0622, f000bl06m5, f032116154, me230742, mk667724, 1986a01983, 21209n, 554298ri, 12061190, 155903110
