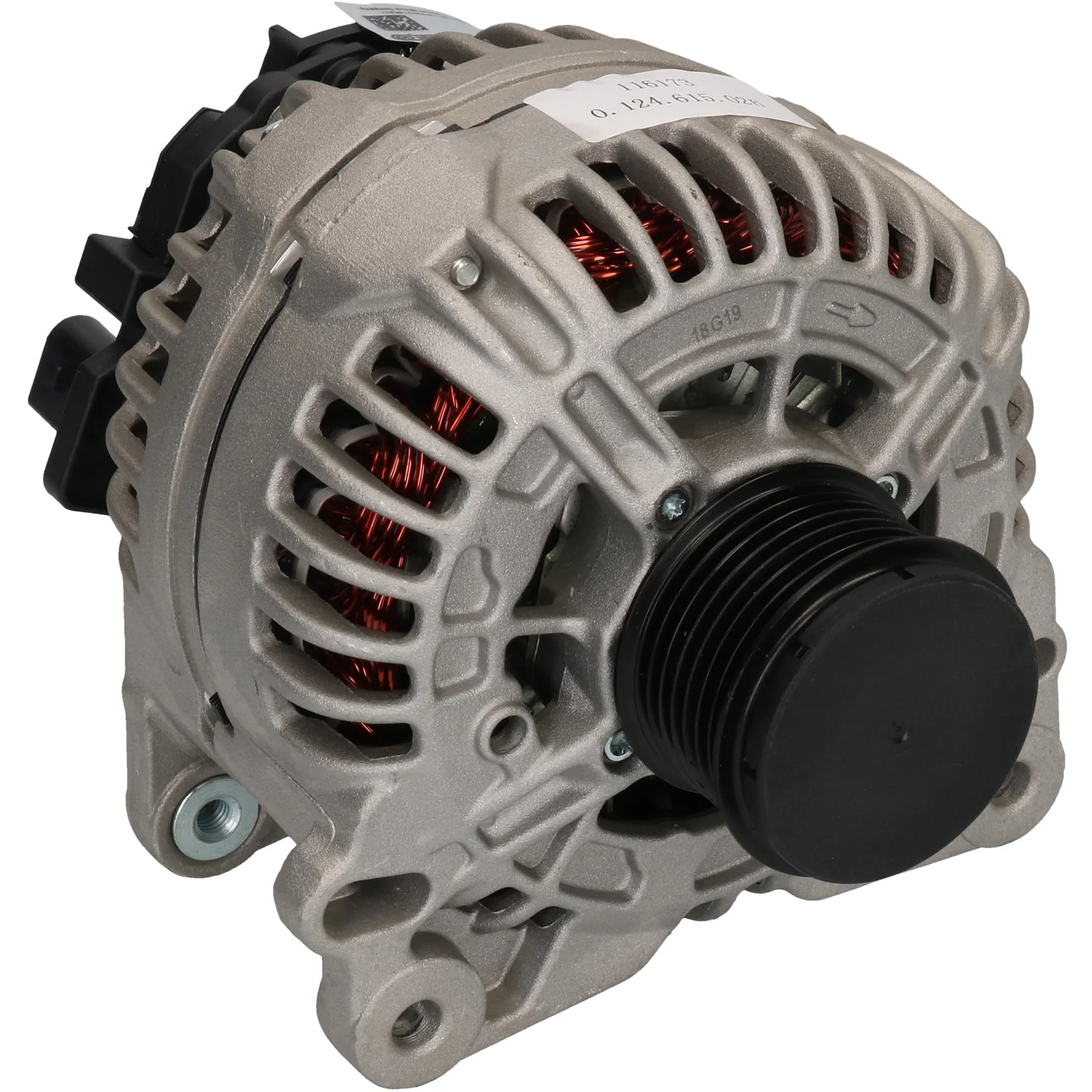

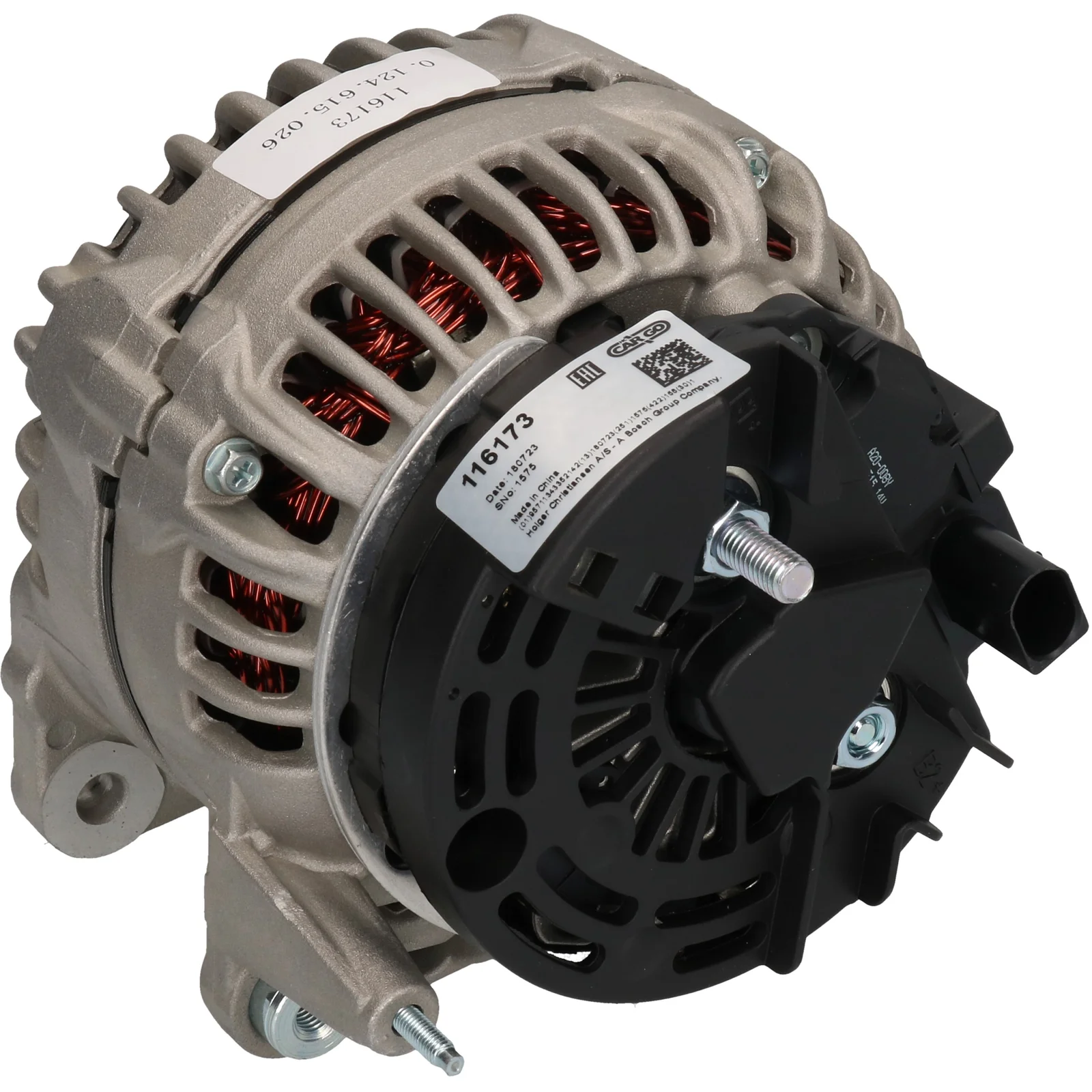

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116173

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 150, Rotation: clockwise, Mounting bracket distributor: 61.00

Description

Voltage: 14
Amp: 150
Pulley dist.: 30.00
Width/holder arm: 14.00
Mount. bracket dist.: 61.00
Bracket hole: 8.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 56.00
Grooves/pulley: 7
Radius: 92.00
Radius 2: 92.00
B+: M8
Position/B+ in min.: 55
D+ Size: Plug
Rotation: CW
Plug no.: PL61
Total length mm: 200.00
Pulley: SP/FW
Voltage regulator type: IR

Files

  • OEM
    F032116173, 1749IR, 1986A00937, 021903026B, 074903018, 0124615026, 0124615067, 95560301700, 95560391701

  • Normalised article numbler
    a0709s, cal10254, dra4163, f032116173, lra02346, 1749ir, 1986a00937, 23346n, 210606, 210606a, 284848, 301749ri, 12047450, 021903026b, 32000018, 074903018, 0124615026, 0124615067, 305565150, 0986047450, 0986047457, 95560301700, 95560391701
  • Description
    Voltage: 14
    Amp: 150
    Pulley dist.: 30.00
    Width/holder arm: 14.00
    Mount. bracket dist.: 61.00
    Bracket hole: 8.50
    Belt. adj. brackethole pos.: 45
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 56.00
    Grooves/pulley: 7
    Radius: 92.00
    Radius 2: 92.00
    B+: M8
    Position/B+ in min.: 55
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL61
    Total length mm: 200.00
    Pulley: SP/FW
    Voltage regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F032116173, 1749IR, 1986A00937, 021903026B, 074903018, 0124615026, 0124615067, 95560301700, 95560391701

    • Normalised article numbler
      a0709s, cal10254, dra4163, f032116173, lra02346, 1749ir, 1986a00937, 23346n, 210606, 210606a, 284848, 301749ri, 12047450, 021903026b, 32000018, 074903018, 0124615026, 0124615067, 305565150, 0986047450, 0986047457, 95560301700, 95560391701
